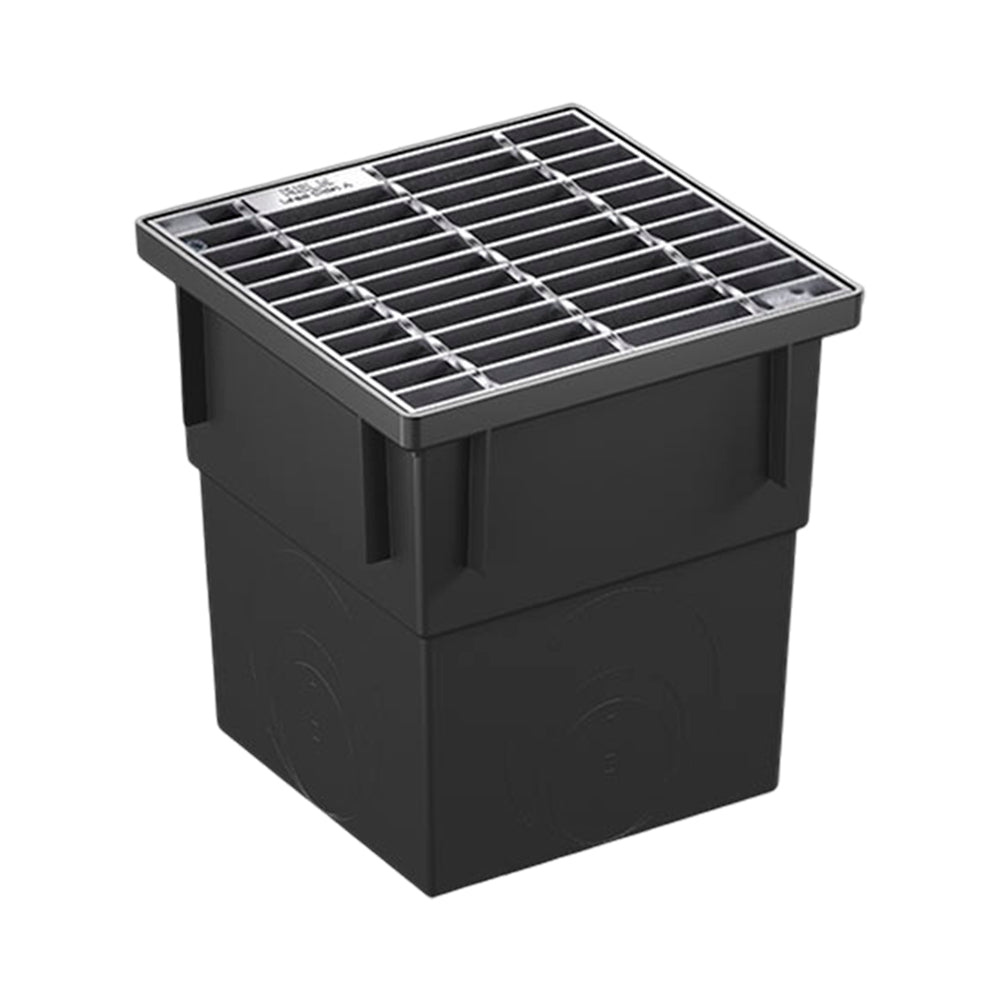

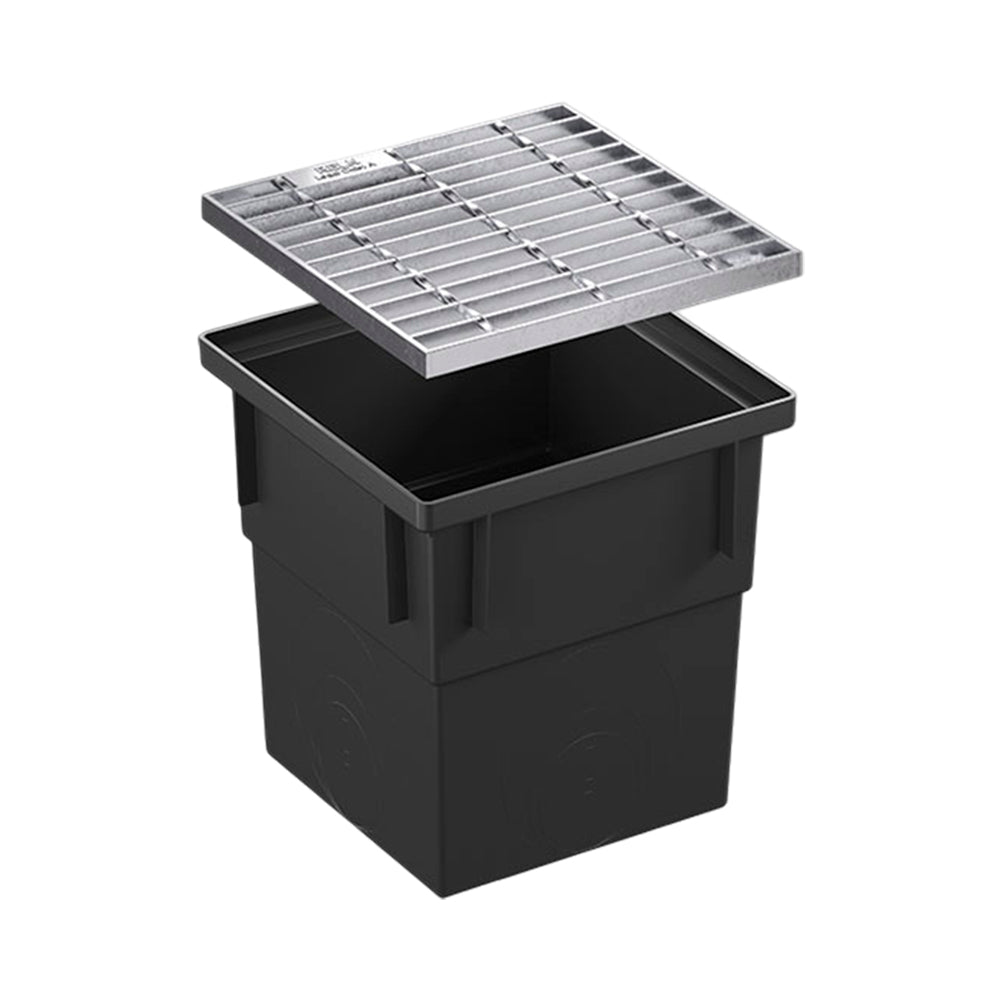

RELN Series 300 domestic drainage pits are traditional surfacewater pits for larger household drainage applications. They are suitable for paved areas, pedestrian areas, light domestic vehicle areas, junction points and the end of surface drainage channels where the pit size, grate type and installation method suit the site requirements.
This range includes complete Series 300 pits with selected aluminium, galvanised steel and ductile iron grates, a pit-only option, a 250mm riser and a leaf drain guard accessory. Series 300 pits connect to 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings, which should be sealed with silicone during installation. Confirm grate type, load rating, pipe layout, riser requirements and concrete support before ordering.
