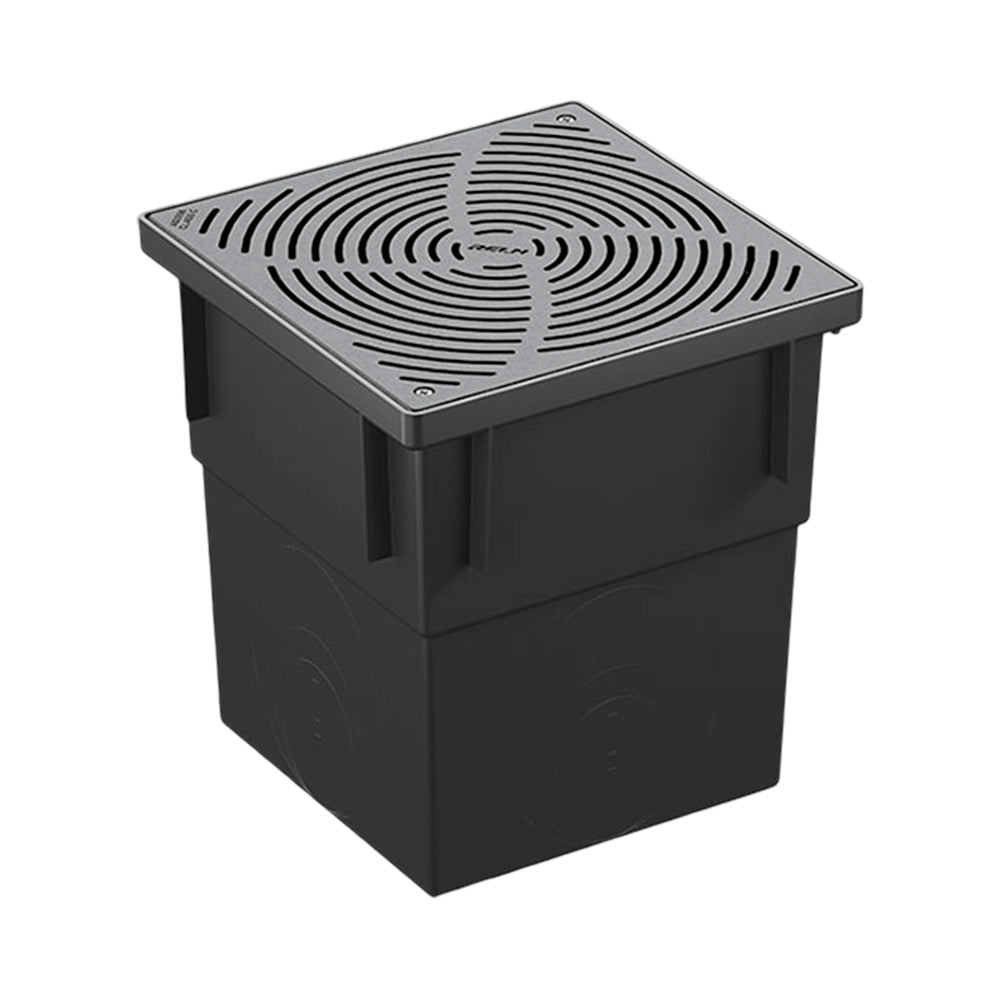

RELN SERIES 300 PIT WITH DUCTILE IRON CLASS C GRATE

RELN Series 300 drainage pit with ductile iron Class C grate for suitable commercial and slow-moving vehicle applications where the installation supports the required loading.

✓ Complete Series 300 Pit
✓ 343mm x 343mm x 325mm Pit Size
✓ 22 Litre Capacity
✓ Ductile Iron Class C Grate
✓ 15,000kg Heavy Duty Listed Rating
✓ Suits 90mm or 100mm PVC Pipe

RELN Domesitc Traditional Pits Brochure

More Information
Product Specifications
Product Videos
RELN Pit and Ductile Iron Grate-Class C Series 300
RELN SERIES 300 PIT WITH DUCTILE IRON CLASS C GRATE
RELN Pit and Galvanised Steel Grate-Class A Series 300
RELN Pit and Galvanised Steel Grate-Class A Series 300 RPS300GSLDG
$57.04 /each
RELN Pit and Galvanised Steel Grate-Heel Guard Class A Series 300
RELN Pit and Galvanised Steel Grate-Heel Guard Class A Series 300 RPS300GSHGLDG
$79.94 /each
RELN Pit and Aluminium Grate-Plain Series 300
RELN Pit and Aluminium Grate-Plain Series 300 RPS300ALPSL
$92.85 /each
RELN Pit and Aluminium Grate-Plain Series 300
RELN Pit and Aluminium Grate-Plain Series 300 RPS300ALPG
$67.20 /each
RELN Pit and Aluminium Grate-Terracotta Series 300
RELN Pit and Aluminium Grate-Terracotta Series 300 RPS300ALTCG
$74.20 /each
RELN Pit and Aluminium Grate-Sandstone Series 300
RELN Pit and Aluminium Grate-Sandstone Series 300 RPS300ALSSG
$74.20 /each
RELN Pit and Ductile Iron Grate-Class C Series 300
RELN Pit and Ductile Iron Grate-Class C Series 300 RPS300DIG
$106.01 /each
RELN (PIT ONLY) Series 300
RELN (PIT ONLY) Series 300 RPS300
$19.74 /each
RELN (RISER ONLY) Series 300
RELN (RISER ONLY) Series 300 RPRS300
$50.22 /each
Reln Pit Series 300 Leaf Drain Guard with Handle (GUARD ONLY)
Reln Pit Series 300 Leaf Drain Guard with Handle (GUARD ONLY) RPDGS300L
$16.99 /each

RELN Series 300 domestic drainage pit with ductile iron Class C grate is a traditional surfacewater pit for drainage applications where a stronger Class C grate is required. It is suitable for commercial and slow-moving vehicle applications only where the Class C grate, pit installation and surrounding concrete support are appropriate.

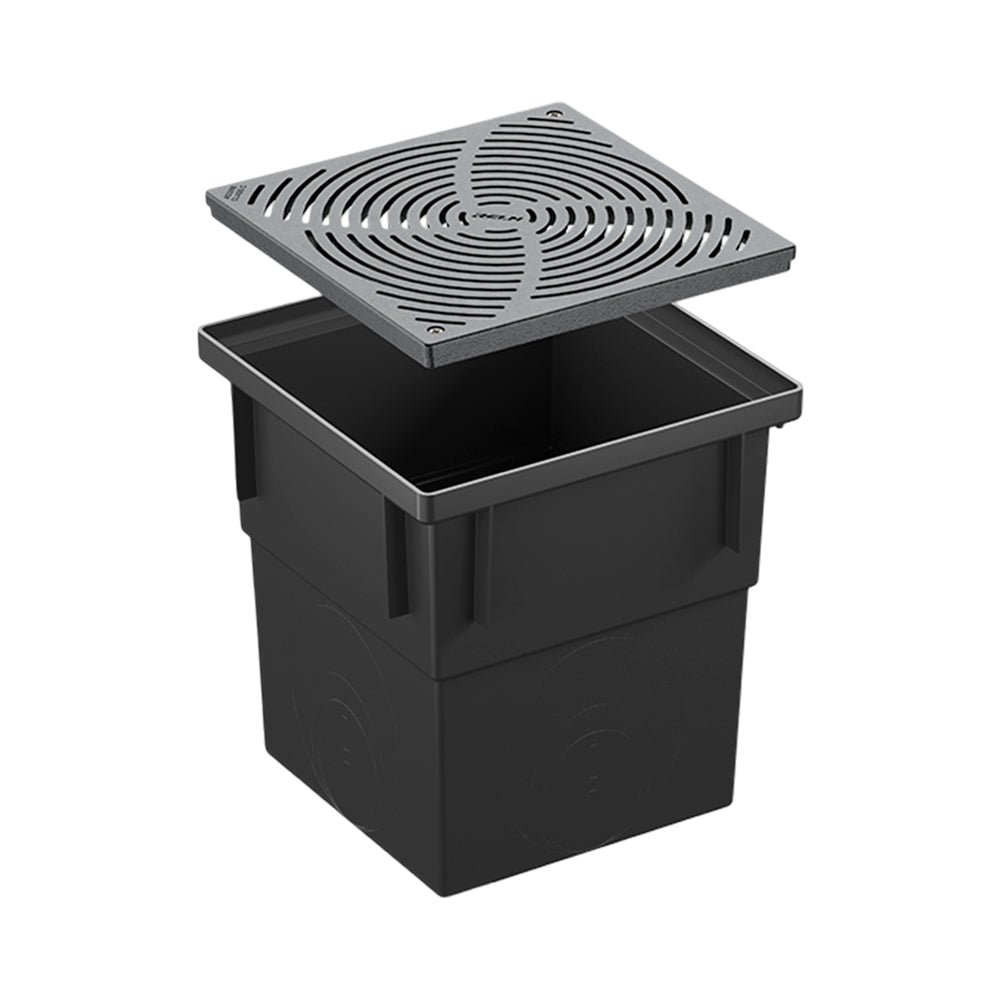

Supplied as a complete Series 300 pit with ductile iron Class C grate. The pit measures 343mm x 343mm x 325mm and has a 22 litre capacity. It connects to 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings, which should be sealed with silicone. Confirm grate rating, pipe layout, loading conditions and installation requirements before ordering.

RELN Domesitc Traditional Pits Brochure

✓ Product Type & Size
RELN Series 300 traditional drainage pit, 343mm x 343mm x 325mm.

✓ Series
RELN Series 300 Traditional Domestic Pit.

✓ Capacity
22 litre capacity.

✓ Grate Type
Ductile iron Class C civil grate.

✓ Load Rating
Class C, 15,000kg heavy duty listed rating.

✓ Material
UV stabilised recycled plastic pit body with ductile iron grate.

✓ Pipe Connection
Suitable for 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings.

✓ Installation
Mark and cut pipe holes as required. Seal pipe and pit connection with silicone.

✓ Applications
Suitable for commercial and slow-moving vehicle applications where the Class C grate, pit installation and surrounding concrete support are appropriate.

✓ Installation Note
Confirm pipe size, drainage layout, grate rating, loading conditions, concrete support and installation requirements before ordering.
