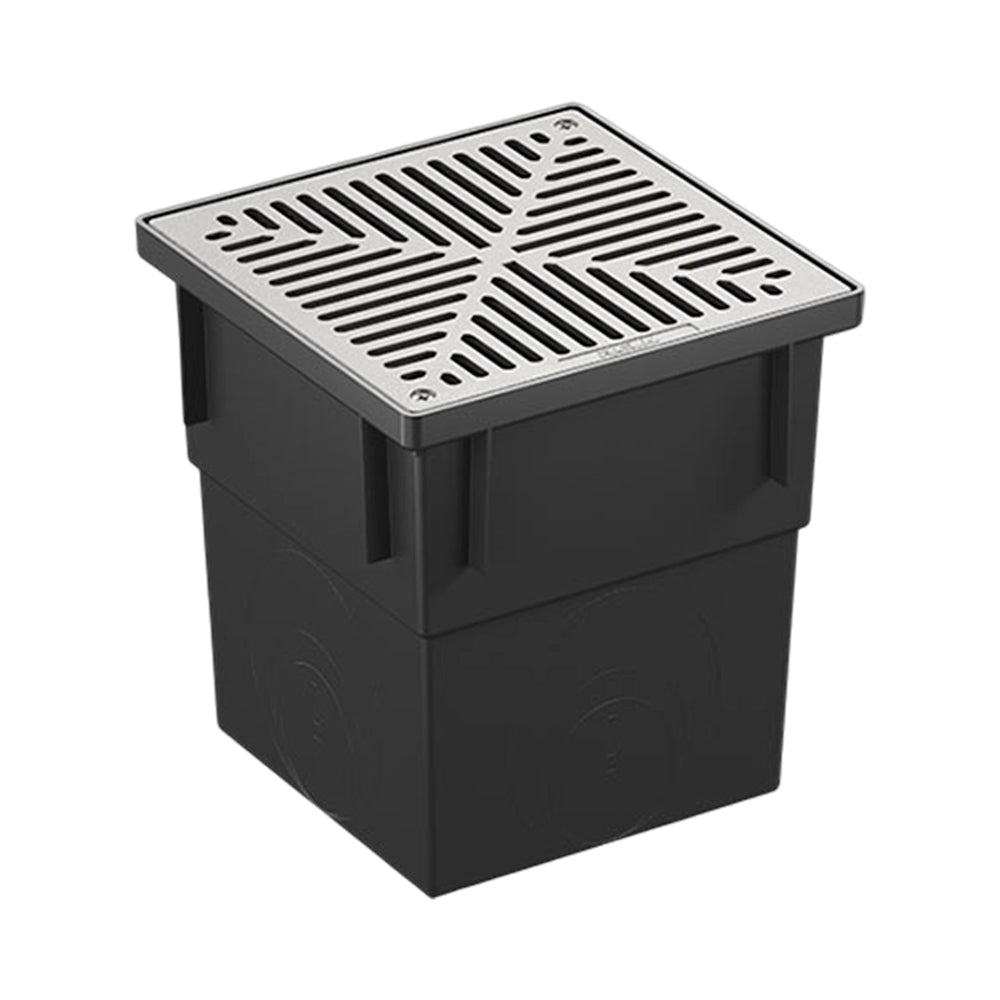

RELN SERIES 300 PIT WITH PLAIN ALUMINIUM GRATE

RELN Series 300 domestic drainage pit with plain aluminium grate for larger household surfacewater drainage, paved areas, paths and domestic drainage locations.

✓ Complete Series 300 Pit
✓ 343mm x 343mm x 325mm Pit Size
✓ 22 Litre Capacity
✓ Plain Aluminium Grate
✓ Domestic Surfacewater Drainage
✓ Suits 90mm or 100mm PVC Pipe

RELN Domesitc Traditional Pits Brochure

More Information
Product Specifications
Product Videos
RELN Pit and Aluminium Grate-Plain Series 300
RELN SERIES 300 PIT WITH PLAIN ALUMINIUM GRATE
RELN Pit and Galvanised Steel Grate-Class A Series 300
RELN Pit and Galvanised Steel Grate-Class A Series 300 RPS300GSLDG
$57.04 /each
RELN Pit and Galvanised Steel Grate-Heel Guard Class A Series 300
RELN Pit and Galvanised Steel Grate-Heel Guard Class A Series 300 RPS300GSHGLDG
$79.94 /each
RELN Pit and Aluminium Grate-Plain Series 300
RELN Pit and Aluminium Grate-Plain Series 300 RPS300ALPSL
$92.85 /each
RELN Pit and Aluminium Grate-Plain Series 300
RELN Pit and Aluminium Grate-Plain Series 300 RPS300ALPG
$67.20 /each
RELN Pit and Aluminium Grate-Terracotta Series 300
RELN Pit and Aluminium Grate-Terracotta Series 300 RPS300ALTCG
$74.20 /each
RELN Pit and Aluminium Grate-Sandstone Series 300
RELN Pit and Aluminium Grate-Sandstone Series 300 RPS300ALSSG
$74.20 /each
RELN Pit and Ductile Iron Grate-Class C Series 300
RELN Pit and Ductile Iron Grate-Class C Series 300 RPS300DIG
$106.01 /each
RELN (PIT ONLY) Series 300
RELN (PIT ONLY) Series 300 RPS300
$19.74 /each
RELN (RISER ONLY) Series 300
RELN (RISER ONLY) Series 300 RPRS300
$50.22 /each
Reln Pit Series 300 Leaf Drain Guard with Handle (GUARD ONLY)
Reln Pit Series 300 Leaf Drain Guard with Handle (GUARD ONLY) RPDGS300L
$16.99 /each

RELN Series 300 domestic drainage pit with plain aluminium grate is a traditional surfacewater pit for larger household drainage applications. It is suitable for paved areas, paths and domestic drainage locations where a plain aluminium grate finish is preferred.

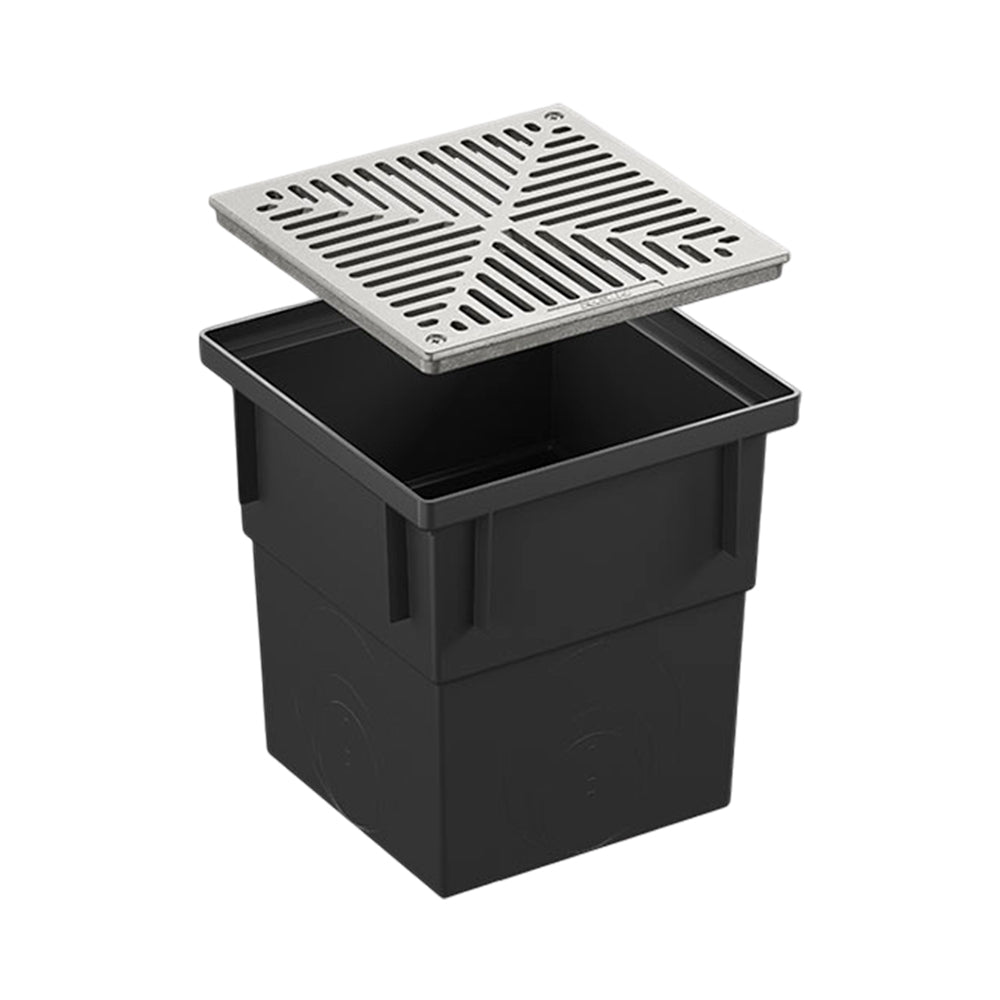

Supplied as a complete Series 300 pit with plain aluminium grate. The pit measures 343mm x 343mm x 325mm and has a 22 litre capacity. It connects to 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings, which should be sealed with silicone. Confirm grate suitability, pipe layout, load rating and installation requirements before ordering.

RELN Domesitc Traditional Pits Brochure

✓ Product Type & Size
RELN Series 300 traditional domestic drainage pit, 343mm x 343mm x 325mm.

✓ Series
RELN Series 300 Traditional Domestic Pit.

✓ Capacity
22 litre capacity.

✓ Grate Type
Plain aluminium grate.

✓ Load Rating
330kg light duty / Class A as listed by RELN.

✓ Material
UV stabilised recycled plastic pit body with aluminium grate.

✓ Pipe Connection
Suitable for 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings.

✓ Installation
Mark and cut pipe holes as required. Seal pipe and pit connection with silicone.

✓ Applications
Suitable for larger household surfacewater drainage, paved areas, paths and domestic drainage locations where the selected grate and installation method suit the site requirements.

✓ Installation Note
Confirm pipe size, drainage layout, grate suitability, load rating and concrete support requirements before ordering.
