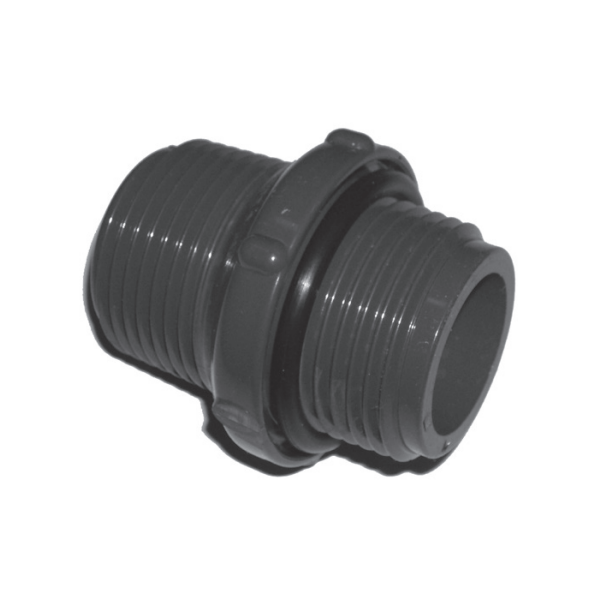

Grey Spears PVC manifold nipple with male threaded ends and central flange.
Grey Spears PVC manifold nipple with male threaded ends and central flange.
Grey Spears PVC manifold nipple with male threaded ends and central flange.

SPEARS SOLENOID MANIFOLD & FITTINGS

Spears 25mm PVC O-ring nipple joins female-threaded manifold and valve connections. The O-ring provides the seal at the connection.

✓ Connections: 25mm male x male.
✓ Maximum pressure: 1034kPa at 23°C.
✓ Required fittings: Use matching Spears manifold nipples at swivel-to-valve connections and Spears manifold end caps. Standard threaded nipples and caps will not provide the matching O-ring seal.

Spears Manifolds & Fittings Specifications & Installation Guide

More Information
Product Specifications
Grey Spears PVC manifold nipple with male threaded ends and central flange.
SPEARS SOLENOID MANIFOLD & FITTINGS
Grey Spears PVC two-port manifold with upright swivel outlets.
PVC Spears Manifold 2 Port 25mm MNSV2P025
$23.72 /each
Grey Spears PVC three-port manifold with upright swivel outlets.
PVC Spears Manifold 3 Port 25mm MNSV3P025
$33.32 /each
Grey Spears PVC four-port manifold with upright swivel outlets.
PVC Spears Manifold 4 Port 25mm MNSV4P025
$45.19 /each
Grey Spears PVC manifold nipple with male threaded ends and central flange.
PVC Spears Manifold Nipple 25mm MNSVN025
$5.30 /each
Grey Spears PVC manifold cap showing the female threaded opening.
PVC Spears Manifold Cap 25mm MNSV01025
$3.88 /each
Grey Spears PVC manifold coupling with female swivel collars.
PVC Spears Manifold Coupling Swivel x Swivel 25mm MNSV02SS025
$14.82 /each
Grey Spears PVC manifold elbow with female swivel collars.
PVC Spears Manifold Elbow Swivel x Swivel 25mm MNSV08SS025
$11.85 /each

Spears 25mm PVC O-ring nipple joins female-threaded manifold and valve connections. The O-ring provides the seal at the connection.

Male threads at both ends connect female fittings or valve ports. The O-ring seals the matching manifold connection when tightened.

The PVC component is rated to 1034kPa at 23°C. Tighten manifold connections by hand; do not use wrenches or pliers.

Use matching Spears manifold nipples at swivel-to-valve connections and matching Spears manifold caps to close unused male ends. Standard threaded nipples and caps are not substitutes for these O-ring sealing components, even when the thread size matches. Keep the manifold, fittings, nipples and caps within the Spears system. Hand-tighten O-ring joints without thread tape.

Spears Manifolds & Fittings Specifications & Installation Guide

✓ Product Type & Application
O-ring nipple.
Joins female-threaded manifold and valve connections.

✓ Size & Connections
25mm male x male.
BSP threads.

✓ Construction & Seals
PVC construction.

✓ Maximum Pressure
1034kPa at 23°C.

✓ Assembly & Compatibility
Use matching Spears manifold nipples at swivel-to-valve connections.
Close unused male ends with matching Spears manifold caps.
Standard threaded nipples and caps are not substitutes for the matching O-ring sealing components, even if the thread size matches.
Use Spears manifold fittings throughout; do not mix brands.
Hand-tighten O-ring joints without thread tape.
