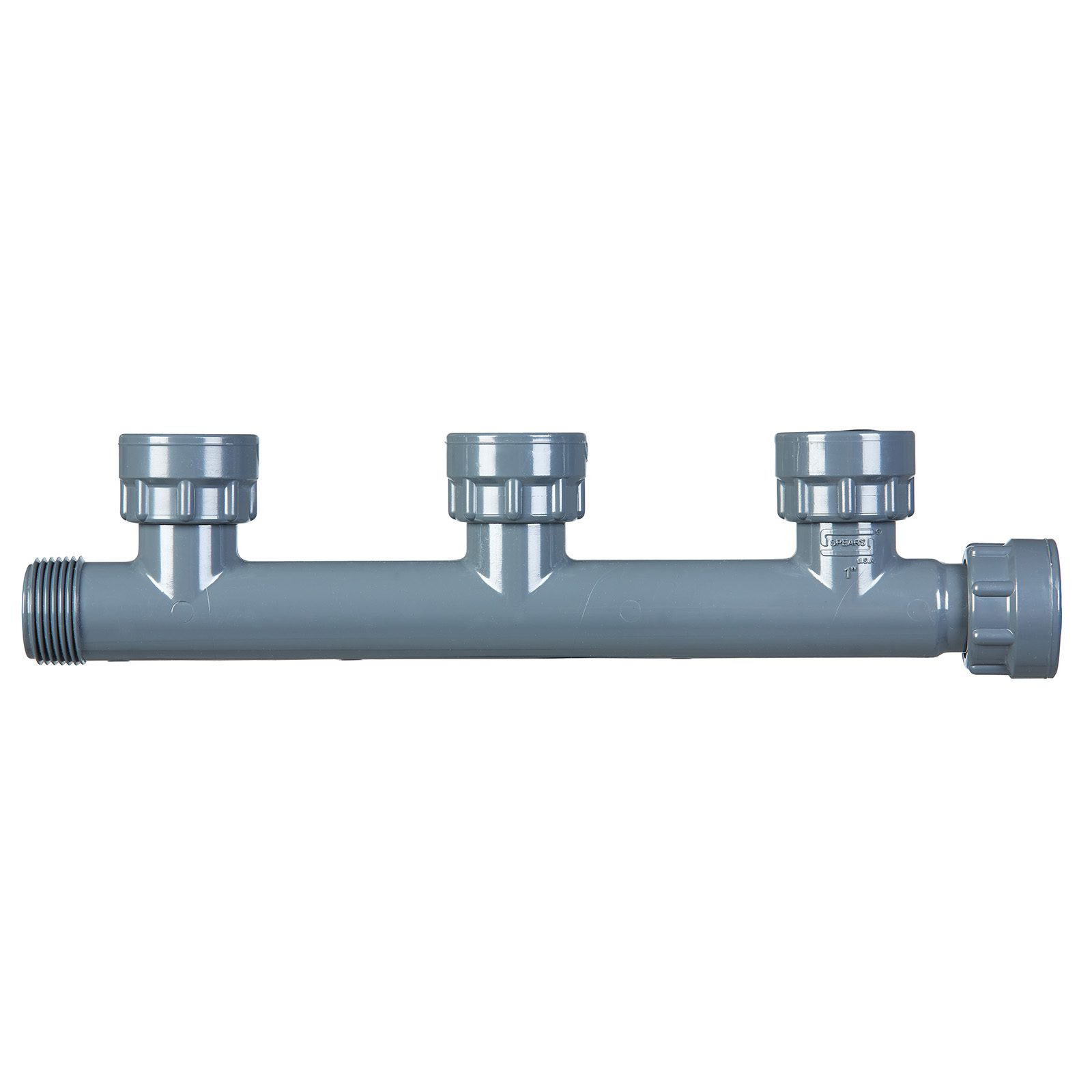

Spears 25mm PVC 3-port manifold distributes water to 3 irrigation valves from a shared supply. The swivel connections can be undone for servicing without cutting the manifold.
O-ring seals make the swivel joints watertight when tightened by hand. Undoing the swivel nut releases the connected component for maintenance.
The PVC component is rated to 1034kPa at 23°C. Tighten manifold connections by hand; do not use wrenches or pliers.
Use matching Spears manifold nipples at swivel-to-valve connections and matching Spears manifold caps to close unused male ends. Standard threaded nipples and caps are not substitutes for these O-ring sealing components, even when the thread size matches. Keep the manifold, fittings, nipples and caps within the Spears system. Hand-tighten O-ring joints without thread tape.
Spears Manifolds & Fittings Specifications & Installation Guide
