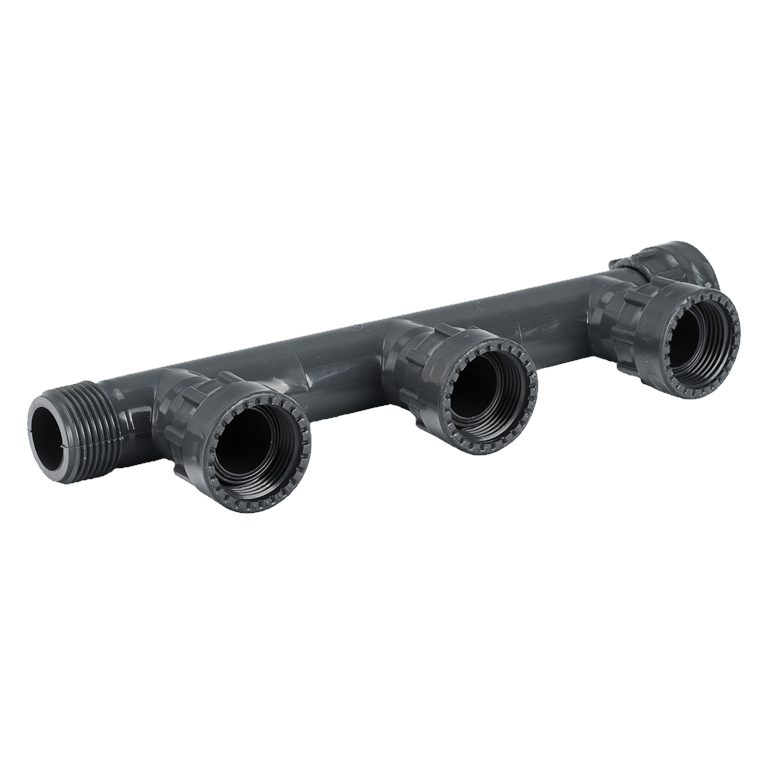

PVC Manifold 3 Port 25mm
PVC Manifold 3 Port 25mm

HOLMAN SOLENOID MANIFOLD & FITTINGS

Holman 25mm PVC 3-port manifold distributes water to 3 irrigation valves from a shared supply. The swivel connections can be undone for servicing without cutting the manifold.

✓ Connections: 25mm connections with 3 valve outlets.
✓ Valve outlets: 3.
✓ Maximum pressure: 1000kPa.
✓ Required fittings: Use matching Holman manifold nipples at swivel-to-valve connections and Holman manifold end caps. Standard threaded nipples and caps will not provide the matching O-ring seal.

Holman Manifolds & Fittings Specifications

More Information
Product Specifications
PVC Manifold 3 Port 25mm
HOLMAN SOLENOID MANIFOLD & FITTINGS
PVC Manifold 2 Port 25mm
PVC Manifold 2 Port 25mm MNHV2P025
$15.31 /each
PVC Manifold 3 Port 25mm
PVC Manifold 3 Port 25mm MNHV3P025
$21.58 /each
PVC Manifold 4 Port 25mm
PVC Manifold 4 Port 25mm MNHV4P025
$26.84 /each
PVC Manifold Nipple 25mm
PVC Manifold Nipple 25mm MNHVN025
$4.95 /each
PVC Manifold Cap 25mm
PVC Manifold Cap 25mm MNHV01025
$7.70 /each
PVC Holman Manifold Elbow Swivel x Male 25mm
PVC Holman Manifold Elbow Swivel x Male 25mm MNHV08SM025
$6.82 /each
PVC Holman Manifold Tee Swivel x Male x Swivel 25mm
PVC Holman Manifold Tee Swivel x Male x Swivel 25mm MNHV10SSM025
$12.97 /each

Holman 25mm PVC 3-port manifold distributes water to 3 irrigation valves from a shared supply. The swivel connections can be undone for servicing without cutting the manifold.

O-ring seals make the swivel joints watertight when tightened by hand. Undoing the swivel nut releases the connected component for maintenance.

Made from UV-resistant PVC with high-impact construction and rated to 1000kPa.

Use matching Holman manifold nipples at swivel-to-valve connections and matching Holman manifold caps to close unused male ends. Standard threaded nipples and caps are not substitutes for these O-ring sealing components, even when the thread size matches. Keep the manifold, fittings, nipples and caps within the Holman system. Hand-tighten O-ring joints without thread tape.

Holman Manifolds & Fittings Specifications

✓ Product Type & Application
3-port manifold.
Distributes water to 3 irrigation valves from a shared supply.

✓ Size & Connections
25mm connections with 3 valve outlets.

✓ Construction & Seals
UV-resistant PVC with high-impact construction.

✓ Maximum Pressure
1000kPa.

✓ Assembly & Service
Hand-tighten swivel connections.
No thread tape at the O-ring swivel seal.
Undo the swivel nut to release the connection.

✓ Assembly & Compatibility
Use matching Holman manifold nipples at swivel-to-valve connections.
Close unused male ends with matching Holman manifold caps.
Standard threaded nipples and caps are not substitutes for the matching O-ring sealing components, even if the thread size matches.
Use Holman manifold fittings throughout; do not mix brands.
Hand-tighten O-ring joints without thread tape.
