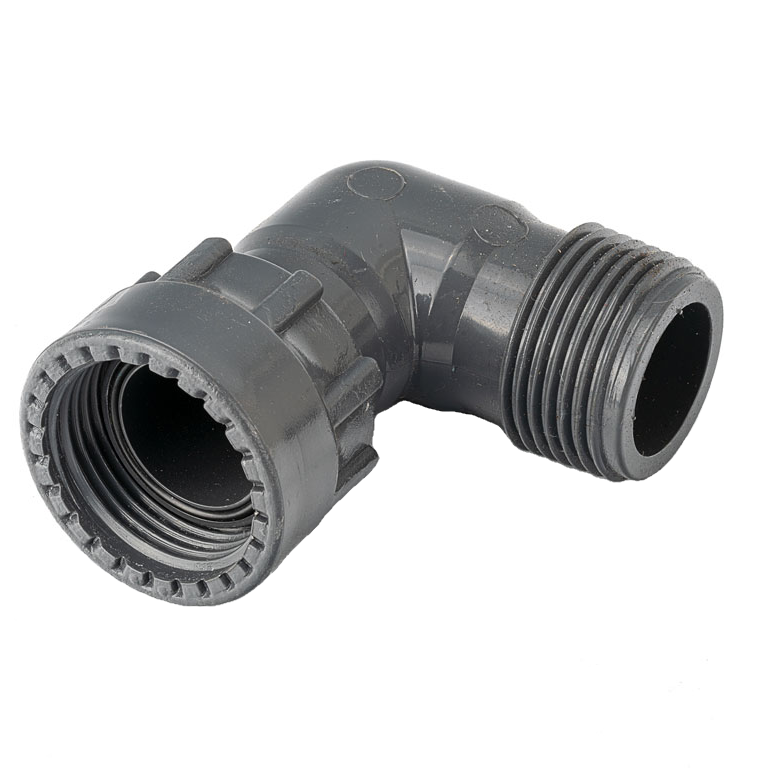

Grey PVC manifold elbow with female swivel collar and male threaded end.
Grey PVC manifold elbow with female swivel collar and male threaded end.
Grey PVC manifold elbow with female swivel collar and male threaded end.

HOLMAN SOLENOID MANIFOLD & FITTINGS

Holman 25mm PVC elbow turns a manifold connection through 90 degrees. The swivel connections can be undone for servicing without cutting the manifold.

✓ Connections: 25mm swivel x male.
✓ Maximum pressure: 1000kPa.
✓ Required fittings: Use matching Holman manifold nipples at swivel-to-valve connections and Holman manifold end caps. Standard threaded nipples and caps will not provide the matching O-ring seal.

Holman Manifolds & Fittings Specifications

More Information
Product Specifications
Grey PVC manifold elbow with female swivel collar and male threaded end.
HOLMAN SOLENOID MANIFOLD & FITTINGS
Grey PVC two-port manifold with swivel outlet collars, angled view.
PVC Manifold 2 Port 25mm MNHV2P025
$15.31 /each
Grey PVC three-port manifold with swivel outlet collars and male threaded end.
PVC Manifold 3 Port 25mm MNHV3P025
$21.58 /each
Grey PVC four-port manifold with swivel outlet collars and male threaded end.
PVC Manifold 4 Port 25mm MNHV4P025
$26.84 /each
Grey PVC manifold nipple with male threaded ends, central hexagonal section and black seal.
PVC Manifold Nipple 25mm MNHVN025
$4.95 /each
Grey PVC manifold cap showing the internal thread and seal.
PVC Manifold Cap 25mm MNHV01025
$7.70 /each
Grey PVC manifold elbow with female swivel collar and male threaded end.
PVC Holman Manifold Elbow Swivel x Male 25mm MNHV08SM025
$10.27 /each
Grey PVC manifold tee with two female swivel collars and male threaded end.
PVC Holman Manifold Tee Swivel x Male x Swivel 25mm MNHV10SSM025
$12.97 /each

Holman 25mm PVC elbow turns a manifold connection through 90 degrees. The swivel connections can be undone for servicing without cutting the manifold.

O-ring seals make the swivel joints watertight when tightened by hand. Undoing the swivel nut releases the connected component for maintenance.

Made from UV-resistant PVC with high-impact construction and rated to 1000kPa.

Use matching Holman manifold nipples at swivel-to-valve connections and matching Holman manifold caps to close unused male ends. Standard threaded nipples and caps are not substitutes for these O-ring sealing components, even when the thread size matches. Keep the manifold, fittings, nipples and caps within the Holman system. Hand-tighten O-ring joints without thread tape.

Holman Manifolds & Fittings Specifications

✓ Product Type & Application
Elbow.
Turns a manifold connection through 90 degrees.

✓ Size & Connections
25mm swivel x male.

✓ Construction & Seals
UV-resistant PVC with high-impact construction.

✓ Maximum Pressure
1000kPa.

✓ Assembly & Service
Hand-tighten swivel connections.
No thread tape at the O-ring swivel seal.
Undo the swivel nut to release the connection.

✓ Assembly & Compatibility
Use matching Holman manifold nipples at swivel-to-valve connections.
Close unused male ends with matching Holman manifold caps.
Standard threaded nipples and caps are not substitutes for the matching O-ring sealing components, even if the thread size matches.
Use Holman manifold fittings throughout; do not mix brands.
Hand-tighten O-ring joints without thread tape.
