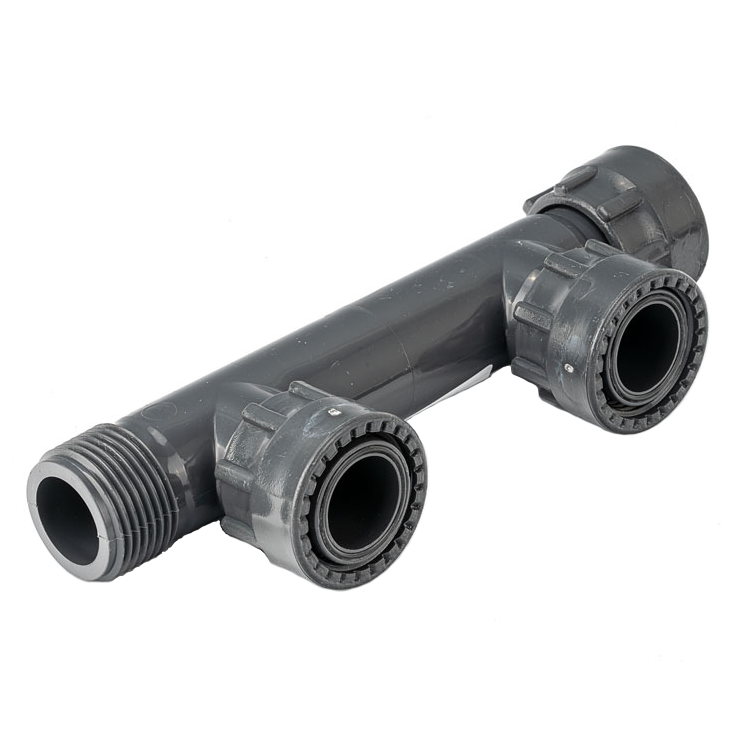

PVC Manifold 2 Port 25mm
PVC Manifold 2 Port 25mm

HOLMAN SOLENOID MANIFOLD & FITTINGS

Holman 25mm PVC manifolds distribute water to irrigation valves from a shared supply. O-ring sealed connections allow the assembly to be taken apart for valve servicing without cutting the manifold.

✓ Manifolds: 2-port, 3-port and 4-port options.
✓ Connections: 25mm O-ring and swivel fittings.
✓ Maximum pressure: 1000kPa.
✓ Required fittings: Use matching Holman manifold nipples at swivel-to-valve connections and Holman manifold end caps. Standard threaded nipples and caps will not provide the matching O-ring seal.

Holman Manifolds & Fittings Specifications

More Information
Product Specifications
PVC Manifold 2 Port 25mm
HOLMAN SOLENOID MANIFOLD & FITTINGS
PVC Manifold 2 Port 25mm
PVC Manifold 2 Port 25mm MNHV2P025
$15.31 /each
PVC Manifold 3 Port 25mm
PVC Manifold 3 Port 25mm MNHV3P025
$21.58 /each
PVC Manifold 4 Port 25mm
PVC Manifold 4 Port 25mm MNHV4P025
$26.84 /each
PVC Manifold Nipple 25mm
PVC Manifold Nipple 25mm MNHVN025
$4.95 /each
PVC Manifold Cap 25mm
PVC Manifold Cap 25mm MNHV01025
$7.70 /each
PVC Holman Manifold Elbow Swivel x Male 25mm
PVC Holman Manifold Elbow Swivel x Male 25mm MNHV08SM025
$6.82 /each
PVC Holman Manifold Tee Swivel x Male x Swivel 25mm
PVC Holman Manifold Tee Swivel x Male x Swivel 25mm MNHV10SSM025
$12.97 /each

Holman 25mm PVC manifolds distribute water to irrigation valves from a shared supply. O-ring sealed connections allow the assembly to be taken apart for valve servicing without cutting the manifold.

Separate nipples connect female-threaded components, while caps close unused ends. Tees add a branch and elbows turn the connection through 90 degrees.

Holman uses UV-resistant PVC with high-impact construction.

The O-ring seals the connection without thread tape at the swivel joint. Undoing the swivel nut allows a connected component to be removed for maintenance.

Use matching Holman manifold nipples at swivel-to-valve connections and matching Holman manifold caps to close unused male ends. Standard threaded nipples and caps are not substitutes for these O-ring sealing components, even when the thread size matches. Keep the manifold, fittings, nipples and caps within the Holman system. Hand-tighten O-ring joints without thread tape.

Holman Manifolds & Fittings Specifications

✓ Product Type & Application
Manifolds and fittings for irrigation valve assemblies.

✓ Size & Connections
25mm.
2-port manifold: two valve outlets.
3-port manifold: three valve outlets.
4-port manifold: four valve outlets.

✓ Construction & Seals
UV-resistant PVC with high-impact construction.
O-ring sealed connections.

✓ Maximum Pressure
1000kPa.

✓ Assembly & Service
Hand-tighten O-ring swivel connections.
No thread tape at the O-ring swivel seal.
Swivel nuts can be undone for valve servicing.

✓ Assembly & Compatibility
Use matching Holman manifold nipples at swivel-to-valve connections.
Close unused male ends with matching Holman manifold caps.
Standard threaded nipples and caps are not substitutes for the matching O-ring sealing components, even if the thread size matches.
Use Holman manifold fittings throughout; do not mix brands.
Hand-tighten O-ring joints without thread tape.
