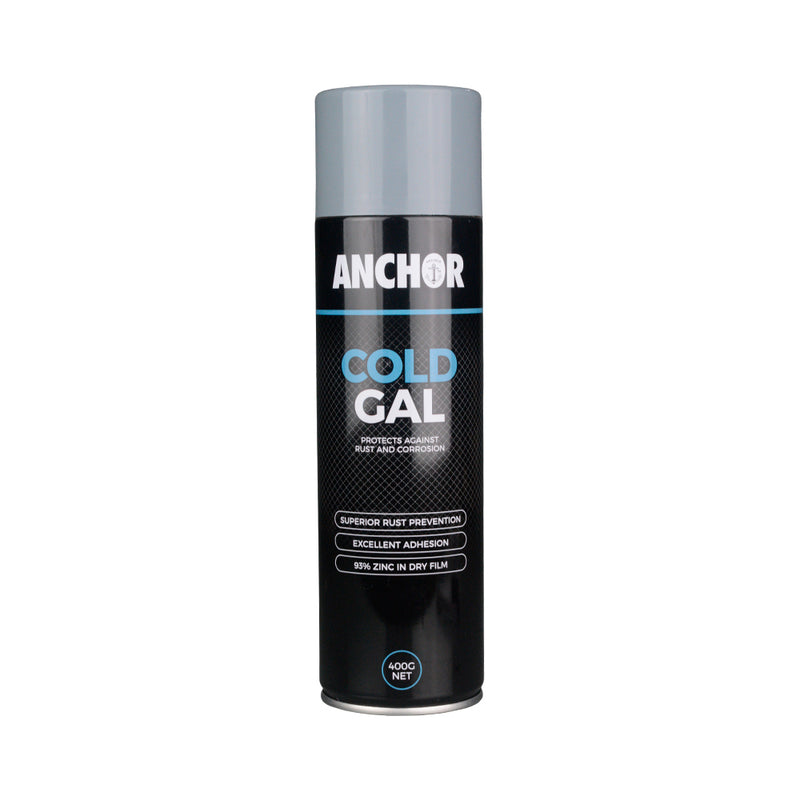

Tools Anchor Galvanising Industrial Zinc Protection Aerosol Paint Cold Galv 400g
Tools Anchor Galvanising Industrial Zinc Protection Aerosol Paint Cold Galv 400g

Anchor protective aerosol coatings help protect prepared steel from rust and corrosion. Cold Gal provides a grey coating with 93% zinc dust in the dry film, Silver Gal combines zinc protection with a light silver appearance, and Black Gal provides a low-gloss enamel primer/topcoat. Each is supplied in a 400g aerosol.

✓ Can size: 400g
✓ Cold Gal: Grey, 93% zinc dust in dry film
✓ Silver Gal: Light silver, 48% zinc dust in dry film
✓ Black Gal: Low-gloss enamel primer/topcoat

Anchor Cold Gal Specifications
Anchor Cold Gal Safety Data Sheet
Anchor Silver Gal Specifications
Anchor Silver Gal Safety Data Sheet
Anchor Black Gal Specifications
Anchor Black Gal Safety Data Sheet

Cold Gal is a grey, zinc-rich epoxy coating for prepared ferrous metal. Its 93% zinc dust content in the dry film provides sacrificial protection: zinc corrodes in preference to the steel beneath it. It is suitable for damaged galvanised areas and metal exposed around welds.

Silver Gal is an epoxy coating with 48% zinc dust in the dry film. It combines corrosion protection with a light silver appearance for steel, welded joints and galvanised-metal touch-ups.

Black Gal is a high-build, fast-drying enamel primer/topcoat for steel. It provides a low-gloss black finish and may be used beneath most single-pack enamels. Aluminium and galvanised iron require a suitable etch primer before Black Gal is applied.

All three require clean, dry, properly prepared surfaces. Remove rust to sound metal and remove grease, oil and other contamination. Do not use rust converter beneath Cold Gal or Silver Gal, as it reacts with the zinc and can reduce corrosion protection.

Use light, overlapping coats and follow the selected coating's application, drying and topcoating instructions. These coatings are suitable for splash exposure and are not recommended for submergence.

Anchor Cold Gal Specifications
Anchor Cold Gal Safety Data Sheet
Anchor Silver Gal Specifications
Anchor Silver Gal Safety Data Sheet
Anchor Black Gal Specifications
Anchor Black Gal Safety Data Sheet

✓ Coating Types & Net Contents
Cold Gal CG400: Grey epoxy coating; 93% zinc dust in dry film; 400g aerosol.
Silver Gal SGAL400: Light silver epoxy coating; 48% zinc dust in dry film; 400g aerosol.
Black Gal BGAL400: Low-gloss black enamel primer/topcoat; 400g aerosol.

✓ Approximate Coverage
Cold Gal: 1.3m² per can.
Silver Gal: 1.2m² per can.
Black Gal: 1-1.5m² per can.
Coverage varies with film thickness, conditions and spraying technique.

✓ Surface Preparation
Remove rust back to sound metal and remove dust, grease, oil, wax and other contamination. Allow the surface to dry before coating.
Do not use rust converter beneath Cold Gal or Silver Gal.
Black Gal on aluminium or galvanised iron requires a suitable etch primer.

✓ Application
Cold Gal and Silver Gal: Spray from 20-30cm; recommended application temperature 15-30°C.
Black Gal: Spray from approximately 25cm; recommended application temperature 15-35°C.
Initial application for all three: Two light coats, allowing one minute between coats.
Use further light coats as required for coverage.

✓ Cold Gal Drying & Curing
Touch dry: Approximately 10 minutes.
Dry to handle: Approximately 30 minutes.
Recoat: After one hour at room temperature.
Curing period: 14 days; full cure within six weeks.
Allow longer drying in cold conditions, particularly below 15°C.

✓ Silver Gal Drying & Curing
At 25°C and relative humidity below 50%:
Dry to handle: Approximately 30 minutes.
Recoat: After one hour.
Full cure: Within 14 days.

✓ Black Gal Drying & Curing
At 25°C and relative humidity below 50%:
Touch dry: Approximately 30 minutes.
Recoat: After two hours.
Full cure: Two to three days.
Allow longer drying in cold conditions.

✓ Topcoating
Cold Gal: No topcoat required; suitable enamel, acrylic or epoxy may be used.
Silver Gal: No topcoat required; suitable acrylic or epoxy may be used.
Black Gal: May be used as a topcoat or beneath most single-pack enamels.

✓ Heat & Water Exposure
Cold Gal and Silver Gal coatings: Stable up to 160°C.
Black Gal coating: Stable up to 120°C.
All three: Suitable for splash exposure; not recommended for submergence.

✓ Storage & Shelf Life
Recommended storage: 15-30°C, away from sunlight and ignition sources.
Minimum shelf life: Two years when stored as specified.

✓ Aerosol Safety
Extremely flammable aerosol; keep away from heat, sparks and flames.
Use with adequate ventilation and follow the matching safety data sheet for protective equipment.
Protect from sunlight and do not expose above 50°C.
Dangerous goods: UN 1950, Class 2.1.
