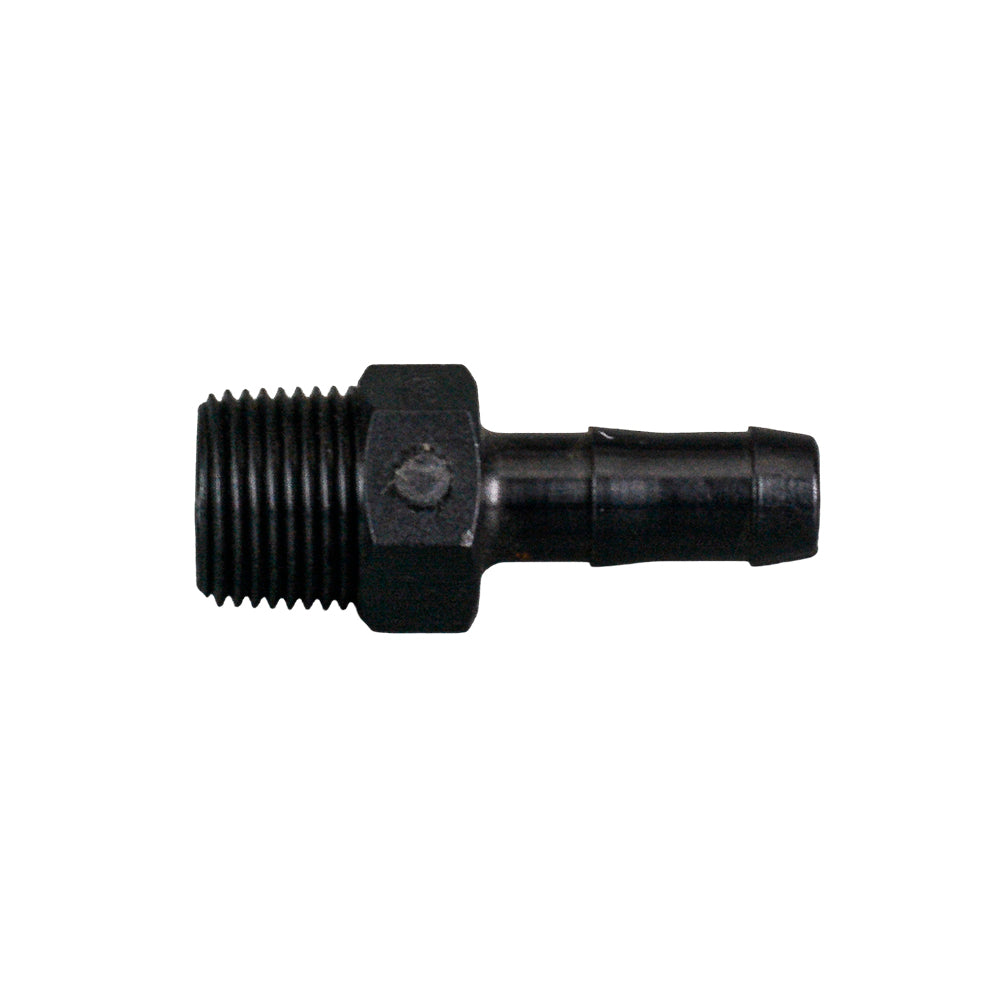

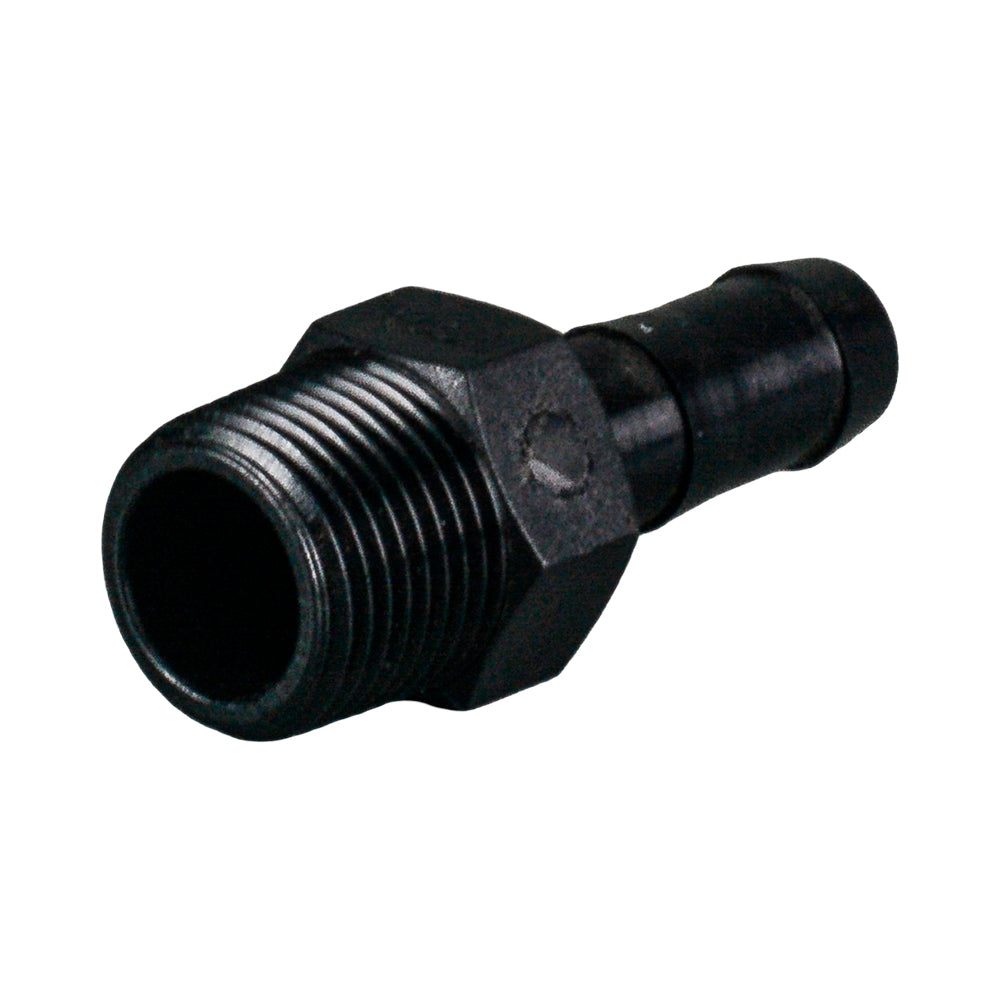

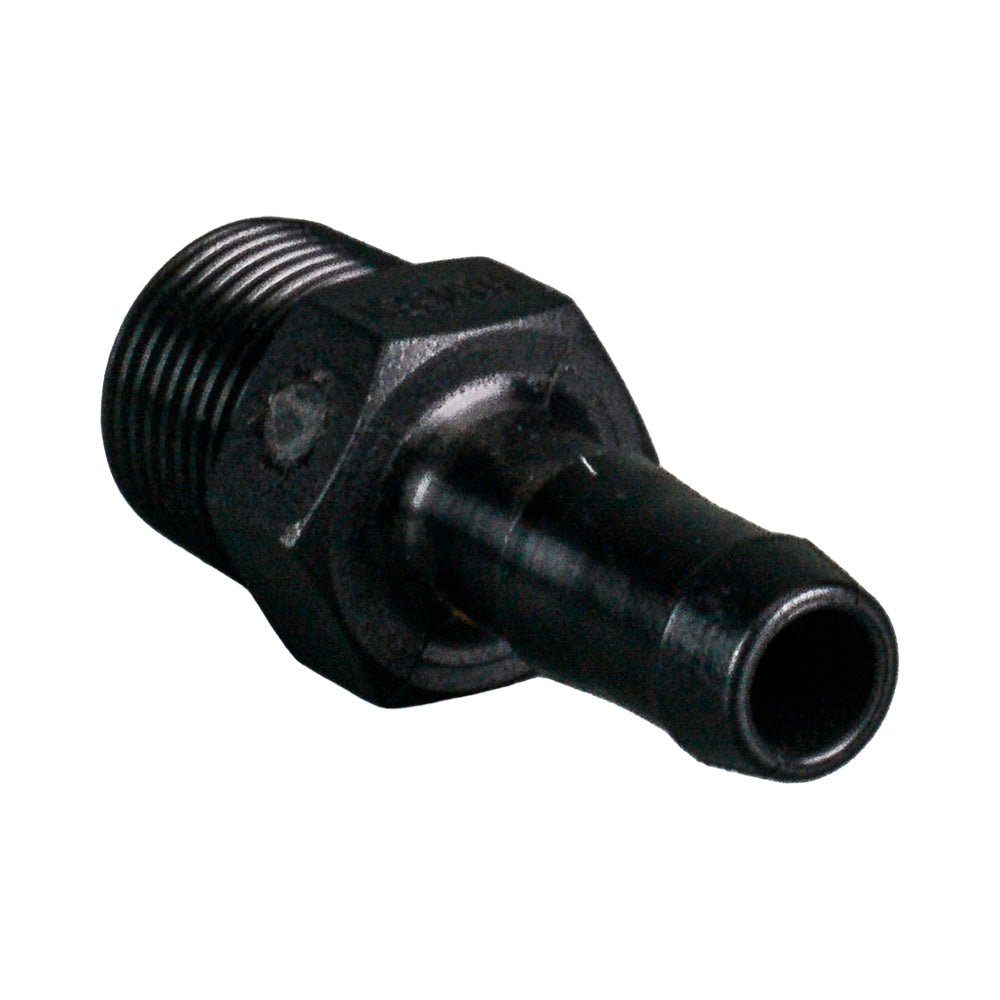

HANSEN NYGLASS HOSE TAIL 10MM MALE BSP X 10MM HOSE TAIL

Hansen Nyglass 10mm hose tail used to connect 10mm flexible hose or pipe to a 10mm female BSP threaded fitting, outlet or pipe connection.

✓ 10mm Male BSP x 10mm Hose Tail
✓ Glass Fibre Reinforced Nylon
✓ Suits Flexible Hose Connections
✓ Use with Suitable Hose Clamp

More Information
Product Specifications
Hansen Nyglass Hose Tail 10mm
HANSEN NYGLASS HOSE TAIL 10MM MALE BSP X 10MM HOSE TAIL
Hansen Nyglass Hose Tail 6mm
Hansen Nyglass Hose Tail 6mm HNGHT06
$2.02 /each
Hansen Nyglass Hose Tail 8mm
Hansen Nyglass Hose Tail 8mm HNGHT08
$1.84 /each
Hansen Nyglass Hose Tail 10mm
Hansen Nyglass Hose Tail 10mm HNGHT10
$2.08 /each
Hansen Nyglass Hose Tail 15mm
Hansen Nyglass Hose Tail 15mm HNGHT15
$2.95 /each
Hansen Nyglass Hose Tail Reducing 8mm x 6mm tail
Hansen Nyglass Hose Tail Reducing 8mm x 6mm tail HNGHTR0806
$2.05 /each
Hansen Nyglass Hose Tail Reducing 8mm x 10mm tail
Hansen Nyglass Hose Tail Reducing 8mm x 10mm tail HNGHTR0810
$2.42 /each
Hansen Nyglass Hose Tail Reducing 10mm x 6mm tail
Hansen Nyglass Hose Tail Reducing 10mm x 6mm tail HNGHTR1006
$2.47 /each
Hansen Nyglass Hose Tail Reducing 10mm x 8mm tail
Hansen Nyglass Hose Tail Reducing 10mm x 8mm tail HNGHTR1008
$2.73 /each

Hansen Nyglass 10mm hose tails are used to connect 10mm flexible hose or pipe to 10mm female BSP threaded fittings, outlets and pipework. They are suitable for irrigation, horticultural, agricultural, plumbing, marine and general water applications where a male threaded connection is required on one end and a hose tail connection is required on the other.

Made from glass fibre reinforced nylon, this hose tail provides a 10mm male BSPT thread and a 10mm hose tail connection for compatible flexible hose. Use a suitable thread sealant on the threaded connection, push the hose onto the tail and secure with a suitable hose clamp.

✓ Product Type & Size
10mm Hansen Nyglass hose tail with Male BSP x 10mm hose tail connection.

✓ Material
Glass fibre reinforced nylon.

✓ Connection Type
10mm male BSPT thread x 10mm hose tail connection.

✓ Pressure Rating
Maximum working pressure 1600kPa at 20°C.

✓ Temperature
Suitable for cold water applications up to 60°C.

✓ Standards & Approvals
Hansen EasyFit and TrueFit fittings are supported by AS/NZS 4020:2018 testing for products in contact with drinking water.

✓ Applications
Suitable for irrigation, horticultural, agricultural, plumbing, marine and general water systems.

✓ Installation
Use a suitable thread sealant on the BSPT thread. Push the hose onto the tail and secure with a suitable hose clamp. Do not over-tighten threaded plastic fittings.
