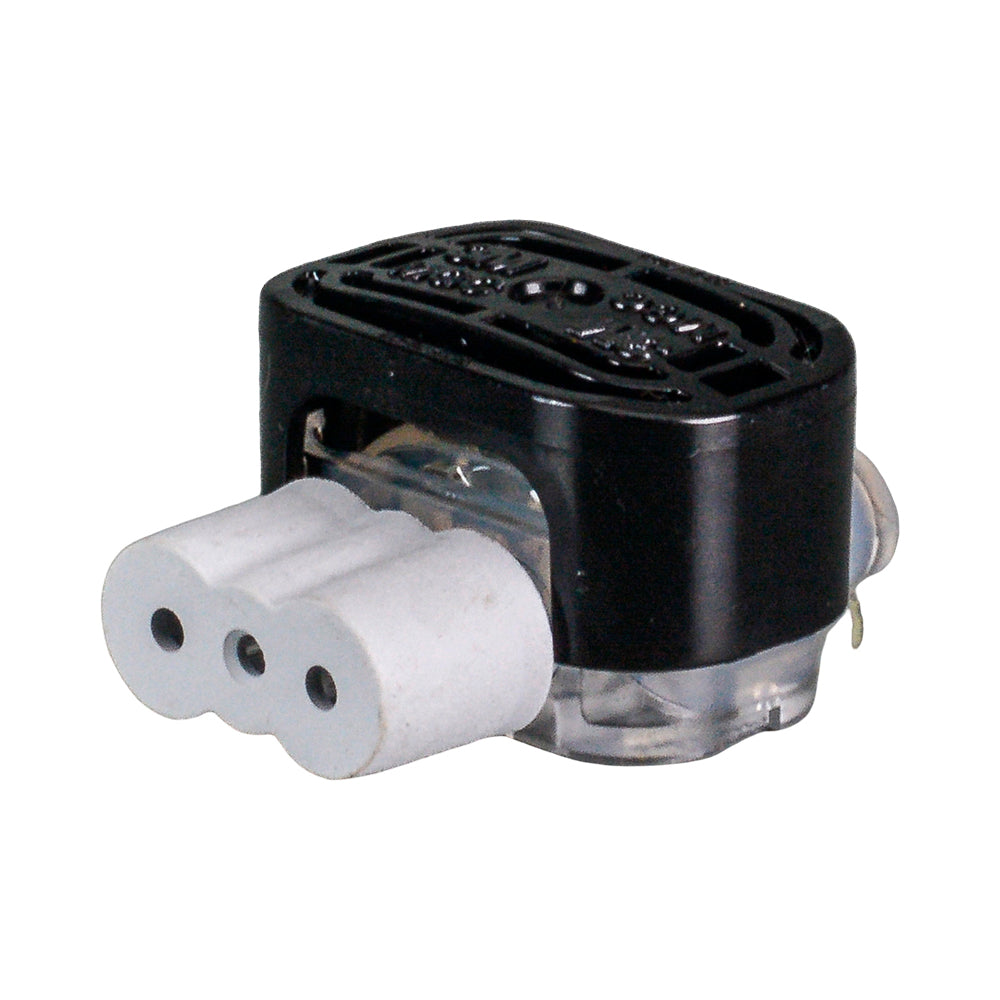

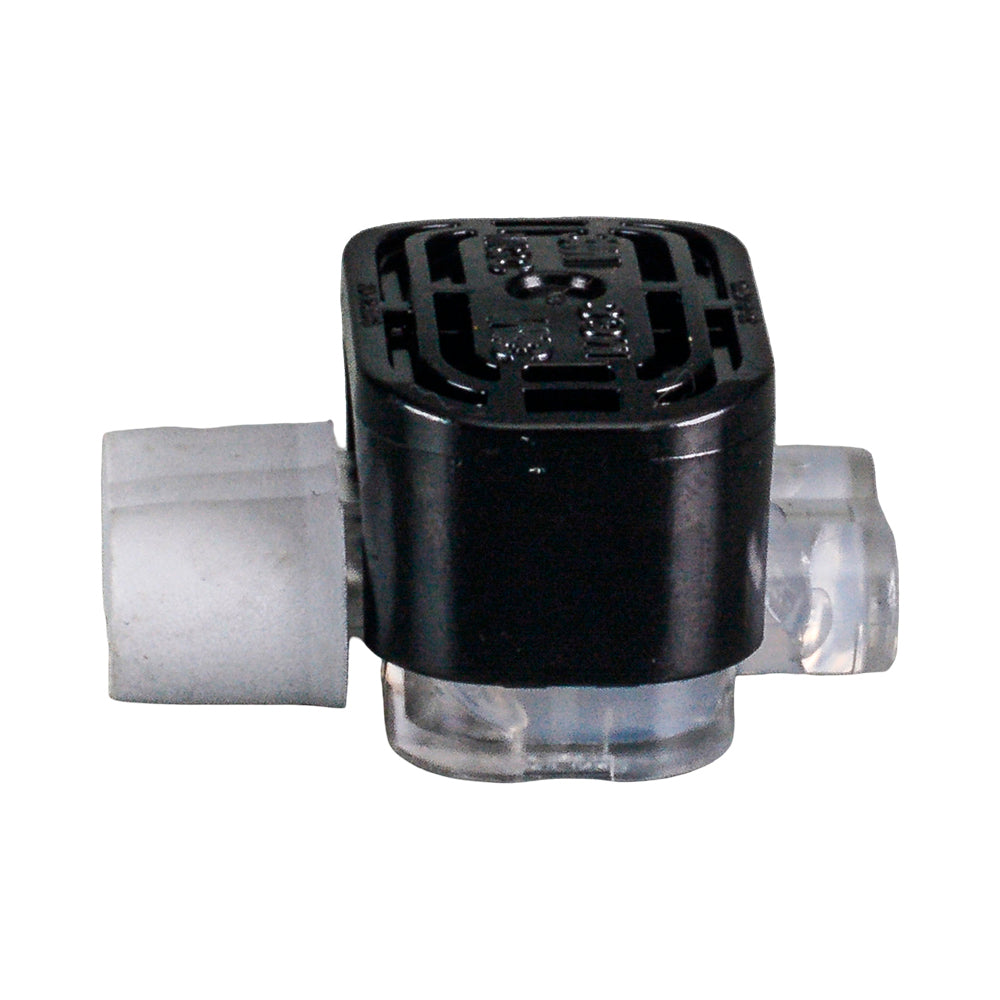

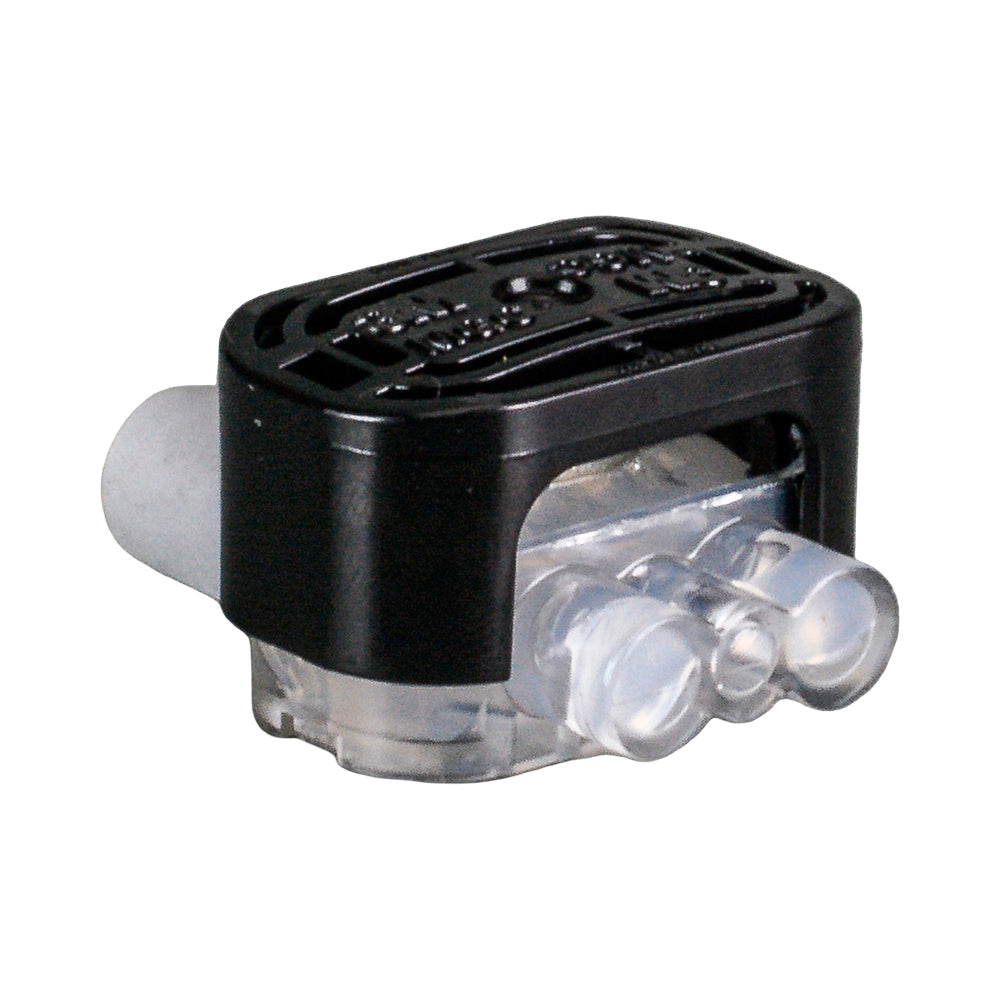

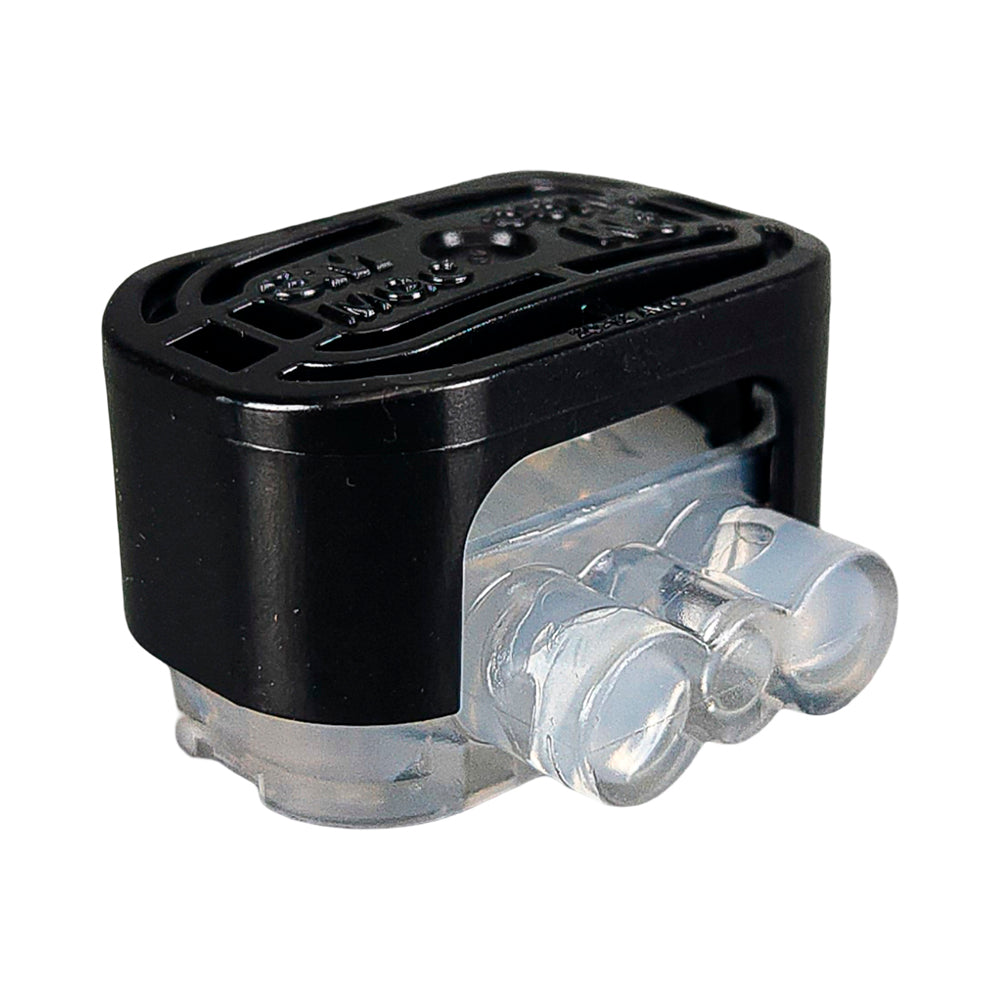

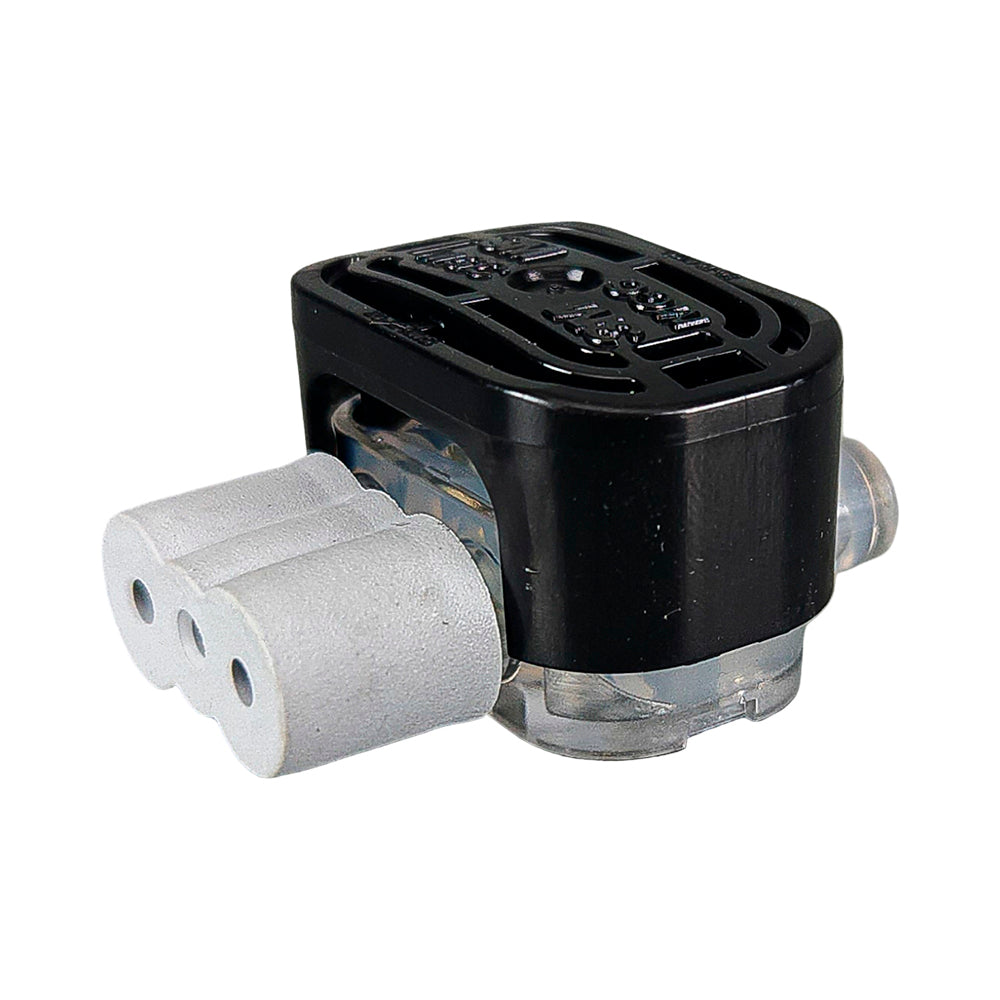

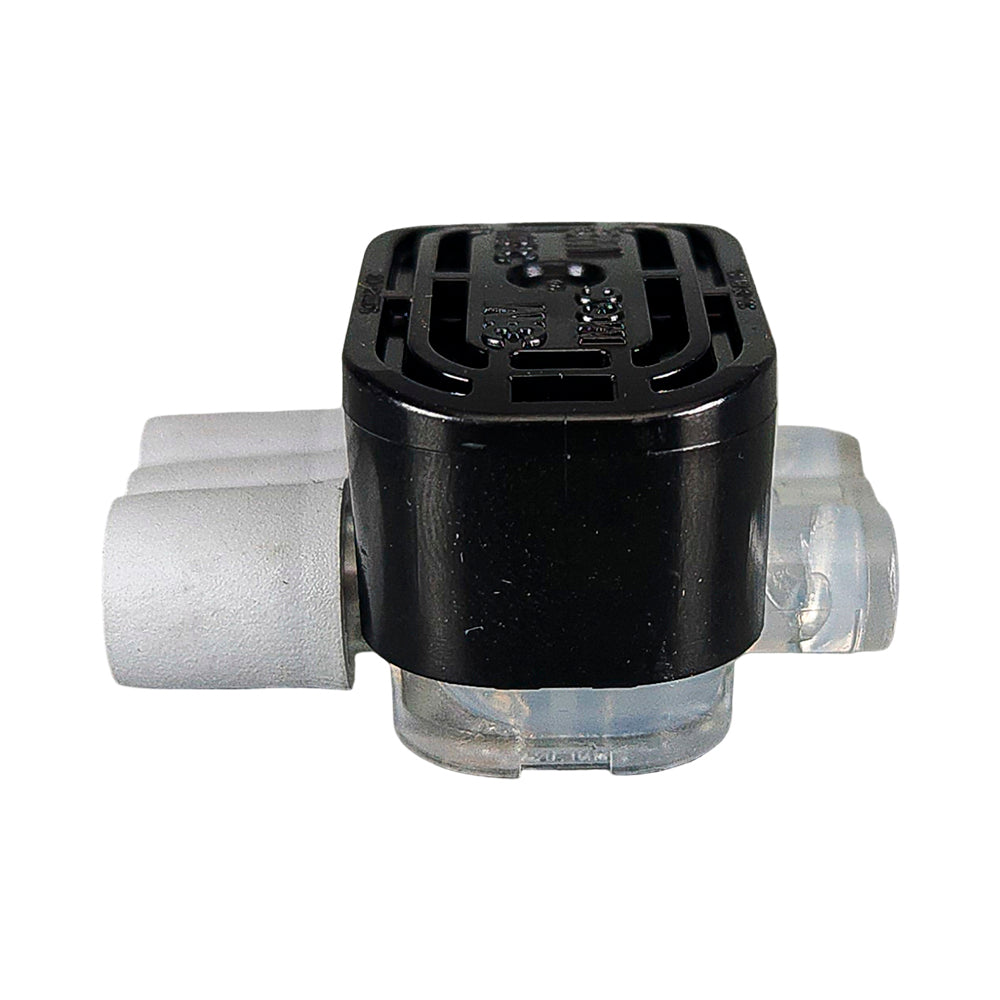

SCOTCHLOK WIRE CONNECTOR MGC

Name: Scotchlok Wire Connector MGC
Brand: 3M
SKU: WCCMGC
Price: 3.01 AUD
Availability: InStock

Irrigation Wire & Low Voltage Cable

Scotchlok MGC Moisture Guard connector for landscape irrigation and lighting wire joins where moisture protection is required.

✓ MGC Moisture Guard Connector
✓ For Irrigation and Lighting Wiring
✓ Grease Helps Protect Against Moisture
✓ UV-Resistant Housing
✓ Insulation Displacement Style
✓ Check Port Wire Range Before Use

3M Wire Connector Specifications

More Information

Product Specifications

SCOTCHLOK WIRE CONNECTOR MGC

Scotchlok Wire Connector 0.5 mm UAL UV Stabilised WC05UAL3M

$1.05 /each

$1.05 inc GST

Total: $0

Scotchlok Wire Connector 316 IR 0.5mm - 1.5mm WC316IR

$2.65 /each

$2.65 inc GST

Total: $0

Wire Connector K-Rain 314 Gel Connector 0.5mm-1.5mm WC314

$1.30 /each

$1.30 inc GST

Total: $0

Scotchlok Wire Connector MGC WCCMGC

$3.01 /each

$3.01 inc GST

Total: $0

Wire connector Single Screw 1.5 mm - 6 mm WCSS15-6

$0.30 /each

$0.30 inc GST

Total: $0

Wire Connector Double Screw 1.5 mm - 6 mm WCDS15-6

$0.42 /each

$0.42 inc GST

Total: $0

Scotchlok MGC Moisture Guard connectors are used for landscape irrigation and lighting wire connections where moisture protection is required. The connector uses a press-style insulation displacement design, with a metal element that pushes through the wire insulation to make the connection.

The grease inside the connector helps protect the join against moisture, while the housing is UV resistant for above-ground applications. Select the connector to suit the wire size, port requirements and installation location.

3M Wire Connector Specifications

✓ Product Type & Size
Scotchlok MGC Moisture Guard wire connector.

✓ Connector Type
Moisture-resistant insulation displacement connector.

✓ Application
For landscape irrigation and lighting wire connections.

✓ Voltage Rating
Maximum voltage rating: 600V, or 1000V in signs, lighting fixtures and luminaires where applicable.

✓ Operating Temperature
221°F (105°C).

✓ Outside Port Wire Range
12 AWG stranded, or 14–16 AWG solid / stranded.

✓ Inside Port Wire Range
20 AWG stranded, or 18 AWG solid / stranded.

✓ Maximum Insulation Diameter
Outside port: 0.21" (5.3mm). Inside port: 0.15" (3.8mm).

✓ Moisture Protection
Grease helps protect against moisture.

✓ Housing
UV-resistant housing for above-ground applications.

✓ Selection Note
Select connectors to suit the wire size, conductor type, voltage, installation location and application.
