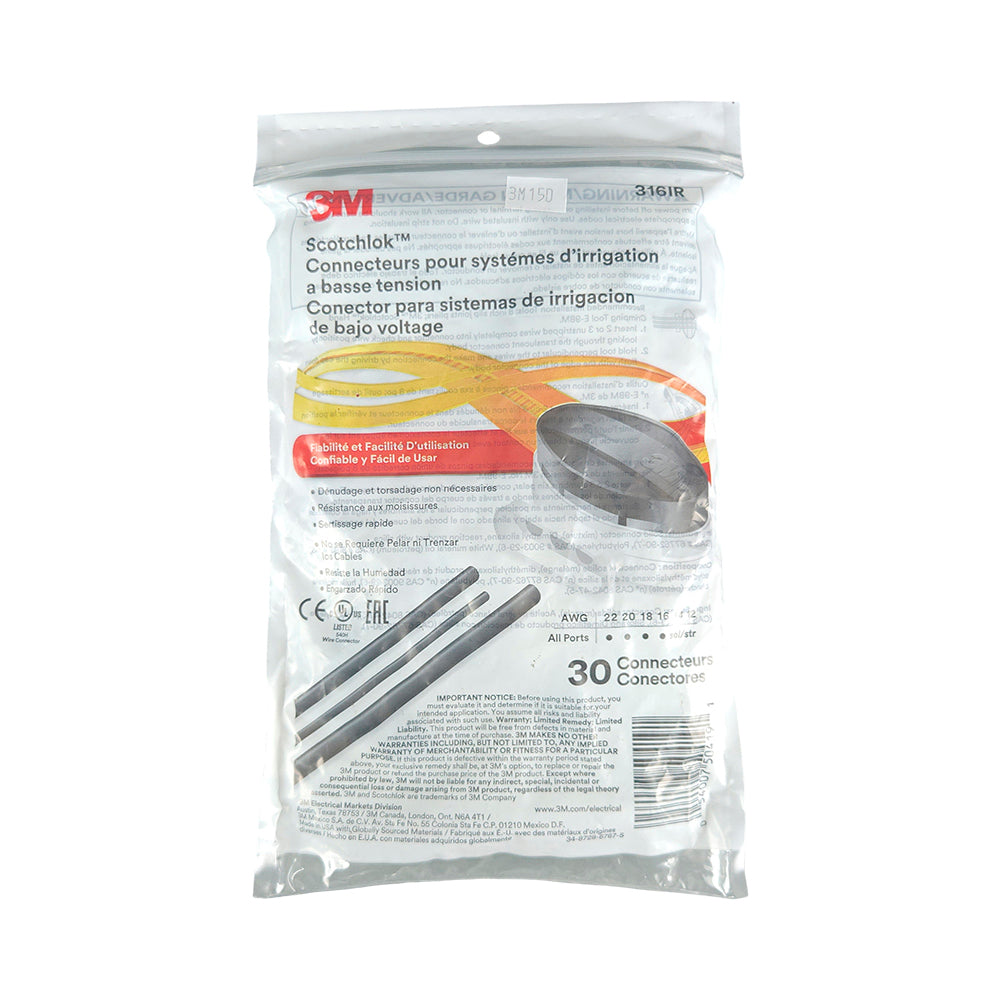

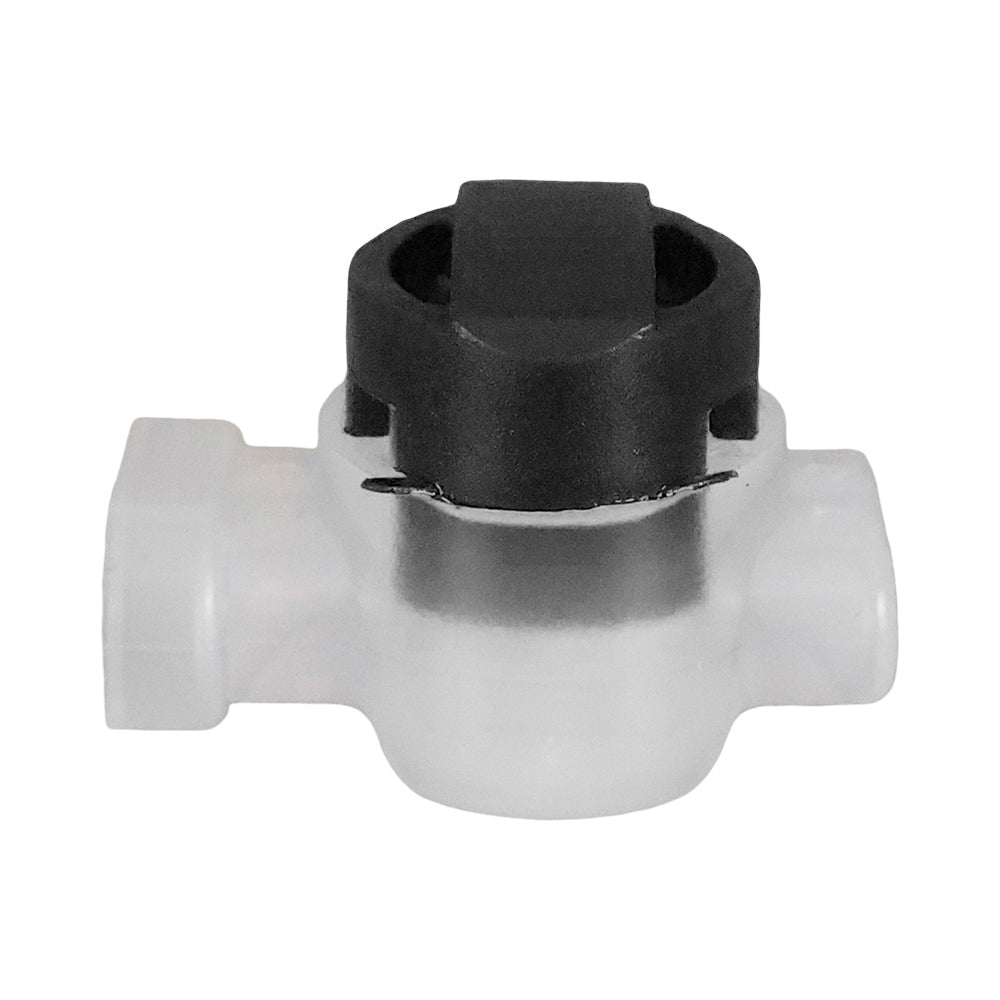

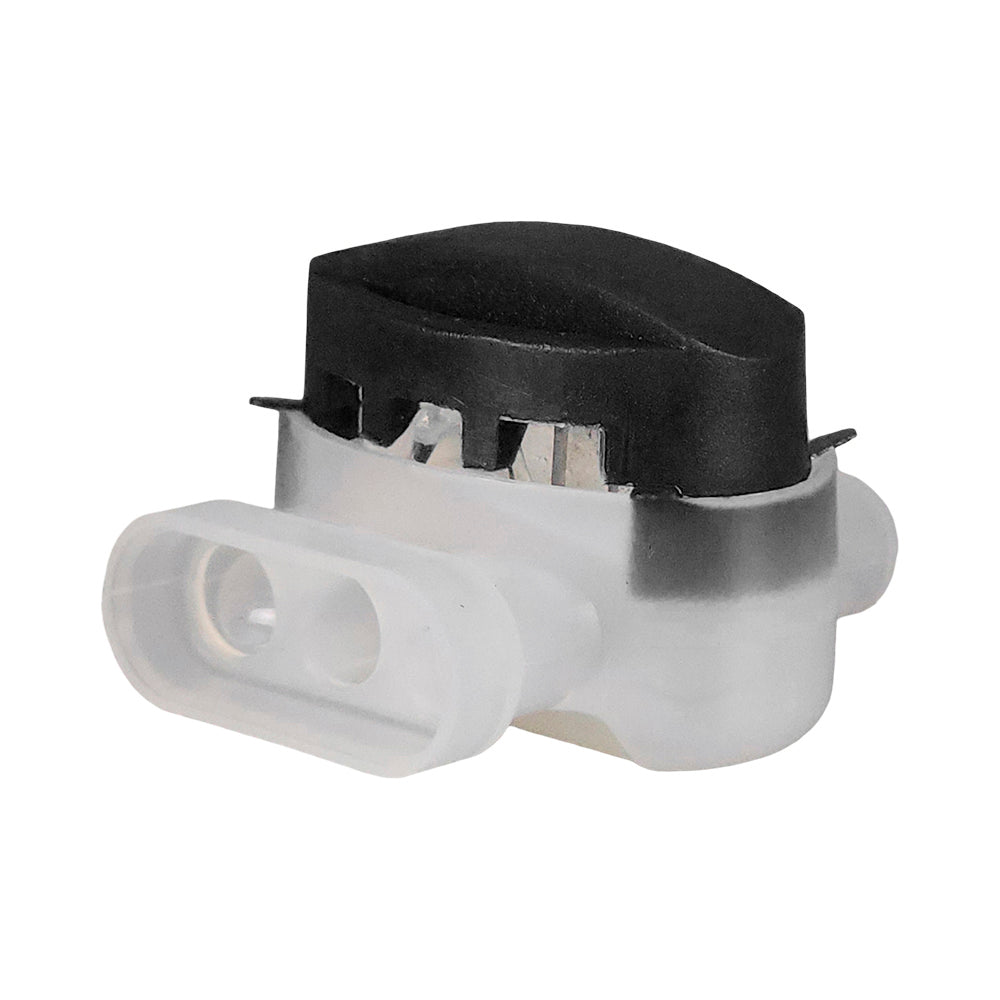

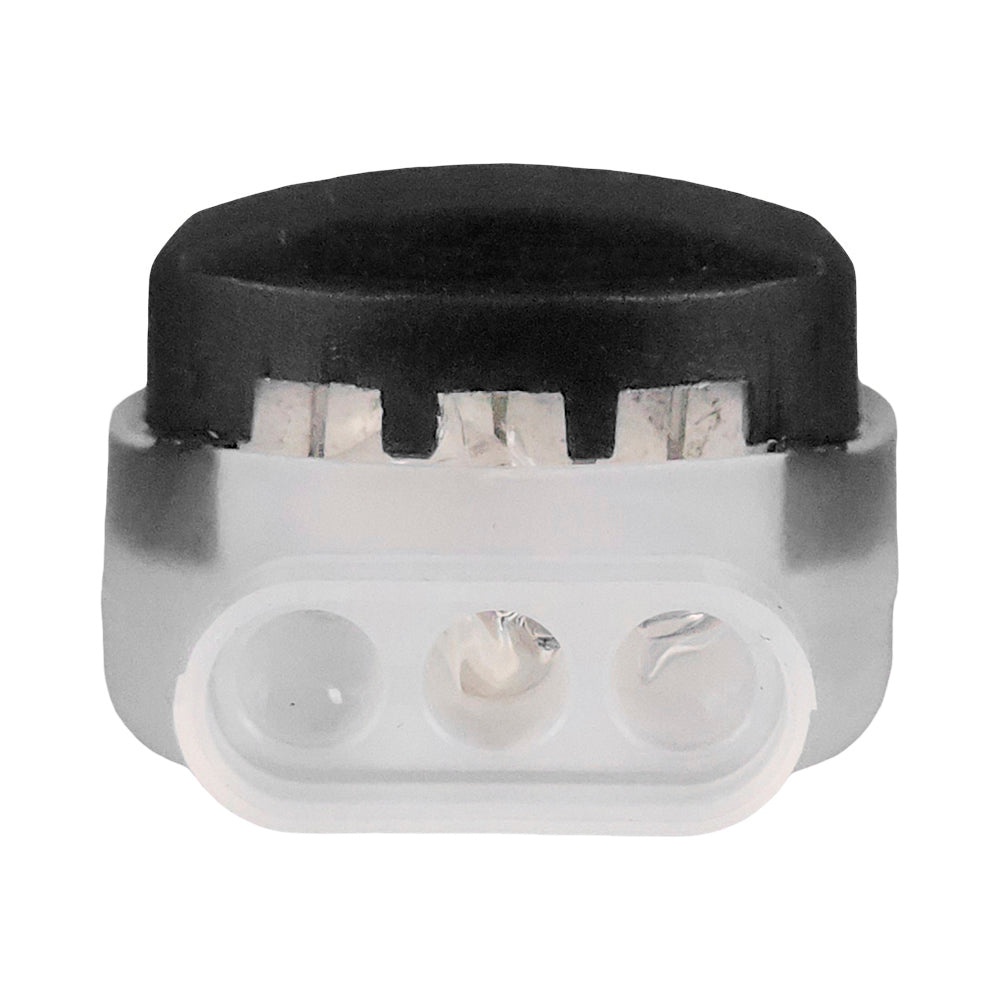

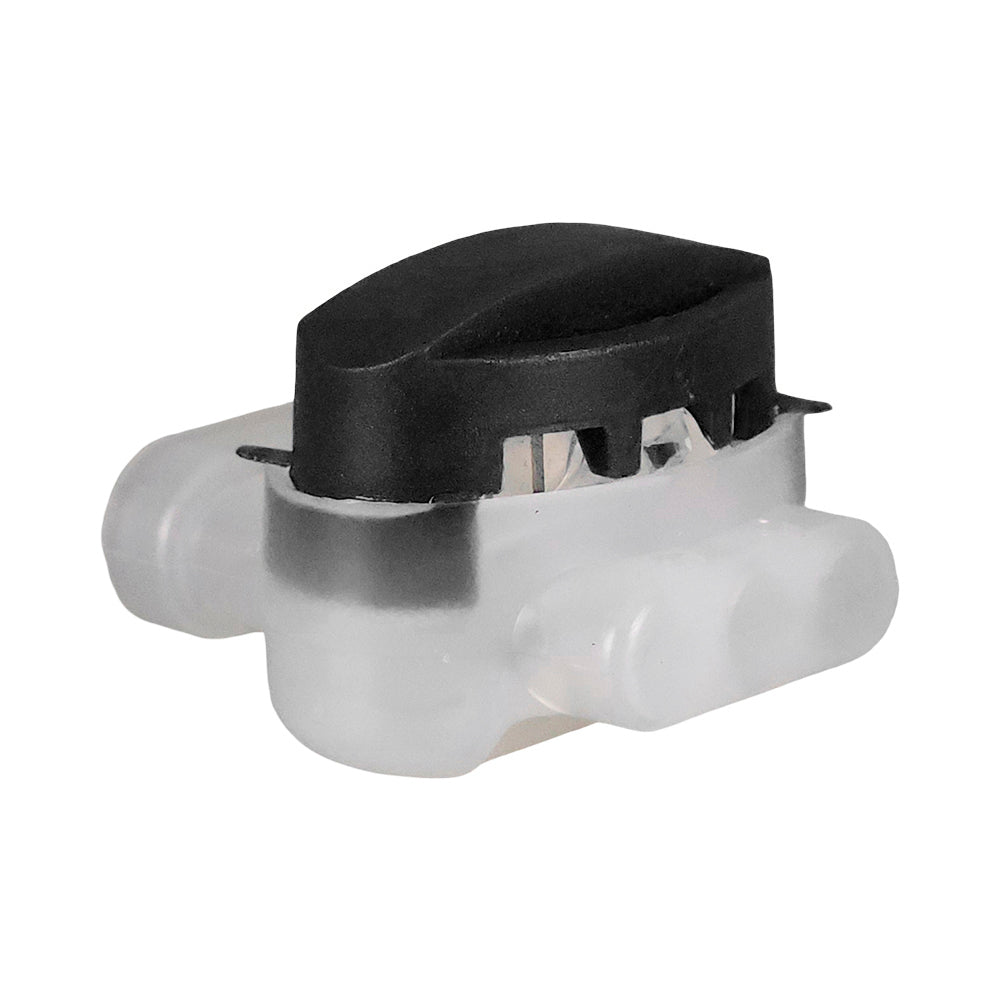

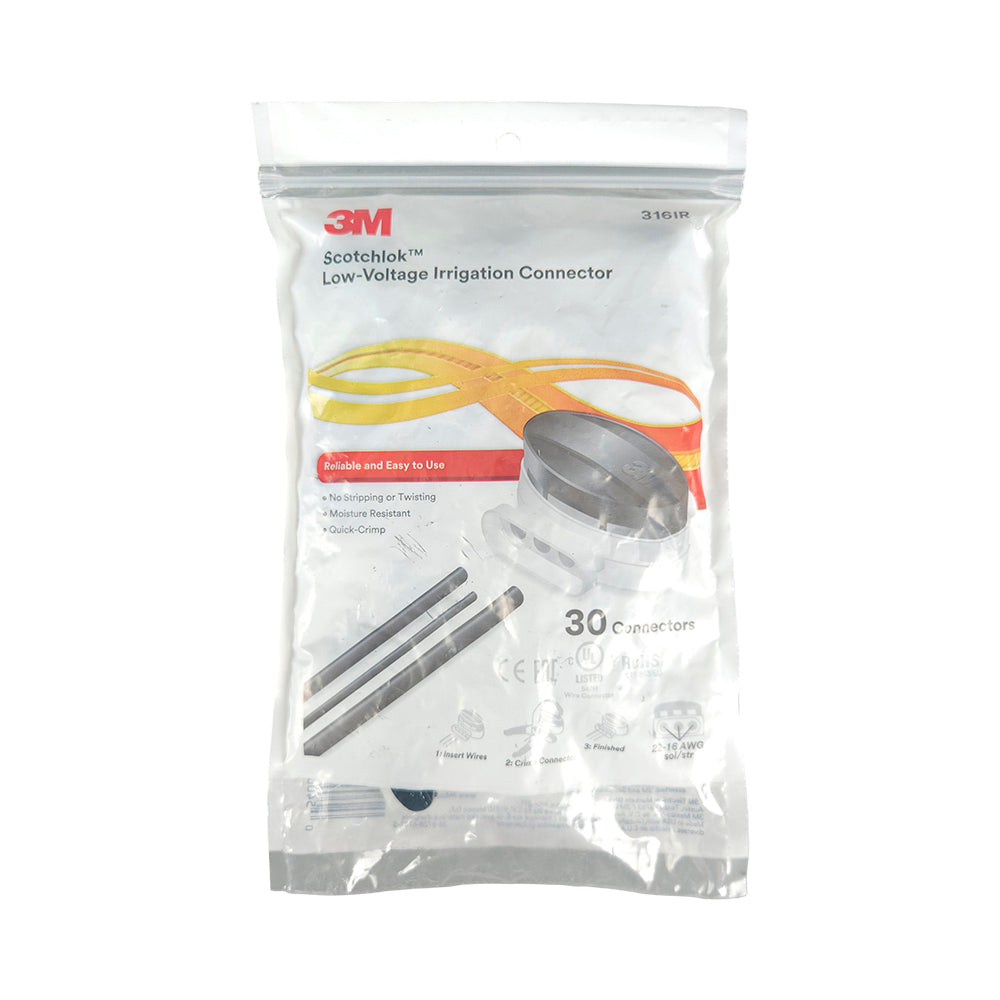

Scotchlok Wire Connector 316 IR 0.5mm - 1.5mm

SCOTCHLOK WIRE CONNECTOR 316 IR 0.5MM–1.5MM

Name: Scotchlok Wire Connector 316 IR 0.5mm - 1.5mm
Brand: Scotchlok
SKU: WC316IR
Price: 2.65 AUD
Availability: InStock

Irrigation Wire & Low Voltage Cable

Scotchlok 316-IR moisture-resistant IDC connector for suitable low-voltage sprinkler, irrigation and landscape lighting wire joins.

✓ 316-IR Scotchlok Connector
✓ Moisture-Resistant Seal
✓ Gel / Grease Filled Design
✓ 0.5mm–1.5mm Wire Range
✓ For Applications Under 30V
✓ Check Wire Compatibility Before Use

3M Wire Connector Specifications

More Information

Product Specifications

SCOTCHLOK WIRE CONNECTOR 316 IR 0.5MM–1.5MM

Scotchlok Wire Connector 0.5 mm UAL UV Stabilised WC05UAL3M

$1.05 /each

$1.05 inc GST

Total: $0

Scotchlok Wire Connector 316 IR 0.5mm - 1.5mm WC316IR

$2.65 /each

$2.65 inc GST

Total: $0

Wire Connector K-Rain 314 Gel Connector 0.5mm-1.5mm WC314

$1.30 /each

$1.30 inc GST

Total: $0

Scotchlok Wire Connector MGC WCCMGC

$3.01 /each

$3.01 inc GST

Total: $0

Wire connector Single Screw 1.5 mm - 6 mm WCSS15-6

$0.30 /each

$0.30 inc GST

Total: $0

Wire Connector Double Screw 1.5 mm - 6 mm WCDS15-6

$0.42 /each

$0.42 inc GST

Total: $0

Scotchlok 316-IR wire connectors are moisture-resistant insulation displacement connectors used for suitable low-voltage underground wire joins. They are commonly used for sprinkler systems, landscape lighting and low-energy underground circuit wiring where moisture protection is required.

The connector provides a moisture-resistant seal with mineral oil-based grease and is recommended by 3M for applications under 30V. Select the connector to suit the wire size, insulation diameter and installation conditions, and follow the manufacturer’s installation method.

3M Wire Connector Specifications

✓ Product Type & Size
Scotchlok 316-IR moisture-resistant IDC wire connector, listed for 0.5mm–1.5mm wire applications.

✓ Connector Type
Insulation displacement pigtail connector.

✓ Application
Recommended for low-energy underground circuit wires, sprinkler systems, landscape lighting and other moisture-resistant wire applications.

✓ Voltage Suitability
For applications under 30V.

✓ Conductor Size
22 AWG to 16 AWG.

✓ Maximum Insulation Outside Diameter
0.155" (3.9mm).

✓ Moisture Protection
Moisture-resistant seal with mineral oil-based grease.

✓ Colour
Black / white.

✓ Installation Method
IDC / self-stripping style connector. Install using the correct crimping tool or manufacturer-approved method.

✓ Selection Note
Select connectors to suit the wire size, conductor type, voltage, installation location and application.
