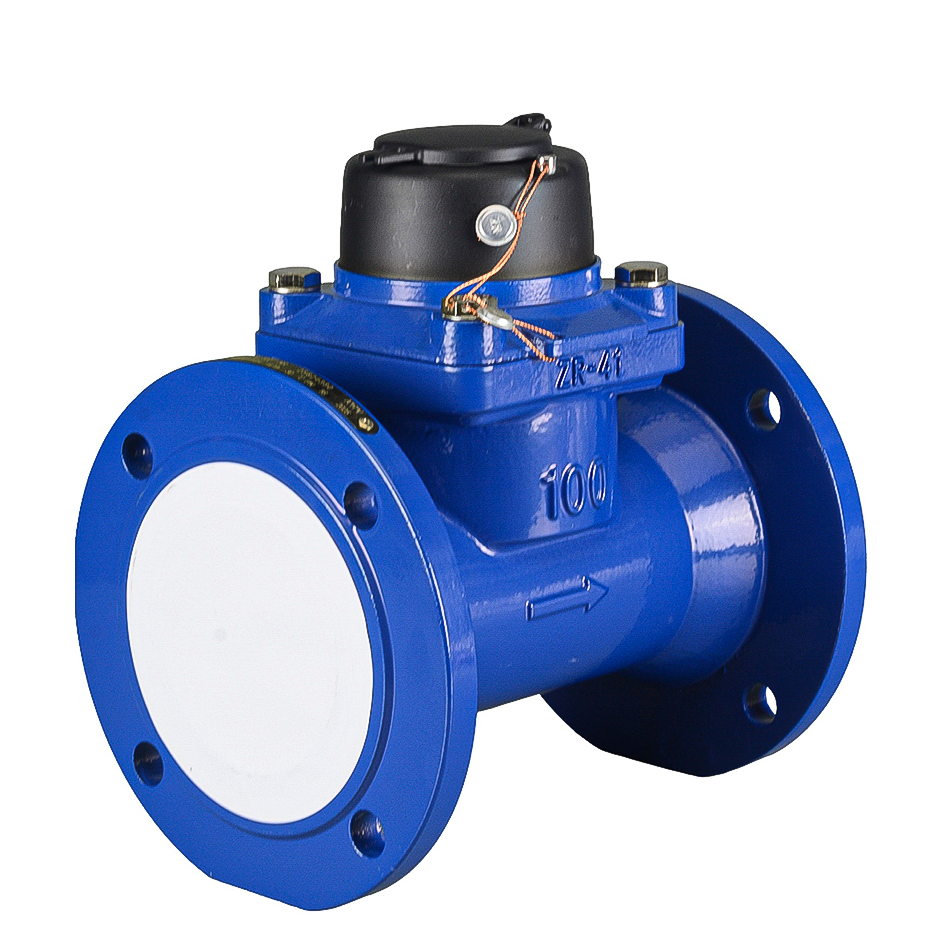

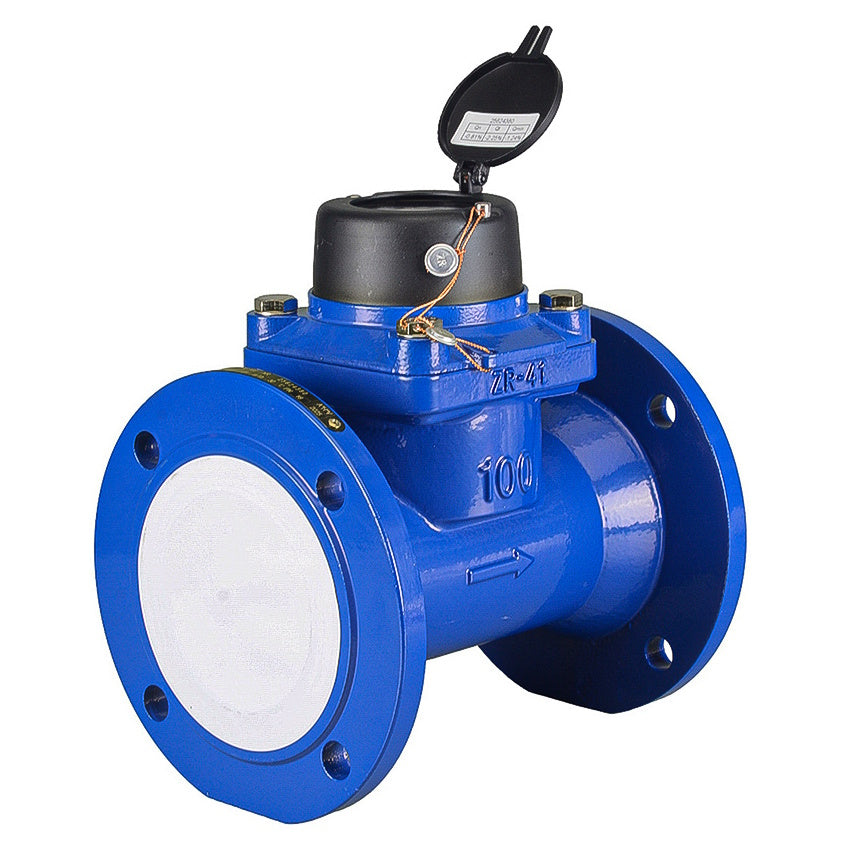

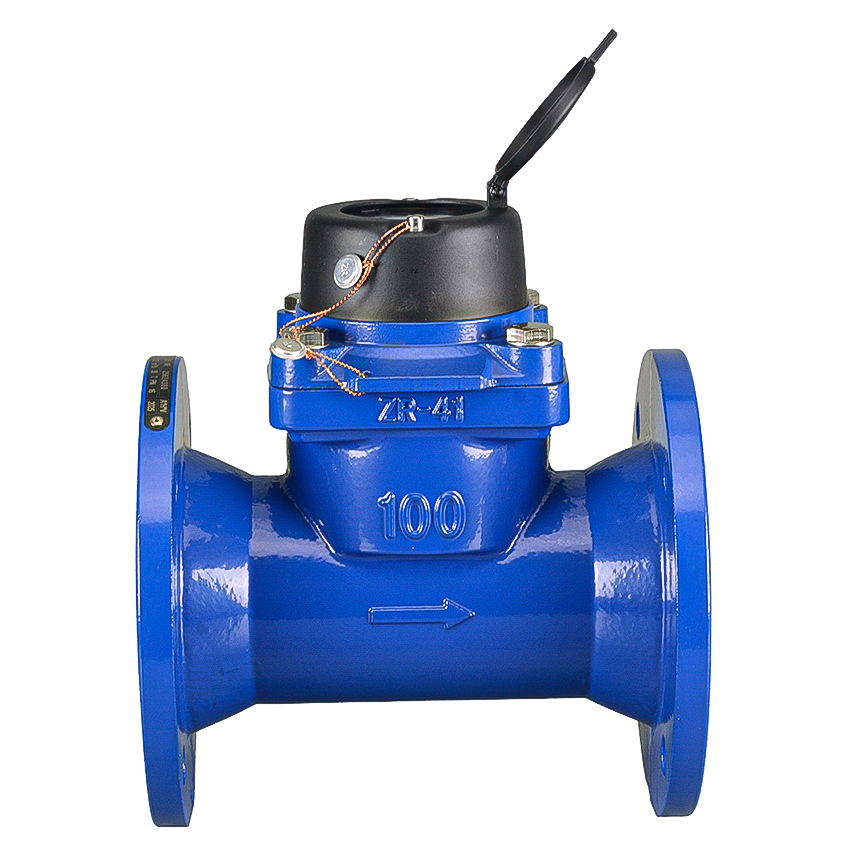

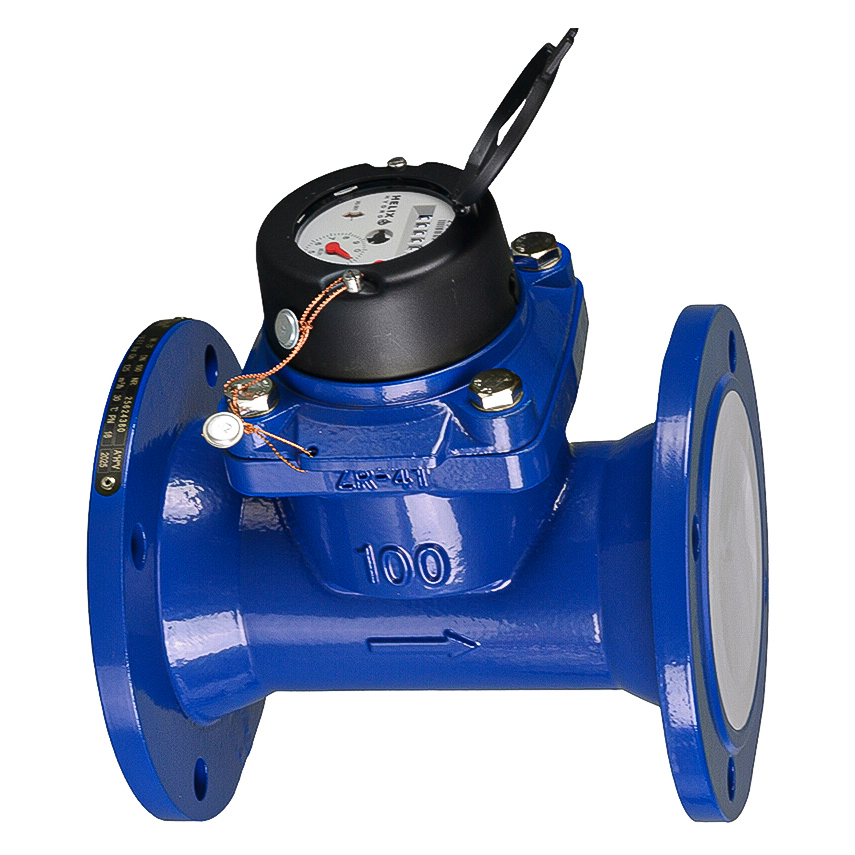

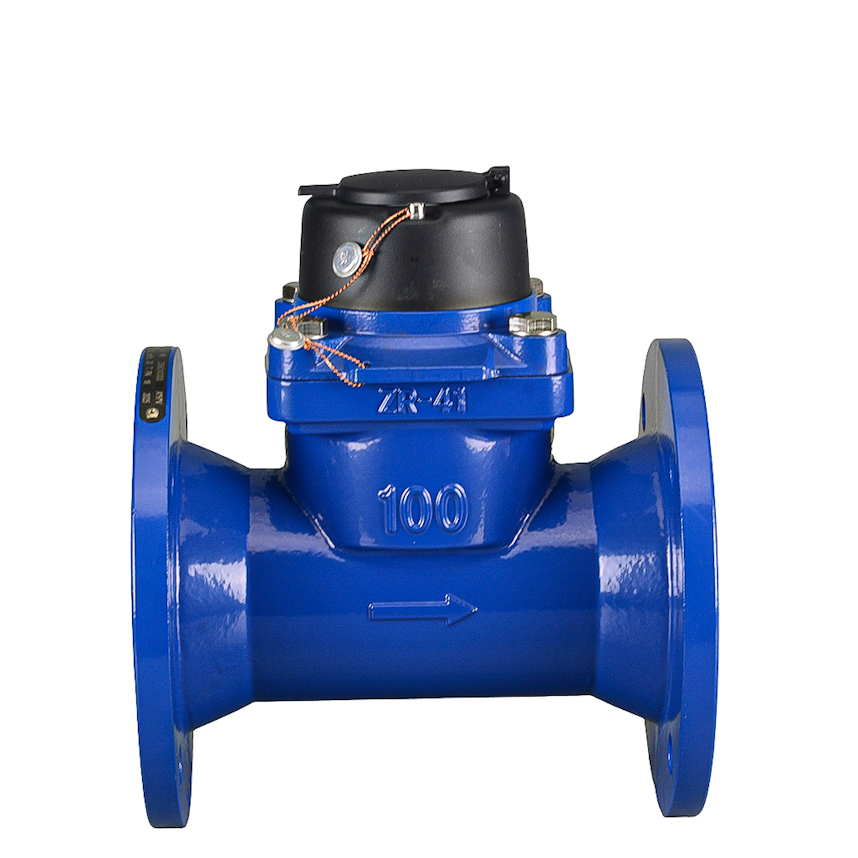

WATER METER TANGENTIAL PADDLE 100MM FLANGED TABLE D

Tangential Paddle 100mm flanged Table D water meter for manual irrigation, agricultural and loaded-water measurement applications.

✓ 100mm Flanged Water Meter
✓ Table D Flanged Connection
✓ Manual Read Meter
✓ PN16 Pressure Rating
✓ 50°C Maximum Temperature
✓ Check Flow Range Before Ordering

Zenner Threaded Water Meter Specifications
Zenner Flanged Water Meter Specifications
Zenner Water Meter Installation Guide

More Information
Product Specifications
Water Meter Tangential Paddle 100mm Flanged Table D
WATER METER TANGENTIAL PADDLE 100MM FLANGED TABLE D
Water Meter Zenner MTKD-N (Multi-Jet) 20mm Male BSP
Water Meter Zenner MTKD-N (Multi-Jet) 20mm Male BSP WM020MI
$207.35 /each
Water Meter Zenner MTKD-N (Multi-Jet) 25mm Male BSP
Water Meter Zenner MTKD-N (Multi-Jet) 25mm Male BSP WM025MI
$245.63 /each
Water Meter Zenner MTKD-N (Multi-Jet) 32mm Male BSP
Water Meter Zenner MTKD-N (Multi-Jet) 32mm Male BSP WM032MI
$378.81 /each
Water Meter Zenner MTKD-N (Multi-Jet) 40mm Male BSP
Water Meter Zenner MTKD-N (Multi-Jet) 40mm Male BSP WM040MI
$546.29 /each
Water Meter Zenner MTKD-N (Multi-Jet) 50mm Male BSP
Water Meter Zenner MTKD-N (Multi-Jet) 50mm Male BSP WM050MI
$622.05 /each
Water Meter Tangential Paddle 80mm Flanged Table D
Water Meter Tangential Paddle 80mm Flanged Table D WM080FL
$805.48 /each
Water Meter Tangential Paddle 100mm Flanged Table D
Water Meter Tangential Paddle 100mm Flanged Table D WM100FL
$976.94 /each
Water Meter Tangential Paddle 150mm Flanged Table E
Water Meter Tangential Paddle 150mm Flanged Table E WM150FL
$1,447.46 /each
Water Meter Tangential Paddle 200mm Flanged Table E
Water Meter Tangential Paddle 200mm Flanged Table E WM200FL
$2,504.15 /each

Water Meter Tangential Paddle 100mm Flanged Table D is a mechanical flanged water meter used for agricultural, irrigation and loaded-water measurement applications. It is suitable where a 100mm flanged meter is required and the flow range suits the system.

This 100mm model is supplied with Table D flanged connection and is intended for manual water measurement without pulse output fitted. Confirm flange compatibility, expected flow range and installation position before ordering.

Zenner Threaded Water Meter Specifications
Zenner Flanged Water Meter Specifications
Zenner Water Meter Installation Guide

✓ Product Type & Size
Tangential paddle flanged water meter, 100mm.

✓ Connection
Table D flanged connection.

✓ Application
Suitable for agricultural, irrigation and loaded-water measurement applications where the meter size, flow range and installation requirements suit the system.

✓ Reading Type
Manual read meter without pulse output fitted.

✓ Pressure Rating
PN16.

✓ Maximum Temperature
50°C.

✓ Flow Performance
Nominal flow: 125 m³/h.
Maximum flow, short-term: 300 m³/h.
Maximum flow, constant: 300 m³/h.
Transitional flow: 30 m³/h.
Minimum flow: 12 m³/h.

✓ Measuring Accuracy
Class A.

✓ Dimensions
Overall length: 250mm.
Height H1: 260mm.
Height H2: 105mm.
Flange diameter: 220mm.
Bolt circle diameter: 180mm.
Number of bolts: 8.
Bolt diameter: 19mm.
Approximate weight: 18kg.

✓ Installation Note
Install in accordance with supplier installation requirements and relevant site requirements. Confirm flow direction, installation position and straight-pipe requirements before ordering.
