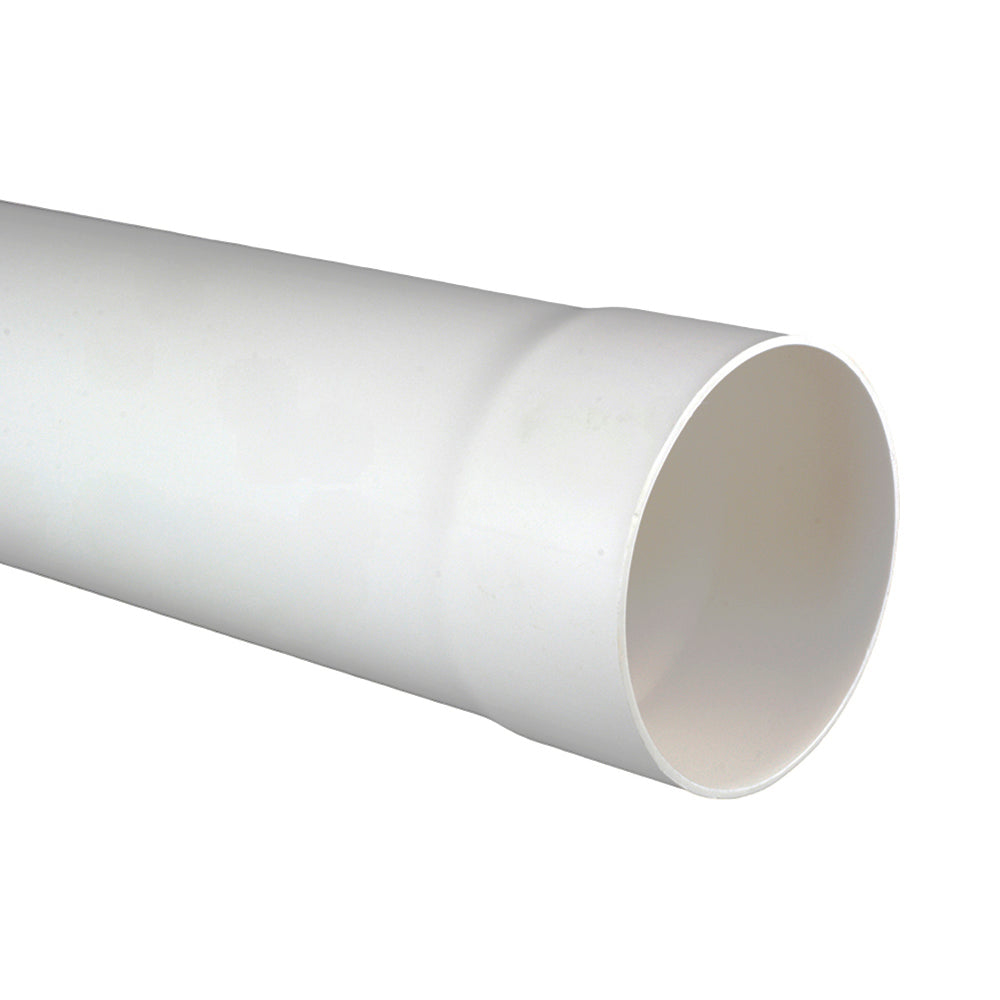

PVC stormwater pipe for rainwater and surface-water drainage. Choose the nominal size to suit the drainage system and required flow.
The range covers 75mm to 300mm, including 150mm foam-core pipe. Stormwater pipe carries rainwater and surface runoff in non-pressure drainage systems. It is not suitable for pumped pressure or sewerage applications.
Nominal size identifies the pipe size and matching fittings. It is not the exact internal or outside diameter. For example, 150mm stormwater pipe has an outside diameter of approximately 160mm. Stormwater and pressure pipe of the same nominal size can have different outside diameters.
SN describes pipe stiffness, or resistance to deformation under external loads. A higher SN indicates greater stiffness. It is not a pressure rating.
150mm, 225mm and 300mm stormwater pipe shares the outside diameters of the corresponding DWV sizes, allowing matching stormwater or DWV socket fittings to be used for stormwater drainage. Match the socket size and joint type to the pipe; fittings that insert inside the pipe need a separate internal-diameter check.
Use fittings matched to the pipe size and outside diameter. For solvent-weld joints, cut square, remove burrs, clean and prime the joint surfaces, then apply Type N solvent cement and assemble as directed in the jointing guide. Allow joints to cure before use.
Above-ground pipework needs suitable support. Below-ground pipework needs prepared bedding, side support and backfill, with cover appropriate to traffic and other loads. Follow the installation guide and the requirements for the installation.
Stormwater Pipe Dimensions
Stormwater PVC Jointing & Installation Guide
PVC stormwater pipe dimensions
Approximate dimensions in mm.
| Nominal size |
Stiffness class |
Outside diameter |
Internal diameter |
Wall thickness |
|---|---|---|---|---|
| 75 | SN2 | 75 | 71.8 | 1.6 |
| 90 | SN2 | 90 | 86.2 | 1.9 |
| 150 | SN2 | 160 | 153.6 | 3.2 |
| 225 | SN2 | 250 | 239 | 5.5 |
| 300 | SN2 | 315 | 303 | 6 |
| 375 | SN2 | 400 | 384.2 | 7.9 |
Dimensions are approximate and may vary with manufacturer, construction and manufacturing tolerances. Check the supplied pipe where dimensions are critical.
