RELN STORM DRAIN 90 DEGREE CORNER WITH STAINLESS STEEL GRATE

RELN Storm Drain 90 degree corner with stainless steel grate for turning compatible Storm Drain channel runs where a metal grate finish is preferred.

✓ Complete 90 Degree Corner and Grate
✓ Stainless Steel Grate
✓ Suits RELN Storm Drain Channel
✓ Used to Turn Channel Runs
✓ Listed as 5 Tonne in Concrete
✓ Check Layout and Installation Requirements

RELN Storm Drain Channels and Fittings Brochure

More Information
Product Specifications
Reln Storm Drain Corner 90° with Grate Stainless Steel
RELN STORM DRAIN 90 DEGREE CORNER WITH STAINLESS STEEL GRATE
Reln Storm Drain Corner 90° with Grate Plastic Black
Reln Storm Drain Corner 90° with Grate Plastic Black RSDC90PBL
$31.23 /each
Reln Storm Drain Corner 90° with Grate Plastic Grey
Reln Storm Drain Corner 90° with Grate Plastic Grey RSDC90PGY
$47.05 /each
Reln Storm Drain Corner 90° with Grate Stainless Steel
Reln Storm Drain Corner 90° with Grate Stainless Steel RSDC90SSS
$69.29 /each
Reln Storm Drain Corner 90° with Grate Plastic Terracotta
Reln Storm Drain Corner 90° with Grate Plastic Terracotta RSDC90PTC
$47.05 /each
Reln Storm Drain Corner 90° with Grate Plastic Sandstone
Reln Storm Drain Corner 90° with Grate Plastic Sandstone RSDC90PSS
$47.05 /each
Reln Storm Drain Corner 90° with Grate Ductile Iron
Reln Storm Drain Corner 90° with Grate Ductile Iron RSDC90DI
$75.03 /each
Reln Storm Drain Corner 90° with Grate Galvanised Steel
Reln Storm Drain Corner 90° with Grate Galvanised Steel RSDC90GS
$48.88 /each
Reln Storm Drain Corner 90° with Grate Architectural
Reln Storm Drain Corner 90° with Grate Architectural RSDC90PAR
$148.65 /each

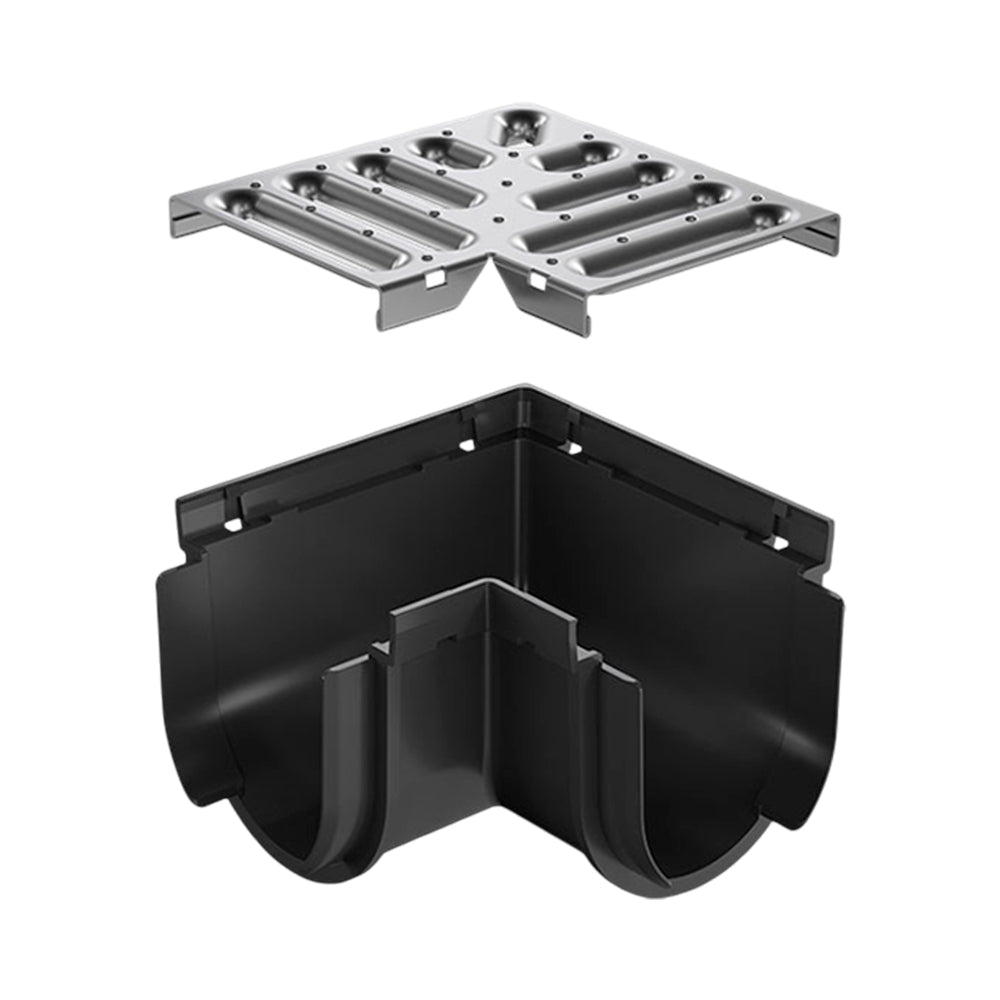

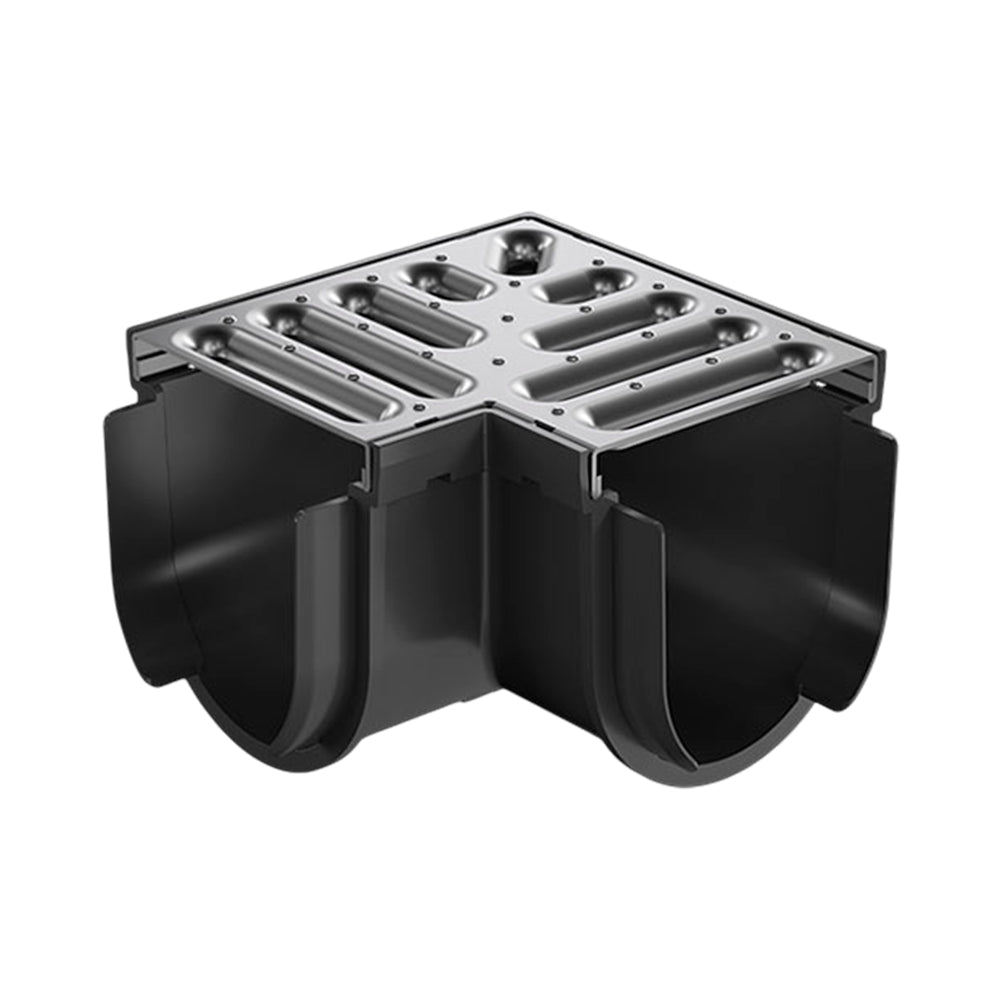

RELN Storm Drain 90 degree corner with stainless steel grate is a modular corner fitting used to turn a Storm Drain channel run through a 90 degree change in direction. It is supplied as a complete corner fitting with stainless steel grate.

The stainless steel grate provides a durable metal finish for suitable domestic drainage layouts while remaining part of the RELN Storm Drain clip-together channel system. This standard Storm Drain corner option is listed as 5 tonne in concrete when correctly installed. Confirm layout, grate finish, concrete support and site loading conditions before ordering.

RELN Storm Drain Channels and Fittings Brochure

✓ Product Type & Size
RELN Storm Drain 90 degree corner fitting with stainless steel grate, approximately 155mm x 155mm x 129mm.

✓ Series
RELN Storm Drain modular channel drainage system.

✓ Supply Format
Complete 90 degree corner fitting with grate.

✓ Grate Type
Stainless steel grate.

✓ Load Rating
Listed as 5 tonne in concrete when correctly installed.

✓ Compatibility
Compatible with RELN Storm Drain channel and clip-in grate system.

✓ Applications
Suitable for domestic surfacewater drainage layouts where a 90 degree change in channel direction is required and a stainless steel grate finish is preferred.

✓ Installation Note
Confirm channel layout, corner orientation, concrete support, slope and site loading conditions before ordering.
