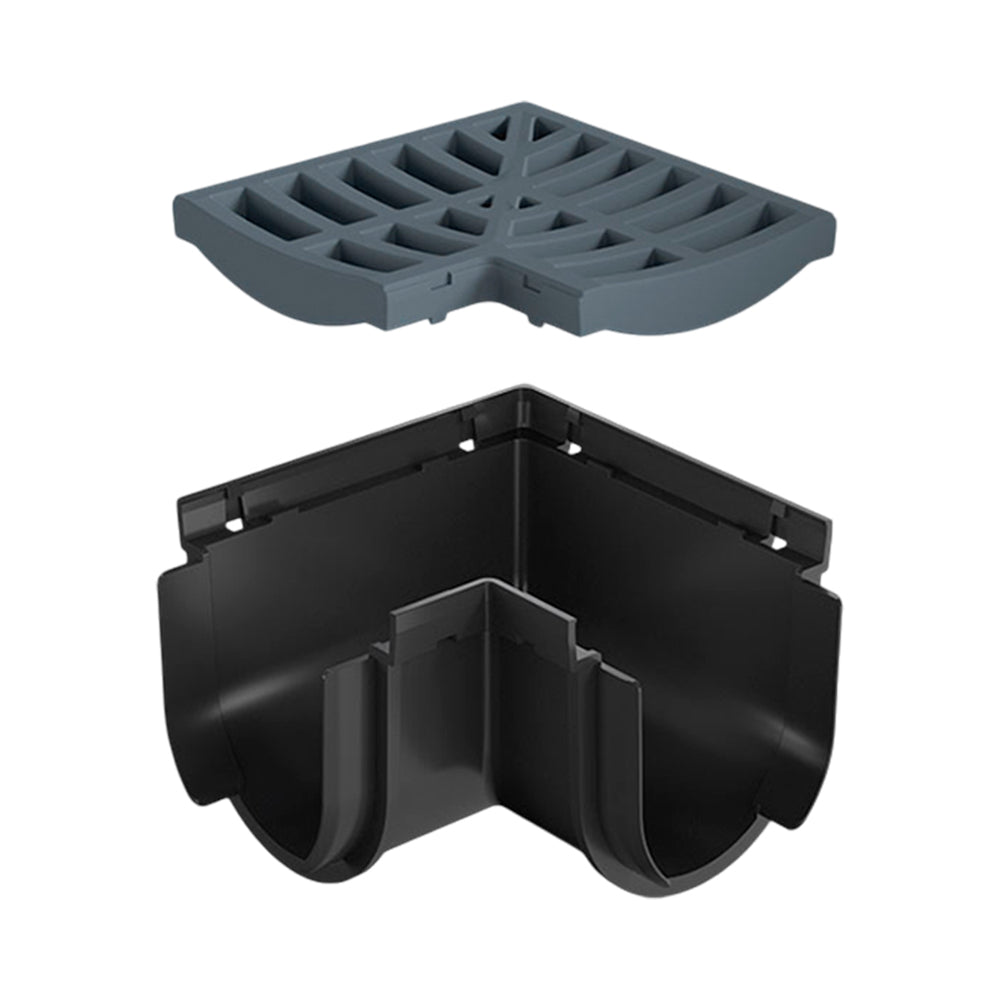

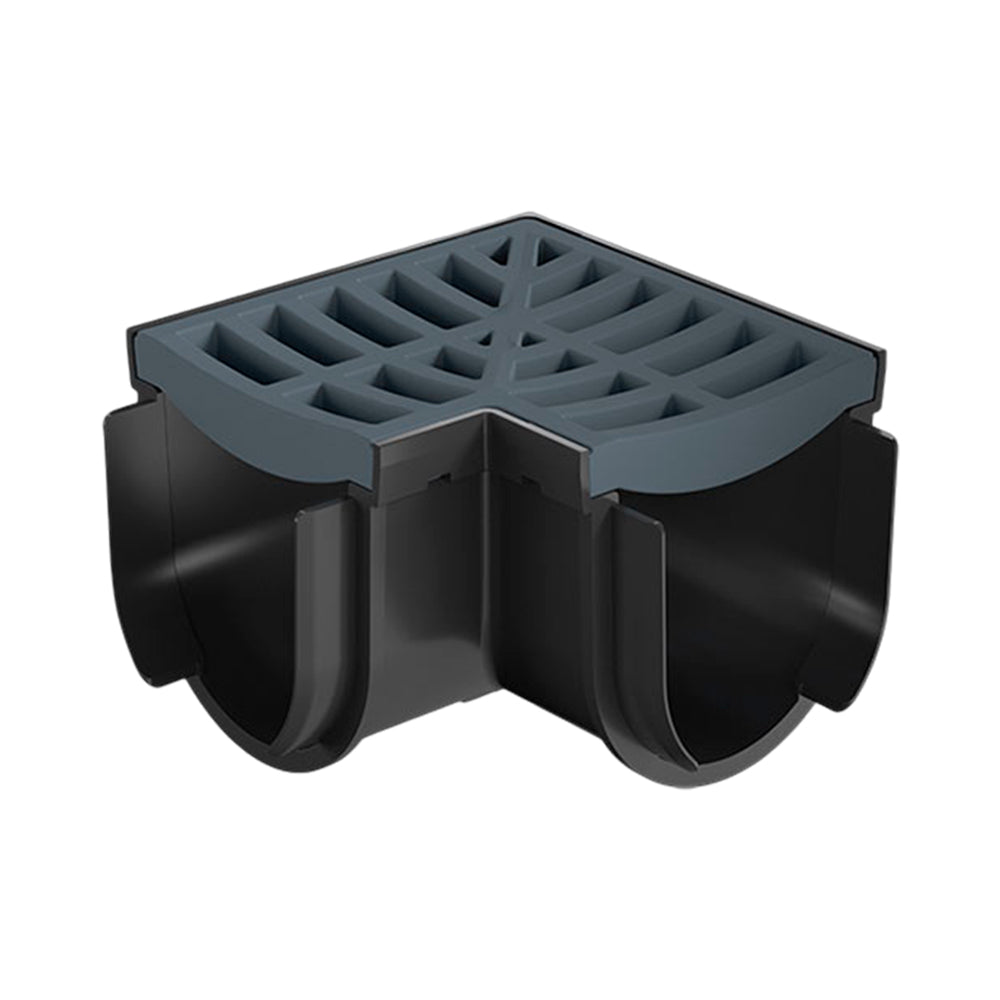

Reln Storm Drain Corner 90° with Grate Plastic Grey
Reln Storm Drain Corner 90° with Grate Plastic Grey
Reln Storm Drain Corner 90° with Grate Plastic Grey
Reln Storm Drain Corner 90° with Grate Plastic Grey

RELN STORM DRAIN 90 DEGREE CORNER WITH GREY PLASTIC GRATE

RELN Storm Drain 90 degree corner with grey plastic grate for turning compatible Storm Drain channel runs where a grey grate finish is preferred.

✓ Complete 90 Degree Corner and Grate
✓ Grey Plastic Grate
✓ Suits RELN Storm Drain Channel
✓ Used to Turn Channel Runs
✓ Listed as 5 Tonne in Concrete
✓ Check Layout and Installation Requirements

RELN Storm Drain Channels and Fittings Brochure

More Information
Product Specifications
Reln Storm Drain Corner 90° with Grate Plastic Grey
RELN STORM DRAIN 90 DEGREE CORNER WITH GREY PLASTIC GRATE
Reln Storm Drain Corner 90° with Grate Plastic Black
Reln Storm Drain Corner 90° with Grate Plastic Black RSDC90PBL
$31.23 /each
Reln Storm Drain Corner 90° with Grate Plastic Grey
Reln Storm Drain Corner 90° with Grate Plastic Grey RSDC90PGY
$47.05 /each
Reln Storm Drain Corner 90° with Grate Stainless Steel
Reln Storm Drain Corner 90° with Grate Stainless Steel RSDC90SSS
$69.29 /each
Reln Storm Drain Corner 90° with Grate Plastic Terracotta
Reln Storm Drain Corner 90° with Grate Plastic Terracotta RSDC90PTC
$47.05 /each
Reln Storm Drain Corner 90° with Grate Plastic Sandstone
Reln Storm Drain Corner 90° with Grate Plastic Sandstone RSDC90PSS
$47.05 /each
Reln Storm Drain Corner 90° with Grate Ductile Iron
Reln Storm Drain Corner 90° with Grate Ductile Iron RSDC90DI
$75.03 /each
Reln Storm Drain Corner 90° with Grate Galvanised Steel
Reln Storm Drain Corner 90° with Grate Galvanised Steel RSDC90GS
$48.88 /each
Reln Storm Drain Corner 90° with Grate Architectural
Reln Storm Drain Corner 90° with Grate Architectural RSDC90PAR
$148.65 /each

RELN Storm Drain 90 degree corner with grey plastic grate is a modular corner fitting used to turn a Storm Drain channel run through a 90 degree change in direction. It is supplied as a complete corner fitting with grey plastic grate.

The grey grate finish can suit concrete, paving and neutral landscaping areas while remaining part of the RELN Storm Drain clip-together channel system. This standard Storm Drain corner option is listed as 5 tonne in concrete when correctly installed. Confirm layout, grate colour, concrete support and site loading conditions before ordering.

RELN Storm Drain Channels and Fittings Brochure

✓ Product Type & Size
RELN Storm Drain 90 degree corner fitting with grey plastic grate, approximately 155mm x 155mm x 129mm.

✓ Series
RELN Storm Drain modular channel drainage system.

✓ Supply Format
Complete 90 degree corner fitting with grate.

✓ Grate Type
Grey plastic grate.

✓ Load Rating
Listed as 5 tonne in concrete when correctly installed.

✓ Compatibility
Compatible with RELN Storm Drain channel and clip-in grate system.

✓ Applications
Suitable for domestic surfacewater drainage layouts where a 90 degree change in channel direction is required.

✓ Installation Note
Confirm channel layout, corner orientation, concrete support, slope and site loading conditions before ordering.
