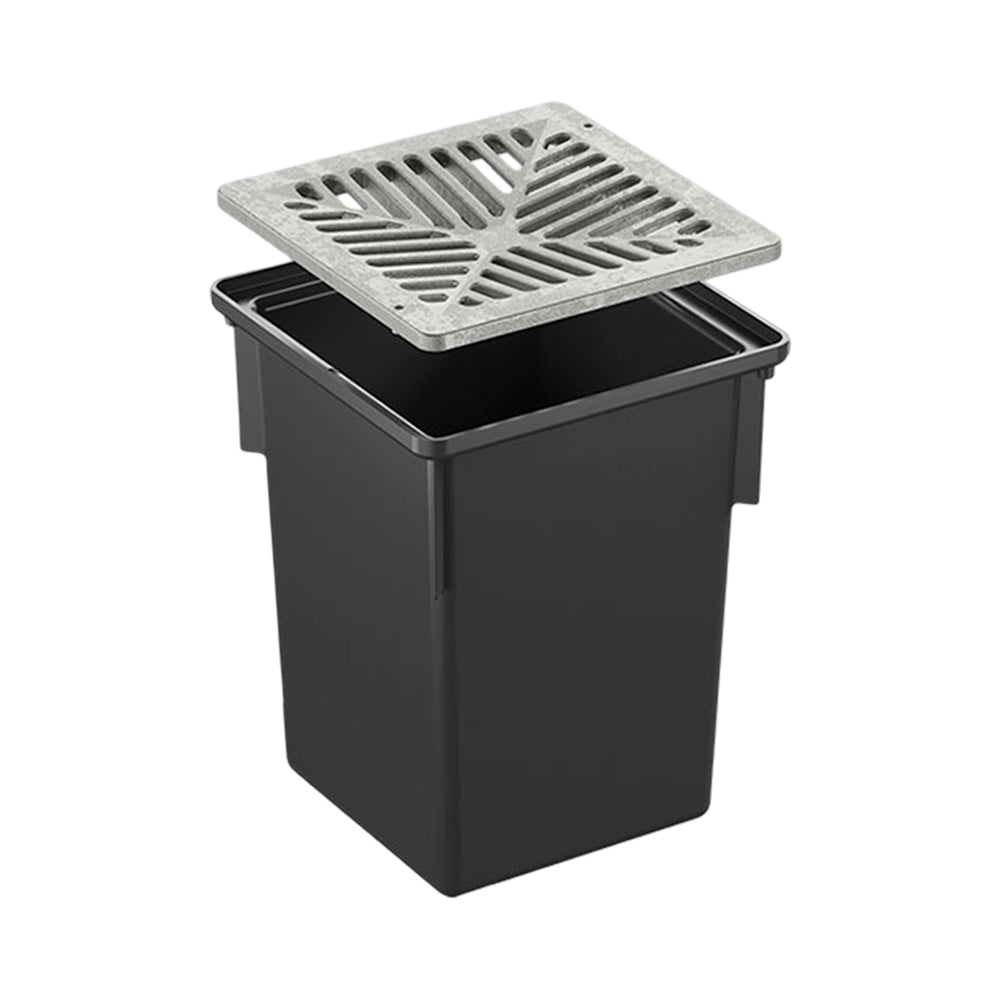

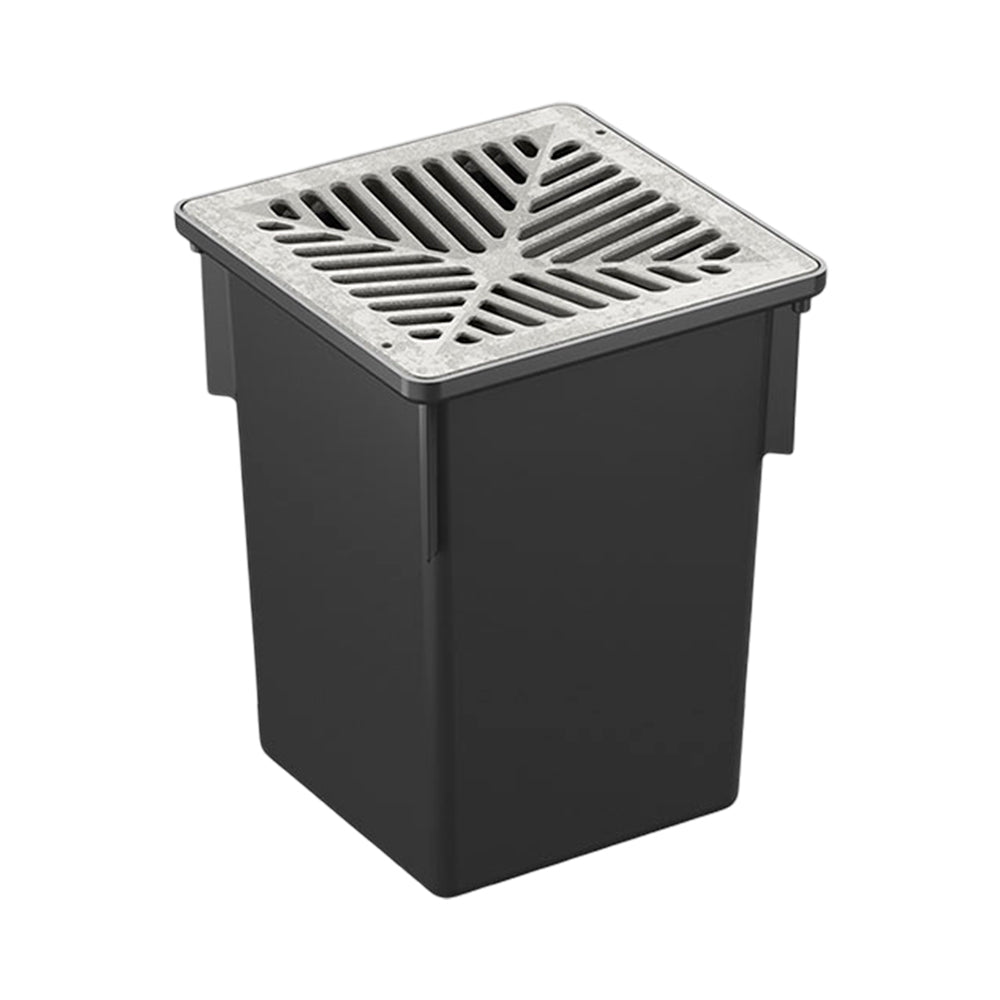

RELN SERIES 250 PIT WITH GREY ALUMINIUM CONCAVE GRATE

RELN Series 250 domestic rainwater pit with grey aluminium grate for household surfacewater drainage where an aluminium grate finish is preferred.

✓ Complete Series 250 Pit
✓ 256mm x 256mm x 285mm Pit Size
✓ Grey / Plain Aluminium Concave Grate
✓ Domestic Surfacewater Drainage
✓ Suits 90mm or 100mm PVC Pipe
✓ Check Grate and Installation Requirements

RELN Domesitc Traditional Pits Brochure

More Information
Product Specifications
Product Videos
RELN Pit and Aluminium Grate-Grey Series 250
RELN SERIES 250 PIT WITH GREY ALUMINIUM CONCAVE GRATE
RELN Pit and Plastic Grate-Black Series 250
RELN Pit and Plastic Grate-Black Series 250 RPS250PBLG
$16.23 /each
RELN Pit and Aluminium Grate-Grey Series 250
RELN Pit and Aluminium Grate-Grey Series 250 RPS250ALPG
$33.05 /each
RELN Pit and Aluminium Grate-Sandstone Series 250
RELN Pit and Aluminium Grate-Sandstone Series 250 RPS250ALSSG
$50.53 /each
RELN Pit and Aluminium Grate-Terracotta Series 250
RELN Pit and Aluminium Grate-Terracotta Series 250 RPS250ALTCG
$50.53 /each
RELN Pit and Plastic Grate-Terracotta Series 250
RELN Pit and Plastic Grate-Terracotta Series 250 RPS250PTCG
$41.12 /each
RELN Pit and Plastic Grate-Sandstone Series 250
RELN Pit and Plastic Grate-Sandstone Series 250 RPS250PSSG
$41.12 /each
RELN Pit and Plastic Grate-Grey Series 250
RELN Pit and Plastic Grate-Grey Series 250 RPS250PGYG
$41.12 /each
RELN (PIT ONLY) Series 250
RELN (PIT ONLY) Series 250 RPS250
$9.50 /each
Reln Pit Series 250 Leaf Drain Guard with Handle (GUARD ONLY)
Reln Pit Series 250 Leaf Drain Guard with Handle (GUARD ONLY) RPDGS250S
$12.53 /each
PP Leaf Guard RELN Series 250 Pit SMALL Leaf Guard With Handle (GUARD ONLY)
PP Leaf Guard RELN Series 250 Pit SMALL Leaf Guard With Handle (GUARD ONLY) RPDGS250S
$12.05 /each

RELN Series 250 domestic rainwater pit with grey aluminium grate is a compact surfacewater drainage pit for household drainage applications where an aluminium grate finish is preferred. It is suitable for use under downpipes, taps, junction points and drainage channel ends where the grate type and installation conditions are appropriate.

Supplied as a complete Series 250 pit with grey / plain aluminium concave grate. The pit measures 256mm x 256mm x 285mm and connects to 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings. Pipe penetrations should be sealed with silicone. Confirm grate suitability, pipe layout, load rating and installation requirements before ordering.

RELN Domesitc Traditional Pits Brochure

✓ Product Type & Size
RELN Series 250 domestic rainwater pit, 256mm x 256mm x 285mm.

✓ Series
RELN Series 250 Traditional Domestic Pit.

✓ Grate Type
Grey / plain aluminium concave grate.

✓ Load Rating
Residential light duty.

✓ Material
UV stabilised recycled plastic pit body with aluminium grate.

✓ Pipe Connection
Suitable for 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings.

✓ Installation
Mark and cut pipe holes as required. Seal pipe and pit connection with silicone.

✓ Applications
Suitable for household surfacewater drainage under downpipes, taps, junction points and drainage channel ends where the selected grate and installation method suit the site requirements.

✓ Installation Note
Confirm pipe size, drainage layout, grate suitability, load rating and concrete support requirements before ordering.
