RELN (PIT ONLY) Series 250
RELN (PIT ONLY) Series 250

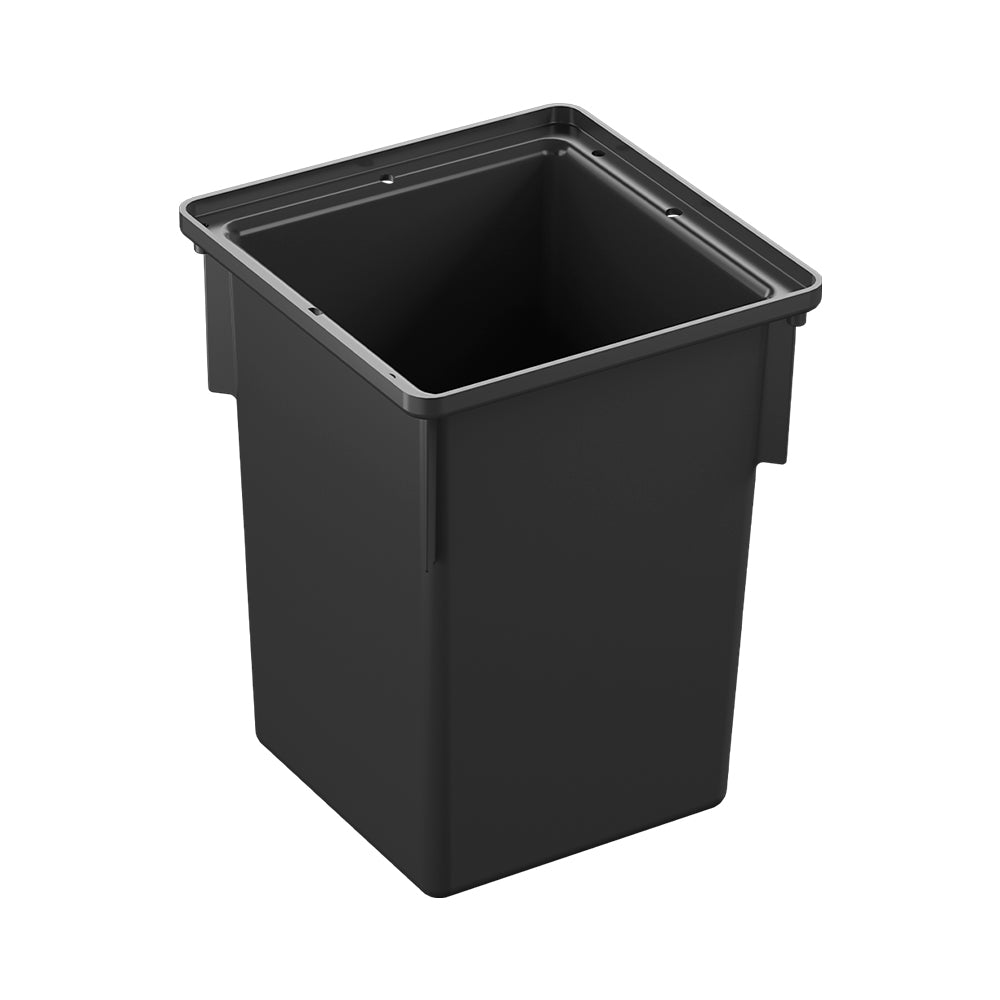

RELN SERIES 250 PIT ONLY

RELN Series 250 pit body only for household surfacewater drainage applications. Use with a compatible Series 250 grate selected to suit the installation.

✓ Pit Body Only
✓ 256mm x 256mm x 285mm Pit Size
✓ Suits Compatible Series 250 Grates
✓ Domestic Surfacewater Drainage
✓ Suits 90mm or 100mm PVC Pipe
✓ Grate Not Included

RELN Domesitc Traditional Pits Brochure

More Information
Product Specifications
Product Videos
RELN (PIT ONLY) Series 250
RELN SERIES 250 PIT ONLY
RELN Pit and Plastic Grate-Black Series 250
RELN Pit and Plastic Grate-Black Series 250 RPS250PBLG
$16.23 /each
RELN Pit and Aluminium Grate-Grey Series 250
RELN Pit and Aluminium Grate-Grey Series 250 RPS250ALPG
$33.05 /each
RELN Pit and Aluminium Grate-Sandstone Series 250
RELN Pit and Aluminium Grate-Sandstone Series 250 RPS250ALSSG
$50.53 /each
RELN Pit and Aluminium Grate-Terracotta Series 250
RELN Pit and Aluminium Grate-Terracotta Series 250 RPS250ALTCG
$50.53 /each
RELN Pit and Plastic Grate-Terracotta Series 250
RELN Pit and Plastic Grate-Terracotta Series 250 RPS250PTCG
$41.12 /each
RELN Pit and Plastic Grate-Sandstone Series 250
RELN Pit and Plastic Grate-Sandstone Series 250 RPS250PSSG
$41.12 /each
RELN Pit and Plastic Grate-Grey Series 250
RELN Pit and Plastic Grate-Grey Series 250 RPS250PGYG
$41.12 /each
RELN (PIT ONLY) Series 250
RELN (PIT ONLY) Series 250 RPS250
$9.50 /each
Reln Pit Series 250 Leaf Drain Guard with Handle (GUARD ONLY)
Reln Pit Series 250 Leaf Drain Guard with Handle (GUARD ONLY) RPDGS250S
$12.53 /each
PP Leaf Guard RELN Series 250 Pit SMALL Leaf Guard With Handle (GUARD ONLY)
PP Leaf Guard RELN Series 250 Pit SMALL Leaf Guard With Handle (GUARD ONLY) RPDGS250S
$12.05 /each

RELN Series 250 pit only is the base body for a compact domestic rainwater pit used in household surfacewater drainage applications. It is suitable for use under downpipes, taps, junction points and drainage channel ends when paired with a compatible Series 250 grate.

This is a pit body only product. Grate, drain guard and pipework are not included. The Series 250 pit measures 256mm x 256mm x 285mm and connects to 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings. Confirm grate selection, pipe layout, load rating and installation requirements before ordering.

RELN Domesitc Traditional Pits Brochure

✓ Product Type & Size
RELN Series 250 domestic rainwater pit body only, 256mm x 256mm x 285mm.

✓ Series
RELN Series 250 Traditional Domestic Pit.

✓ Supply Note
Pit body only. Grate, drain guard, pipework and installation materials are not included.

✓ Material
UV stabilised recycled plastic.

✓ Pipe Connection
Suitable for 90mm or 100mm PVC pipe through cut-to-size horizontal pipe openings.

✓ Installation
Mark and cut pipe holes as required. Seal pipe and pit connection with silicone.

✓ Riser Note
Series 250 pit can be used as a riser when the base is cut out, where suitable for the installation.

✓ Applications
Suitable for household surfacewater drainage under downpipes, taps, junction points and drainage channel ends when used with a compatible grate.

✓ Installation Note
Confirm pipe size, drainage layout, grate selection, load rating and concrete support requirements before ordering.
