PURETEC MPX300B HEAVY DUTY FILTER HOUSING SUITS 4.5" X 20" CARTRIDGES

Puretec MPX300B is a heavy duty single filter housing for compatible 4.5" x 20" MaxiPlus cartridges. It is suited to high flow filtration applications where the selected cartridge matches the water source and filtration duty.

✓ Heavy Duty Single Filter Housing
✓ Suits 4.5" x 20" MaxiPlus Cartridges
✓ 1" BSP Connections
✓ 160 Lpm Flow Rating
✓ 0–900 kPa Pressure Range
✓ Internal or External Installation
✓ Filter Cartridge Not Included
✓ 10 Year Puretec Warranty

Puretec MPX Series User Guide
Puretec MPX Series Specifications

More Information
Product Specifications
Puretec Housing MPX300B Heavy-Duty Single suits 4.5" x 20" cartridges
PURETEC MPX300B HEAVY DUTY FILTER HOUSING SUITS 4.5" X 20" CARTRIDGES
Puretec Housing MPX100B Heavy-Duty Single suits 4.5" x 10" cartridges
Puretec Housing MPX100B Heavy-Duty Single suits 4.5" x 10" cartridges FLPUMPX100B
$362.32 /each
Puretec Housing MPX300B Heavy-Duty Single suits 4.5" x 20" cartridges
Puretec Housing MPX300B Heavy-Duty Single suits 4.5" x 20" cartridges FLPUMPX300B
$472.59 /each

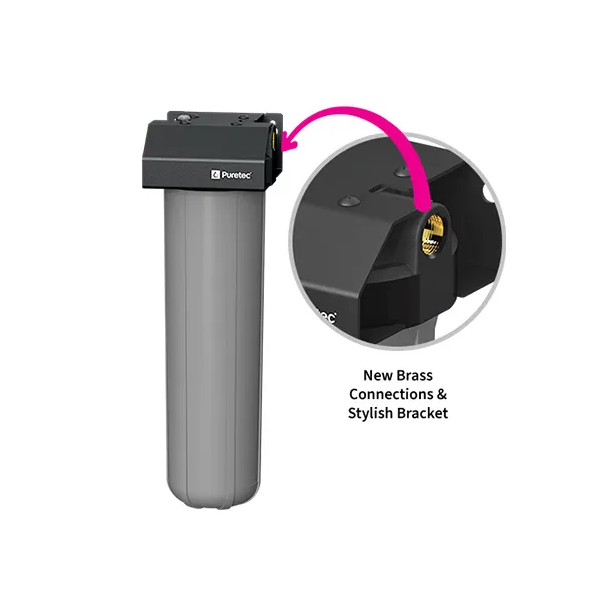

Puretec MPX300B is a heavy duty single filter housing designed to suit compatible 4.5" x 20" MaxiPlus cartridges. It has 1" BSP inlet and outlet connections and is used for high flow filtration applications where the cartridge, water source and system design match the installation requirements.

The MPX300B has a 160 Lpm flow rating, 0–900 kPa pressure range and 0–38°C operating temperature range. It includes an integrated rust-proof anti-flex aluminium wall mount bracket, but the filter cartridge is not included. Confirm cartridge selection, pressure, flow requirement, installation location and plumbing requirements before ordering.

Puretec MPX Series User Guide
Puretec MPX Series Specifications

✓ Product Type & Model
Puretec MPX300B heavy duty single filter housing.

✓ Application
Used for high flow water filtration applications where a compatible 4.5" x 20" cartridge suits the water source and filtration requirement.

✓ Cartridge Compatibility
Suits compatible 4.5" x 20" MaxiPlus cartridges. Cartridge is selected separately.

✓ Connection
1" BSP inlet and outlet connections.

✓ Flow Rate
160 Lpm flow rating. Flow rate is dependent on the filter cartridge used.

✓ Pressure Range
0–900 kPa operating pressure. Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed.

✓ Temperature Range
0–38°C operating temperature. Protect from freezing.

✓ Installation Type

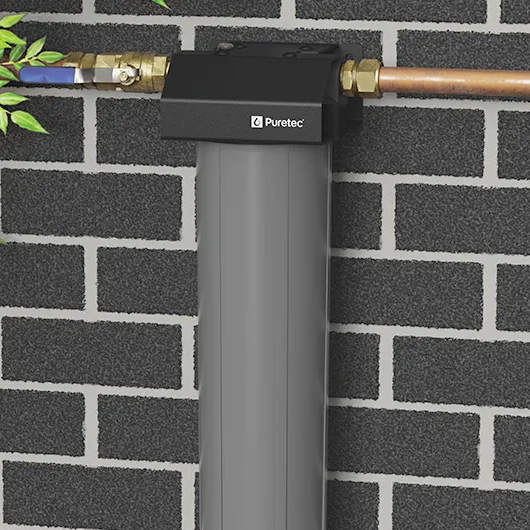

Suitable for internal or external installation. Avoid direct sunlight and protect the housing from water hammer.

✓ Mounting
Integrated rust-proof anti-flex aluminium wall mount bracket.

✓ Product Dimensions
Approximate dimensions are 181mm wide x 209mm deep x 589mm high.

✓ Included Components
MPX300B filter housing with integrated wall mount bracket.

✓ Not Included
Filter cartridge, isolation valves, pressure limiting valve, backflow prevention valve and connecting pipework are not included unless supplied separately.

✓ Recommended Cartridge Selection
Puretec guide examples include PX05MP2 for dirt, rust and sediment on mains water, CB10MP2 for taste and odour on mains water, PL05MP2 for dirt, rust and sediment on rainwater, and DP10MP2 for taste and odour on rainwater.

✓ Cartridge Maintenance
Replace cartridges every 6–12 months, depending on water quality and usage, or sooner if flow reduces, taste returns or odour returns.

✓ Installation
Installation must be completed by a licensed plumber and must follow local plumbing requirements. Use PTFE thread seal tape only; pipe sealants must not be used.

✓ Mounting Clearance
Allow at least 50mm clearance below the bowl for cartridge changes.

✓ Water Quality Note
Do not use with microbiologically unsafe water or water of unknown quality without adequate disinfection before or after the system.

✓ Warranty
10 year Puretec warranty – 1 year parts and labour plus 9 years parts only.
