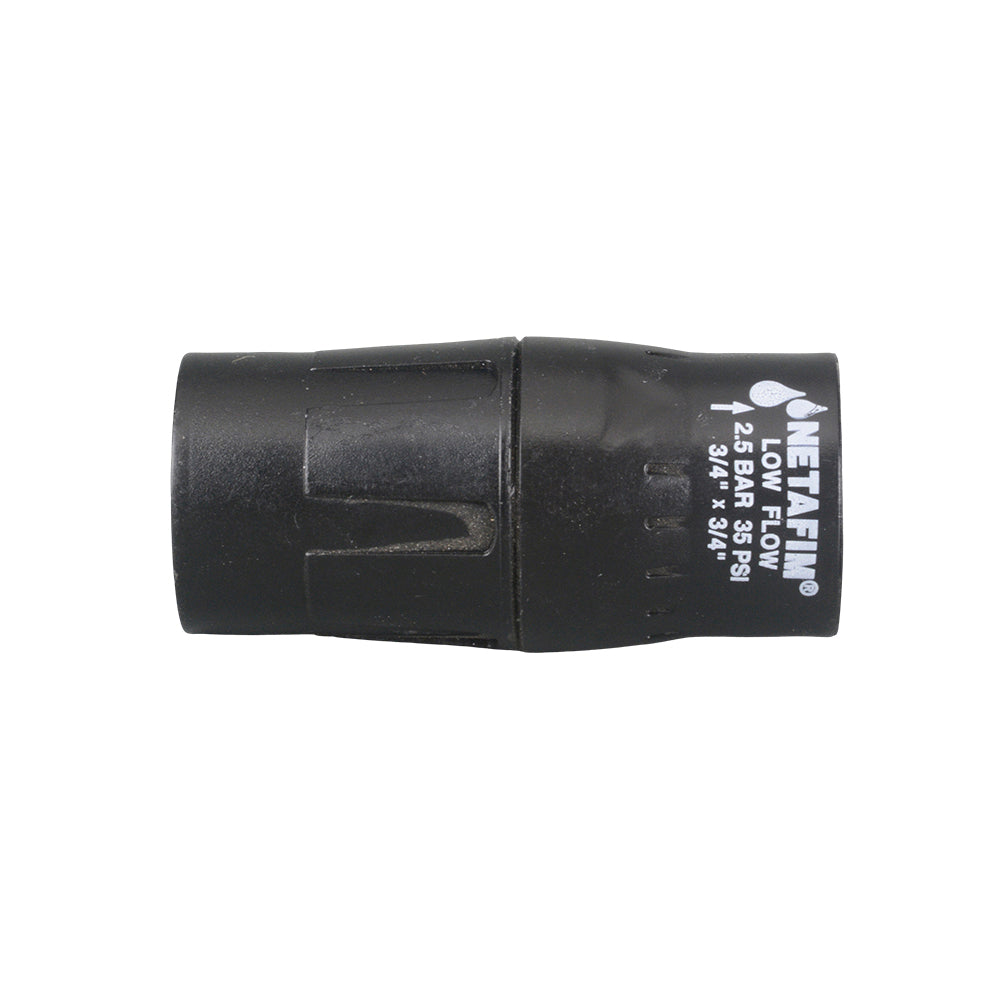

Netafim black inline pressure regulator with printed label, side view.
Netafim black inline pressure regulator with printed label, side view.

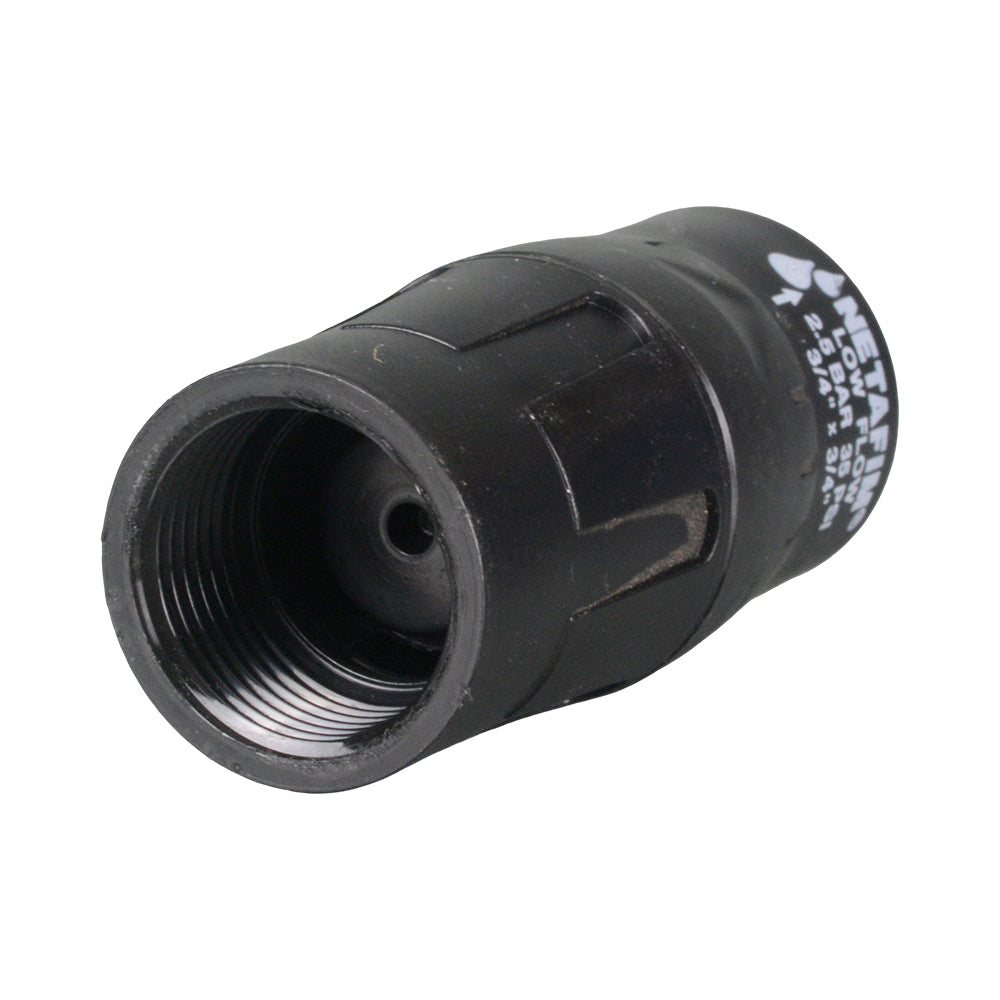

Netafim inline pressure regulator showing the female threaded inlet.
Netafim inline pressure regulator showing the female threaded inlet.

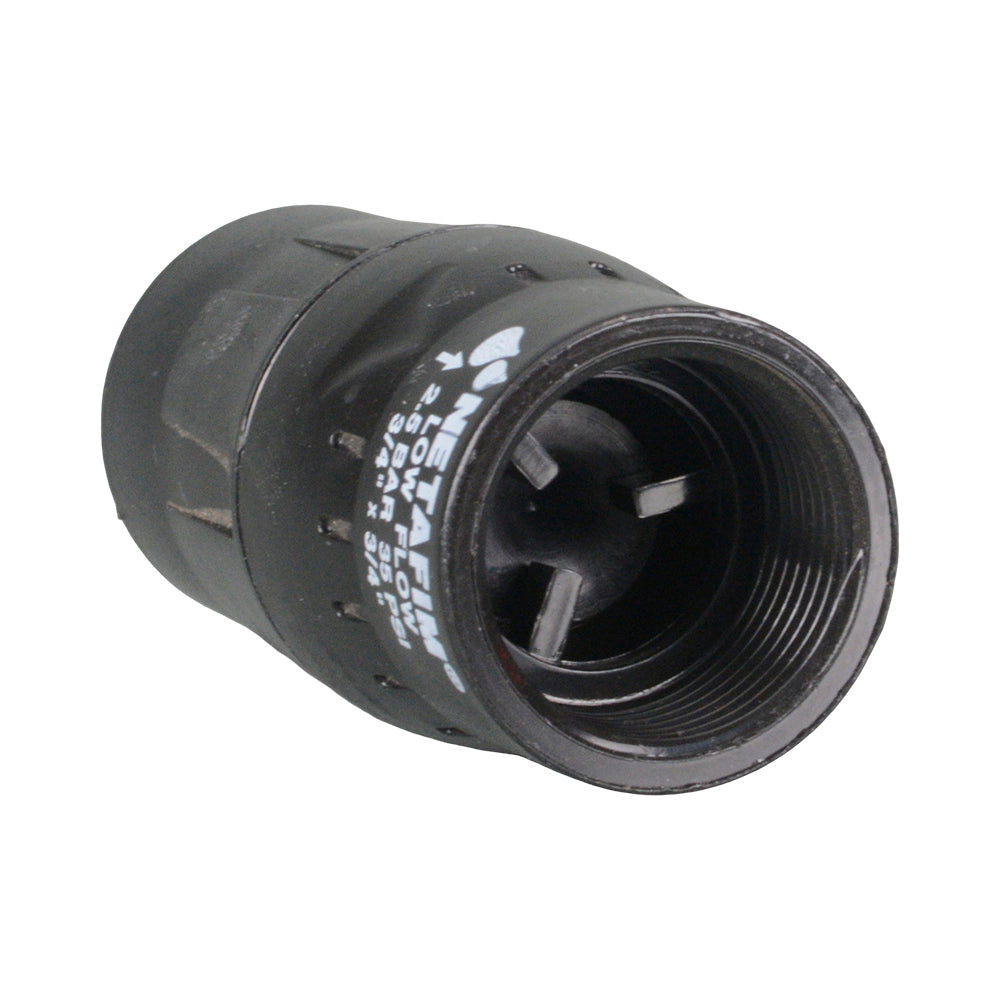

Netafim inline pressure regulator showing the opposite threaded connection and internal support.
Netafim inline pressure regulator showing the opposite threaded connection and internal support.
Netafim black inline pressure regulator with printed label, side view.
Netafim inline pressure regulator showing the female threaded inlet.
Netafim inline pressure regulator showing the opposite threaded connection and internal support.

PRESSURE REGULATING VALVE NETAFIM PRV

Netafim fixed-pressure regulators reduce downstream water pressure to a nominal 35psi (approximately 241kPa) setting. The inline regulator has female threaded connections; the PRV 2000 has male x female connections. These designs support different flow ranges, so the regulator must be selected for the expected water demand as well as its connection arrangement.

✓ Connections: 20mm (3/4") female x female inline; female inlet x male outlet PRV 2000
✓ Pressure Rating: Nominal outlet pressure 35psi (approximately 241kPa); maximum inlet pressure 1000kPa
✓ Fixed downstream pressure setting

Netafim Pressure Regulating Valve Specifications

More Information
Product Specifications
Netafim black inline pressure regulator with printed label, side view.
PRESSURE REGULATING VALVE NETAFIM PRV
Netafim black inline pressure regulator with printed label, side view.
Pressure Regulating Valve Netafim 3/4" FI BSP In-line 35 psi (240 kPa) VVPRNI20
$27.98 /each
Netafim black angled pressure regulator with male and female threaded connections, angled view.
Pressure Regulating Valve Netafim 3/4" MI x FI BSP 2000 - 35 psi (240 kPa) VVPRN220
$42.84 /each

Netafim fixed-pressure regulators reduce downstream water pressure to a nominal 35psi (approximately 241kPa) setting. The inline regulator has female threaded connections; the PRV 2000 has male x female connections. These designs support different flow ranges, so the regulator must be selected for the expected water demand as well as its connection arrangement.

Provide access for operation or servicing.

The inline model has female x female BSP connections. The PRV 2000 model has male x female BSP connections. Both have 20mm (3/4") connections, a nominal 35psi outlet setting (approximately 241kPa), and a maximum inlet pressure of 1000kPa.

Netafim Pressure Regulating Valve Specifications

✓ Product Type & Application
Netafim fixed-pressure regulators reduce downstream water pressure to a nominal 35psi (approximately 241kPa) setting. The inline regulator has female threaded connections; the PRV 2000 has male x female connections. These designs support different flow ranges, so the regulator must be selected for the expected water demand as well as its connection arrangement.

✓ Size & Connections
Pressure Regulating Valve Netafim 3/4" FI BSP In-line 35 psi (240 kPa): 20mm (3/4") female x female inline BSP connections
Pressure Regulating Valve Netafim 3/4" MI x FI BSP 2000 - 35 psi (240 kPa): 20mm (3/4") male x female PRV 2000 BSP connections

✓ Pressure & Temperature
Nominal outlet pressure 35psi (approximately 241kPa); maximum inlet pressure 1000kPa

✓ Construction & Features
Fixed-pressure water regulator; 20mm threaded connections.

✓ Operation & Installation
Provide access for operation or servicing.
