This Netafim PRV 2000 regulator reduces downstream water pressure to a nominal 35psi (approximately 241kPa) setting. Its 20mm (3/4") male x female PRV 2000 BSP connections suit the corresponding pipe layout. The regulator must operate within the flow range for its exact model so the pressure setting can be maintained as water passes through the system.
Fixed-pressure water regulator; 20mm threaded connections.
Pressure: Nominal outlet pressure 35psi (approximately 241kPa); maximum inlet pressure 1000kPa.
Provide access for operation or servicing.
Connections: 20mm (3/4") male x female PRV 2000 BSP connections.

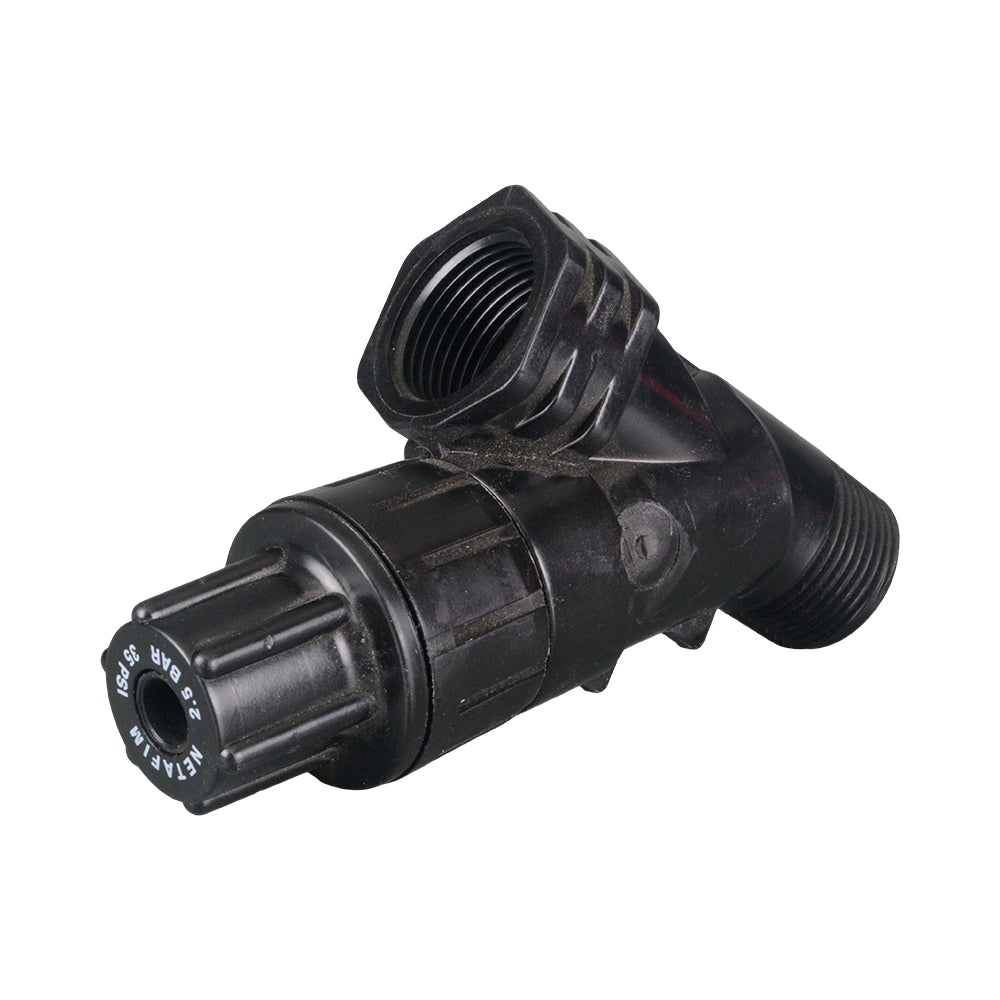

Netafim black angled pressure regulator with male and female threaded connections, angled view.

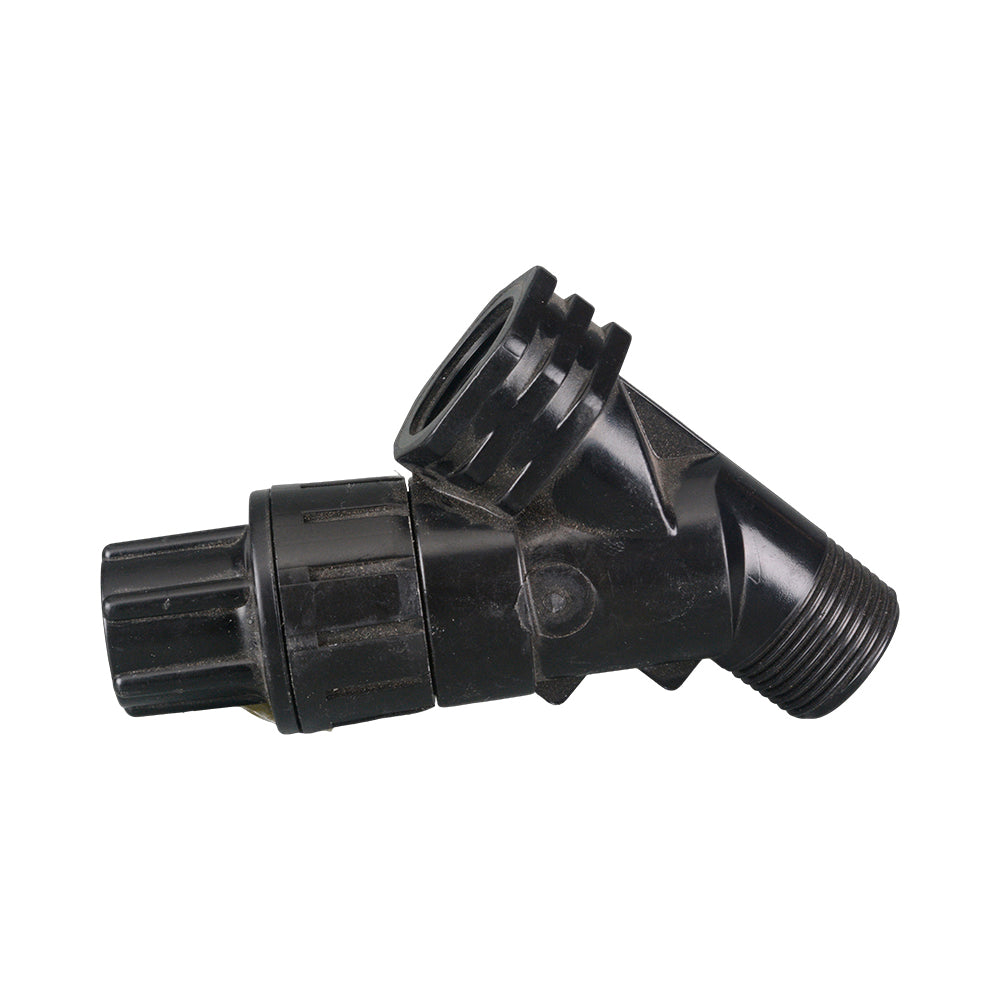

Netafim black angled pressure regulator showing the opposite side and threaded connections.
