Bermad PRV Pressure Reducing Valve 25mm (B Spring White 50-120kPa) - max inlet pressure 900kPa
VVPRVB025WB
$116.42
/each
Bermad PRV Pressure Reducing Valve 25mm (C Spring Red 100-200kPa) - max inlet pressure 900kPa
VVPRVB025RC
$116.42
/each
Bermad PRV Pressure Reducing Valve 25mm (D Spring Black 150-350kPa) - max inlet pressure 900kPa
VVPRVB025BD
$116.42
/each
Bermad PRV Pressure Reducing Valve 25mm (Q Spring Brown 300-550kPa) - max inlet pressure 900kPa
VVPRVB025BQ
$116.42
/each
Total:

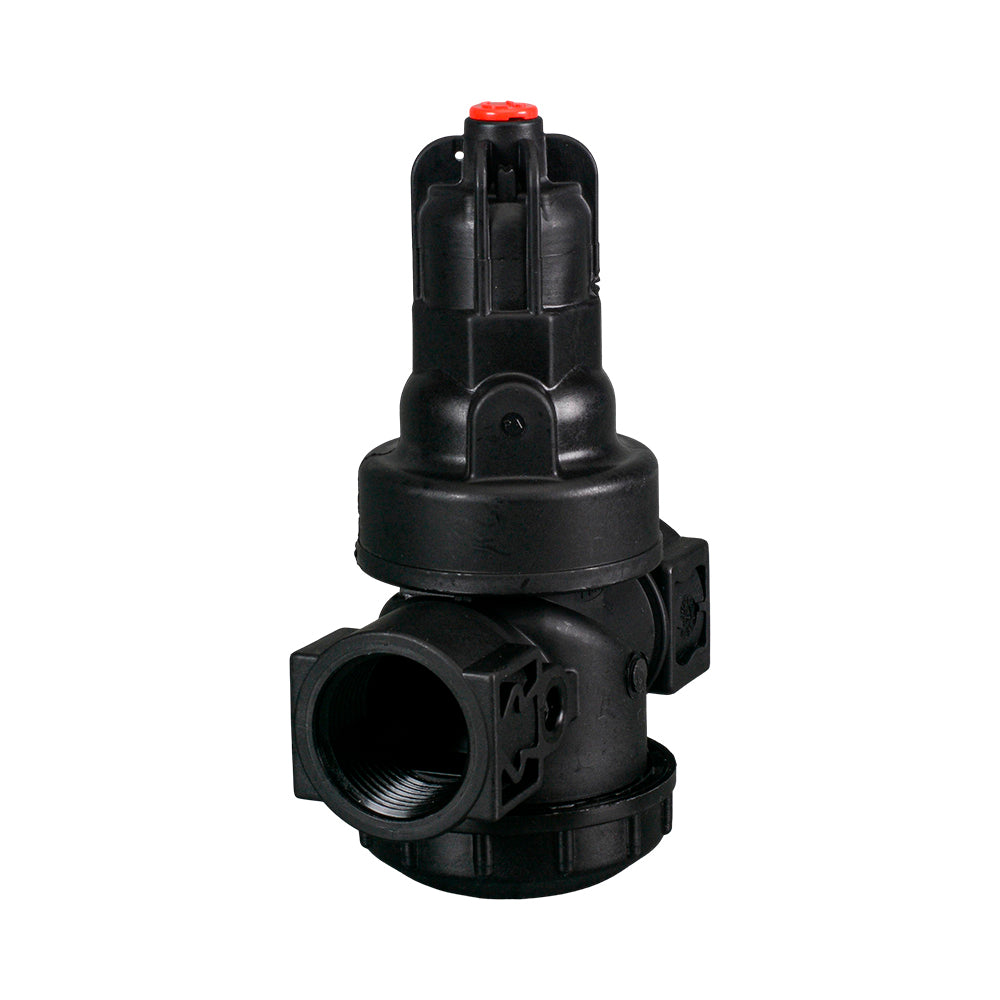

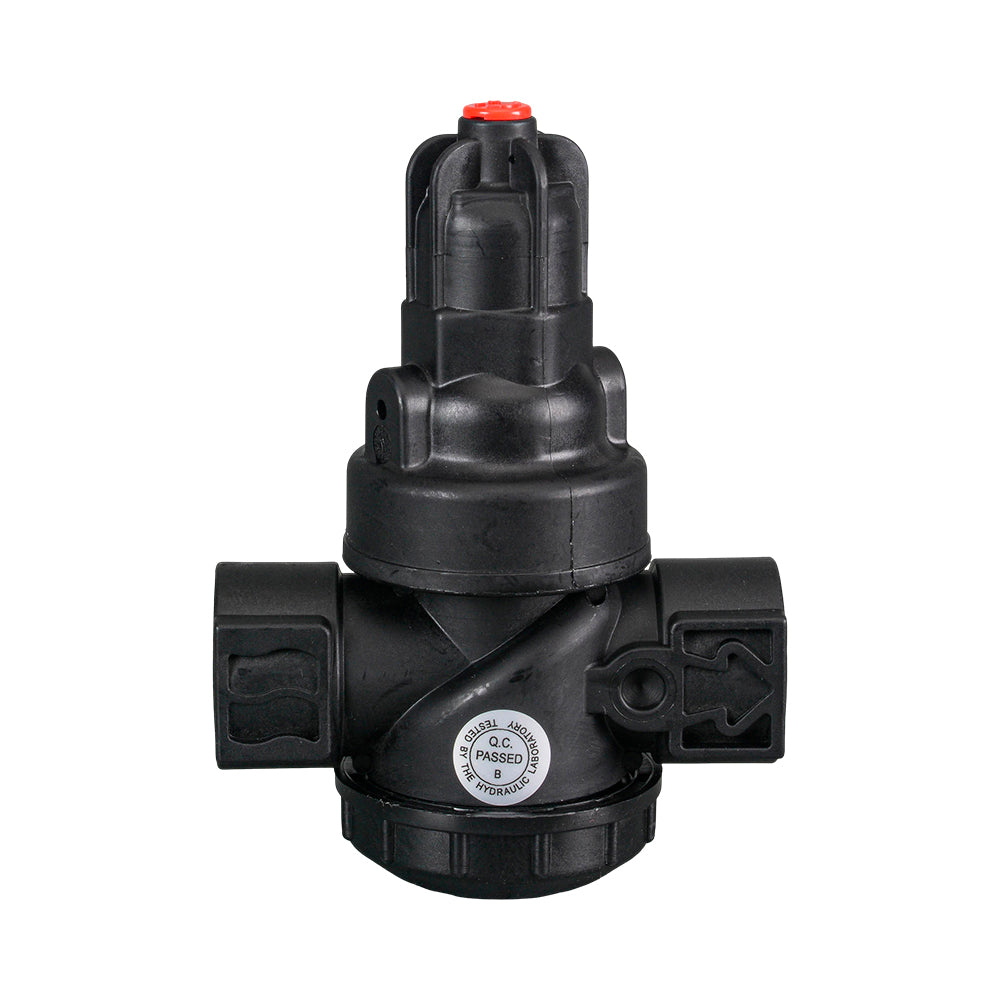

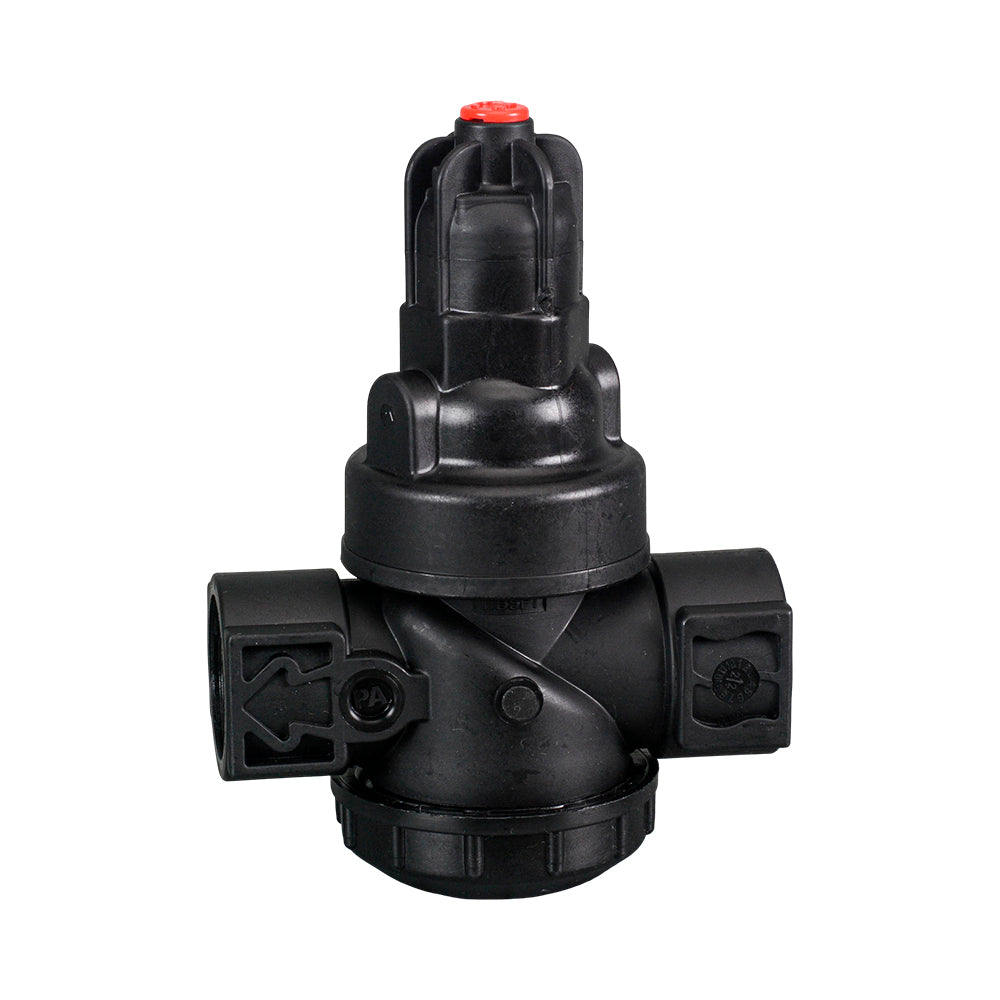

This 25mm (1") Bermad pressure reducing valve adjusts downstream water pressure using its selected setting spring. The black d spring provides the adjustment range for this version. The direct-acting mechanism responds to downstream pressure, allowing the outlet setting to be matched to the connected water system. Female BSP connections join it to matching pipe fittings.
Direct-acting pressure reducer; female BSP connections; selected setting spring.
Pressure: Outlet setting 150-350kPa; maximum inlet pressure 900kPa.
Provide access for operation or servicing.
Connections: 25mm (1") female BSP connections.
