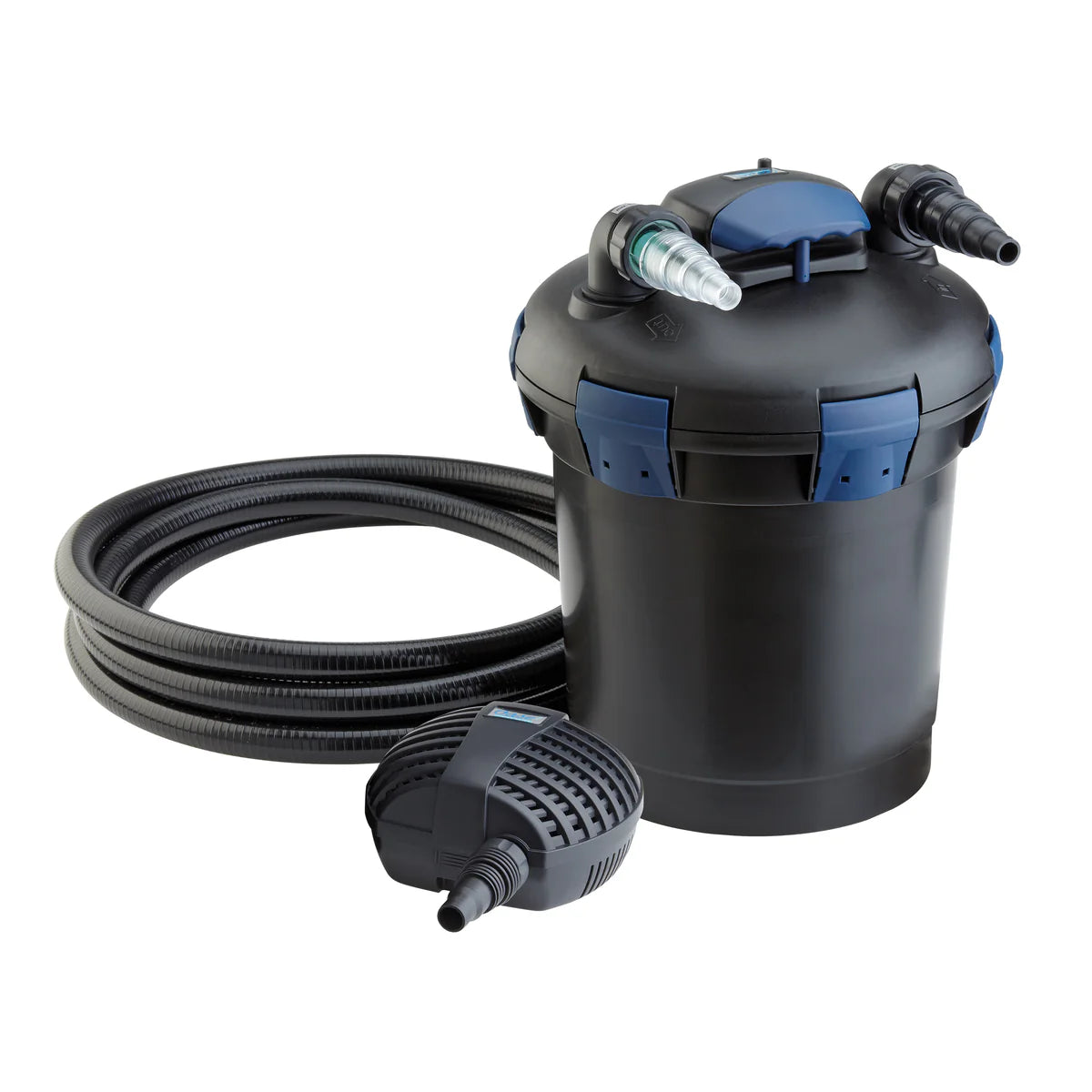

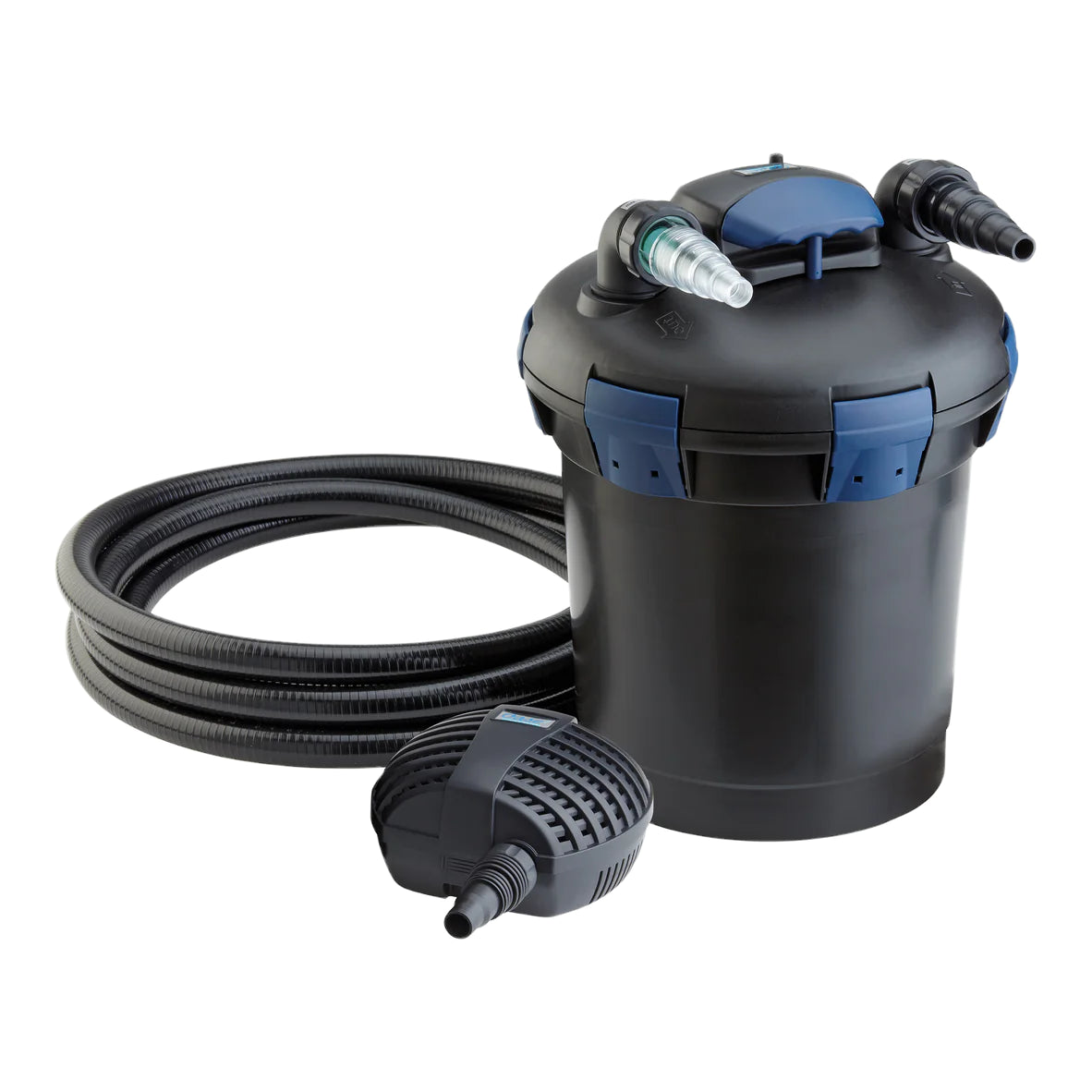

OASE BioPress pond filter kit with pressure-filter canister, pump and coiled hose.
OASE BioPress pond filter kit with pressure-filter canister, pump and coiled hose.

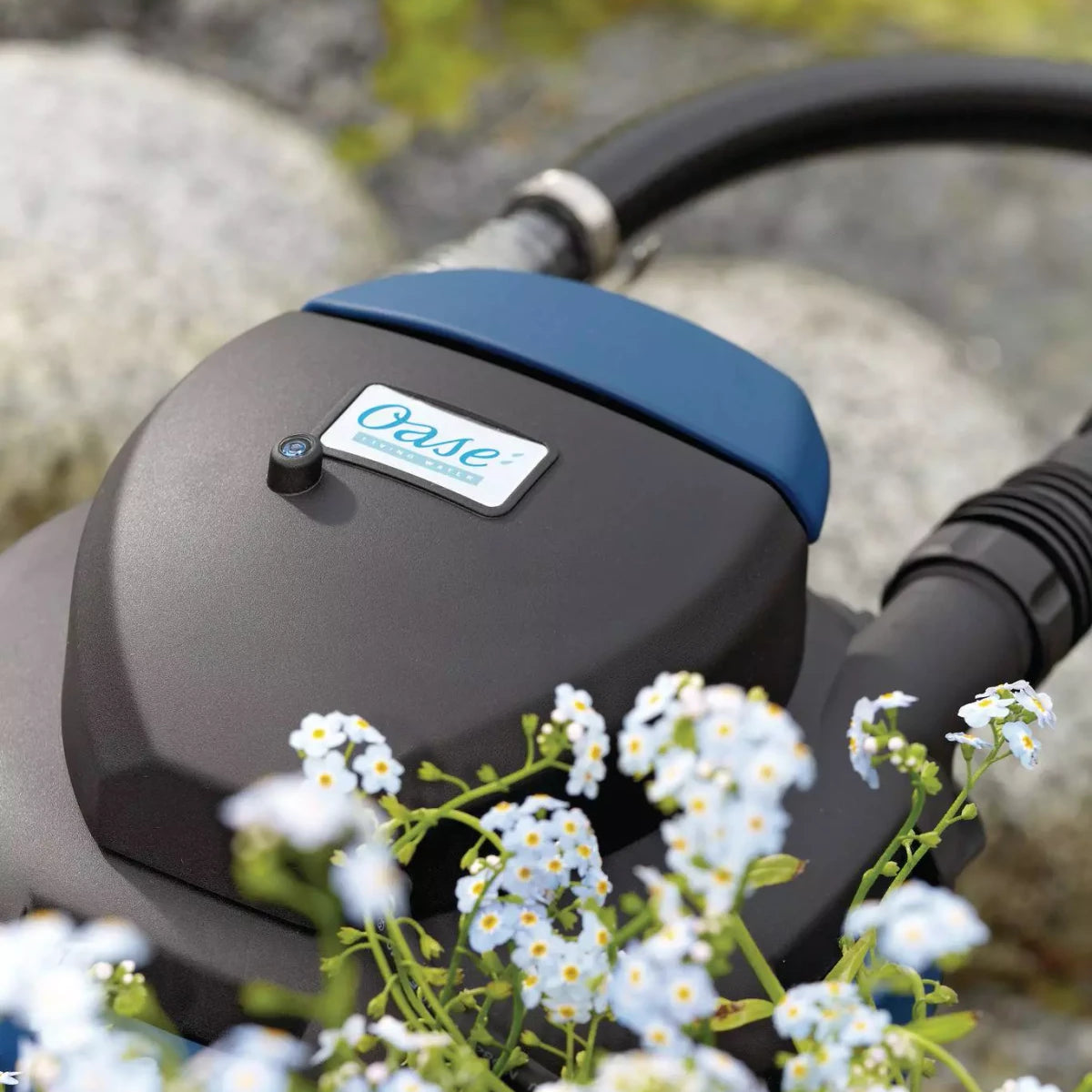

OASE BioPress filter lid partly concealed among pondside plants, with hose connection visible.
OASE BioPress filter lid partly concealed among pondside plants, with hose connection visible.

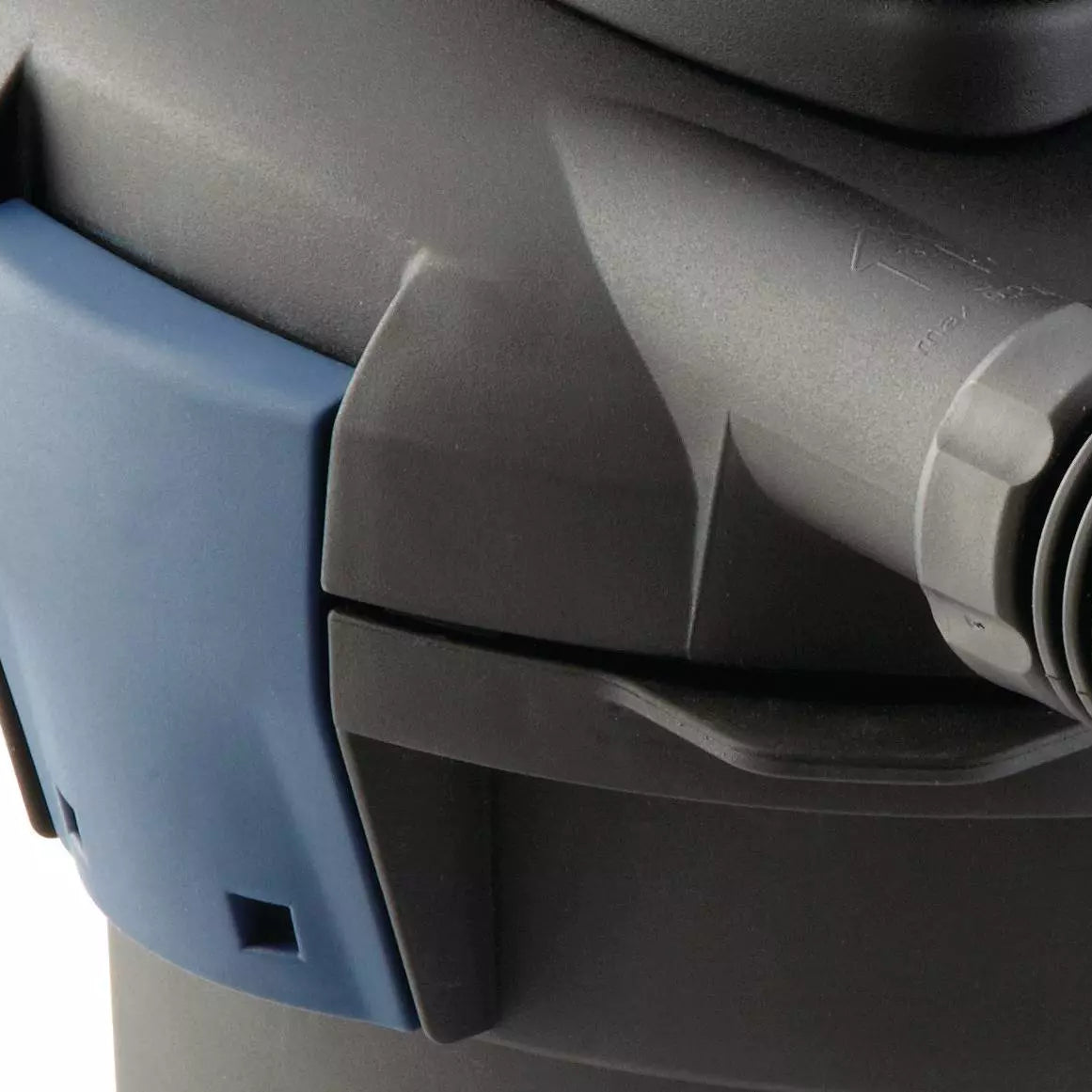

Close-up of the OASE BioPress pressure filter lid latch and blue locking clip.
Close-up of the OASE BioPress pressure filter lid latch and blue locking clip.
OASE BioPress pond filter kit with pressure-filter canister, pump and coiled hose.
OASE BioPress filter lid partly concealed among pondside plants, with hose connection visible.
Close-up of the OASE BioPress pressure filter lid latch and blue locking clip.

OASE BIOPRESS POND FILTER & PUMP KITS

OASE BioPress kits combine a pond pump, pressure filter, UVC clarifier and connecting hose. Set 4000, 6000 and 10000 suit ponds up to 4,000L, 6,000L and 10,000L without fish, or half those capacities with fish. The matched components provide mechanical and biological filtration alongside treatment of green-water algae.

✓ Ponds Without Fish: 4,000L to 10,000L by Model
✓ Ponds With Fish: 2,000L to 5,000L by Model
✓ Pump, Pressure Filter, UVC & Hose Included
✓ Separate Pump & UVC Plugs: Two Powered Sockets Required

OASE BioPress Filter Instructions
OASE BioPress Pump Instructions

OASE BioPress pond filter kit with pressure-filter canister, pump and coiled hose.
OASE BioPress pond filter kit with pressure-filter canister, pump and coiled hose.
Pond Oase BioPress Set 4000 AU NOPOB4000
$535.77 /each
OASE BioPress pond filter set with pump, coiled hose and pressure-filter canister.
Oase Biopress Set 6000 AU NOFOB6000
$779.63 /each
OASE BioPress pond filter kit with black pressure filter, pump and coiled hose.
Oase Biopress Set 10000 AU NOFOB10000
$960.50 /each

OASE BioPress kits combine a pond pump, pressure filter, UVC clarifier and connecting hose. Set 4000, 6000 and 10000 suit ponds up to 4,000L, 6,000L and 10,000L without fish, or half those capacities with fish. The matched components provide mechanical and biological filtration alongside treatment of green-water algae.

Filter foams trap suspended dirt and provide surfaces for biological filtration. The UVC clarifier treats green-water algae; its lamp output is a different figure from the electrical power drawn by the UVC unit. The cleaning handle in the lid compresses the filter foams, and the filter can be buried up to its lid.

The submerged pump sends water through the pressure filter before it returns to the pond or an elevated watercourse. The filter has a maximum operating pressure of 20kPa (0.2bar); this is a pressure limit, not a watercourse-height rating. The pump and UVC each have a separate mains plug, requiring two powered sockets. Start the pump before powering the UVC.

Two-year manufacturer warranty, subject to OASE warranty terms. Retain proof of purchase.

OASE BioPress Filter Instructions
OASE BioPress Pump Instructions

✓ Application
Pond filtration with an included pump, pressure filter and UVC clarifier for green-water algae.

✓ Warranty
Two-year manufacturer warranty, subject to OASE warranty terms. Retain proof of purchase.

✓ Model Specifications
BioPress Set 4000
Pond capacity without fish: 4,000L.
Pond capacity with fish: 2,000L.
UVC lamp: 7W.
Included pump: FP 1500.
Pump maximum flow: 1,500L/h.
Pump maximum head: 1.9m.
Included hose length: 4.5m.

BioPress Set 6000
Pond capacity without fish: 6,000L.
Pond capacity with fish: 3,000L.
UVC lamp: 9W.
Included pump: FP 2500.
Pump maximum flow: 2,500L/h.
Pump maximum head: 2.2m.
Included hose length: 5m.

BioPress Set 10000
Pond capacity without fish: 10,000L.
Pond capacity with fish: 5,000L.
UVC lamp: 11W.
Included pump: FP 3500.
Pump maximum flow: 3,400L/h.
Pump maximum head: 2.7m.
Included hose length: 5m.

✓ Connections & Pressure
Inlet and outlet accept 19mm, 25mm, 32mm or 38mm hose.
Maximum filter operating pressure: 20kPa (0.2bar).

✓ Construction
Pressure-filter housing with filter foams and integrated UVC clarifier. Additional biological media are included with Set 6000 and Set 10000.

✓ Water Suitability
Freshwater pond use.

✓ Installation
Pump submerged; filter outside the pond, buried no deeper than its lid. Start the pump before the UVC. Two powered sockets required.

✓ Power Supply & Cable
Supply: 230V AC, 50Hz.
Pump cable: 10m. UVC cable: 3m.
Pump and UVC have separate plugs; two powered sockets required.

BioPress Set 4000
Pump motor: 25W.
UVC electrical consumption: 11W.

BioPress Set 6000
Pump motor: 40W.
UVC electrical consumption: 12W.

BioPress Set 10000
Pump motor: 70W.
UVC electrical consumption: 14W.

✓ Dimensions
BioPress Set 6000: Diameter 350mm x height 450mm.
BioPress Set 10000: Diameter 350mm x height 570mm.
