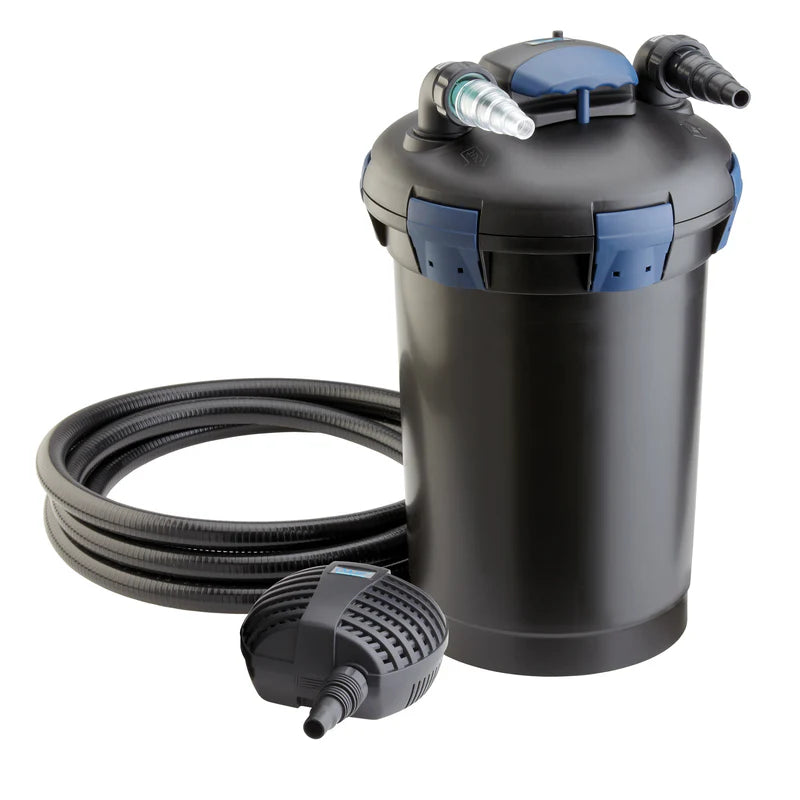

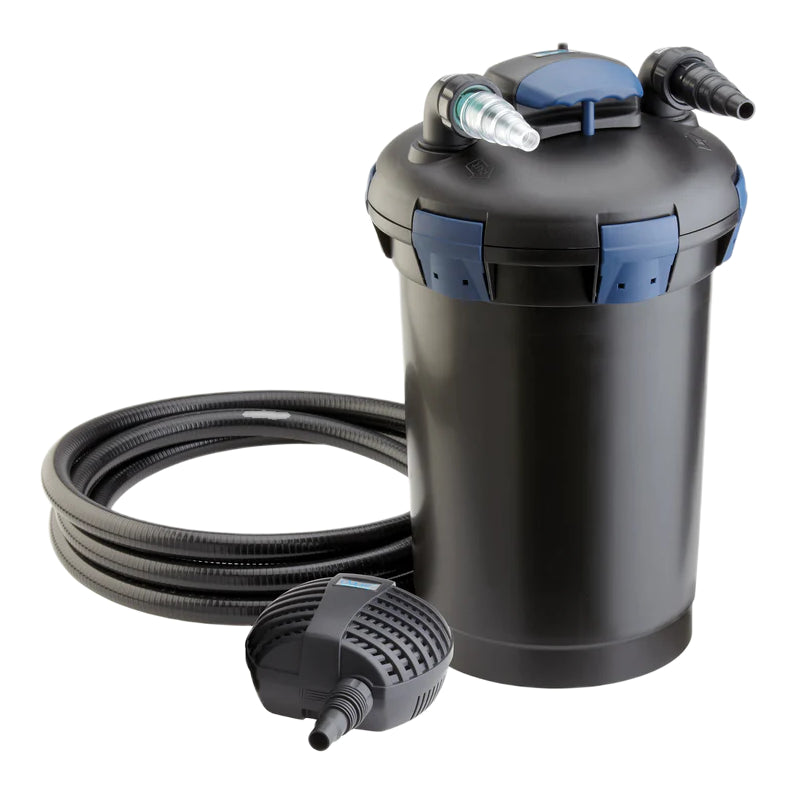

OASE BioPress pond filter kit with black pressure filter, pump and coiled hose.
OASE BioPress pond filter kit with black pressure filter, pump and coiled hose.

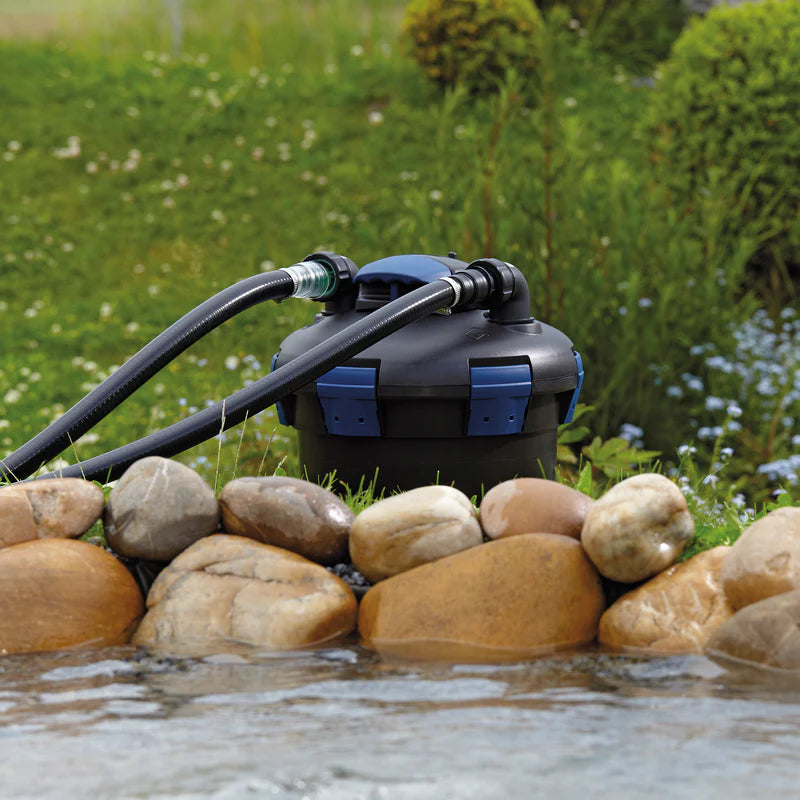

OASE BioPress pressure filter installed beside a garden pond among rocks.
OASE BioPress pressure filter installed beside a garden pond among rocks.

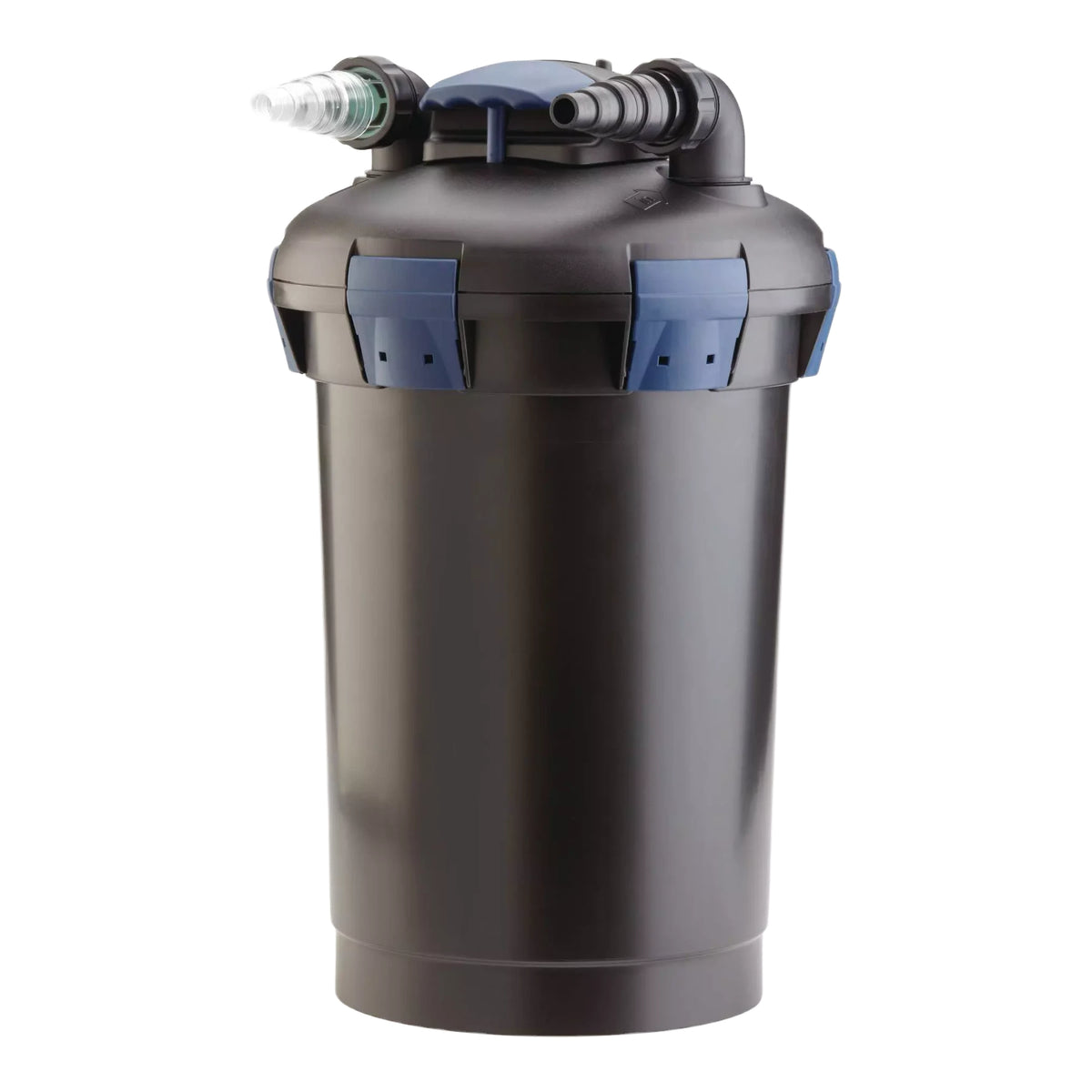

OASE BioPress black pressure filter with blue locking clips, shown without pump or hose.
OASE BioPress black pressure filter with blue locking clips, shown without pump or hose.
OASE BioPress filter lid installed beside a pond, with hoses connected.
OASE BioPress filter lid installed beside a pond, with hoses connected.

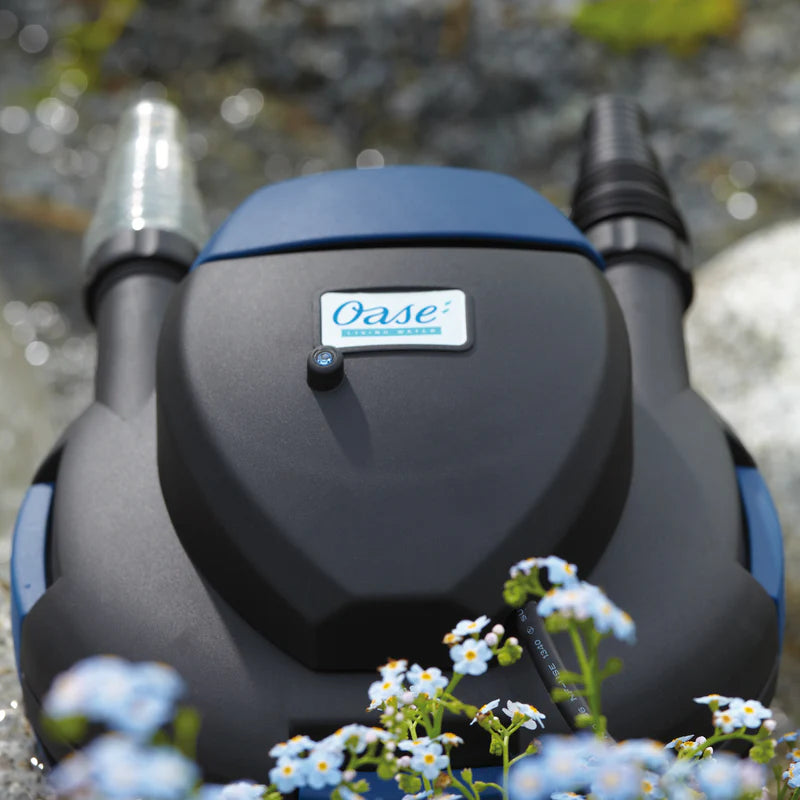

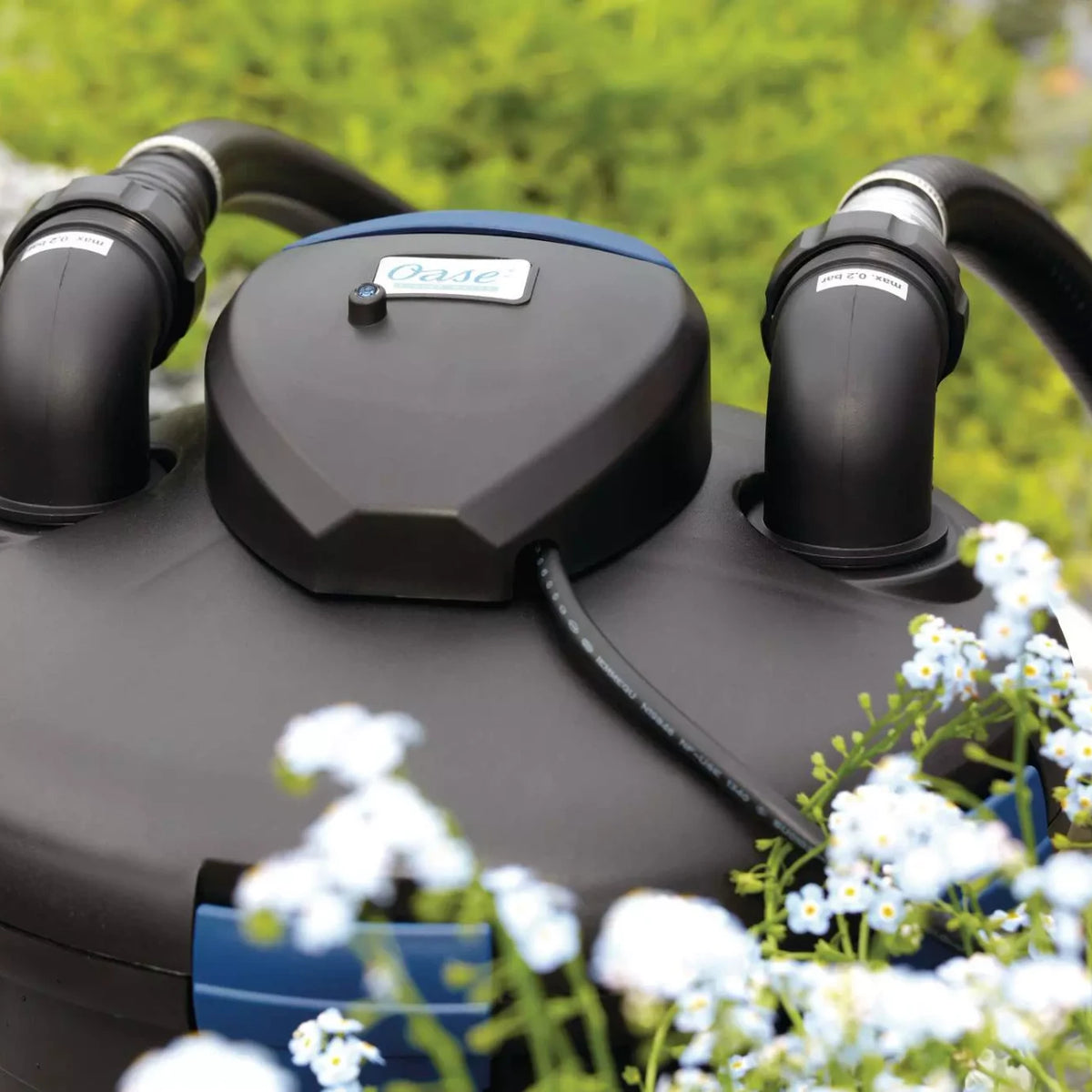

Close-up of the OASE BioPress filter lid and connected pipe elbows.
Close-up of the OASE BioPress filter lid and connected pipe elbows.
Close-up of the OASE BioPress pressure filter lid latch and blue locking clip.
Close-up of the OASE BioPress pressure filter lid latch and blue locking clip.
OASE BioPress pond filter kit with black pressure filter, pump and coiled hose.
OASE BioPress pressure filter installed beside a garden pond among rocks.
OASE BioPress black pressure filter with blue locking clips, shown without pump or hose.
OASE BioPress filter lid installed beside a pond, with hoses connected.
Close-up of the OASE BioPress filter lid and connected pipe elbows.
Close-up of the OASE BioPress pressure filter lid latch and blue locking clip.

OASE BIOPRESS SET 10000 POND FILTER, PUMP & UVC KIT

The OASE BioPress Set 10000 combines a pond pump, pressure filter and 11W UVC lamp for ponds up to 10,000L without fish or 5,000L with fish. A 5m connecting hose is included, and the filter can be buried up to its lid.

✓ Pond Capacity Without Fish: 10,000L
✓ Pond Capacity With Fish: 5,000L
✓ Pump, Pressure Filter, UVC & Hose Included
✓ Separate Pump & UVC Plugs: Two Powered Sockets Required

OASE BioPress Filter Instructions
OASE BioPress Pump Instructions

OASE BioPress pond filter kit with black pressure filter, pump and coiled hose.
OASE BioPress pond filter kit with pressure-filter canister, pump and coiled hose.
Pond Oase BioPress Set 4000 AU NOPOB4000
$535.77 /each
OASE BioPress pond filter set with pump, coiled hose and pressure-filter canister.
Oase Biopress Set 6000 AU NOFOB6000
$779.63 /each
OASE BioPress pond filter kit with black pressure filter, pump and coiled hose.
Oase Biopress Set 10000 AU NOFOB10000
$960.50 /each

The OASE BioPress Set 10000 combines a pond pump, pressure filter and 11W UVC lamp for ponds up to 10,000L without fish or 5,000L with fish. A 5m connecting hose is included. The included FP 3500 pump has separate maximum ratings of 3,400L/h and 2.7m head.

Filter foams trap suspended dirt and provide surfaces for biological filtration. The UVC clarifier treats green-water algae; its lamp output is a different figure from the electrical power drawn by the UVC unit. The cleaning handle in the lid compresses the filter foams, and the filter can be buried up to its lid.

The submerged pump sends water through the pressure filter before it returns to the pond or an elevated watercourse. The filter has a maximum operating pressure of 20kPa (0.2bar); this is a pressure limit, not a watercourse-height rating. The pump and UVC each have a separate mains plug, requiring two powered sockets. Start the pump before powering the UVC.

Two-year manufacturer warranty, subject to OASE warranty terms. Retain proof of purchase.

OASE BioPress Filter Instructions
OASE BioPress Pump Instructions

✓ Application
Pond filtration with an included pump, pressure filter and UVC clarifier for green-water algae.

✓ Warranty
Two-year manufacturer warranty, subject to OASE warranty terms. Retain proof of purchase.

✓ Model & Performance
BioPress Set 10000
Pond capacity without fish: 10,000L.
Pond capacity with fish: 5,000L.
UVC lamp: 11W.
Included pump: FP 3500.
Pump maximum flow: 3,400L/h.
Pump maximum head: 2.7m.
Included hose length: 5m.

✓ Connections & Pressure
Inlet and outlet accept 19mm, 25mm, 32mm or 38mm hose.
Maximum filter operating pressure: 20kPa (0.2bar).

✓ Construction
Pressure-filter housing with filter foams, additional biological media and integrated UVC clarifier.

✓ Water Suitability
Freshwater pond use.

✓ Installation
Pump submerged; filter outside the pond, buried no deeper than its lid. Start the pump before the UVC. Two powered sockets required.

✓ Power Supply & Cable
Supply: 230V AC, 50Hz.
Pump cable: 10m. UVC cable: 3m.
Pump and UVC have separate plugs; two powered sockets required.

Pump motor: 70W.
UVC electrical consumption: 14W.

✓ Dimensions
BioPress Set 10000: Diameter 350mm x height 570mm.
