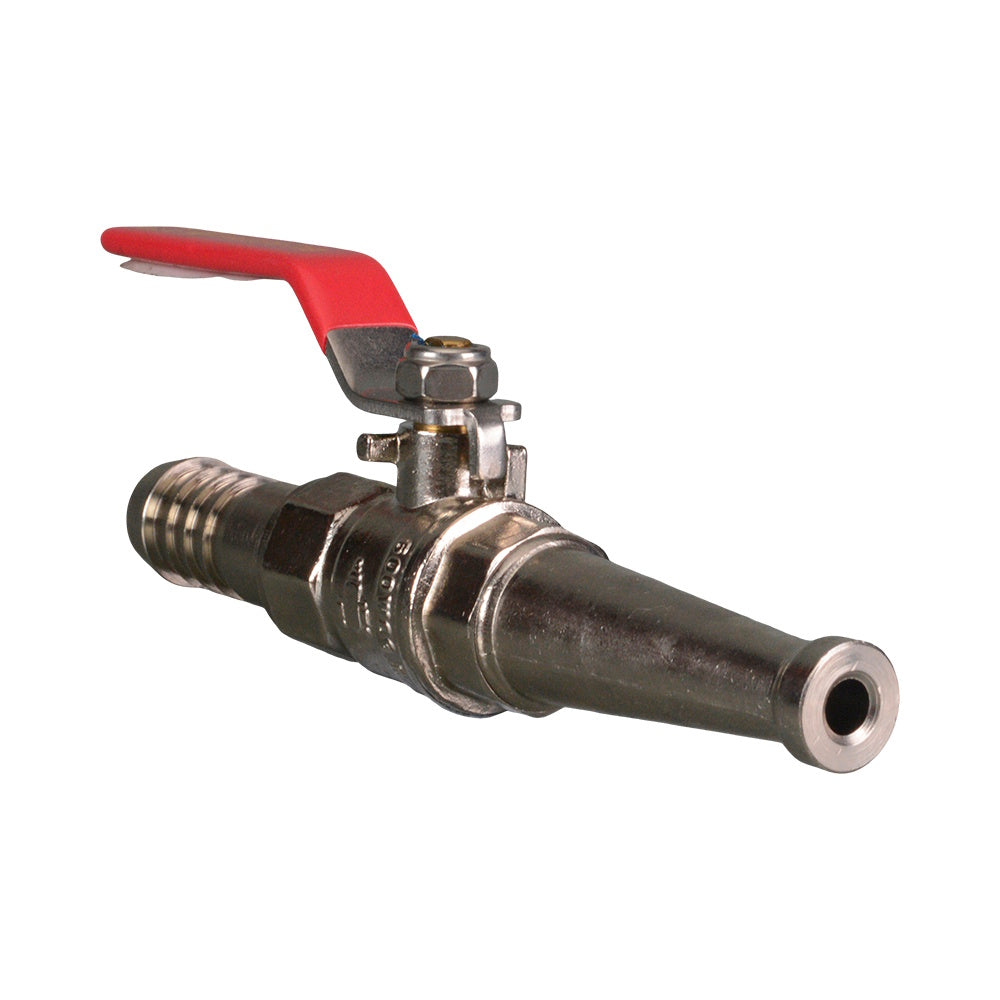

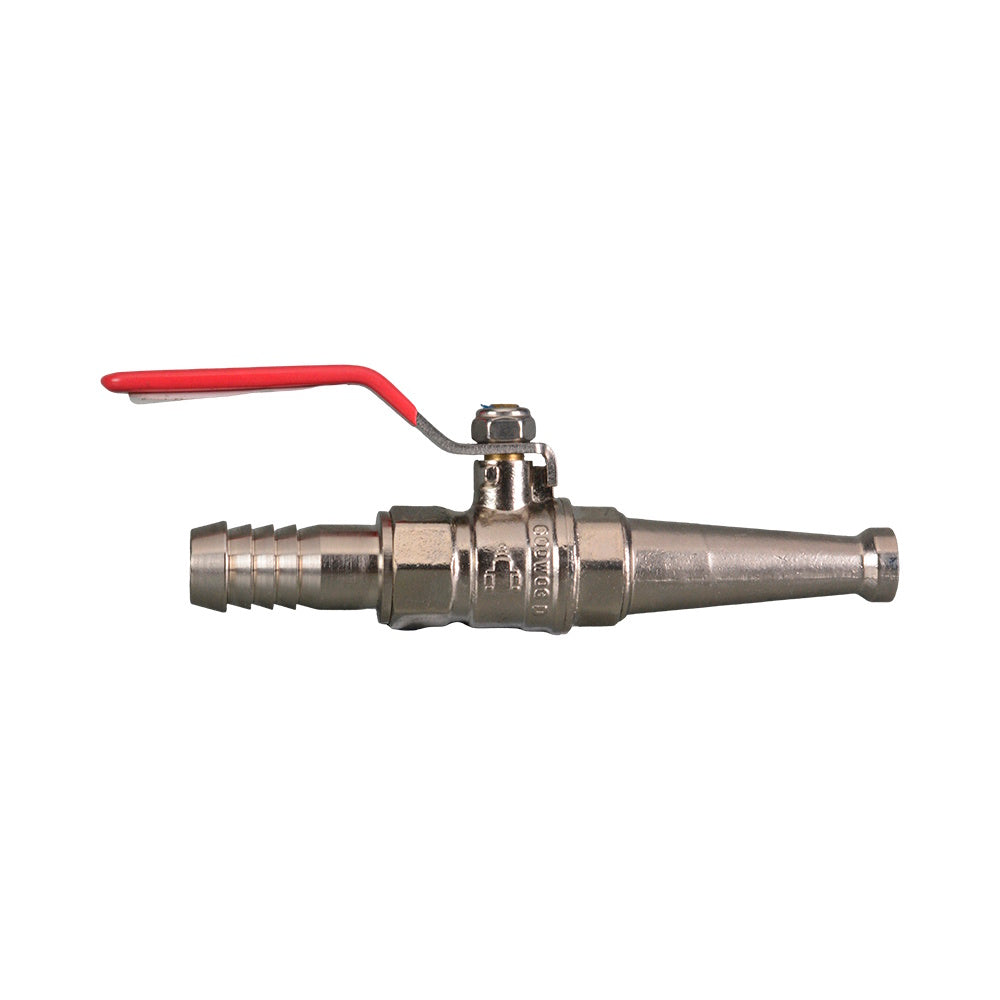

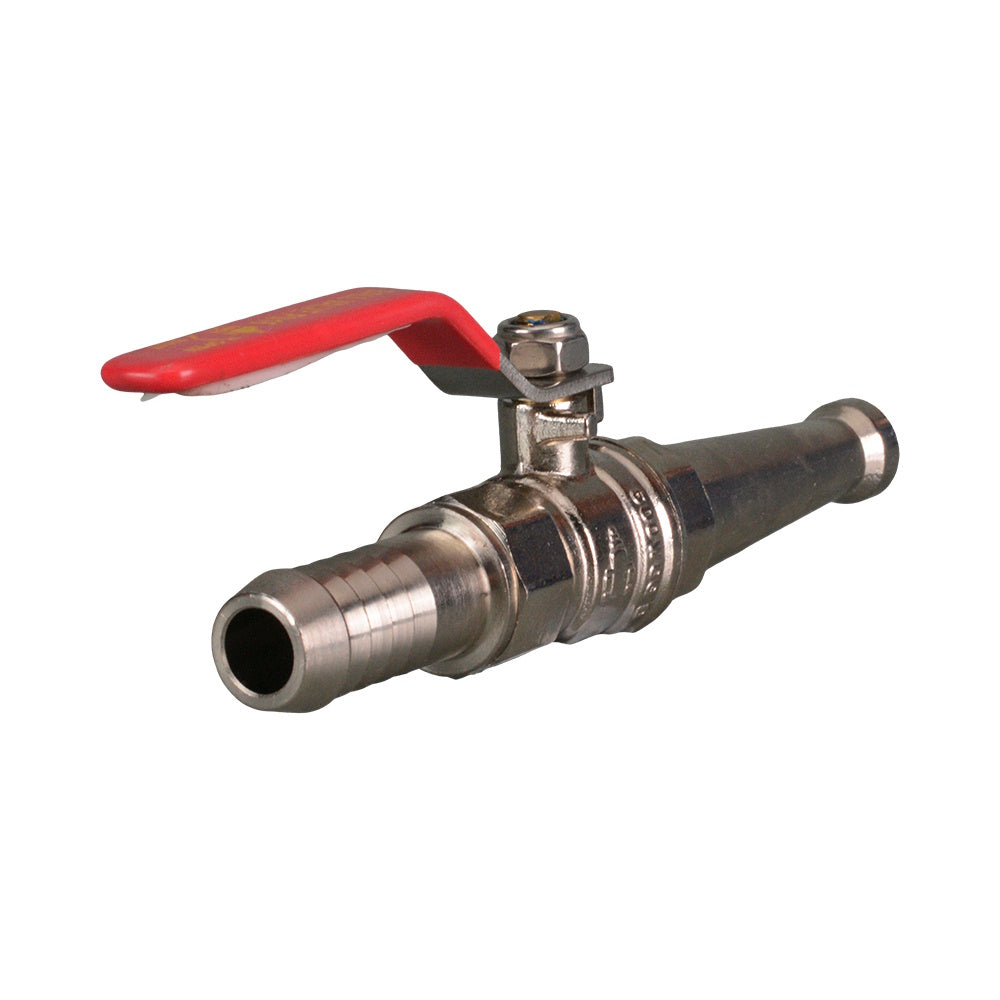

CHROME PLATED BALL VALVE NOZZLE - 3/4" BARB

This chrome plated brass nozzle fits 3/4" hose and delivers a fixed jet controlled by a ball valve. A stainless steel lever handle opens or closes the water passage at the nozzle, giving direct control at the hose end.

✓ Hose connection: 3/4" hose tail
✓ Outlet: Fixed jet
✓ Control: Lever-operated ball valve
✓ Maximum water pressure: 1600kPa
✓ Construction: Chrome plated brass with stainless steel handle

Fire Hose Nozzle Chrome Plated Ball Valve Hose Tail 3/4 Barb

This chrome plated brass nozzle fits 3/4" hose and delivers a fixed jet controlled by a ball valve. A stainless steel lever handle opens or closes the water passage at the nozzle, giving direct control at the hose end.

The barbed tail inserts into the bore of 3/4" hose and is secured with a hose clamp. Moving the lever turns the ball inside the valve to control the water passage. The outlet remains a jet nozzle rather than an adjustable spray head.

The brass body and ball use a PTFE seal and EPDM O-ring. The stainless steel handle operates the valve. Maximum water pressure is 1600kPa; available flow and jet reach depend on the pressure and hose supplying the nozzle.

✓ Connection
Hose tail: 3/4" hose bore

✓ Operation
Fixed jet outlet
Lever-operated ball valve

✓ Pressure
Maximum water pressure: 1600kPa

✓ Construction
Chrome plated brass body
Brass ball, bonnet and spindle
PTFE seal
EPDM O-ring
Stainless steel handle and lock nut

✓ Manufacturer
Brand: Logi Valve / Austworld
Part number: BVN20
