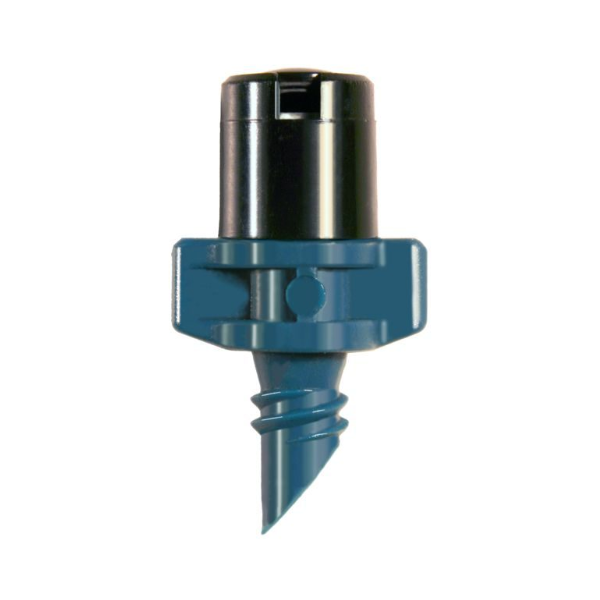

Winged Strip Spray Jet 40° (Blue Base) 2 x 20° Strips, 33L/h
Winged Strip Spray Jet 40° (Blue Base) 2 x 20° Strips, 33L/h
Winged Strip Spray Jet 40° (Blue Base) 2 x 20° Strips, 33L/h
Winged Strip Spray Jet 40° (Blue Base) 2 x 20° Strips, 33L/h

MICRO IRRIGATION SPRAY JETS

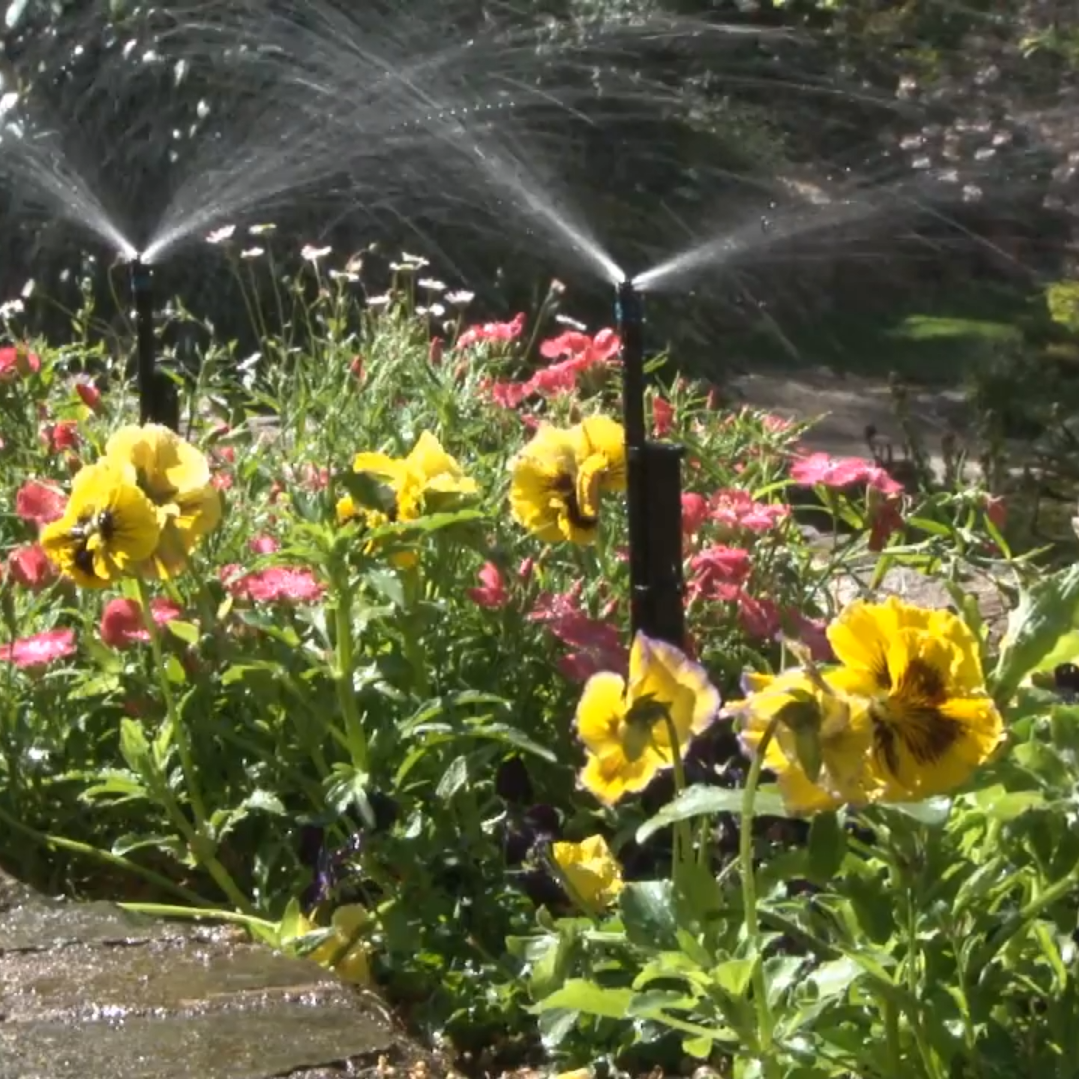

The Antelco winged strip jet waters narrow garden beds through two opposing 20° spray strips.

✓ Spray pattern: Two opposing 20° strips
✓ Coverage: Approximately 4.8m end-to-end coverage at 100kPa
✓ Flow: 35L/h at 100kPa
✓ Nozzle: 1.0mm blue base with black cap
✓ Connection: 4mm male quick thread

Antelco Single Piece Micro Jet Specifications
Antelco Two Piece Micro Jet Specifications

More Information
Product Specifications
Product Videos
Winged Strip Spray Jet 40° (Blue Base) 2 x 20° Strips, 33L/h
MICRO IRRIGATION SPRAY JETS
Micro Single Piece Jet, Red (110 L/h) 180°
Micro Single Piece Jet, Red (110 L/h) 180° MSJR180
$0.21 /each
Micro Single Piece Jet, Blue (35 L/h) 90°
Micro Single Piece Jet, Blue (35 L/h) 90° MSJBL90
$0.21 /each
Micro Single Piece Jet, Blue (35 L/h) 180°
Micro Single Piece Jet, Blue (35 L/h) 180° MSJBL180
$0.21 /each
Micro Single Piece Jet, Blue (35 L/h) 360°
Micro Single Piece Jet, Blue (35 L/h) 360° MSJBL360
$0.21 /each
Micro Single Piece Jet, Green (70 L/h) 90°
Micro Single Piece Jet, Green (70 L/h) 90° MSJG90
$0.21 /each
Micro Single Piece Jet, Green (70 L/h) 180°
Micro Single Piece Jet, Green (70 L/h) 180° MSJG180
$0.21 /each
Micro Single Piece Jet, Green (70 L/h) 360°
Micro Single Piece Jet, Green (70 L/h) 360° MSJG360
$0.21 /each
Micro Single Piece Jet, Black (90 L/h) 90°
Micro Single Piece Jet, Black (90 L/h) 90° MSJB90
$0.21 /each
Micro Single Piece Jet, Black (90 L/h) 180°
Micro Single Piece Jet, Black (90 L/h) 180° MSJB180
$0.21 /each
Micro Single Piece Jet, Black (90 L/h) 360°
Micro Single Piece Jet, Black (90 L/h) 360° MSJB360
$0.21 /each
Micro Single Piece Jet, Red (110 L/h) 90°
Micro Single Piece Jet, Red (110 L/h) 90° MSJR90
$0.21 /each
Micro Single Piece Jet, Red (110 L/h) 360°
Micro Single Piece Jet, Red (110 L/h) 360° MSJR360
$0.21 /each
Micro Brass Spray 90° - 12° Spray Angle
Micro Brass Spray 90° - 12° Spray Angle MBS12090
$1.51 /each
Micro Brass Spray 180° - 12° Spray Angle
Micro Brass Spray 180° - 12° Spray Angle MBS12180
$1.51 /each
Micro Brass Spray 360° - 12° Spray Angle
Micro Brass Spray 360° - 12° Spray Angle MBS12360
$1.65 /each
Micro Spray Jet, Low Flow (Green) 90°
Micro Spray Jet, Low Flow (Green) 90° MSJGLF090
$0.16 /each
Micro Spray Jet, Low Flow (Green) 180°
Micro Spray Jet, Low Flow (Green) 180° MSJGLF180
$0.16 /each
Micro Spray Jet, Low Flow (Green) 360°
Micro Spray Jet, Low Flow (Green) 360° MSJGLF360
$0.16 /each
Micro Spray Jet, Low Flow (Black) 90°
Micro Spray Jet, Low Flow (Black) 90° MSJBLSF090
$0.16 /each
Micro Spray Jet, Low Flow (Black) 180°
Micro Spray Jet, Low Flow (Black) 180° MSJBLSF180
$0.16 /each
Micro Spray Jet, Low Flow (Black) 360°
Micro Spray Jet, Low Flow (Black) 360° MSJBLSF360
$0.16 /each
Winged Strip Spray Jet 40° (Blue Base) 2 x 20° Strips, 33L/h
Winged Strip Spray Jet 40° (Blue Base) 2 x 20° Strips, 33L/h MSJWSSBLU220
$0.46 /each
Micro Winged Mist Jet 360° (Black Cap, Yellow Base) 18L/h
Micro Winged Mist Jet 360° (Black Cap, Yellow Base) 18L/h MSJWMSJY360
$0.55 /each

The Antelco winged strip jet waters narrow garden beds through two opposing 20° spray strips.

At 100kPa, the strip jet delivers 35L/h with approximately 4.8m end-to-end coverage. Water output and coverage change with pressure.

The winged base allows hand installation on a compatible stake or riser. Its two-piece construction uses a removable snap-ring cap.

Antelco Single Piece Micro Jet Specifications
Antelco Two Piece Micro Jet Specifications

✓ Nozzle & Pattern
1.0mm blue base with black snap-ring cap.
Two opposing 20° spray strips.

✓ Flow & Coverage
Flow and coverage vary with water pressure.
50kPa: 24 litres per hour; 2.6m end-to-end coverage.
100kPa: 35 litres per hour; 4.8m end-to-end coverage.
150kPa: 43 litres per hour; 5.6m end-to-end coverage.
200kPa: 50 litres per hour; 5.8m end-to-end coverage.
250kPa: 57 litres per hour; 5.8m end-to-end coverage.

✓ Connection & Construction
4mm male quick-thread inlet.
Winged base for hand installation.
Two-piece construction with removable snap-ring cap and UV stabilised materials.
