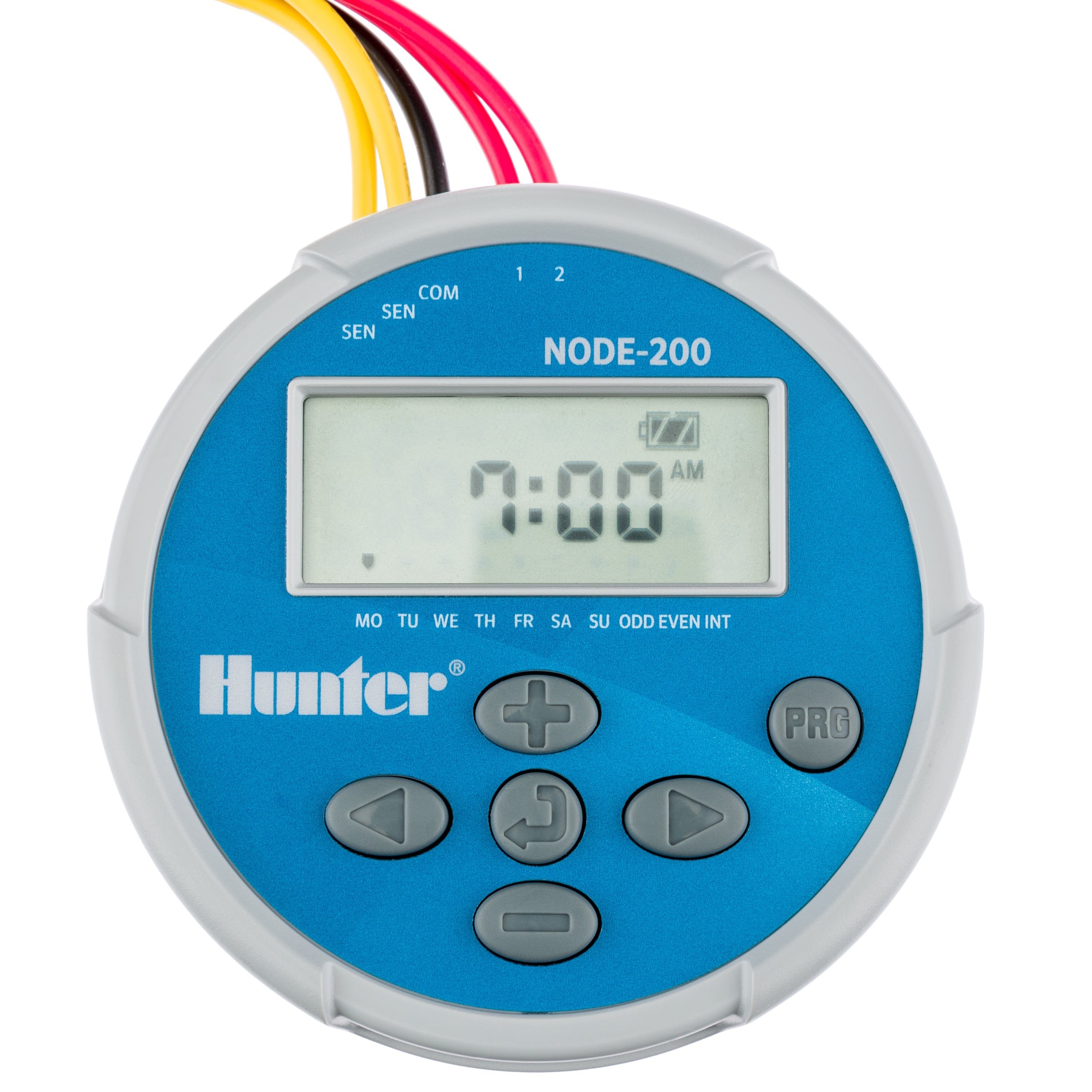

Hunter NODE-200 battery controller with two-station wire leads

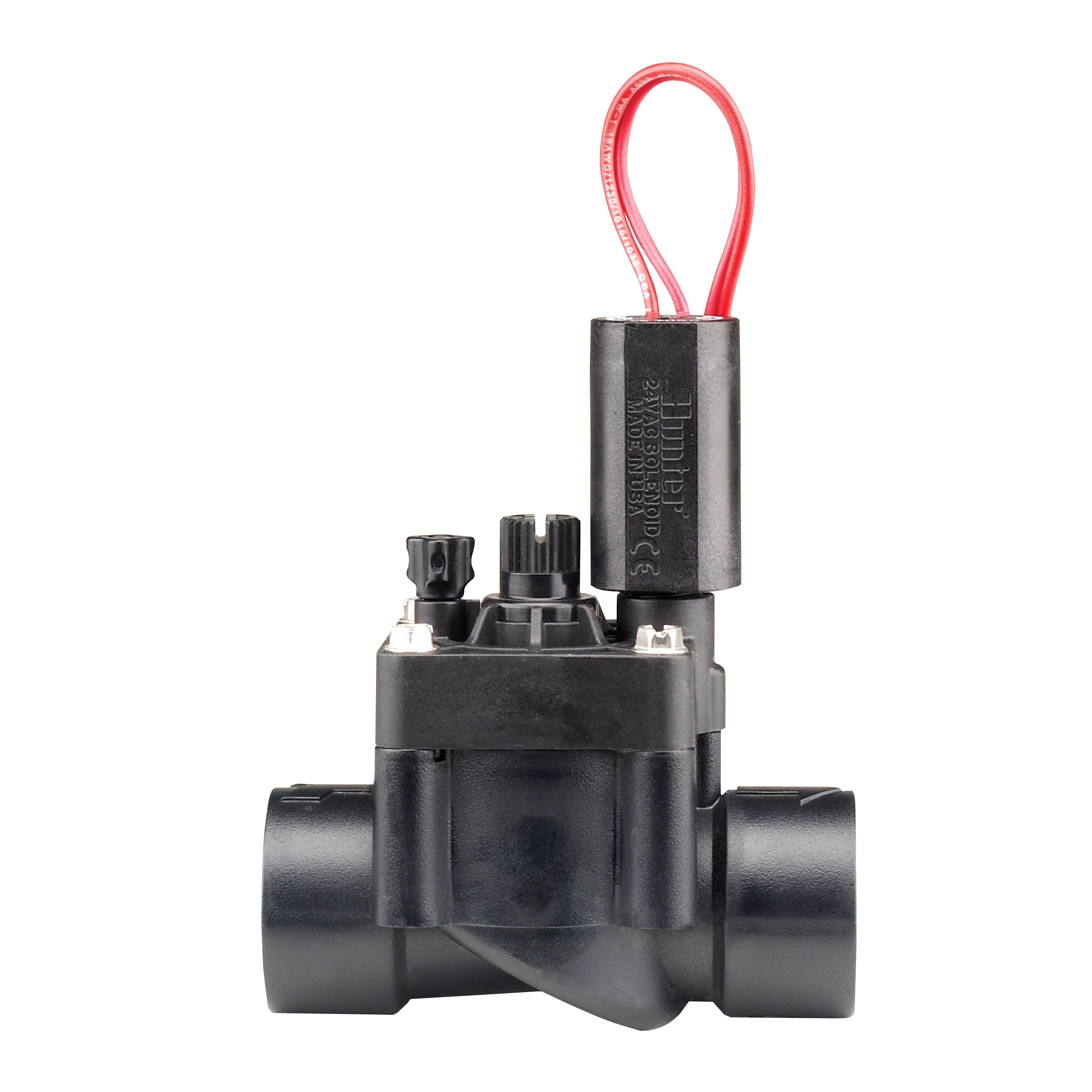

Black Hunter irrigation valve with wired solenoid
Hunter wired solenoid with red and black leads

HUNTER NODE 2 STATION CONTROLLER WITH VALVES AND MANIFOLD KIT

Hunter NODE 2 station battery-operated controller kit for two-zone irrigation installations where mains power is unavailable. Designed for valve box and remote installations. Includes solenoid valves, manifold components, push-button programming and IP68 waterproof protection.

✓ 2 Station Battery Controller Kit
✓ Includes Solenoid Valves & Manifold Kit
✓ Operates Hunter DC-Latching Solenoids
✓ 3 Programs with 4 Start Times Each
✓ IP68 Waterproof Controller Body
✓ Suitable for Valve Box Installation
✓ 2 Year Hunter Warranty

Hunter Node Battery Operated Controller User Manual
Hunter Node Battery Operated Controller Specifications

Hunter NODE-200 battery controller with two-station wire leads

The Hunter NODE 2 Station Controller with Solenoid Valves and Manifold Kit is a battery-operated irrigation control kit for two-zone valve box installations where mains power is unavailable or difficult to access. It combines a 2 station NODE controller with solenoid valves and manifold components for a practical battery-operated valve setup.

This kit is suited to small irrigation systems, isolated garden zones, temporary irrigation areas and remote reticulation locations where a standard 240VAC controller is not practical. The waterproof NODE controller body is designed for installation in valve box environments.

The NODE uses standard Hunter push-button programming with 3 independent programs, 4 start times per program and station run times up to 6 hours. It also includes seasonal adjustment, manual watering, programmable off up to 99 days and Easy Retrieve™ memory for saving and restoring a preferred watering schedule.

NODE controllers operate Hunter DC-latching solenoids only. Standard 24VAC irrigation solenoids will not operate with NODE controllers, so the supplied valve setup must be installed and wired as a DC-latching system.

2 Year Hunter Warranty

Hunter Node Battery Operated Controller User Manual
Hunter Node Battery Operated Controller Specifications

✓ Product Type & Kit Application
Hunter NODE 2 Station battery-operated controller kit with solenoid valves and manifold components for two-zone irrigation installations.

✓ Station Capacity
Controls up to 2 irrigation valve stations.

✓ Controller Programming
3 independent programs with 4 start times per program, station run times up to 6 hours, seasonal adjustment, manual watering and programmable off up to 99 days.

✓ Power Supply
Operates using one or two 9V alkaline batteries. Hunter SPNODE Solar Panel Kit may be available by special order where solar-powered operation is required.

✓ Solenoid Compatibility
Operates Hunter DC-latching solenoids only. Standard 24VAC solenoids will not operate with NODE controllers.

✓ Sensor & Output Compatibility
Includes 1 wired sensor input for compatible wired rain, freeze or wind sensors. Multi-station NODE models support pump/master valve output.

✓ Installation & Protection
Waterproof IP68 controller body suitable for valve box installation. Use waterproof wire connectors for field wiring connections.

✓ Warranty
2 Year Hunter Warranty.
