HUNTER NODE-BT 1 STATION BLUETOOTH CONTROLLER WITH SOLENOID

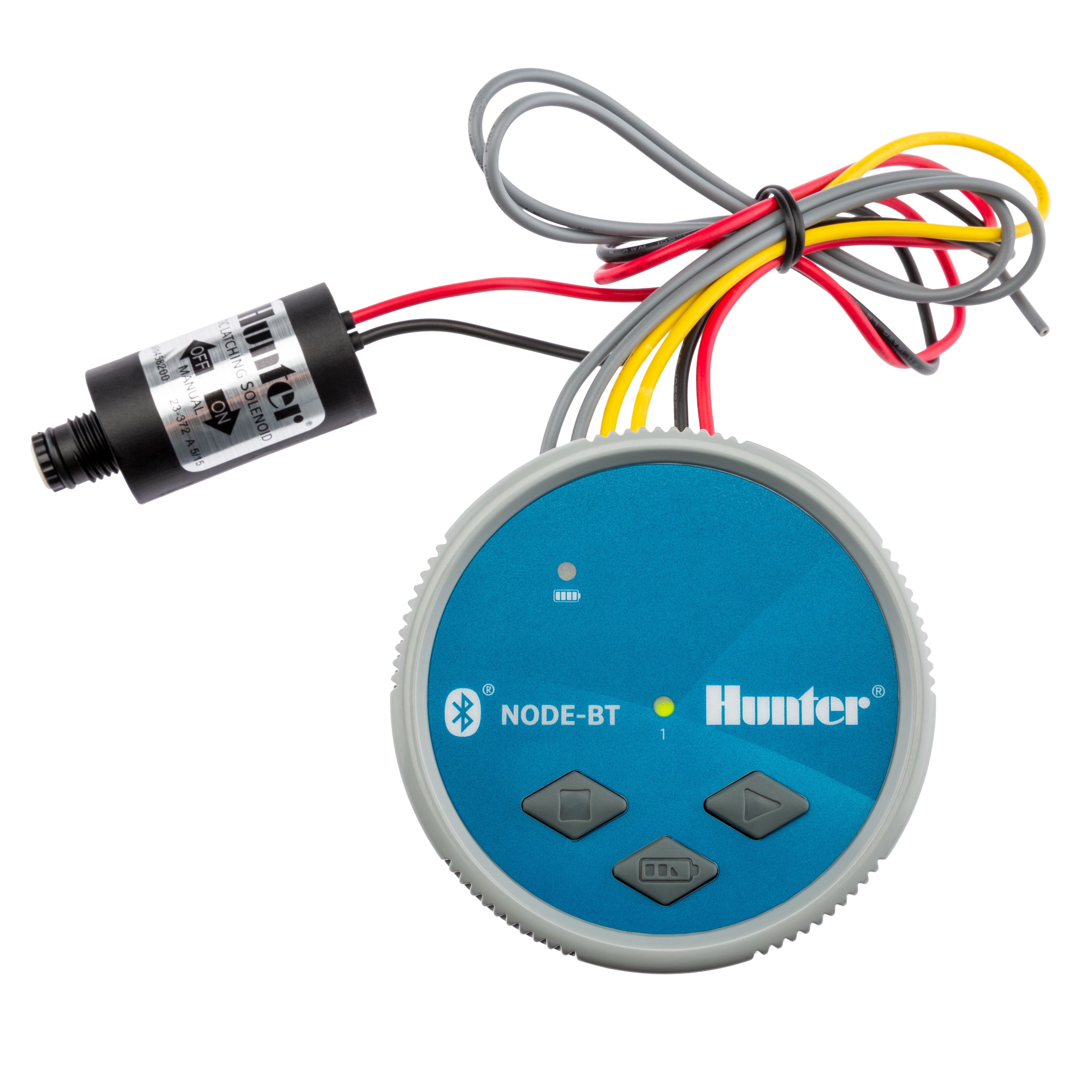

Hunter NODE-BT-100 1 station Bluetooth battery-operated controller with a Hunter DC-latching solenoid included. Designed for valve box and remote irrigation installations where mains power is unavailable, with programming from a nearby smartphone and IP68 waterproof protection. Valve sold separately.

✓ 1 Station Bluetooth Battery Controller
✓ Hunter DC-Latching Solenoid Included
✓ Valve Sold Separately
✓ Hunter NODE-BT App Programming
✓ 3 Programs with 8 Start Times Each
✓ IP68 Waterproof Controller Body

Hunter Node BT Bluetooth Battery Operated Controller Quick Start Guide
Hunter Node BT Bluetooth Battery Operated Controller Specifications

Hunter NODE-BT 1 Station Bluetooth Controller with DC-Latching Solenoid

The Hunter NODE-BT-100 1 Station Bluetooth Battery Controller provides irrigation control for single-zone sites where mains power is unavailable or difficult to access. It is suited to valve box installations, gardens, temporary irrigation areas and remote watering locations.

This model includes the controller and a Hunter DC-latching solenoid. The valve is sold separately. It provides an option for controlling a suitable existing valve without purchasing the complete controller-and-valve kit. Standard 24VAC irrigation solenoids will not operate with NODE-BT controllers.

NODE-BT controllers are programmed from a nearby smartphone using the Hunter NODE-BT app. Bluetooth communication allows local wireless access without opening the valve box for normal programming, while manual push-button operation is available at the controller for starting and stopping irrigation.

This 1 station model supports 3 programs, 8 start times per program and station run times from 1 second to 12 hours. It also includes Cycle and Soak, seasonal adjustment, programmable off, battery status tools and app-based schedule management.

2 Year Hunter Warranty

Hunter Node BT Bluetooth Battery Operated Controller Quick Start Guide
Hunter Node BT Bluetooth Battery Operated Controller Specifications

✓ Product Type & Model
Hunter NODE-BT-100 1 Station Bluetooth Battery Controller. Stock code HI-NODEBT100; store SKU CNHNODEBT100.

✓ Supplied Configuration
Controller with a Hunter DC-latching solenoid included. Valve sold separately.

✓ Station Capacity & Application
Controls 1 irrigation valve station. Suitable for valve box installations and irrigation sites where mains power is unavailable.

✓ App & Bluetooth Control
Programmed through the Hunter NODE-BT app from a nearby compatible smartphone. Bluetooth 5.0 communication with a maximum range of approximately 15m line-of-sight.

✓ Programming
3 programs with 8 start times per program. Station run times from 1 second to 12 hours, Cycle and Soak, seasonal adjustment and programmable off up to 99 days.

✓ Power Supply
Operates using one or two 9V alkaline batteries. Hunter SP-NODE-BT Solar Panel Kit may be available by special order where solar-assisted operation is required.

✓ Solenoid Compatibility
Supplied with a Hunter DC-latching solenoid for use with a compatible valve. Standard 24VAC solenoids will not operate with NODE-BT controllers.

✓ Sensor Inputs
2 sensor inputs: a connection for a compatible wired rain, freeze or wind sensor, and a separate connection for the optional Hunter SC-PROBE soil moisture sensor.

✓ Installation & Protection
IP68 waterproof controller body suitable for valve box installation.

✓ Warranty
2 Year Hunter Warranty.
