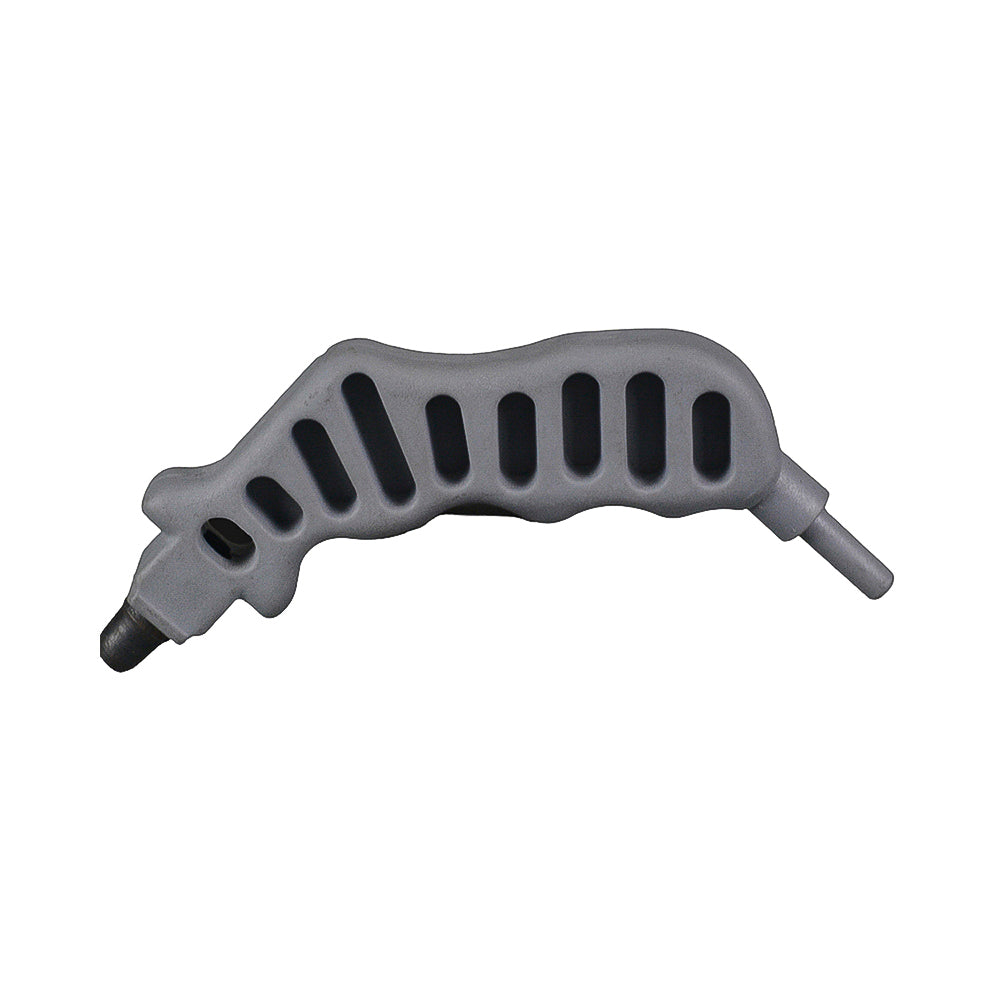

Grey hand punch with contoured grip and metal tip, side view.
Grey hand punch with contoured grip and metal tip, side view.

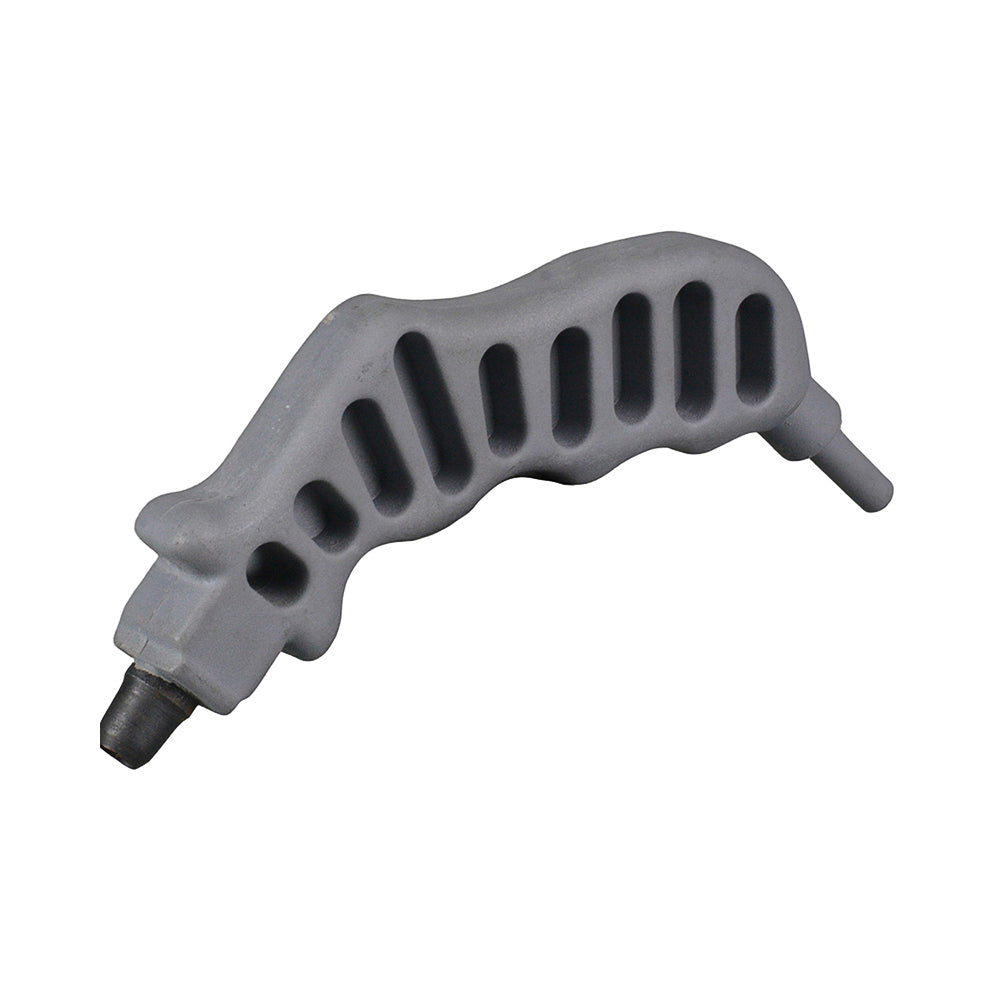

Grey hand punch with contoured grip and metal tip, angled view.
Grey hand punch with contoured grip and metal tip, angled view.
Grey hand punch with contoured grip and metal tip, side view.
Grey hand punch with contoured grip and metal tip, angled view.

10MM HAND PUNCH

This 10mm hand punch prepares poly supply pipe for barbed take-off fittings that feed a smaller irrigation line. It is used for branch connections such as straight or elbow take-offs leading to 13mm poly tubing or 16mm dripline, where the fitting requires this punch size.

✓ For barbed take-offs feeding smaller irrigation lines
✓ For straight or elbow take-off connections
✓ Punch size: 10mm
✓ Metal punching tip and curved hand grip

More Information
Product Specifications
Grey hand punch with contoured grip and metal tip, side view.
10MM HAND PUNCH
Yellow plastic micro spray punch with textured handle and pointed tip.
Tools Plastic Micro Spray Punch THPMS
$1.24 /each
Netafim blue plastic irrigation hole punch with contoured grip and metal tip, side view.
Tools Netafim Plastic Hole Punch 3mm for Miniscap, Landline, Netbow, Supernets THPN3
$42.64 /each
Green plastic dripper hole punch with open handle and metal tip.
Hole punch (green) suits 4 mm Drippers THPTG
$13.34 /each
Grey hand punch with contoured grip and metal tip, side view.
Tools Hand Punch 10mm THP10
$22.17 /each
Hunter blue poly pipe hole punch and emitter tool with forked head, side view.
Hunter Poly Hole Punch and Emitter - To Suit 13mm and 19mm Poly Pipe THPHPE
$22.33 /each

This 10mm hand punch prepares openings in poly supply pipe for barbed take-off fittings. These fittings create a branch from the supply pipe to a smaller irrigation line, such as 13mm poly tubing or 16mm dripline.

The take-off barb pushes into the prepared opening in the supply-pipe wall. Its other end connects to the branch tubing. Straight and elbow take-offs serve this purpose where they are specified for use with this punch size.

The curved handle provides a broad handhold, with finger contours to help position the tool. The metal tip forms the opening as the punch is pressed into the pipe wall.

✓ Application
Preparing poly supply pipe for barbed take-off fittings.
Creates a branch connection to smaller irrigation tubing.

✓ Take-Off Examples
Straight or elbow take-offs feeding 13mm poly tubing.
Elbow take-offs feeding 16mm dripline.
Fitting must be specified for this punch size.

✓ Punch Size
10mm.

✓ Construction & Operation
Metal punching tip.
Curved grey handle with finger contours.
Hand-operated punch.
