This 50mm (2") Alderdice floating foot valve retains prime in a pump suction line while following the water level in a dam or river. Two floats support the valve through a drop bar and tee. Its gunmetal bronze body has a BSP side outlet, allowing a suction pipe fitting to connect without a bend at the valve.
Gunmetal bronze valve body with drop bar, tee and two supporting floats.
Use the size-specific pressure-loss curves when assessing suction performance. The flow charts are a guide only; they do not provide a fixed flow capacity for every pump installation.
Connections: 50mm (2") BSP side outlet.
Alderdice Gunmetal Bronze Floating Foot Valve Specifications

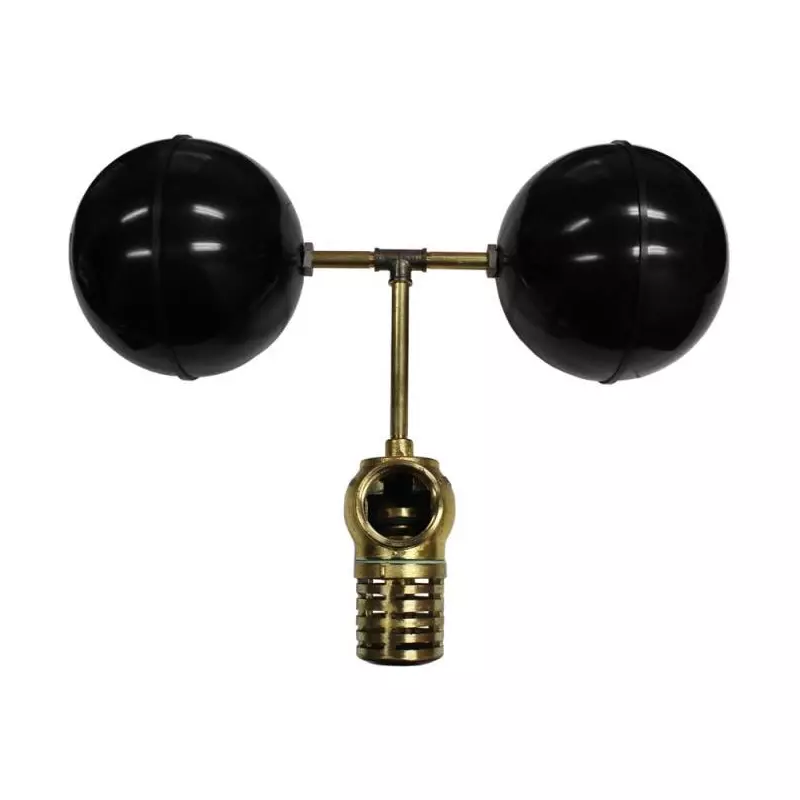

Alderdice bronze floating foot valve suspended below a crossbar with two black floats.
