FLOAT VALVE APEX RESERVOIR 50MM DUAL LEVEL - 2 FLOATS

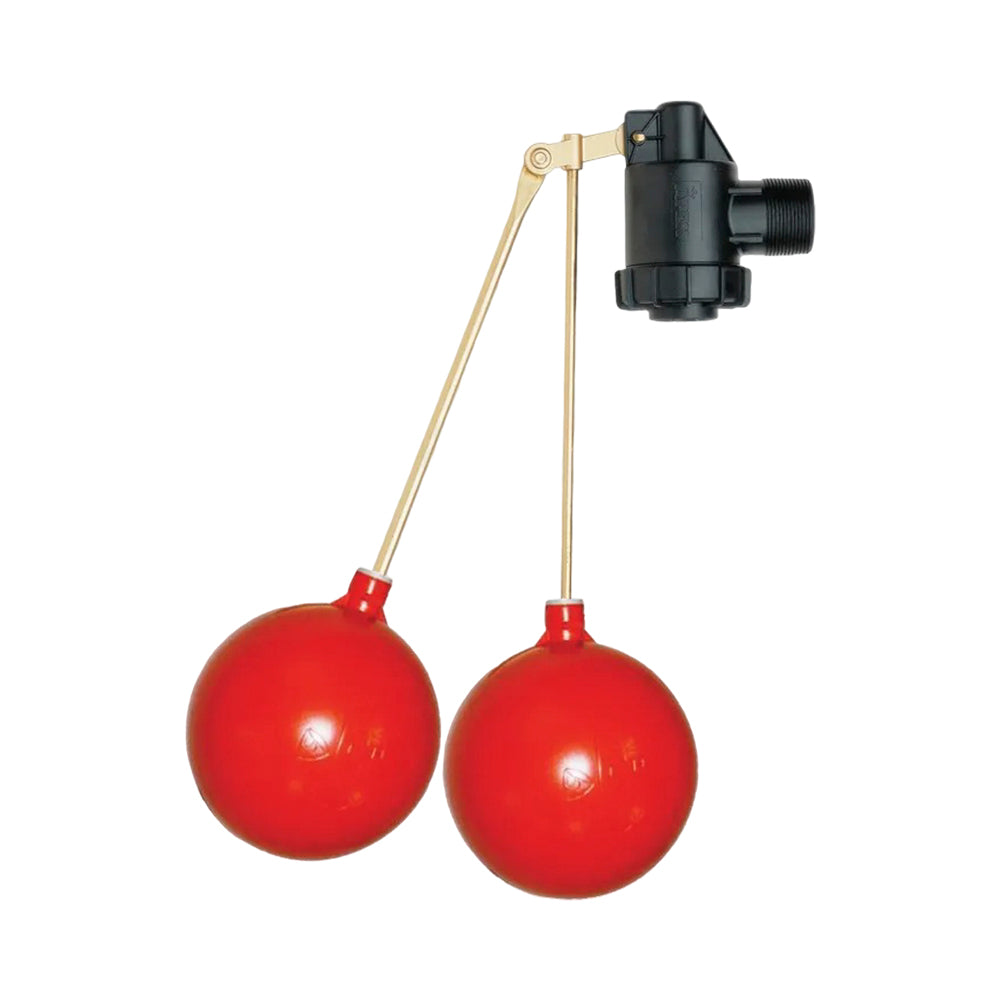

The Apex Reservoir 50mm Dual Level lets a tank draw down before refilling. Its dual-arm mechanism provides separate start and stop levels, with an adjustable 65-270mm gap between them. Two 150mm orange floats are included.

✓ Connection size: 50mm
✓ Working pressure: 0-700kPa
✓ Adjustable opening-to-closing level difference: 65-270mm
✓ Includes two 150mm orange floats

Apex Dual Level Specifications
Apex Dual Level 50mm Drawing

More Information
Product Specifications
Product Videos
Float Valve Apex Reservoir 50mm Dual Level - 2 Floats
FLOAT VALVE APEX RESERVOIR 50MM DUAL LEVEL - 2 FLOATS
Float Valve Apex Reservoir 32mm Dual Level - 2 Floats
Float Valve Apex Reservoir 32mm Dual Level - 2 Floats TFLVDL032
$185.06 /each
Tank Float Valve APEX Dual Level 40mm (1 1/2") w/ 2 Orange Floats
Tank Float Valve APEX Dual Level 40mm (1 1/2") w/ 2 Orange Floats TFLVDL040
$201.70 /each
Float Valve Apex Reservoir 50mm Dual Level - 2 Floats
Float Valve Apex Reservoir 50mm Dual Level - 2 Floats TFLVDL050
$219.85 /each

The Apex Reservoir 50mm Dual Level lets a tank draw down before refilling. Its dual-arm mechanism provides separate start and stop levels, with an adjustable 65-270mm gap between them. Two 150mm orange floats are included.

The working pressure range is 0-700kPa. Leave room for both arms and floats to move freely, then check a complete refill cycle after setting the levels.

Apex Dual Level Specifications
Apex Dual Level 50mm Drawing

✓ Level Control & Float Requirements
Control: Separate refill and shut-off levels.
Control arrangement: Dual-arm reservoir valve.
Opening-to-closing level difference: Adjustable from 65mm to 270mm.
Included floats: 2 x 150mm orange ball floats.

✓ Connections & Mounting
Connection size: 50mm.

✓ Pressure
Working pressure: 0-700kPa.
