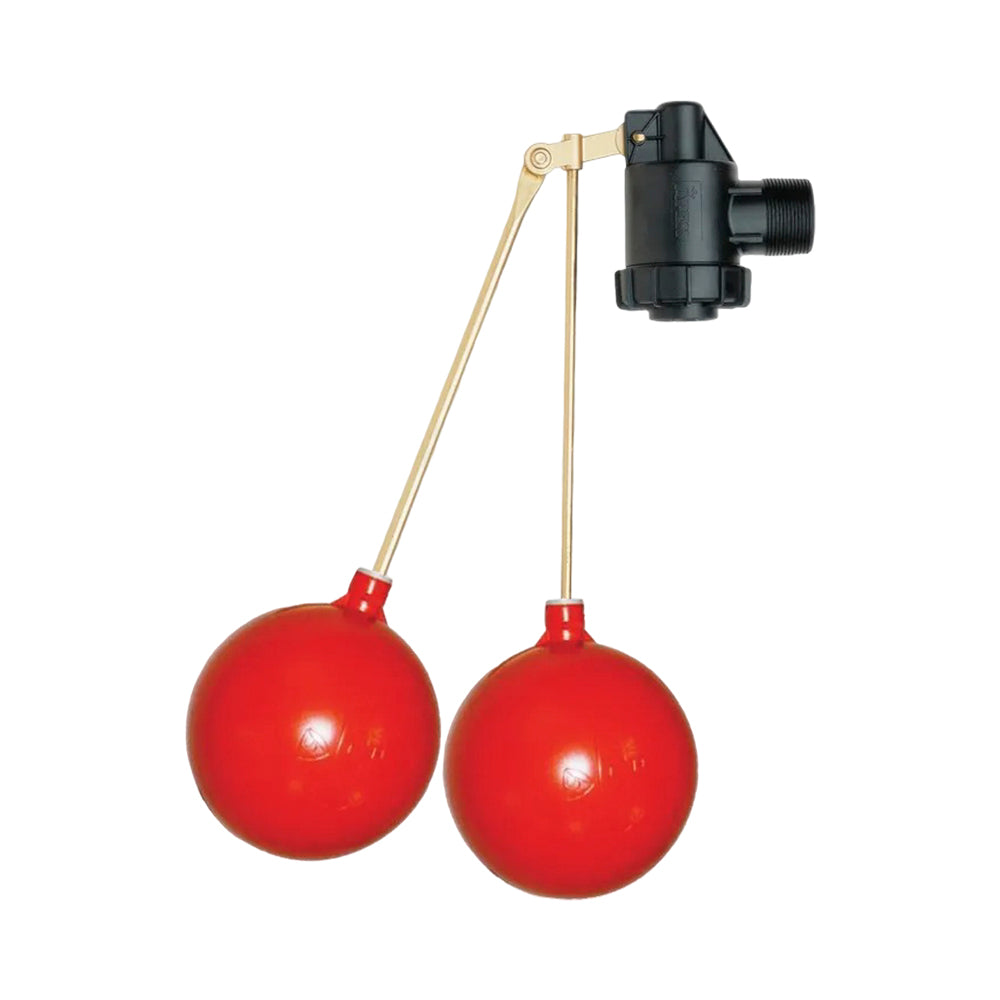

Apex reservoir float valve with brass linkage and two round floats.
Apex reservoir float valve with brass linkage and two round floats.
Apex reservoir float valve with brass linkage and two round floats.

FLOAT VALVE APEX RESERVOIR 40MM DUAL LEVEL - 2 FLOATS

The Apex Reservoir 40mm Dual Level lets a tank draw down before refilling. Its dual-arm mechanism provides separate start and stop levels, with an adjustable 65-270mm gap between them. Two 150mm orange floats are included.

✓ Connection size: 40mm
✓ Working pressure: 0-700kPa
✓ Adjustable opening-to-closing level difference: 65-270mm
✓ Includes two 150mm orange floats

Apex Dual Level Specifications
Apex Dual Level 40mm Drawing

Apex reservoir float valve with brass linkage and two round floats.

The Apex Reservoir 40mm Dual Level lets a tank draw down before refilling. Its dual-arm mechanism provides separate start and stop levels, with an adjustable 65-270mm gap between them. Two 150mm orange floats are included.

The working pressure range is 0-700kPa. Leave room for both arms and floats to move freely, then check a complete refill cycle after setting the levels.

Apex Dual Level Specifications
Apex Dual Level 40mm Drawing

✓ Level Control & Float Requirements
Control: Separate refill and shut-off levels.
Control arrangement: Dual-arm reservoir valve.
Opening-to-closing level difference: Adjustable from 65mm to 270mm.
Included floats: 2 x 150mm orange ball floats.

✓ Connections & Mounting
Connection size: 40mm.

✓ Pressure
Working pressure: 0-700kPa.
