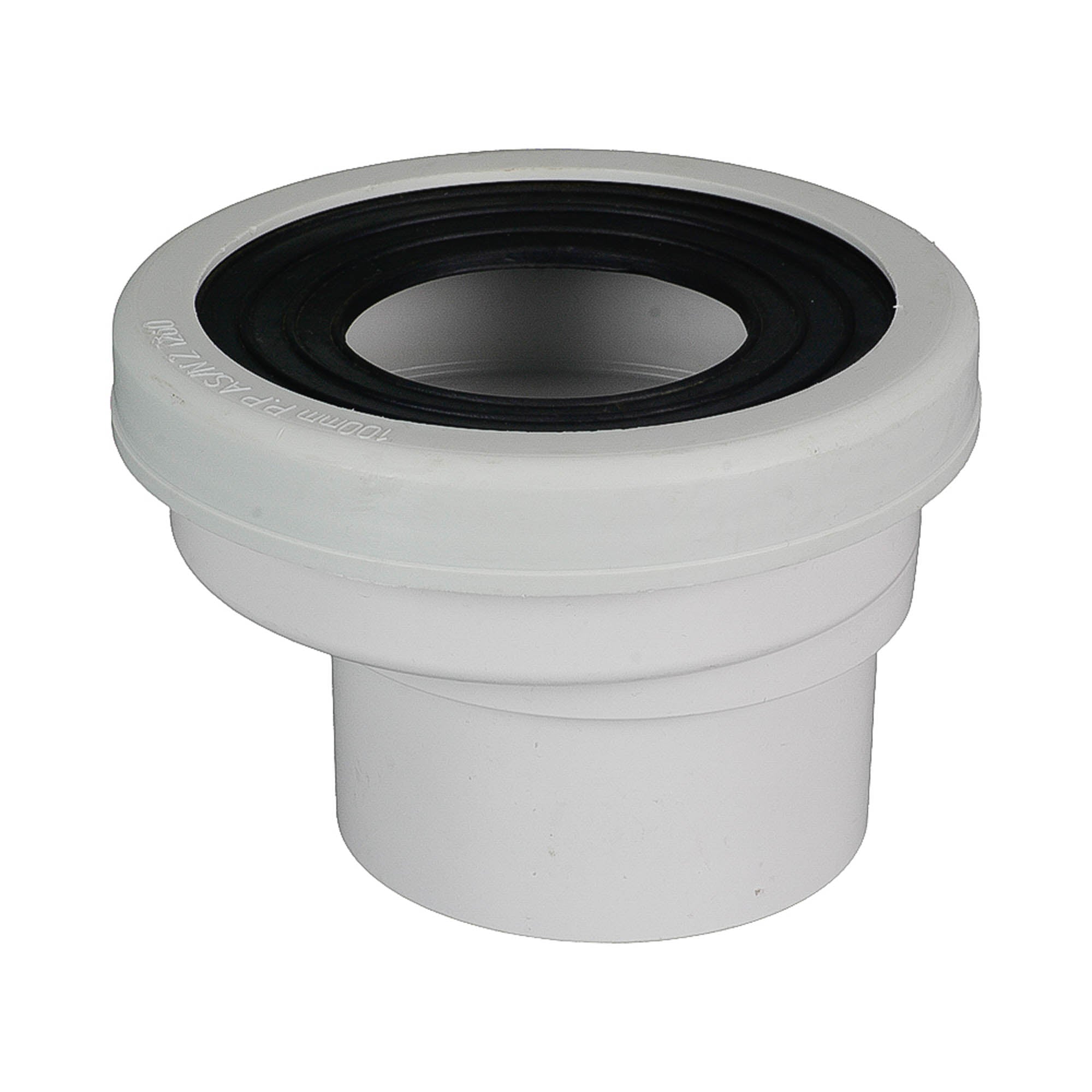

DWV Pan Collar Offset Long Spigot 100mm connects a toilet pan outlet to nominal 100mm PVC DWV pipe while providing additional spigot length and a 20mm offset.
The pan connection is offset by 20mm from the centre of the DWV pipe, helping accommodate installations where the toilet outlet and pipe are slightly out of alignment. The toilet outlet pushes into the flexible pan seal, which is held in position by the seal retainer cap.
The long lower spigot fits inside nominal 100mm PVC DWV pipe and extends further into the pipe than the short spigot version. It is joined using PVC priming fluid and suitable non-pressure PVC solvent cement.
Ensure the toilet outlet does not contact the base of the pan collar body. Offset pan collars are not recommended for P-trap WC installations.
For PVC drain, waste and vent systems to AS/NZS 1260.
