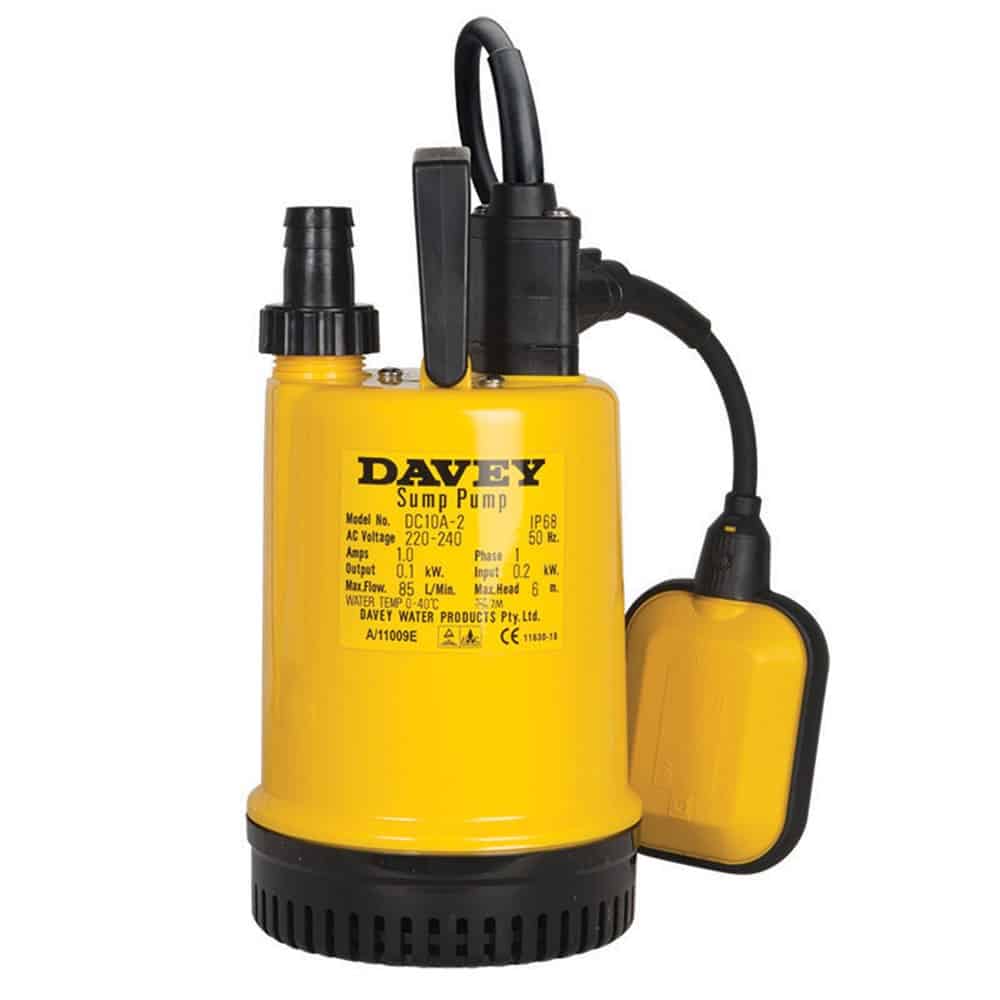

DAVEY DC10 SERIES SUBMERSIBLE CLEANWATER DRAINAGE PUMPS (80LPM/6M)

A compact double-cased submersible sump pump designed for reliable dewatering and water transfer in domestic and light commercial applications. The DC10 series features a semi-vortex centrifugal impeller capable of handling small suspended solids while reducing the risk of blockage. The “A” model includes a preset float switch for automatic operation, while the “M” model provides manual control. Durable construction with stainless steel components and advanced shaft sealing ensures long service life and dependable performance even in partially submerged installations

FEATURES

• Open impeller semi-vortex centrifugal design allows pumping of small soft solids with reduced clogging risk

• Double casing design with full discharge flow past the motor improves cooling and enables partially submerged operation

• Hard-faced silicon carbide and ceramic mechanical shaft seal in oil bath for enhanced protection and durability

• Sand slinger lip seal provides additional motor protection and extended service life

• Corrosion-resistant stainless steel fasteners for longevity and reliability

• Automatic resetting thermal overload protection safeguards against overheating

• Automatic float switch operation on DC10A models for convenient hands-free control

APPLICATIONS

• Sump pit drainage and emptying

• Emergency flood relief and water removal

• Water transfer and drainage in domestic or light commercial environments

• Fountains and waterfalls (non-fish applications)

• Partially submerged pumping situations where reliable cooling is required

SPECIFICATIONS

• Maximum flow up to 80 L/min

• Maximum head up to 6 m

• Maximum submergence depth 10 m

• Maximum liquid temperature 50°C

• Outlet size 1″ BSP male

• Suitable for clean water with up to 10% small soft organic solids (less than 10 mm)

• Power supply 220–240V single phase, 50 Hz

• Motor rating 0.1 kW, approximately 1.0 A full load current

• IPX8 protection rating

• 6 m oil-resistant power cable

• Weight approximately 4 kg
