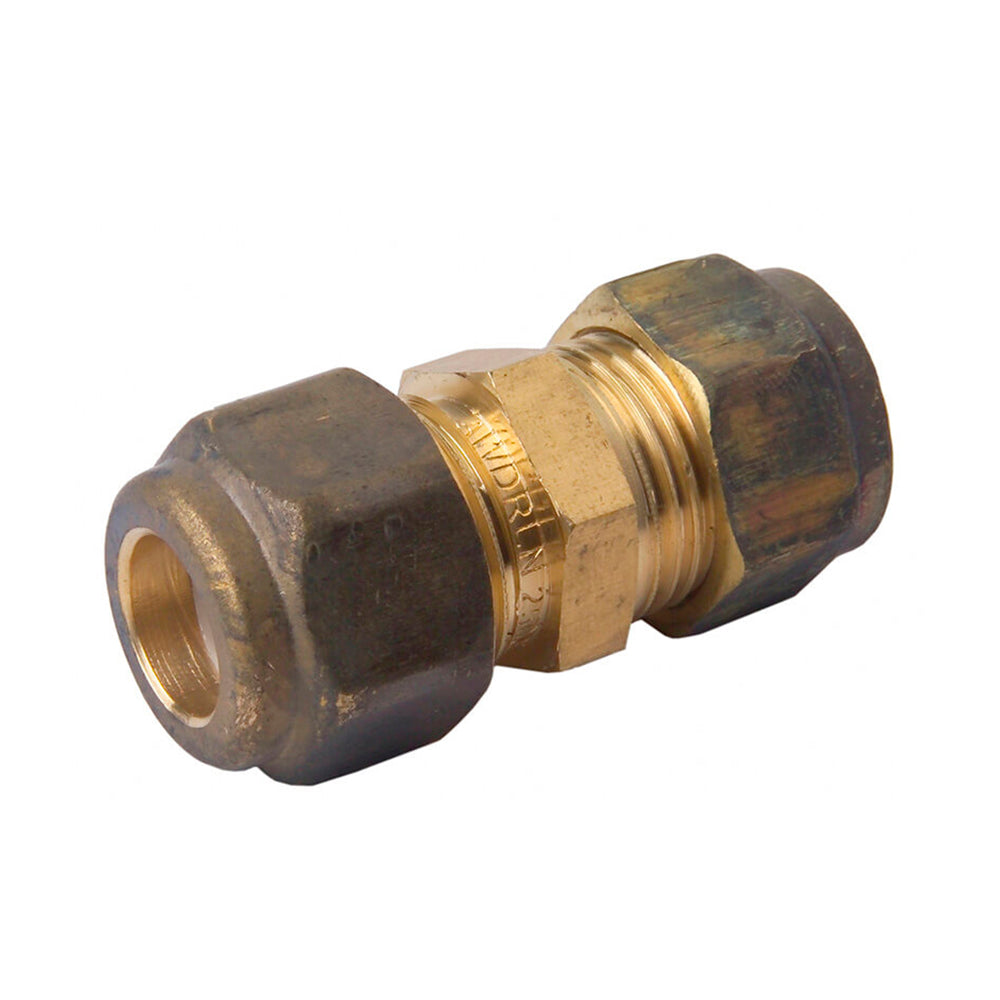

Brass Union Conetite 1/2"" (15mm)
Brass Union Conetite 1/2"" (15mm)

BRASS CONETITE COMPRESSION UNIONS FOR COPPER PIPE

Brass Conetite compression unions are used to connect two compatible tube ends in a straight line. Suitable for water, air, irrigation and general plumbing applications.

✓ Compression x Compression Connection
✓ Nylon Olives Included
✓ DR Lead Free Brass Body
✓ WaterMark Lead Free Approved
✓ Tested and Certified to AS 3688
✓ 1600kPa Maximum Pressure Rating

Brass Conetite Compression Union Specifications

Brass Union Conetite 1/2"" (15mm)
Brass Union Conetite 1" (25mm)
Brass Union Conetite 1" (25mm) B12BU02525
$15.69 /each

Brass Conetite compression unions are used to join two copper pipe ends in a straight line using a mechanical nylon olive compression connection. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to be joined without soldering.

Made from DR lead free brass with brass compression nuts and nylon olives, these unions are WaterMark Lead Free approved and tested to AS 3688. Install onto clean, round copper pipe in the matching size and tighten the compression nuts so the nylon olives compress onto the pipe.

Brass Conetite Compression Union Copper Pipe Specifications

✓ Connection Type
Compression x Compression connection for joining compatible tube ends in a straight line.

✓ Material
DR lead free brass body with brass compression nuts and nylon olives.

✓ Pressure Rating
Maximum pressure rating 1600kPa, subject to correct installation, compatible tube and application conditions.

✓ Temperature Range
Working temperature range 1°C to 95°C.

✓ Standards & Approvals
WaterMark Lead Free approved. Tested and certified to AS 3688.

✓ Applications
Suitable for compatible water, air, irrigation and general plumbing applications.

✓ Installation
Use with compatible tube. Insert the tube into the fitting and tighten the compression nuts so the nylon olives compress onto the tube.
