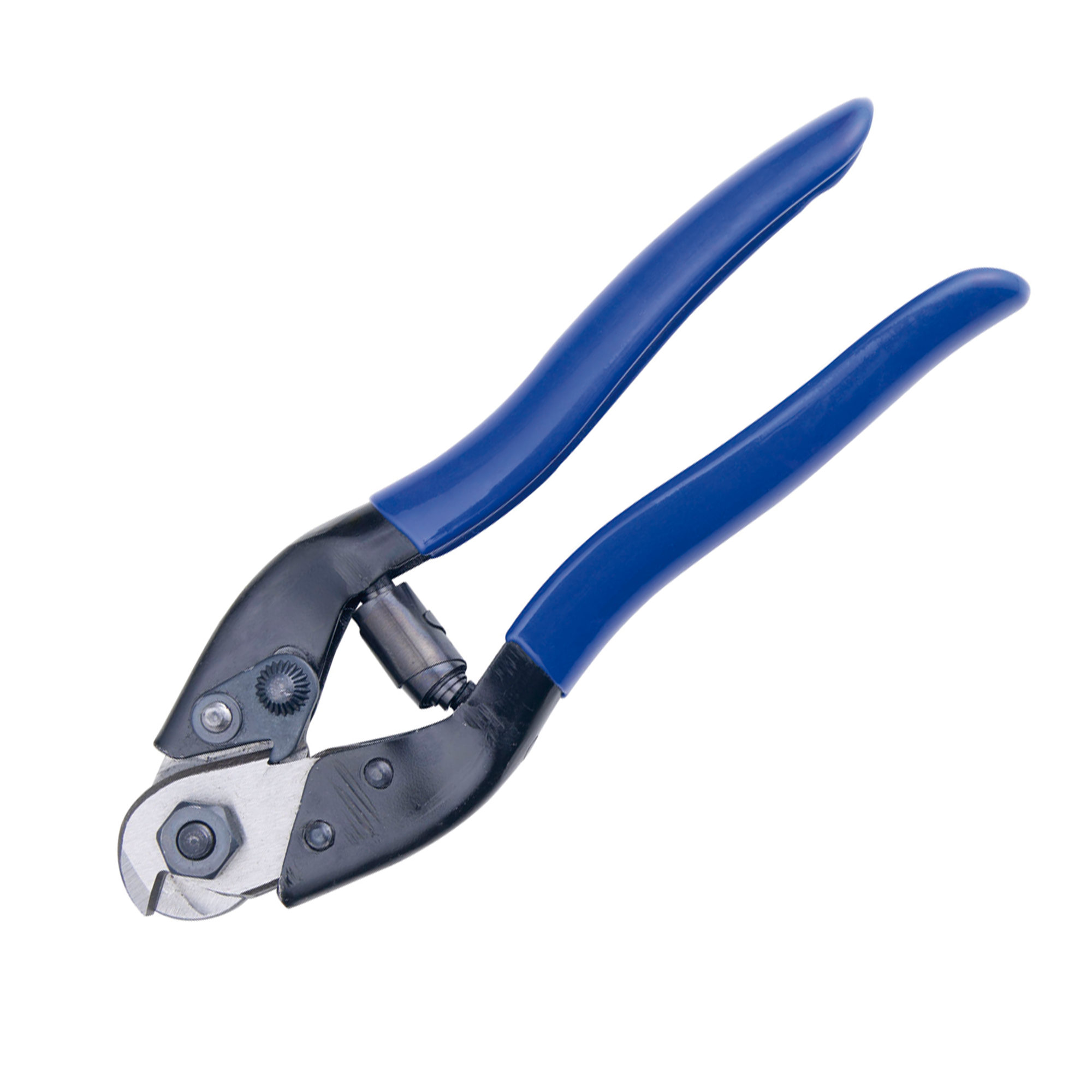

ECLIPSE WIRE ROPE CUTTER 200MM

The Eclipse 200mm wire rope cutter cuts steel strand, wire rope, selected wire and rod, and unarmoured electrical cable. Hardened, angled blades help produce a clean cut, while the spring-loaded head reopens the jaws for repeated work. Rubber grips provide a firm handhold.

✓ For wire rope, wire, selected rod and unarmoured cable
✓ Overall length: 200mm
✓ Hardened, angled cutting blades
✓ Spring-loaded head
✓ Non-slip rubber grips

More Information
Product Specifications
Tools ECLIPSE Wire Rope Cutter (Spear and Jackson)
ECLIPSE WIRE ROPE CUTTER 200MM
Tools ING-CO Cable Cutters 250mm
Tools ING-CO Cable Cutters 250mm TCCI250
$11.56 /each
Tools ECLIPSE Wire Rope Cutter (Spear and Jackson)
Tools ECLIPSE Wire Rope Cutter (Spear and Jackson) TWRCE
$42.37 /each
Tools ING-CO Wire Stripper 0.5-6mm
Tools ING-CO Wire Stripper 0.5-6mm TICHWSP15608
$17.65 /each

This Eclipse cutter handles wire and rope cutting in agricultural, garden, automotive and marine work. Its hardened, angled blades shear through the material, with a spring-loaded head that helps reopen the jaws between cuts.

Recommended capacity depends on the material. It cuts mild steel strand and unarmoured electrical cable up to 6.5mm in diameter, with lower limits for high-tensile rope, rod and spring wire. The material-specific limits and steel-strength conditions are listed in Specifications.

The 200mm hand tool has non-slip rubber grips for control during cutting. Its compact head is suited to individual cuts when preparing wire, rope or cable to length.

✓ Application
Wire and rope cutting for agricultural, garden, automotive and marine tasks.

✓ Recommended Cutting Capacities
Mild steel strand: 6.5mm diameter.
High-tensile steel rope (180kg/mm² tensile strength): 5mm diameter.
Soft steel wire (34kg/mm² tensile strength): 5mm diameter.
Copper or aluminium rod: 5mm diameter.
Steel rod (66kg/mm² tensile strength): 4mm diameter.
Hardened and tempered spring wire (180kg/mm² tensile strength): 2.5mm diameter.
Unarmoured electrical cable: 6.5mm diameter.

✓ Size
Overall length: 200mm.

✓ Blades & Opening
Hardened, angled cutting blades.
Spring-loaded head assists reopening.

✓ Grips
Non-slip rubber handles.
