Water Meter Netafim Octave Ultrasonic 80mm Flanged
WATER METER NETAFIM OCTAVE ULTRASONIC 80MM FLANGED

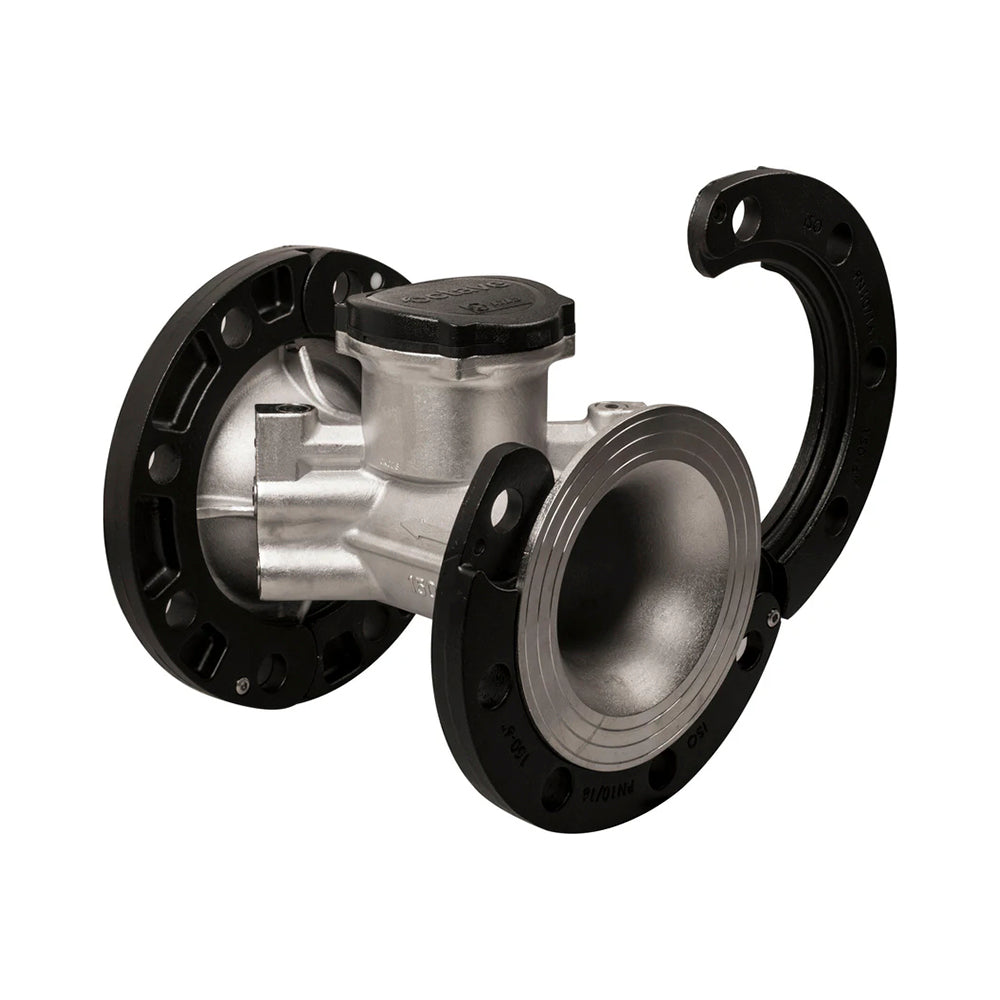

Water Meter Netafim Octave Ultrasonic 80mm Flanged
Water Meter Netafim Octave Ultrasonic 80mm Flanged WMNOC080
$3,649.03 /each

Netafim Octave 80mm flanged ultrasonic water meter is used for accurate bulk water measurement in agricultural, industrial, commercial and waterworks applications. The ultrasonic design has no moving parts, making it suitable for installations where long-term reliability, low pressure loss and accurate flow data are important.

This DN80 3" model has a flanged connection and stainless steel body construction. It includes a compact digital display built into the meter, IP68 environmental protection and long-life lithium battery power. Confirm flange compatibility, flow range, output requirements and installation conditions before ordering.

Octave Water Meter Specifications

✓ Product Type & Size
Netafim Octave ultrasonic bulk water meter, DN80 3".

✓ Connection
Flanged connection.

✓ Body Material
Stainless steel body.

✓ Application
Suitable for agricultural, industrial, commercial and waterworks bulk water metering applications.

✓ Approval
AS4747 and NMI Pattern Approved.

✓ Measurement Type
Ultrasonic measurement with no moving parts.

✓ Maximum Working Pressure
16 bar.

✓ Liquid Temperature
0.1°C to 50°C.

✓ Accuracy
ISO 4064 rev. 2014, Accuracy Class 2.

✓ Flow Performance
Q1 minimum flow rate: 0.125 m³/h.
Q2 transitional flow rate: 0.200 m³/h.
Q3 permanent flow rate: 63 m³/h.
Q4 overload flow rate: 80 m³/h.
Q3/Q1 ratio: 500.
Starting flow: 0.025 m³/h.

✓ Display
Compact digital display built into the unit.

✓ Power Source
2 x D size lithium batteries, up to 15 years life.

✓ Environmental Protection
IP68. Ambient operating temperature -25°C to +55°C.

✓ Pressure Loss
ΔP 0.16 bar.

✓ Dimensions
Length without couplings: 225mm.
Width: 200mm.
Height: 210mm.
Lower height: 90mm.

✓ Output Options
Output and communication options may be available depending on meter configuration, including digital pulse, dry contact, SSR, encoder, Modbus / M-Bus and analogue 4–20mA options.

✓ Installation Note
The meter must remain full of water during operation. Install in accordance with the supplier installation manual, NMI approval requirements where applicable, and relevant site requirements.
