Seaflo Extreme Washdown Pump 51 Series 24V 5.0GPM **temporarily unavailable**
Seaflo Extreme Washdown Pump 51 Series 24V 5.0GPM **temporarily unavailable**

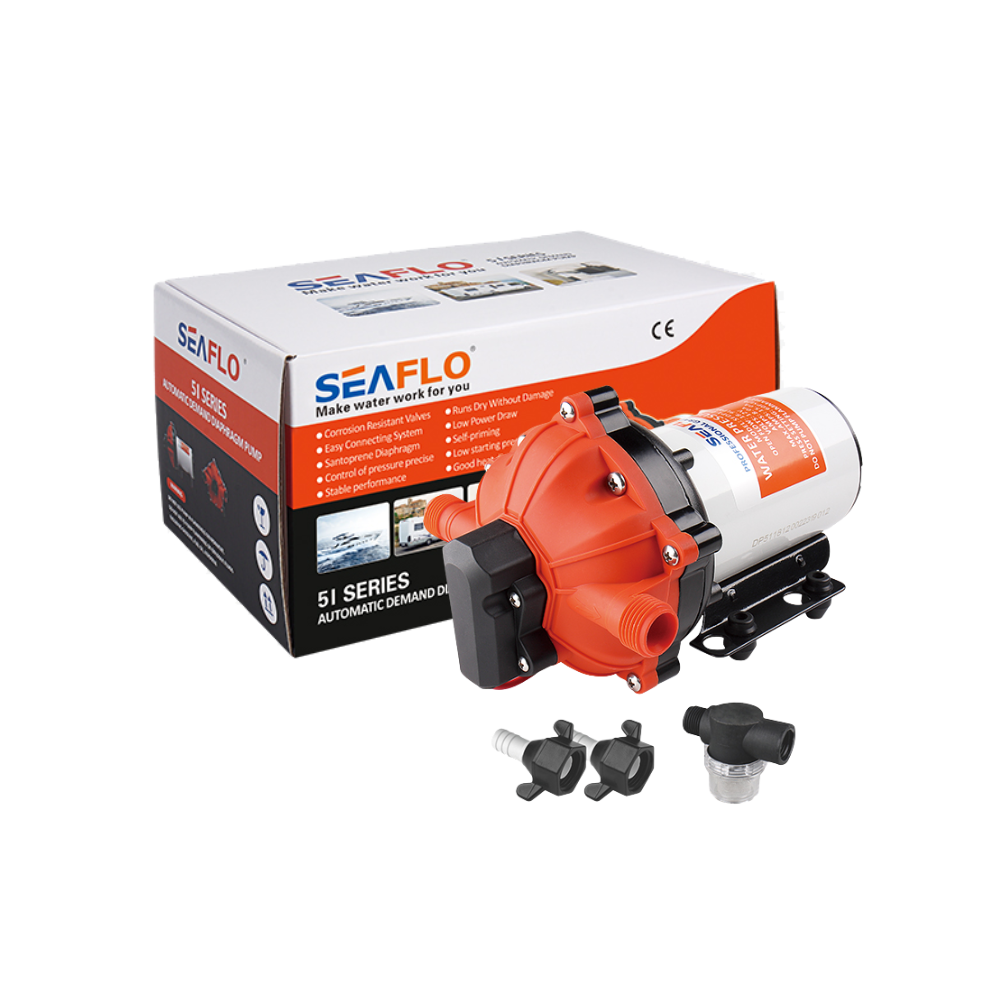

SEAFLO 51X EXTREME WASHDOWN PUMPS

The Seaflo 51X Extreme washdown pump supplies fresh or salt water for cleaning boats and equipment using a 12V or 24V supply. Its five-chamber diaphragm design works with automatic demand control, starting and stopping as the spray outlet is used. Supplied as a standalone pump, it suits an existing washdown installation or a system assembled with separate hose and spray components.

✓ Fluid: Fresh or salt water
✓ Maximum flow: 18.9L/min
✓ Shutoff pressure: 70psi / 4.8bar
✓ Pump ports: 1/2" MNPT
✓ Supply options: 12V DC, 24V DC
✓ Supply format: Standalone pump

24V pump: temporarily unavailable.

Seaflo 51X Extreme Washdown Pumps and Kits Product Information

More Information
Product Specifications
Seaflo Extreme Washdown Pump 51 Series 24V 5.0GPM **temporarily unavailable**
SEAFLO 51X EXTREME WASHDOWN PUMPS
Seaflo Extreme Washdown Pump 51 Series 12V 5.0GPM
Seaflo Extreme Washdown Pump 51 Series 12V 5.0GPM PUMP-SFDP1-050-070-51X
$266.01 /each
Seaflo Extreme Washdown Pump 51 Series 24V 5.0GPM **temporarily unavailable**
Seaflo Extreme Washdown Pump 51 Series 24V 5.0GPM **temporarily unavailable** PUMP-SFDP2-050-070-51X
$266.01 /each

Wash boats and equipment with fresh or salt water using the Seaflo 51X Extreme pump, using 12V and 24V options. Maximum flow is 18.9L/min, with pressure-switch shutoff at 70psi / 4.8bar.

Supplied as a standalone pump for an existing washdown installation or a system assembled with separate hose and spray equipment. The pump ports have 1/2" male NPT threads.

The demand switch starts and stops the five-chamber pump as the spray outlet is used. Flow decreases as pressure rises; maximum flow and shutoff pressure are separate limits.

24V pump: temporarily unavailable.

Seaflo 51X Extreme Washdown Pumps and Kits Product Information

✓ Product Type & Application
Five-chamber diaphragm demand pump for boat and equipment washdown with fresh or salt water.
Fluid: Fresh or salt water

✓ Capacity & Performance
Maximum flow: 18.9L/min
Shutoff pressure: 70psi / 4.8bar
Maximum flow and shutoff pressure are separate limits; flow decreases as pressure rises.

✓ Connections & Compatibility
Pump ports: 1/2" MNPT

✓ Supplied Equipment
Supply format: Standalone pump

✓ Electrical & Leads
Power supply: 12V or 24V DC

✓ Operation & Control
Automatic demand switch starts and stops the pump as the spray outlet is used.

✓ Construction & Features
Five-chamber diaphragm assembly.
