SEAFLO PORTABLE 12V WASHDOWN KIT

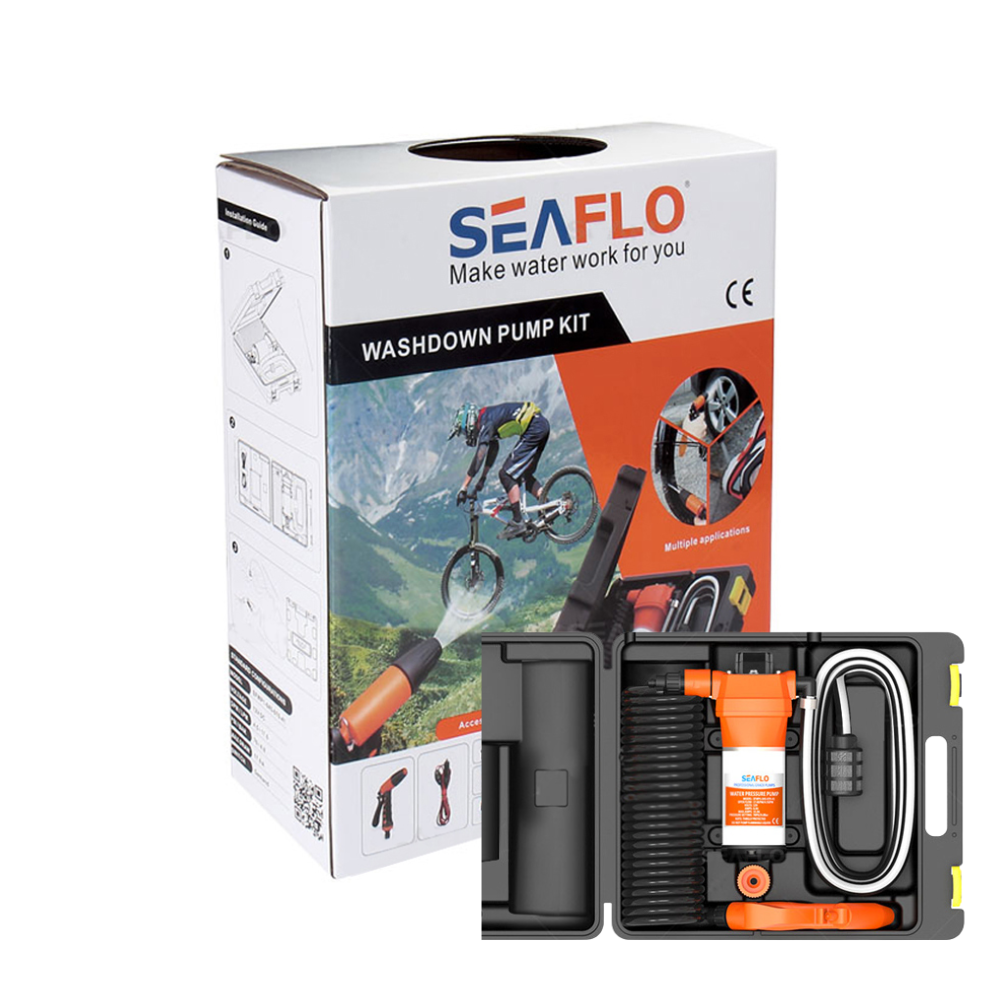

The Seaflo portable 12V washdown kit keeps the pump, coiled delivery hose and spray nozzle together in a carrying case for convenient transport and storage. A 6m UV-protected coiled hose carries the discharge, and a 2m inlet hose with filter connects to the water source. Automatic demand control starts and stops the pump as the adjustable nozzle is used, ready for intermittent boat and equipment cleaning.

✓ Maximum flow: 17L/min
✓ Shutoff pressure: 70psi / 4.8bar
✓ Coiled hose: 6m, UV-protected
✓ Inlet hose: 2m with filter
✓ Spray nozzle: Adjustable
✓ Pump connection: Quick Attach

Seaflo Portable 41 Series Washdown Kit Specifications
Seaflo Portable 41 Washdown Manual

More Information
Product Specifications
Seaflo Wash Down Kit Portable 12V 4.5GPM
SEAFLO PORTABLE 12V WASHDOWN KIT
Seaflo Wash Down Kit Portable 12V 4.5GPM
Seaflo Wash Down Kit Portable 12V 4.5GPM PUMP-SFWP1-045-070-41
$353.70 /each

The Seaflo portable 12V kit supplies water for boat and equipment washdown, with a nominal maximum flow of 17L/min and a 70psi / 4.8bar shutoff setting. The carrying case holds a demand pump, 6m UV-protected coiled delivery hose and adjustable spray nozzle. A 2m inlet hose with filter connects to the water source.

The pressure switch starts and stops the pump as the nozzle is used. Its diaphragm moves water through the pump, while the valves control flow direction. The four-chamber assembly uses EPDM valves and a Santoprene diaphragm and is intended for intermittent washdown tasks.

Maximum flow and shutoff pressure are separate ratings. The linked sheet includes flow and current at the listed pressures to help assess delivery.

Seaflo Portable 41 Series Washdown Kit Specifications
Seaflo Portable 41 Washdown Manual

✓ Product Type & Application
Portable diaphragm-pump washdown kit with carrying case, hose and adjustable spray nozzle.
Model: SFWP1-045-070-41

✓ Capacity & Performance
Maximum flow: 17L/min
Shutoff pressure: 70psi / 4.8bar
Maximum flow and shutoff pressure are separate limits; flow decreases as pressure rises.

✓ Flow & Current at Pressure
0psi (0bar): 16.00L/min, 6.4A
5psi (0.34bar): 15.00L/min, 6.9A
10psi (0.69bar): 14.48L/min, 7.5A
15psi (1.03bar): 14.00L/min, 8.2A
20psi (1.38bar): 13.50L/min, 8.9A
25psi (1.72bar): 13.20L/min, 9.6A
30psi (2.07bar): 12.80L/min, 10.4A
35psi (2.41bar): 12.28L/min, 11A
40psi (2.76bar): 11.20L/min, 11.7A
45psi (3.09bar): 9.90L/min, 12.3A
50psi (3.44bar): 8.16L/min, 12.9A
55psi (3.78bar): 5.92L/min, 13.5A
60psi (4.12bar): 4.40L/min, 14.2A
65psi (4.47bar): 3.00L/min, 14.8A
70psi (4.81bar): 1.50L/min, 15.4A

✓ Connections & Compatibility
Pump connection: Quick Attach

✓ Supplied Equipment
Coiled hose: 6m, UV-protected
Inlet hose: 2m with filter
Spray nozzle: Adjustable
Carrying case with pump and washdown equipment.

✓ Electrical & Leads
Power supply: 12V DC
Maximum current: 17A

✓ Duty
Intermittent: the pump needs cooling breaks between runs. It is not designed to keep pumping without stopping.

✓ Operation & Control
Automatic demand switch responds as the spray nozzle is used.

✓ Dimensions & Mounting

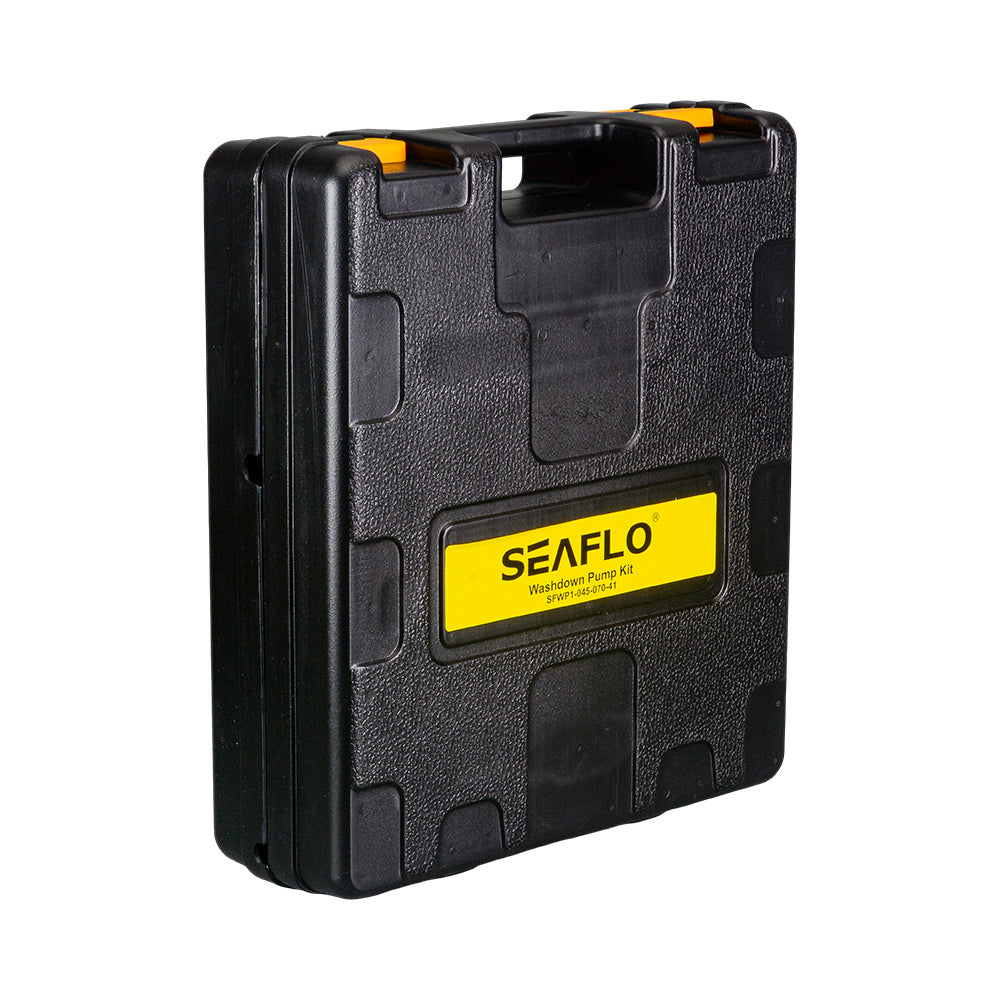

Carrying case: 428mm x 374mm x 126mm.

✓ Construction & Features
Valves / diaphragm: EPDM / Santoprene
Four-chamber diaphragm assembly.
