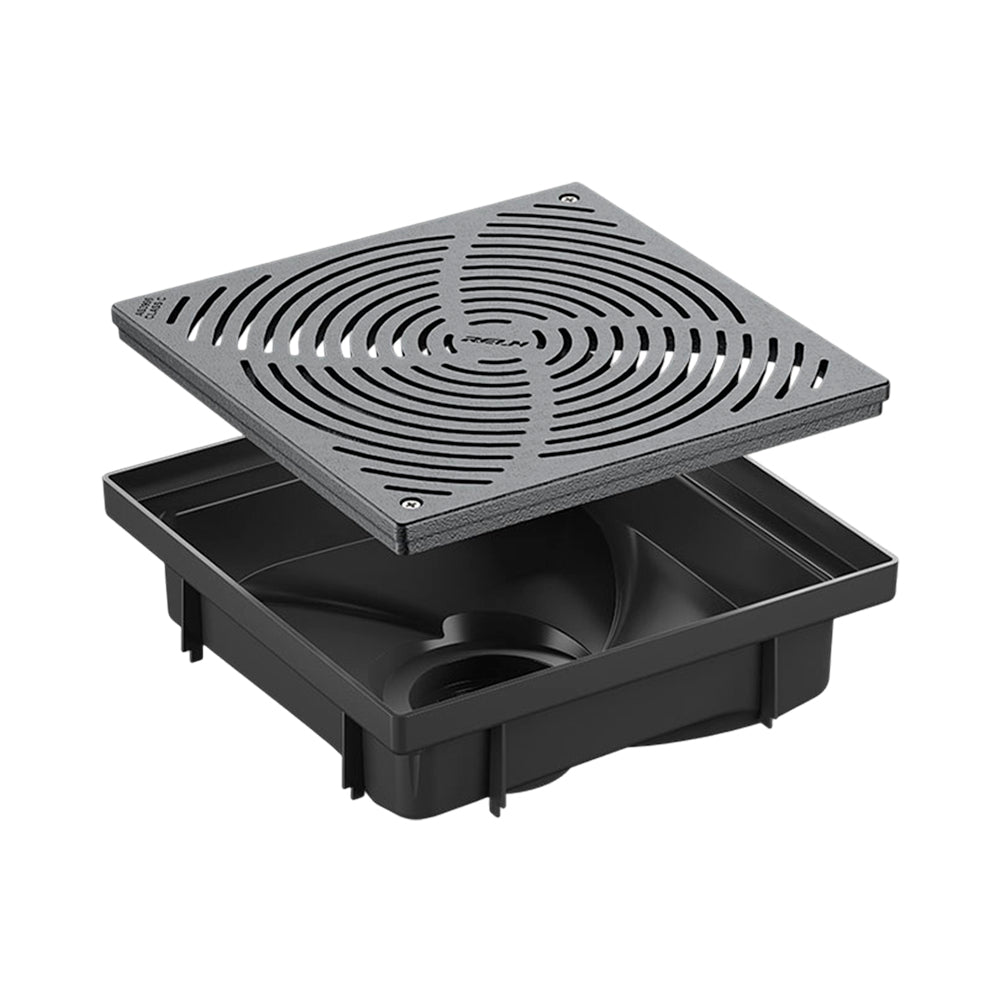

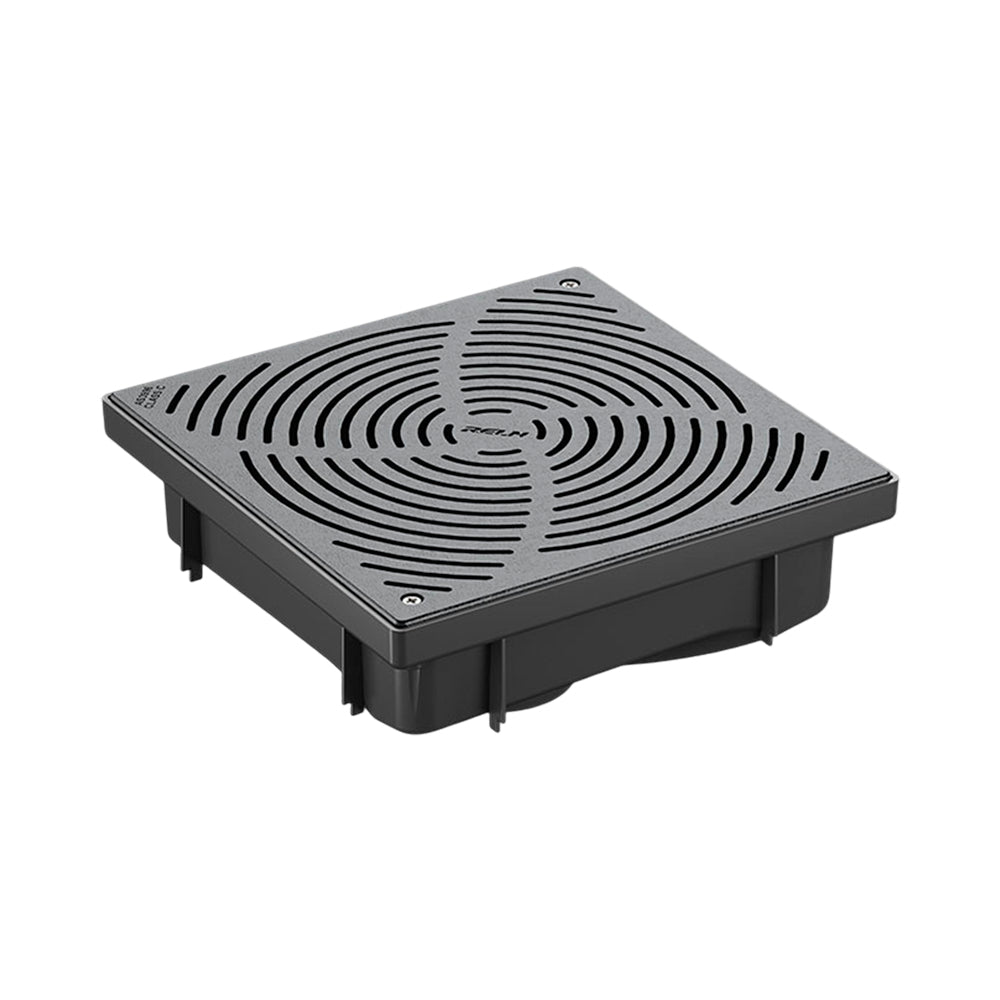

RELN UNI-PIT VORTEX 300 WITH DUCTILE IRON CLASS C GRATE

RELN Uni-Pit Vortex 300 with ductile iron Class C grate for suitable commercial and slow-moving heavy vehicle applications where the installation supports the required loading.

✓ Complete 300 Series Pit
✓ 334mm x 334mm x 139mm Pit Size
✓ 5 Litre Capacity
✓ Ductile Iron Grate
✓ Class C Load Rating
✓ Suits 90mm or 100mm PVC Pipe

RELN Uni Pit Series 300 Specifications

More Information
Product Specifications
Product Videos
RELN Uni Pit and Ductile Iron Grate-Class C Series 300
RELN UNI-PIT VORTEX 300 WITH DUCTILE IRON CLASS C GRATE
RELN Uni Pit and Galvanised Grate-Heel Guard Class A Series 300
RELN Uni Pit and Galvanised Grate-Heel Guard Class A Series 300 RUPS300GSHGCLAG
$89.80 /each
RELN Uni Pit and Aluminium Grate-Sandstone Series 300
RELN Uni Pit and Aluminium Grate-Sandstone Series 300 RUPS300ALSSG
$109.56 /each
RELN Uni Pit and Aluminium Grate-Plain Series 300
RELN Uni Pit and Aluminium Grate-Plain Series 300 RUPS300ALPG
$87.28 /each
RELN Uni Pit and Aluminium Grate-Terracotta Series 300
RELN Uni Pit and Aluminium Grate-Terracotta Series 300 RUPS300ALTCG
$109.56 /each
RELN Uni Pit and Galvanised Steel Grate-Class A Series 300
RELN Uni Pit and Galvanised Steel Grate-Class A Series 300 RUPS300GSCLAG
$89.80 /each
RELN Uni Pit and Ductile Iron Grate-Class C Series 300
RELN Uni Pit and Ductile Iron Grate-Class C Series 300 RUPS300DICLCG
$121.67 /each

RELN Uni-Pit Vortex 300 Series with ductile iron Class C grate is a medium-size surfacewater drainage pit for commercial and slow-moving heavy vehicle applications where a Class C grate is required. It is supplied as a complete 300 Series pit with ductile iron grate.

The pit measures 334mm x 334mm x 139mm and has a 5 litre capacity. The Vortex design assists water flow and helps reduce pooling water in the bottom of the pit. The ductile iron grate is Class C rated, but suitability still depends on the pit installation, surrounding surface support and site loading conditions. Confirm grate rating, drainage layout, pipe connection and installation requirements before ordering.

RELN Uni Pit Series 300 Specifications

✓ Product Type & Size
RELN Uni-Pit Vortex 300 Series complete drainage pit with ductile iron Class C grate, 334mm x 334mm x 139mm.

✓ Series
RELN Uni-Pit Vortex 300 Series.

✓ Capacity
5 litre capacity.

✓ Grate Type
Ductile iron grate.

✓ Load Rating
Class C.

✓ Pipe Connection
Easy glue fit to 90mm or 100mm PVC pipe.

✓ Pit Body
High impact polypropylene base.

✓ Pit Design
Vortex design assists water flow and helps reduce water pooling in the bottom of the pit.

✓ Anti-Tamper Feature
Anti-tamper feature helps reduce grate movement and unauthorised removal.

✓ Installation
No risers required. Vertical pipe can be cut to the required depth.

✓ Applications
Suitable for commercial and slow-moving heavy vehicle applications where the Class C grate, pit installation and surrounding surface support are appropriate.

✓ Installation Note
Confirm grate suitability, pipe size, drainage layout, load rating, surrounding surface support and installation location before ordering.
