RELN UNI-PIT VORTEX 200 SERIES DRAINAGE PITS

RELN Uni-Pit Vortex 200 Series drainage pits are compact residential surfacewater pits for paved areas, pathways, under downpipes and selected domestic drainage locations.

✓ 225mm x 225mm x 89mm Pit Size
✓ 2 Litre Capacity
✓ Residential Light Duty Rating
✓ Suits 90mm or 100mm PVC Pipe
✓ Vortex Design Helps Reduce Pooling Water
✓ Available with Selected Grate Options

RELN Uni Pit Series 200 Specifications

More Information
Product Specifications
Product Videos

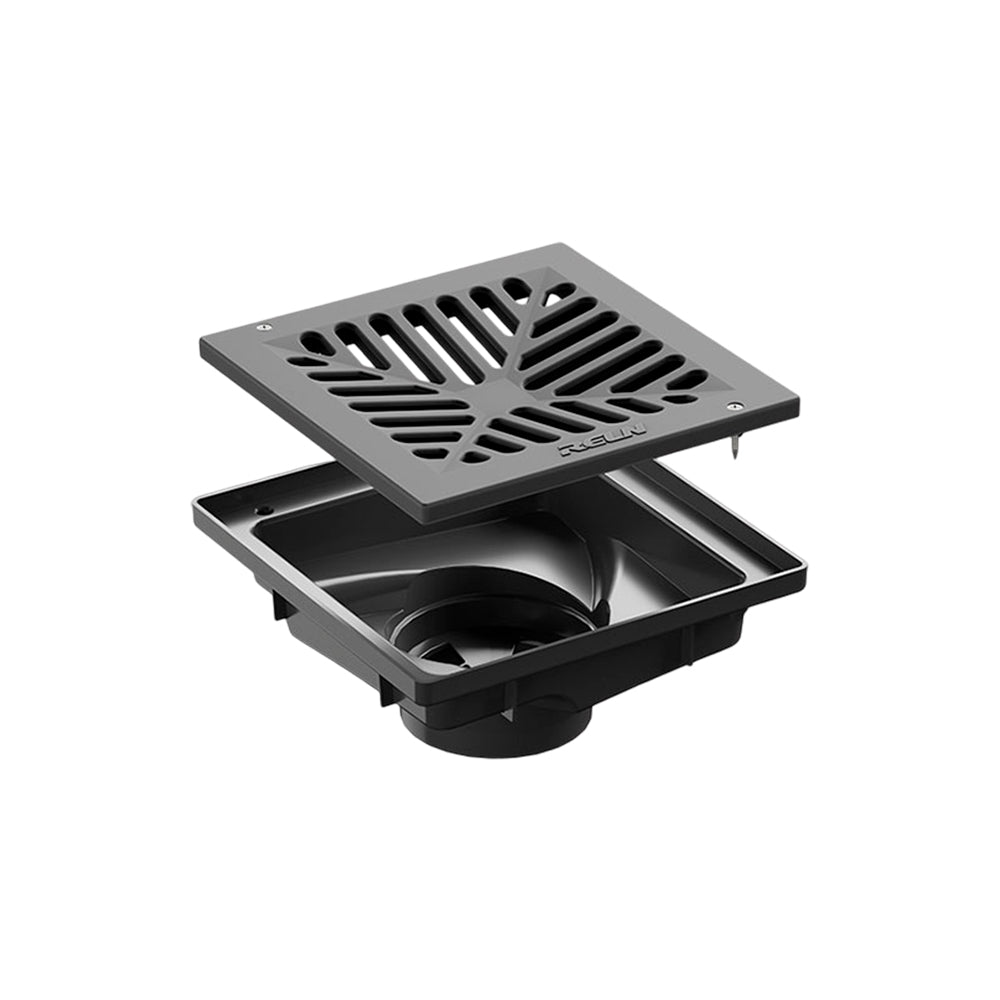

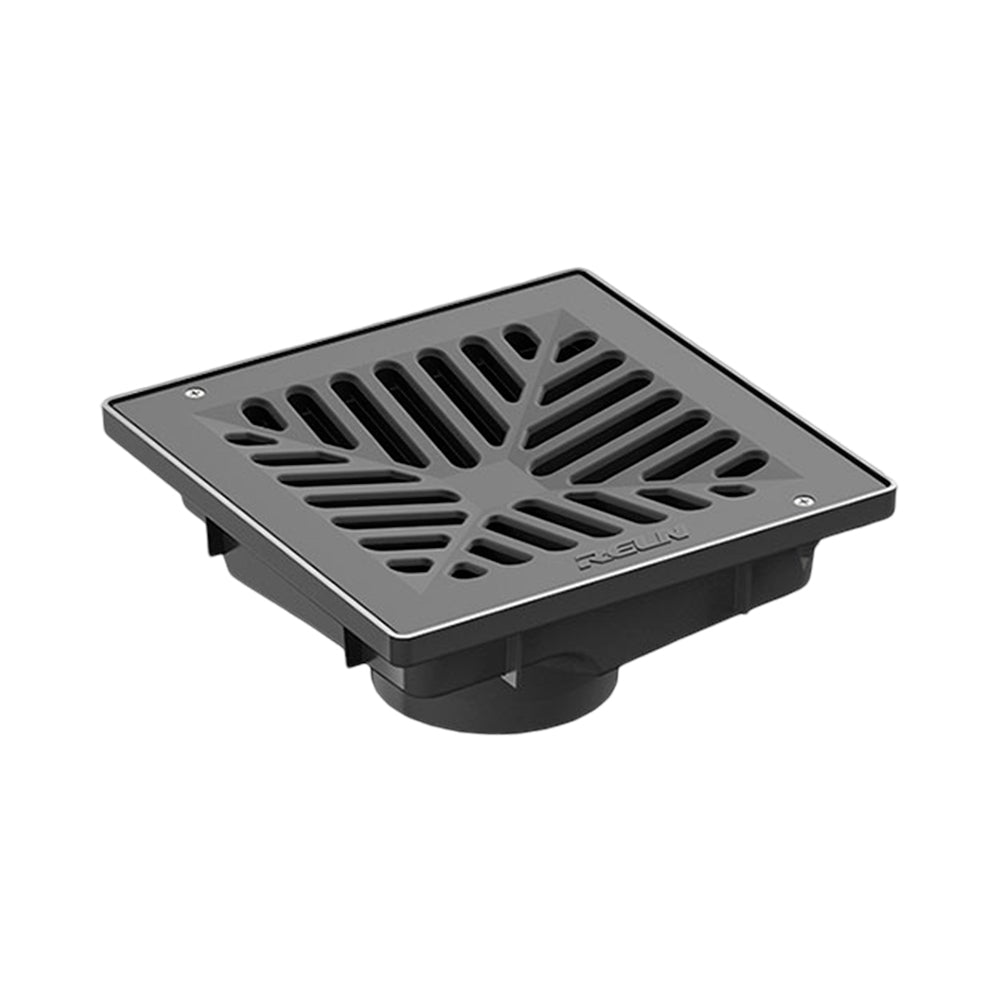

RELN Uni Pit and Plastic Grate-Black Series 200
RELN UNI-PIT VORTEX 200 SERIES DRAINAGE PITS
RELN Uni Pit and Plastic Grate-Black Series 200
RELN Uni Pit and Plastic Grate-Black Series 200 RUPS200PBLG
$16.41 /each
RELN Uni Pit and Architectural Grate Series 200
RELN Uni Pit and Architectural Grate Series 200 RUPS200ACG
$292.21 /each
RELN Uni Pit and Aluminium Grate-Sandstone Series 200
RELN Uni Pit and Aluminium Grate-Sandstone Series 200 RUPS200ALSSG
$52.96 /each
RELN Uni Pit and Aluminium Grate-Plain Series 200
RELN Uni Pit and Aluminium Grate-Plain Series 200 RUPS200ALPG
$41.80 /each
RELN Uni Pit and Aluminium Grate-Terracotta Series 200
RELN Uni Pit and Aluminium Grate-Terracotta Series 200 RUPS200ALTCG
$52.96 /each

RELN Uni-Pit Vortex 200 Series drainage pits are compact residential surfacewater pits used to collect water from paved areas, pathways, under downpipes, taps and selected domestic drainage locations. The range includes complete 200 Series pits with different grate styles to suit the visible finish and installation area.

The 200 Series pit measures 225mm x 225mm x 89mm and has a 2 litre capacity. The Vortex design assists water flow and helps reduce pooling water in the bottom of the pit. Each pit is designed for easy glue fit connection to 90mm or 100mm PVC pipe, with no risers required because the vertical pipe can be cut to the required depth. Confirm grate suitability, drainage layout, load rating and installation location before ordering.

RELN Uni Pit Series 200 Specifications

✓ Product Type & Size
RELN Uni-Pit Vortex 200 Series complete drainage pits, 225mm x 225mm x 89mm.

✓ Series
RELN Uni-Pit Vortex 200 Series.

✓ Capacity
2 litre capacity.

✓ Grate Options
Available with architectural grate, sandstone aluminium grate, black plastic concave grate, plain aluminium grate and terracotta aluminium grate.

✓ Load Rating
Residential light duty.

✓ Pipe Connection
Easy glue fit to 90mm or 100mm PVC pipe.

✓ Pit Design
Vortex design assists water flow and helps reduce pooling water in the bottom of the pit.

✓ Debris Control
Built-in debris collector helps reduce pipe blockage.

✓ Installation
No risers required. Vertical pipe can be cut to the required depth.

✓ Applications
Suitable for residential surfacewater drainage applications where the selected grate type, load rating and installation location suit the site requirements.

✓ Installation Note
Confirm grate suitability, pipe size, drainage layout, load rating and installation location before ordering.
