MICRO IRRIGATION BUBBLERS

The Toro 500 Series flood bubbler directs water downwards around shrubs and small trees. Its adjustable flood pattern concentrates watering around the planting area, with a female thread for mounting directly on a riser.

✓ Spray pattern: 360° downward flood
✓ Adjustment: Flow and coverage adjustable down to full shut-off
✓ Coverage adjustment: Radius reduction up to 50%
✓ Flow: 7.84L/min at 150kPa
✓ Operating pressure: 100-520kPa
✓ Connection: 15mm (1/2") female thread

Antelco Mini Bubbler Specifications
Toro 500 Series Flood Bubbler Specifications

More Information
Product Specifications
Black Toro adjustable flood bubbler with silver adjustment screw
MICRO IRRIGATION BUBBLERS
Black adjustable mini bubbler mounted on a spike
Micro Mini Bubbler 360° Adjustable on Spike, 4mm Barb MSBUB360SP
$1.24 /each
Black mini bubbler head with pointed micro inlet
Micro Mini Bubbler 360° Adjustable 4mm Barb MSBUB3604B
$0.62 /each
Black mini bubbler head with threaded micro inlet
Micro Mini Bubbler 360° Adjustable 4mm Male Thread MSBUB3604T
$0.62 /each
Black adjustable bubbler head with female threaded base
Micro Bubbler 360°Adjustable on 15mm Female Thread MSBUB36012FT
$1.40 /each
Green mushroom-pattern bubbler with threaded inlet
Sprinkler Mushroom Pattern Bubbler 15mm MSMBUB360
$3.35 /each

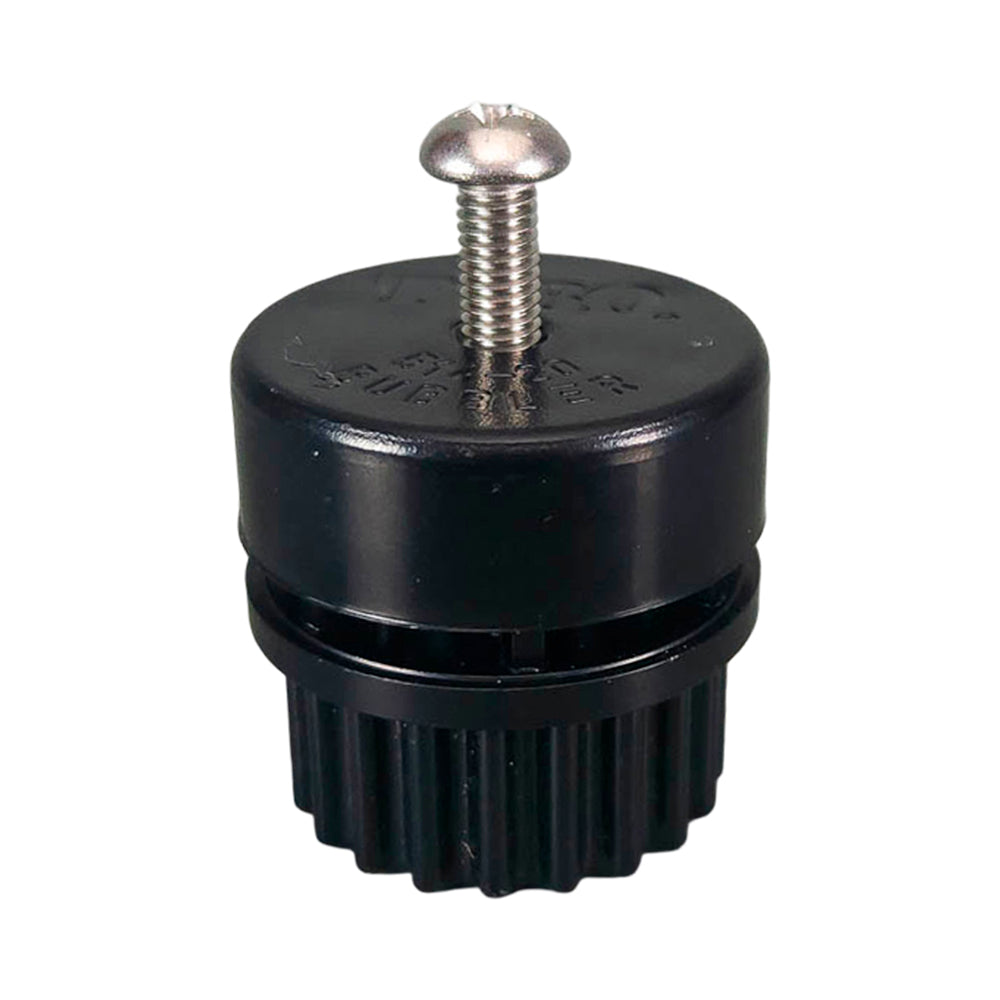

Black Toro adjustable flood bubbler with silver adjustment screw
Toro Flood Bubbler Series 500 Adjustable 15mm (1/2in) Female BSP Thread MSBUBT
$4.68 /each

The Toro 500 Series flood bubbler directs water downwards around shrubs and small trees. Its adjustable flood pattern concentrates watering around the planting area, with a female thread for mounting directly on a riser.

The bubbler suits plant beds and individual shrubs or trees where water is needed close to the base of the plant. The spray radius can be reduced by up to 50% to suit the watering area.

Flow increases with water pressure. At 150kPa, the flood bubbler delivers 7.84 litres per minute; at 250kPa it delivers 9.65 litres per minute.

Antelco Mini Bubbler Specifications
Toro 500 Series Flood Bubbler Specifications

✓ Pattern & Connection
360° downward flood spray.
15mm (1/2") female thread for direct riser mounting.
Radius reduction: Up to 50%.

✓ Operating Pressure
100-520 kPa.

✓ Flow
Flow varies with water pressure.
100 kPa: 6.32 litres per minute.
125 kPa: 7.14 litres per minute.
150 kPa: 7.84 litres per minute.
175 kPa: 8.38 litres per minute.
200 kPa: 8.93 litres per minute.
225 kPa: 9.28 litres per minute.
250 kPa: 9.65 litres per minute.
275 kPa: 10.20 litres per minute.
