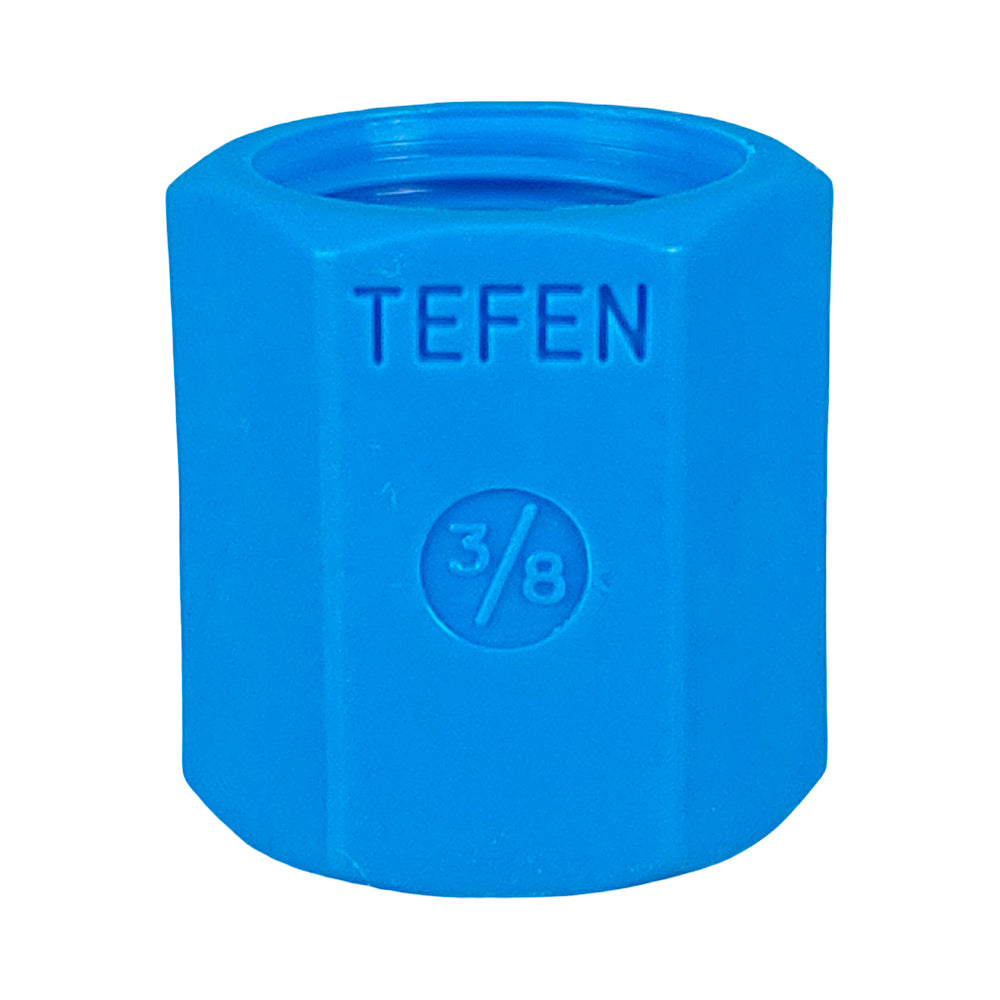

Blue Tefen female threaded socket with hexagonal body, upright view.
Blue Tefen female threaded socket with hexagonal body, upright view.

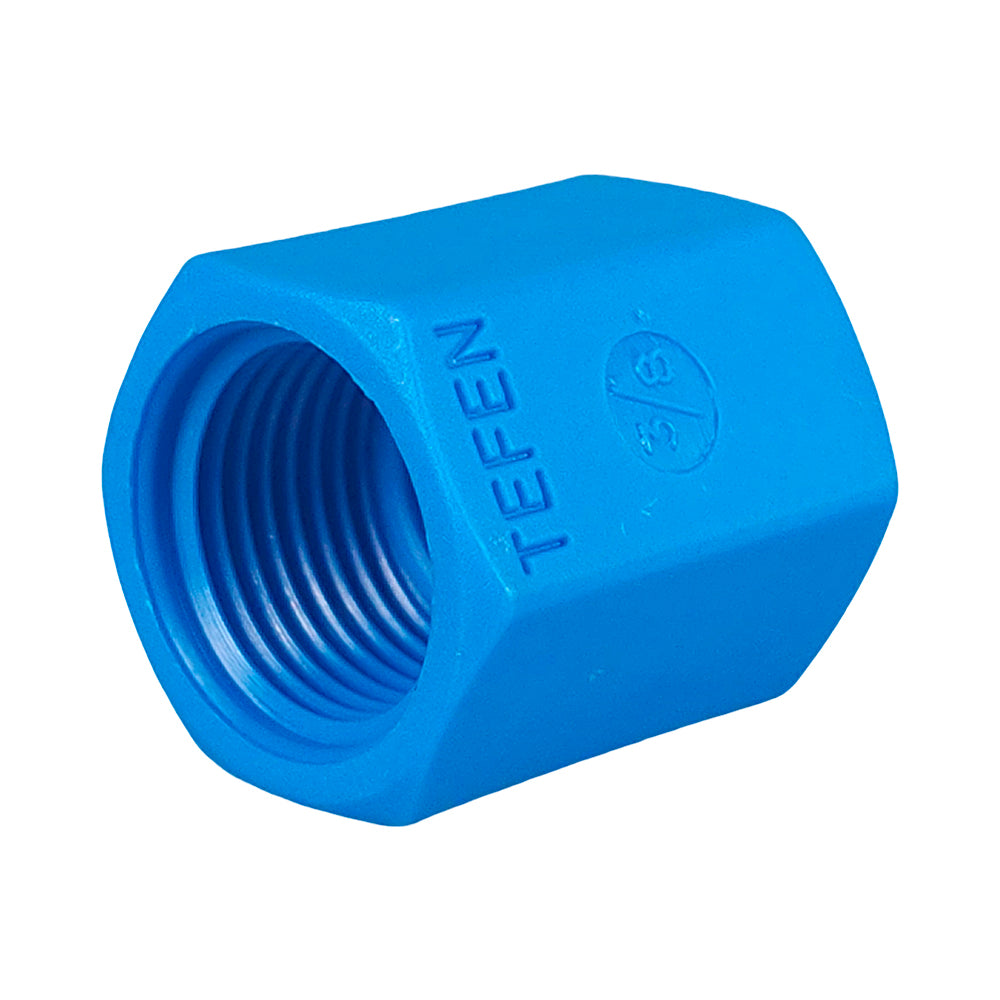

Blue Tefen female threaded socket showing the threaded opening.
Blue Tefen female threaded socket showing the threaded opening.

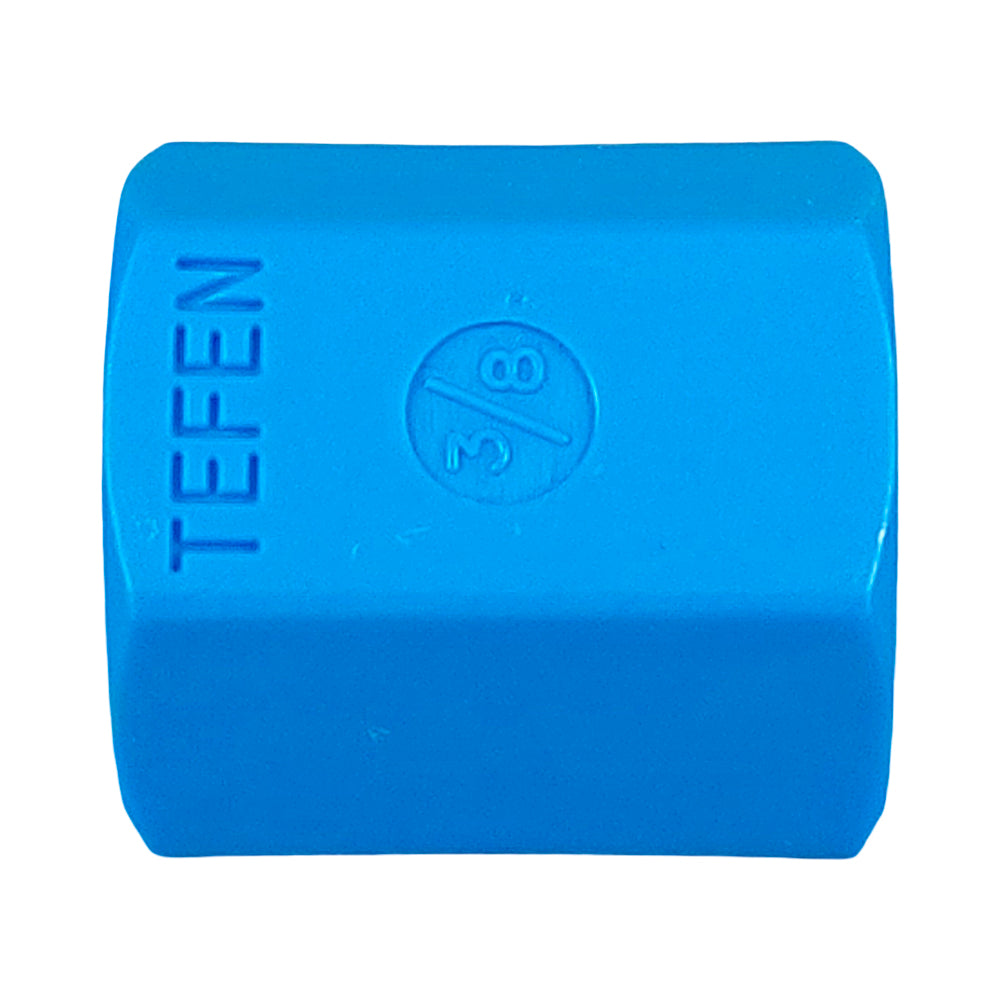

Blue Tefen female threaded socket with hexagonal body, side view.
Blue Tefen female threaded socket with hexagonal body, side view.
Blue Tefen female threaded socket with hexagonal body, upright view.
Blue Tefen female threaded socket showing the threaded opening.
Blue Tefen female threaded socket with hexagonal body, side view.

TEFEN SOCKET 10MM (3/8") FEMALE BSP

Tefen 10mm socket used to connect two male BSP threaded fittings, valves, manifolds or equipment connections.

✓ 10mm (3/8") Female x Female BSP
✓ Nylon 6-6 Construction
✓ Compact Threaded Connector
✓ Suitable for Compatible Systems

More Information
Product Specifications
Blue Tefen female threaded socket with hexagonal body, upright view.
TEFEN SOCKET 10MM (3/8") FEMALE BSP
Blue Tefen female threaded socket with hexagonal body, upright view.
Tefen Socket 6 mm 1/8 TE02C06
$1.76 /each
Blue Tefen female threaded socket with hexagonal body, upright view.
Tefen Socket 8 mm 1/4 TE02C08
$2.38 /each
Blue Tefen female threaded socket with hexagonal body, upright view.
Tefen Socket 10 mm 3/8 TE02C10
$2.70 /each

Tefen 10mm sockets are used to connect two male BSP threaded fittings, valves, manifolds or equipment connections. They are suitable for small irrigation, dosing, pneumatic and compatible fluid handling systems where a compact female-to-female threaded connector is required.

Made from Nylon 6-6, this socket provides 10mm (3/8") Female BSPT threaded connections on both ends. Use suitable thread tape or thread sealant during installation and avoid over-tightening plastic threaded fittings.

✓ Product Type & Size
10mm (3/8") Tefen threaded socket with Female x Female BSP connection.

✓ Material
Nylon 6-6.

✓ Thread Type
Female x Female BSPT threaded connection.

✓ Pressure Rating
Working pressure up to 14 BAR / 200 psi at 20°C.

✓ Temperature
-20°C to 110°C, subject to application.

✓ Applications
Suitable for irrigation, dosing, pneumatic and compatible fluid handling systems.

✓ Installation
Use suitable thread tape or thread sealant on BSPT threaded connections. Support pipework where required and avoid over-tightening plastic threaded fittings.
