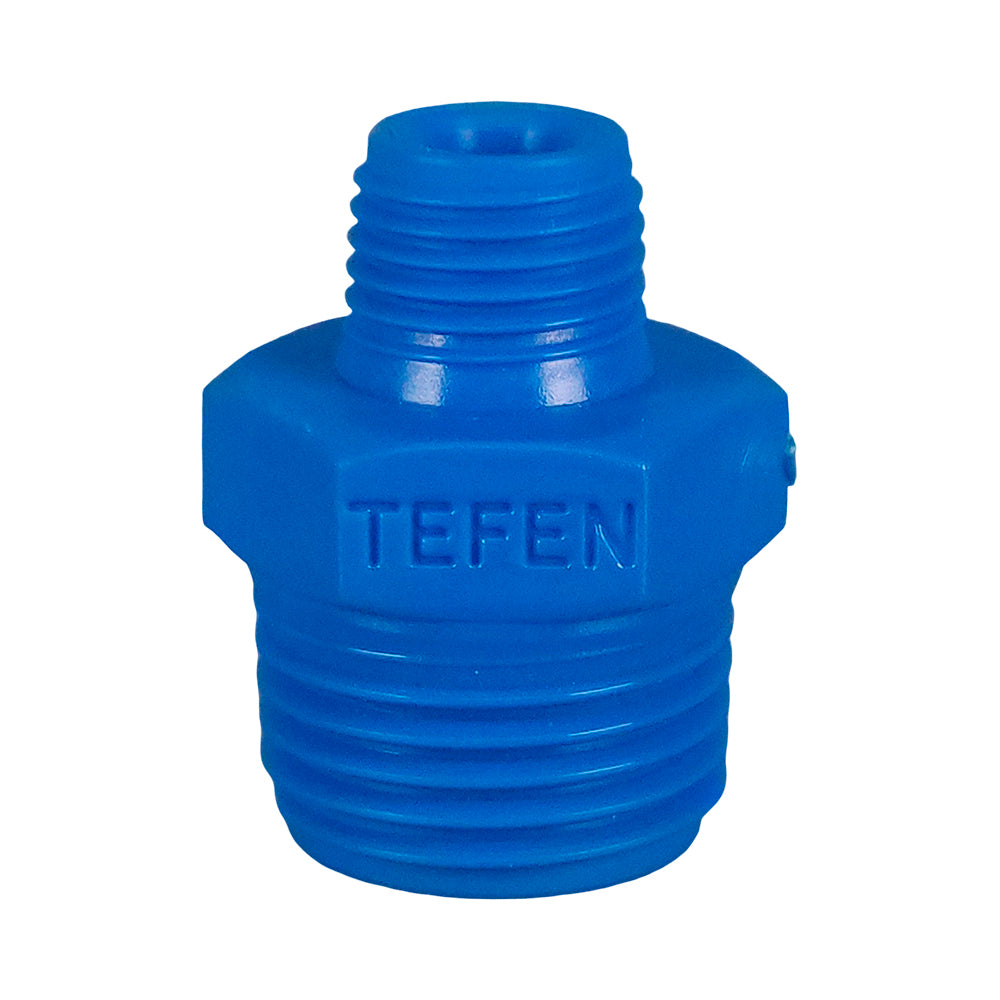

Blue Tefen reducing nipple with unequal male threaded ends, upright view.
Blue Tefen reducing nipple with unequal male threaded ends, upright view.

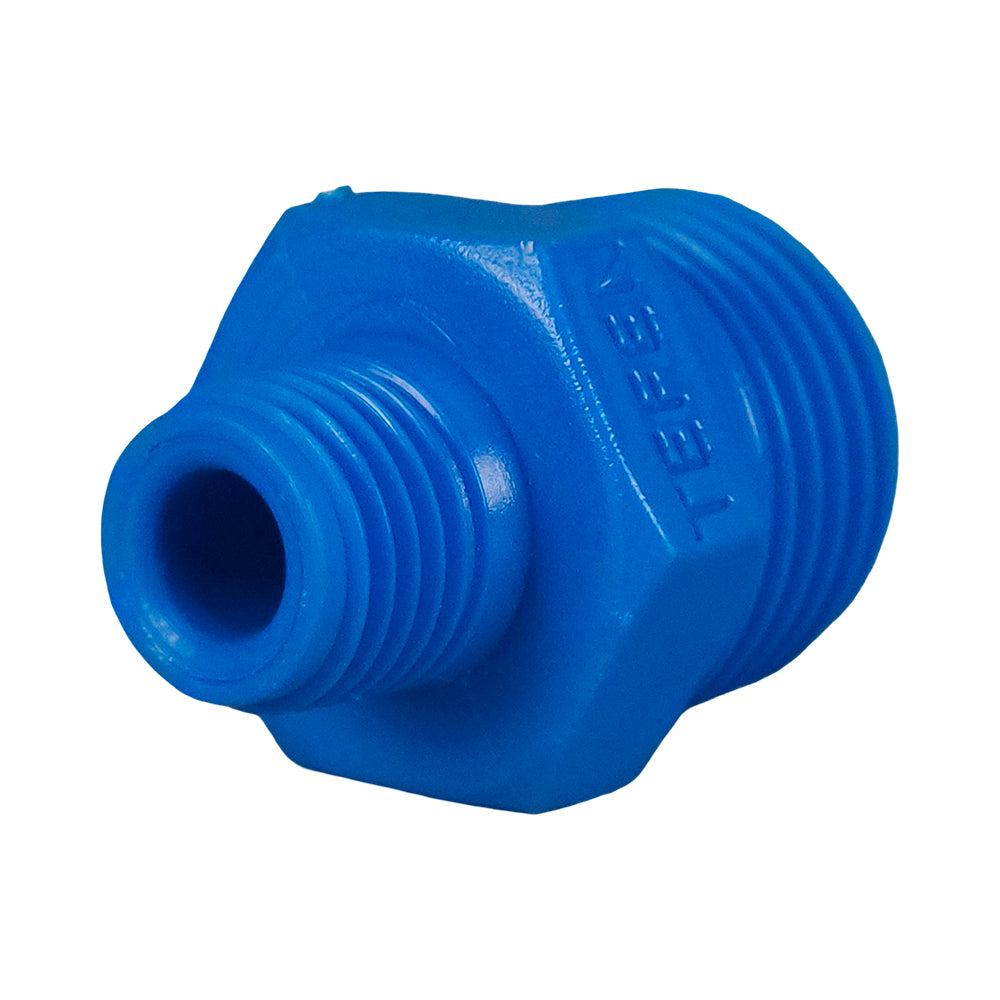

Blue Tefen reducing nipple showing the smaller threaded opening.
Blue Tefen reducing nipple showing the smaller threaded opening.

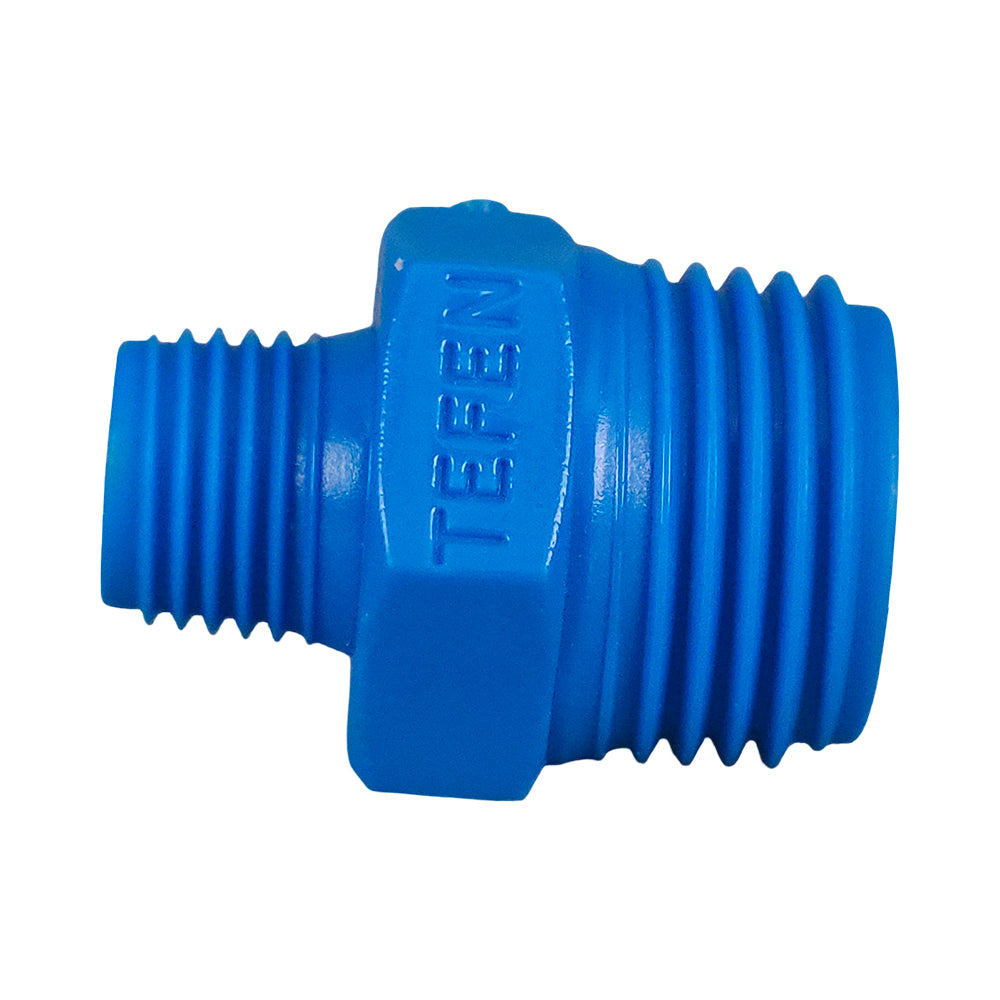

Blue Tefen reducing nipple with central hexagonal section, side view.
Blue Tefen reducing nipple with central hexagonal section, side view.

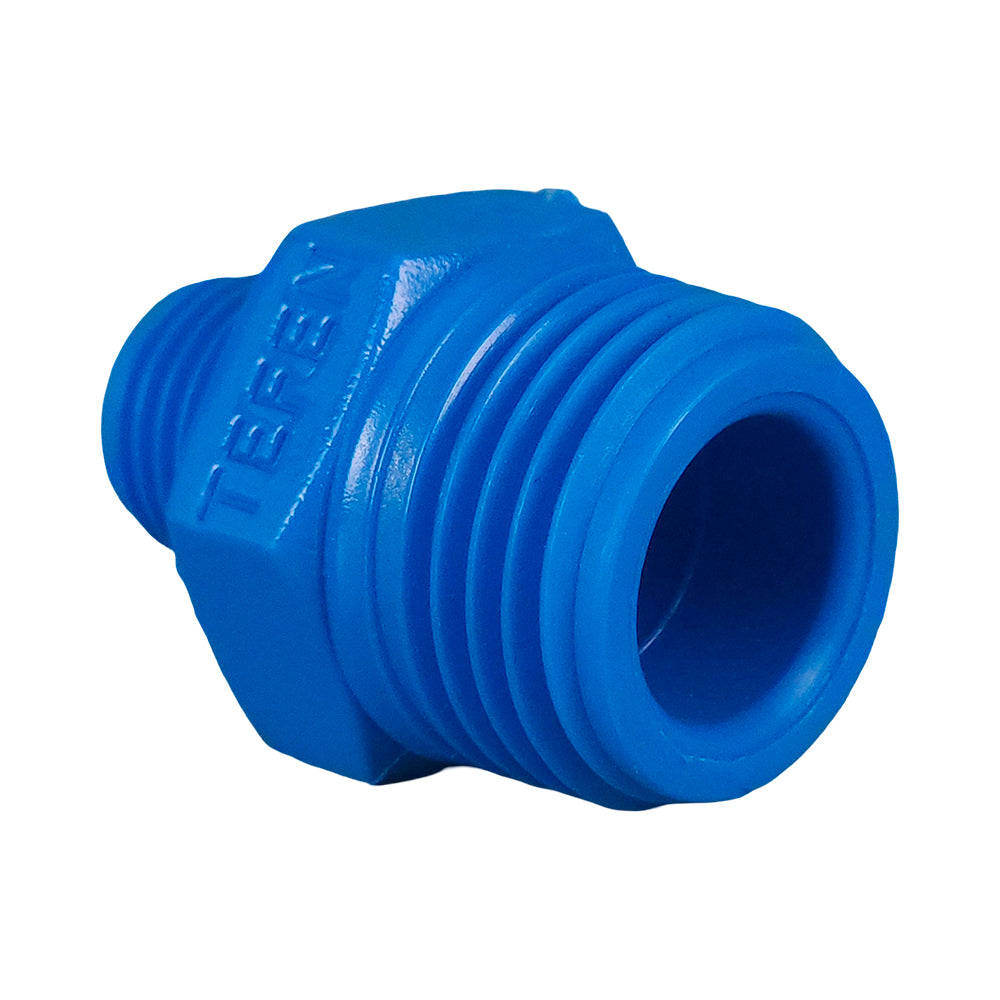

Blue Tefen reducing nipple showing the larger threaded opening.
Blue Tefen reducing nipple showing the larger threaded opening.
Blue Tefen reducing nipple with unequal male threaded ends, upright view.
Blue Tefen reducing nipple showing the smaller threaded opening.
Blue Tefen reducing nipple with central hexagonal section, side view.
Blue Tefen reducing nipple showing the larger threaded opening.

TEFEN NIPPLE REDUCING 15MM X 8MM (1/2" X 1/4") MALE X MALE BSP

Tefen reducing nipple used to adapt a 15mm (1/2") female BSP thread to an 8mm (1/4") male threaded connection.

✓ 15mm x 8mm Male x Male BSP
✓ Reducing Threaded Connector
✓ Nylon 6-6 Construction
✓ Suitable for Compatible Low-Pressure Systems

More Information
Product Specifications
Blue Tefen reducing nipple with unequal male threaded ends, upright view.
TEFEN NIPPLE REDUCING 15MM X 8MM (1/2" X 1/4") MALE X MALE BSP
Blue Tefen hex nipple with equal male threaded ends, upright view.
Tefen Nipple 6 mm (1/8") TENI006
$1.93 /each
Blue Tefen hex nipple with equal male threaded ends, upright view.
Tefen Nipple 8mm (1/4") TENI008
$2.25 /each
Blue Tefen hex nipple with equal male threaded ends, upright view.
Tefen Nipple 10mm (3/8") TENI010
$2.47 /each
Blue Tefen reducing nipple with unequal male threaded ends, upright view.
Tefen Nipple Reducing 8 mm x 6 mm (1/4" x 1/8") TENIR00806
$2.01 /each
Blue Tefen reducing nipple with unequal male threaded ends, upright view.
Tefen Nipple Reducing 10mm x 8mm (3/8" x 1/4") TENIR01008
$2.47 /each
Blue Tefen reducing nipple with unequal male threaded ends, upright view.
Tefen Nipple Reducing 15mm x 8mm (1/2" x 1/4") TENIR01508
$2.70 /each
Blue Tefen reducing nipple with unequal male threaded ends, upright view.
Tefen Nipple Reducing 15mm x 10mm (1/2" x 3/8") TENIR01510
$2.78 /each
Blue Tefen reducing bush with hexagonal shoulder and male outer thread, upright view.
Tefen Bush Reducing 8 mm x 6 mm (1/4" x 1/8") TE14BR00806
$2.37 /each
Blue Tefen reducing bush with hexagonal shoulder and male outer thread, upright view.
Tefen Bush Reducing 10 mm x 8 mm (3/8" x 1/4") TE14BR01008
$2.88 /each
Blue Tefen reducing bush with hexagonal shoulder and male outer thread, upright view.
Tefen Bush Reducing 15 mm x 8 mm (1/2" x 1/4") TE14BR01508
$4.25 /each
Blue Tefen reducing bush with hexagonal shoulder and male outer thread, upright view.
Tefen Bush Reducing 15 mm x 10 mm (1/2" x 3/8") TE14BR01510
$4.35 /each
Blue Tefen tube director with ribbed compression nut and male threaded end, upright view.
Tefen Director 6mm BSPM x 6mm Tube (1/8" x 1/8") TEMD1806
$7.64 /each
Blue Tefen tube director with ribbed compression nut and male threaded end, upright view.
Tefen Director 6mm BSPM x 8mm Tube (1/8" x 1/4") TEMD1808
$8.21 /each
Blue Tefen tube director with ribbed compression nut and male threaded end, upright view.
Tefen Director 8mm BSPM x 6mm Tube (1/4" x 1/8") TEMD1406
$7.89 /each
Blue Tefen tube director with ribbed compression nut and male threaded end, upright view.
Tefen Director 8mm BSPM x 8mm Tube (1/4" x 1/4") TEMD1408
$8.86 /each

Tefen 15mm x 8mm reducing nipples are used to connect and adapt two different female BSP threaded fittings, valves, manifolds or equipment connections. They are suitable where a 15mm (1/2") female thread needs to be reduced to an 8mm (1/4") male threaded connection.

Made from Nylon 6-6, this reducing nipple provides male BSPT threads on both ends in different sizes. Use suitable thread sealant on the threaded connections and avoid over-tightening plastic threaded fittings.

✓ Product Type & Size
15mm x 8mm (1/2" x 1/4") Tefen reducing nipple with Male x Male BSP connection.

✓ Material
Nylon 6-6.

✓ Thread Type
Male x Male BSPT threaded connection.

✓ Pressure Rating
Working pressure up to 14 BAR / 200 psi at 20°C.

✓ Temperature
-20°C to 110°C, subject to application.

✓ Applications
Suitable for irrigation, dosing, pneumatic and compatible fluid handling systems.

✓ Installation
Use suitable thread tape or thread sealant on BSPT threaded connections. Support pipework where required and avoid over-tightening plastic threaded fittings.
