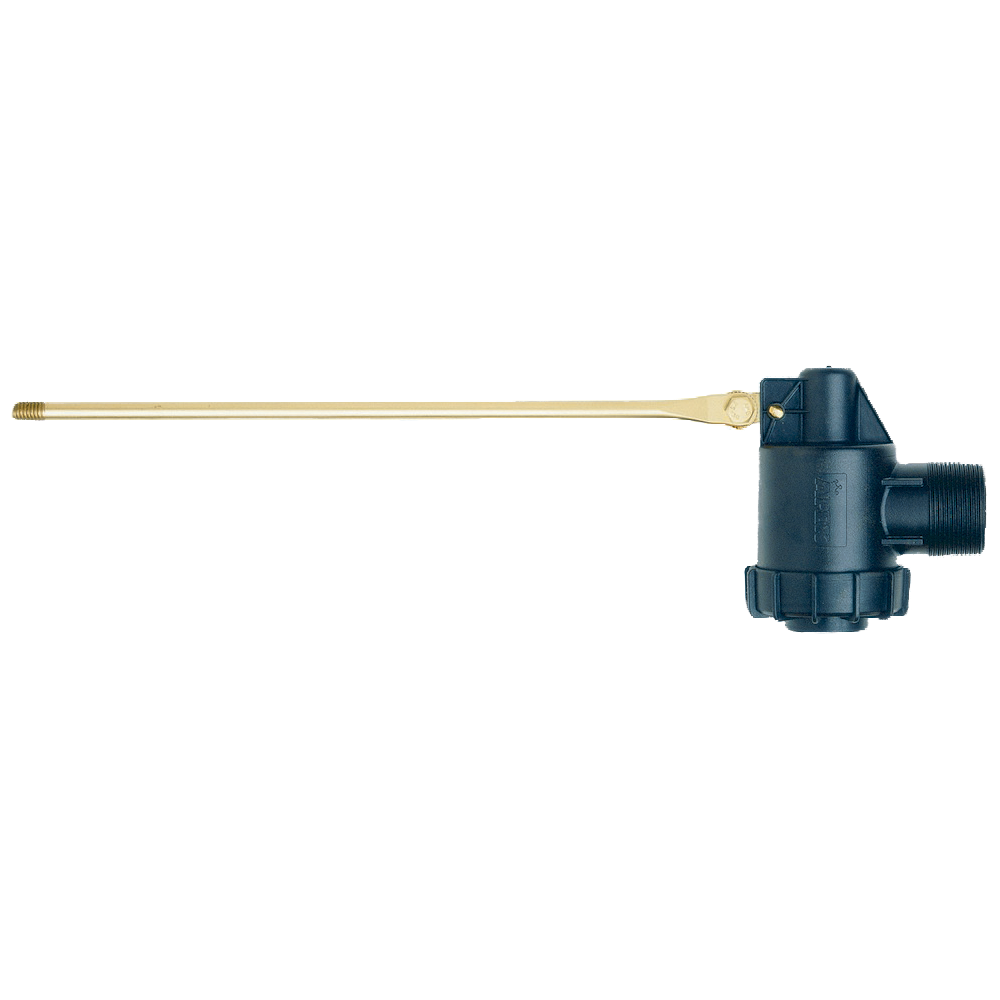

Apex Reservoir float valve with brass arm
Apex Reservoir float valve with brass arm
Apex Reservoir float valve with brass arm

FLOAT VALVE APEX RESERVOIR

Apex Reservoir float valves fill reservoirs and large header tanks to a set water level. They combine a serviceable acetal sleeve valve with an adjustable, corrosion-resistant DZR brass lever. Inlet sizes are 32mm, 40mm and 50mm.

✓ Inlet size: 32mm, 40mm or 50mm
✓ Working pressure: 0-850kPa with the recommended two-float arrangement
✓ Mounting: horizontal inlet, firmly supported

Floats sold separately. The two-float setup requires two 150mm Apex ball floats in black or orange and a twin-float connector, also sold separately.

More Information
Product Specifications
Apex Reservoir float valve with brass arm
FLOAT VALVE APEX RESERVOIR
Apex Reservoir float valve with brass arm
Float Valve Apex Reservoir 32mm TFLVAR032
$111.34 /each
Apex Reservoir float valve with brass arm
Float Valve Apex Reservoir 40mm TFLVAR040
$132.32 /each
Apex Reservoir float valve with brass arm
Float Valve Apex Reservoir 50mm TFLVAR050
$146.59 /each

Apex Reservoir float valves fill reservoirs and large header tanks to a set water level. They combine a serviceable acetal sleeve valve with an adjustable, corrosion-resistant DZR brass lever. Inlet sizes are 32mm, 40mm and 50mm.

Mount the inlet horizontally and support it firmly. Check the supply pressure against the rating for the recommended float arrangement.

Floats sold separately. The two-float setup requires two 150mm Apex ball floats in black or orange and a twin-float connector, also sold separately.

✓ Level Control & Float Requirements
Control: Single shut-off level.
Floats and twin-float connector: sold separately.
Recommended arrangement for the stated 850kPa limit: 2 x 150mm ball floats and matching twin connector.
Stocked Apex options: 150mm black (TFLB150) or orange (TFLO150).

✓ Connections & Mounting
Stocked connections: 32mm, 40mm or 50mm inlet.
Mounting: Firm horizontal inlet connection.

✓ Pressure & Temperature
Working pressure: 0-850kPa with the recommended two-float arrangement.
Working temperature: 1-60°C.

✓ Flow Performance
Manufacturer reference flow: 500 L/min at 400kPa for the Reservoir family; select by the valve and float arrangement.

✓ Construction & Materials
Acetal sleeve valve; DZR brass lever.

✓ Product Identification
Manufacturer code: RES 32A.
