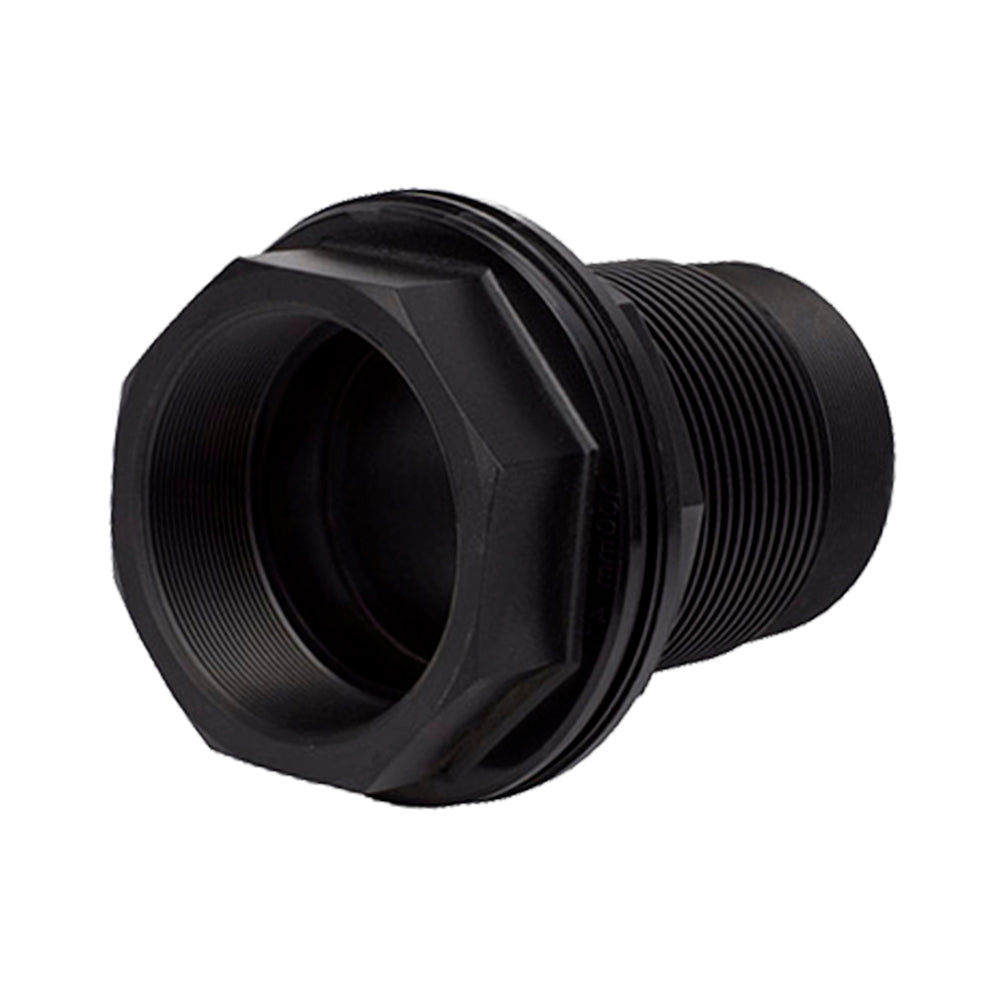

Nylon Tank Fitting 1 1/2" (40mm)
Nylon Tank Fitting 1 1/2" (40mm)

GUYCO NYLON TANK FITTING 40MM

The Guyco 40mm (1 1/2") nylon tank fitting creates a threaded inlet or outlet through a water tank wall. Its external male threaded body and female threaded bore connect the tank to matching pipe fittings, taps or valves.

✓ Connection size: 40mm (1 1/2")
✓ Female bore with external male tank thread
✓ UV-stabilised reinforced nylon body and back nut
✓ Rubber sealing washer and poly slip washer
✓ Maximum fitting pressure: 1600kPa

Guyco Tank Fitting Overview

More Information
Product Specifications
Nylon Tank Fitting 1 1/2" (40mm)
GUYCO NYLON TANK FITTING 40MM
Tank Corrugated Gasket Kit Suitable For Tank Fittings Size 1 1/4" to 2"
Tank Corrugated Gasket Kit Suitable For Tank Fittings Size 1 1/4" to 2" TFCGK3250
$17.59 /each
Tank Corrugated Gasket Kit Suitable For Tank Fittings Size 1/2" to 1"
Tank Corrugated Gasket Kit Suitable For Tank Fittings Size 1/2" to 1" TFCGK1525
$16.06 /each
Tank Corrugated Gasket Kit Suitable For Tank Fittings Size 1 1/4" to 1 1/2"
Tank Corrugated Gasket Kit Suitable For Tank Fittings Size 1 1/4" to 1 1/2" TFCGK3240
$17.73 /each
Corrugated Gasket Kit-Tank Fittings 2" (50mm)
Corrugated Gasket Kit-Tank Fittings 2" (50mm) TFCGK50
$17.73 /each
Nylon Tank Fitting 1/2" (15mm)
Nylon Tank Fitting 1/2" (15mm) TF15
$9.18 /each
Nylon Tank Fitting 3/4" (20mm)
Nylon Tank Fitting 3/4" (20mm) TF20
$9.85 /each
Nylon Tank Fitting 1" (25mm)
Nylon Tank Fitting 1" (25mm) TF25
$10.96 /each
Nylon Tank Fitting 1 1/4" (32mm)
Nylon Tank Fitting 1 1/4" (32mm) TF32
$19.60 /each
Nylon Tank Fitting 1 1/2" (40mm)
Nylon Tank Fitting 1 1/2" (40mm) TF40
$23.52 /each
Nylon Tank Fitting 2" (50mm)
Nylon Tank Fitting 2" (50mm) TF50
$29.01 /each
Nylon Tank Fitting 3" (80mm)
Nylon Tank Fitting 3" (80mm) TF80
$98.49 /each
Nylon Tank Fitting 4" (100mm)
Nylon Tank Fitting 4" (100mm) TF100
$133.09 /each
Holman HFTF15 short-tail tank outlet with 15mm female connection
Tank Fitting Reducing Short Tail 20mm x 15mm Outlet TFR2015
$4.68 /each

The Guyco 40mm (1 1/2") nylon tank fitting creates a threaded inlet or outlet through a water tank wall. Its external male threaded body and female threaded bore connect the tank to matching pipe fittings, taps or valves.

The UV-stabilised glass-fibre-reinforced nylon body and nut suit outdoor installation. A ribbed NBR washer provides the tank-wall seal, while the low-friction poly slip washer helps the nut turn against the tank surface.

Choose the fitting and sealing arrangement for the tank wall. Corrugated walls require a compatible gasket kit. Use suitable thread sealing on connected pipe fittings.

Guyco Tank Fitting Overview

✓ Product
Manufacturer code: GFTFT40.

✓ Connections
Nominal size: 40mm (1 1/2").
BSP female bore and external male tank thread.

✓ Construction
Body and back nut: UV-stabilised glass-fibre-reinforced Nylon 6.
Ribbed sealing washer: NBR rubber.
Low-friction slip washer: low density polyethylene.

✓ Pressure & Temperature
Maximum fitting pressure: 1600kPa.
Maximum operating temperature: 60°C.

✓ Installation
Fit the sealing washer against the tank wall.
Place the poly slip washer between the back nut and tank surface.
Use suitable thread tape or sealing compound on mating BSP pipe connections.
