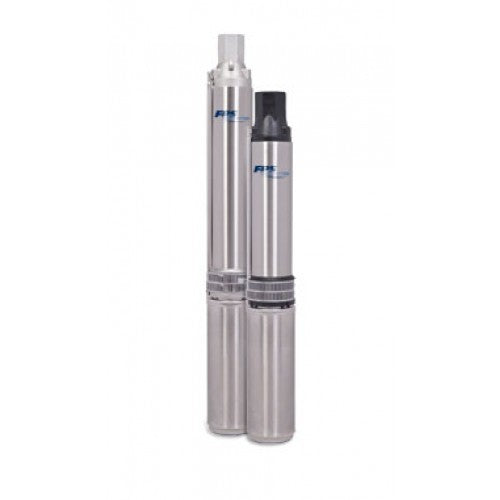

Franklin Submersible 4" Pump - FPS-1A-26TS
Franklin Submersible 4" Pump - FPS-1A-26TS

FRANKLIN FPS 1A SERIES 4" SUBMERSIBLE BORE PUMP 32MM OUTLET (18LPM RANGE)

Description

The Franklin Electric FPS-1A Series 4″ submersible bore pumps are precision-engineered stainless steel pumps designed for low-flow, high-head groundwater applications. Delivering up to 18 litres per minute, this series is ideal for domestic water supply, pressure boosting, tank filling, and rural installations where reliable performance and efficiency are essential. The Tri-Seal hydraulic design provides enhanced durability and extended service life when paired with Franklin Electric 4″ submersible motors.

Compact 4″ construction allows installation in standard boreholes while multiple stage options enable selection for varying depth and pressure requirements. These pumps are suitable for clean water applications where dependable performance is required over long operating periods.

FEATURES

  • Corrosion-resistant stainless steel construction for durability and long service life
  • Tri-Seal hydraulic design for improved reliability and efficiency
  • Multiple stage options to suit varying head requirements
  • Designed for compatibility with Franklin Electric 4″ submersible motors
  • Compact diameter suitable for standard bore installations
  • Reliable low-flow performance for domestic and rural water supply systems

APPLICATIONS

  • Domestic bore water supply
  • Tank filling and storage transfer
  • Pressure boosting systems
  • Rural and livestock watering
  • Commercial water supply requiring lower flow rates
  • Irrigation systems requiring controlled flow delivery

SPECIFICATIONS

  • Flow Rate: Up to 18 LPM (1 m³/hr)
  • Pump Diameter: 4″ submersible design
  • Maximum Pump Diameter with Cable Guard: 99.1 mm
  • Motor Diameter: 95 mm
  • Outlet Size: 1¼″ BSPP female
  • Power Range: 0.37 kW to 1.5 kW depending on stage model
  • Stages Available: 9, 13, 17, 26, 35
  • Construction: Stainless steel pump end
  • Frequency: 50 Hz
  • Motor Compatibility: Franklin Electric 4″ submersible motors
  • Dimensions and weight vary depending on stage configuration

FPS-1A Series Specifications Sheet

Franklin Submersible 4" Pump - FPS-1A-26TS
FRANKLIN FPS 1A SERIES 4" SUBMERSIBLE BORE PUMP 32MM OUTLET (18LPM RANGE)
Franklin Submersible 4" Pump - FPS 1A-09TS, 1x240V, Two Wire PUFR95710506-21
$1,514.70 /each
Franklin Submersible 4" Pump - FPS-1A-09TS, 3x415V PUFR95710506-33
$1,687.68 /each
Franklin Submersible 4" Pump - FPS-1A-13TS, 1x240V, Two Wire PUFR95710511-21
$1,729.75 /each
Franklin Submersible 4" Pump - FPS-1A-13TS, 3x415V PUFR95710511-33
$1,809.23 /each
Franklin Submersible 4" Pump - FPS-1A-17TS, 1x240V, Two Wire PUFR95710516-21
$1,912.08 /each
Franklin Submersible 4" Pump - FPS-1A-17TS, 1x240V, Three Wire c/w Starter PUFR95710516-31
$2,169.20 /each
Franklin Submersible 4" Pump - FPS-1A-17TS, 3x415V PUFR95710516-33
$1,977.53 /each
Franklin Submersible 4" Pump - FPS-1A-26TS
Franklin Submersible 4" Pump - FPS-1A-26TS PUFR95710521-21
$2,468.40 /each
Franklin Submersible 4" Pump - FPS-1A-26TS, 1x240V, Three Wire c/w Starter PUFR95710521-31
$2,594.63 /each
Franklin Submersible 4" Pump - FPS-1A-26TS, 3x415V PUFR95710521-33
$2,342.18 /each
Franklin Submersible 4" Pump - FPS-1A-35TS, 1x240V, Three Wire c/w Starter PUFR95710526-31
$2,837.73 /each
Franklin Submersible 4" Pump - FPS-1A-35TS, 3x415V PUFR95710526-33
$2,416.98 /each
