STORMWATER JUNCTIONS

PVC stormwater junctions connect a branch line into the main stormwater pipeline at 45°, with standard and reducing configurations available.

✓ 45° Branch Connection
✓ Three Female Stormwater Sockets
✓ Standard & Reducing Junction Designs
✓ Straight-Through Main Run
✓ Solvent Weld / SWJ Connections
✓ Suitable for Non-Pressure Stormwater Systems

Stormwater Pipe Dimensions
Stormwater PVC Jointing & Installation Guide

More Information
Product Specifications
Stormwater Junction 75mm 45°
STORMWATER JUNCTIONS
Stormwater Junction 75mm 45°
Stormwater Junction 75mm 45° SWJ45075
$12.90 /each
Stormwater Junction 90mm 45°
Stormwater Junction 90mm 45° SWJ45090
$5.03 /each
Stormwater Junction 150mm 45°
Stormwater Junction 150mm 45° SWJ45150
$20.94 /each
Stormwater Junction 225mm 45°
Stormwater Junction 225mm 45° SWJ45225
$98.40 /each
Stormwater Junction 300mm 45°
Stormwater Junction 300mm 45° SWJ45300
$284.82 /each
Stormwater Junction Reducing 225 mm x 150 mm 45
Stormwater Junction Reducing 225 mm x 150 mm 45 SWJ45225150
$78.33 /each
Stormwater Junction Reducing 300 mm x 225 mm 45
Stormwater Junction Reducing 300 mm x 225 mm 45 SWJ45300225
$308.97 /each

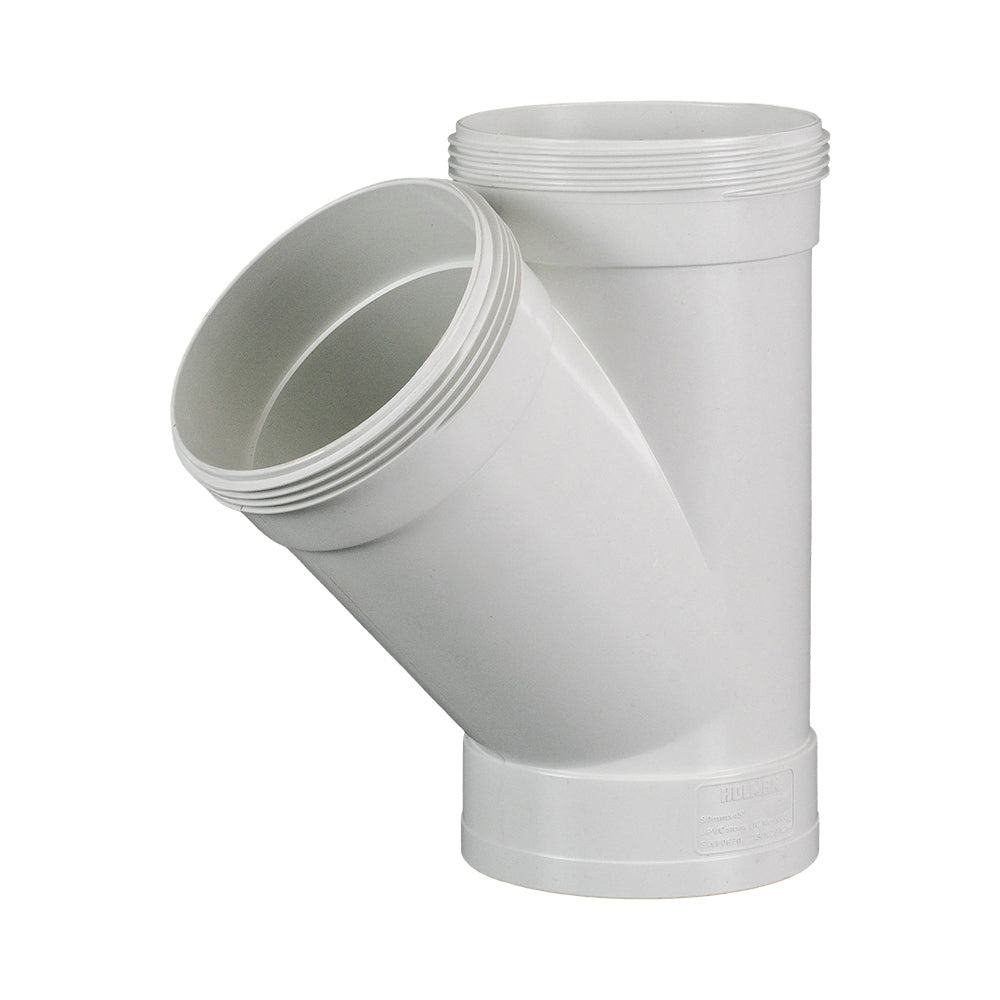

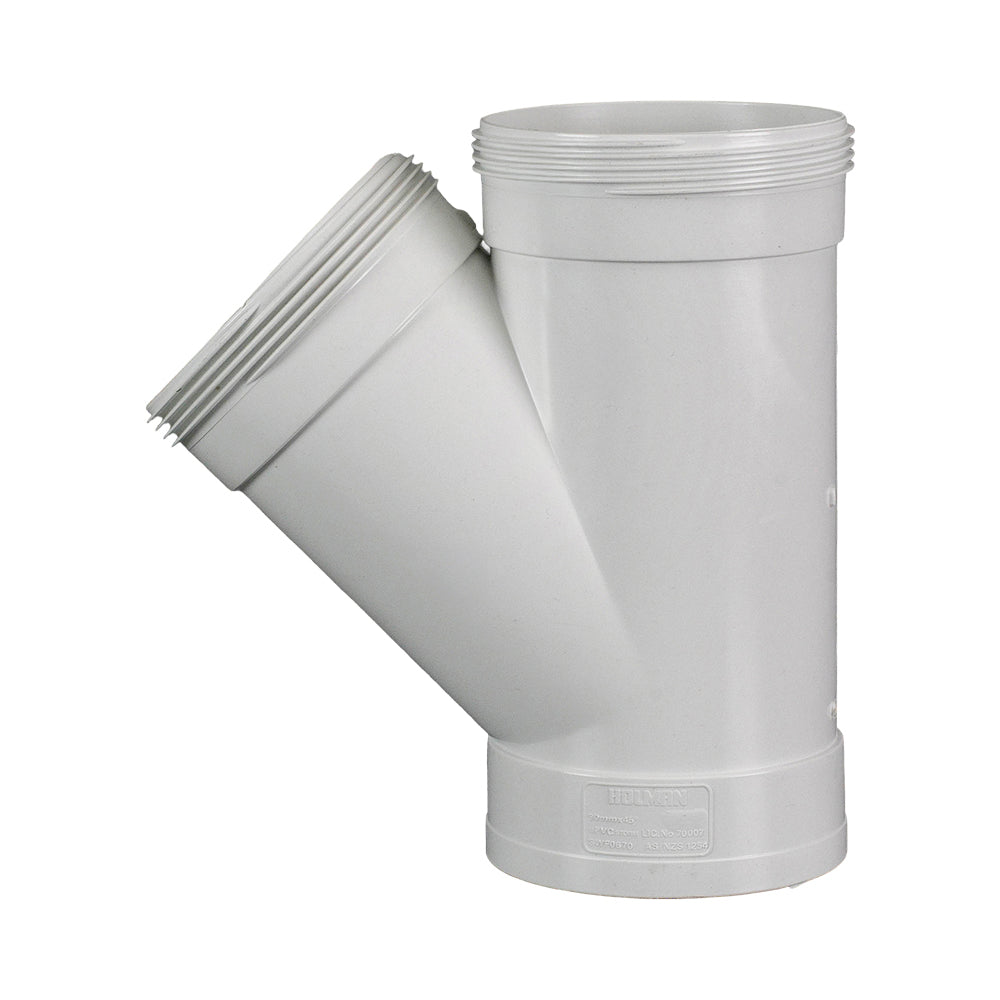

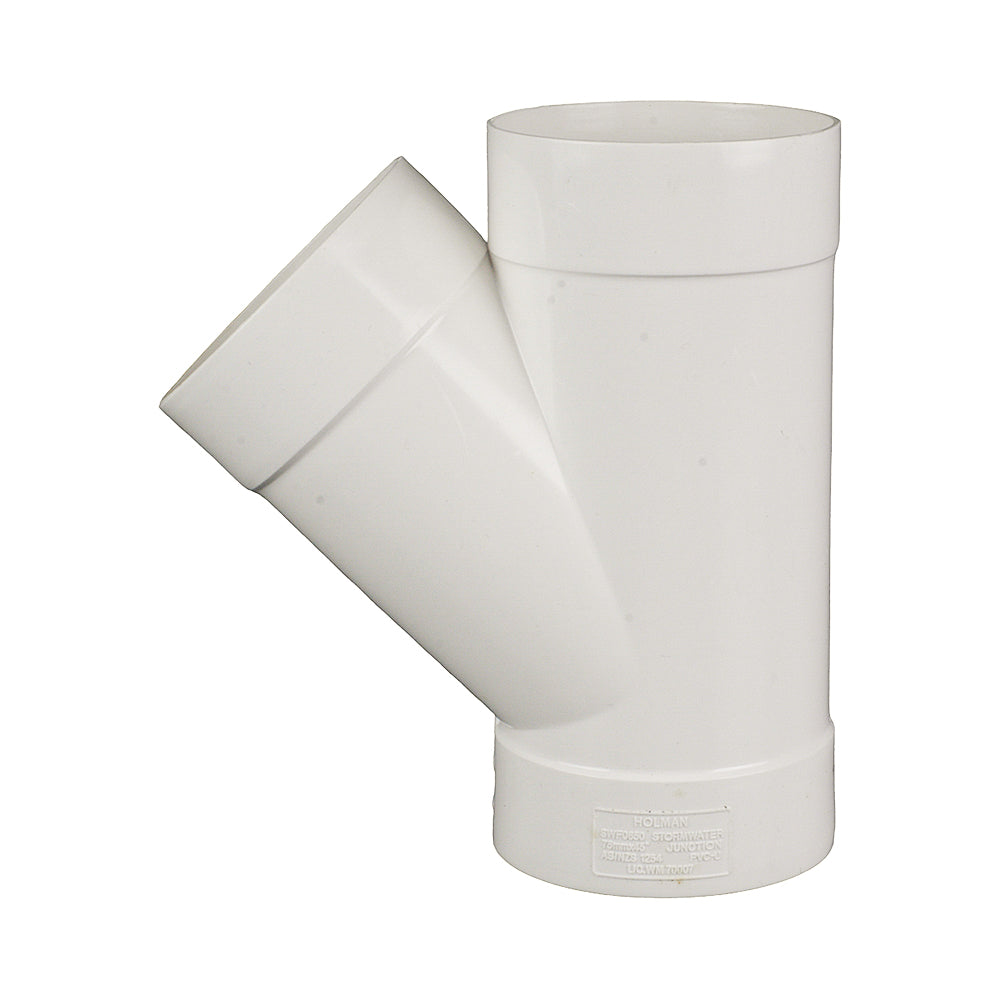

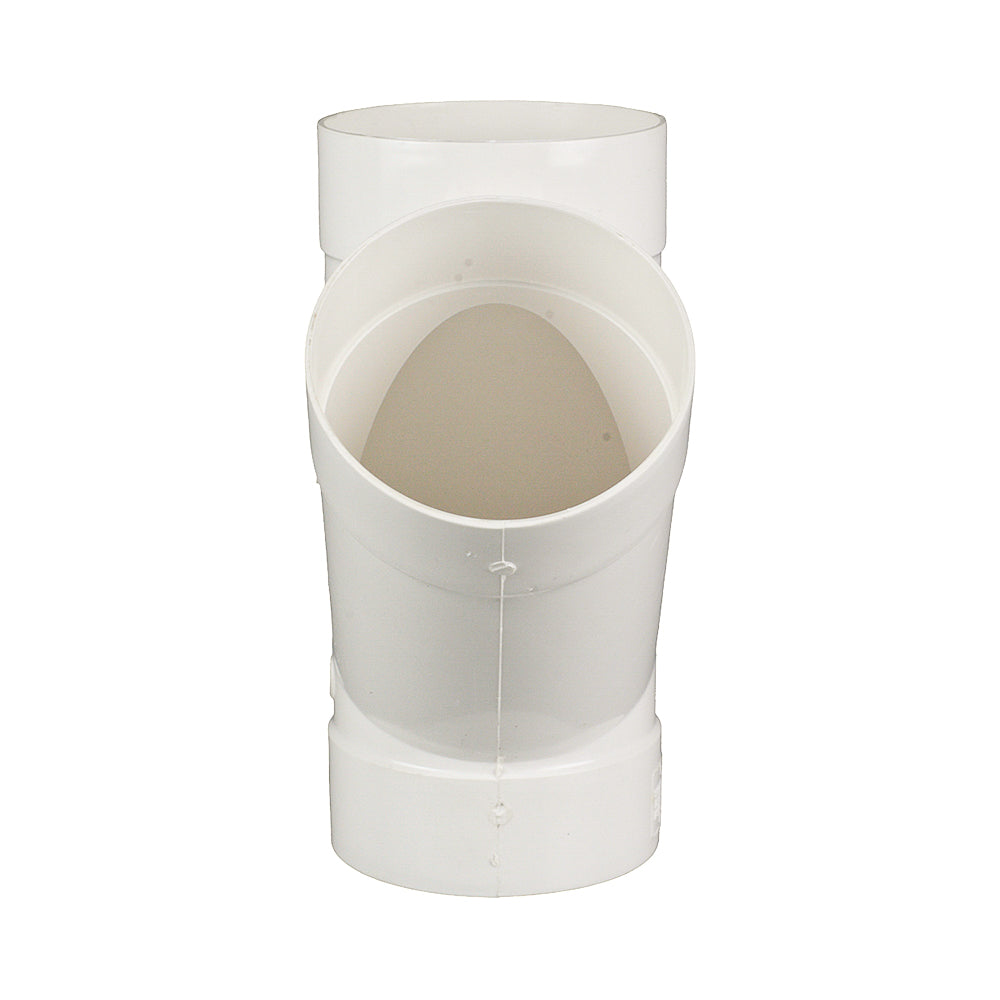

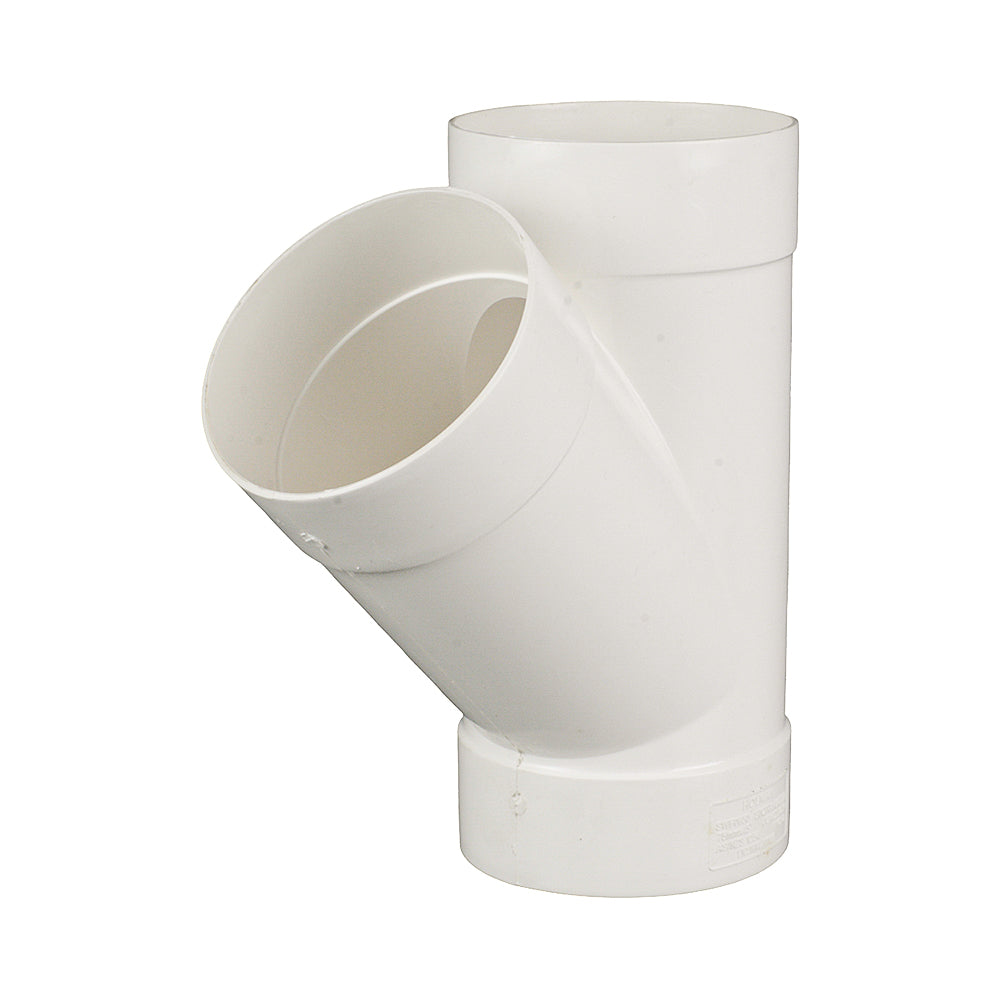

PVC stormwater junctions connect a branch pipe to a main line at 45°.

Each junction has three female sockets that fit over matching PVC stormwater pipe. Two form the main run and the third forms the branch.

Equal junctions have the same nominal size through the main run and branch. Reducing junctions have a smaller branch; the first stated size identifies the main run and the second identifies the branch.

Connections are joined using PVC priming fluid and suitable non-pressure PVC solvent cement. This is known as a solvent weld joint, or SWJ.

Suitable for non-pressure PVC stormwater and surface-water drainage systems.

Stormwater Pipe Dimensions
Stormwater PVC Jointing & Installation Guide

✓ Product Type & Size
PVC Stormwater Junction 45° (Female Main Socket x Female Main Socket x Female Branch Socket).

✓ Connections
Three female sockets fit over matching pipe, with a 45° branch.

✓ Equal & Reducing Junctions
Equal junctions have matching main-run and branch sizes. Reducing junctions have a smaller branch; the first size is the main run and the second is the branch.

✓ Joining
Connections are joined using PVC priming fluid and suitable non-pressure PVC solvent cement. This is known as a solvent weld joint, or SWJ.

✓ Material & Application
PVC-U. Suitable for non-pressure PVC stormwater and surface-water drainage systems.
