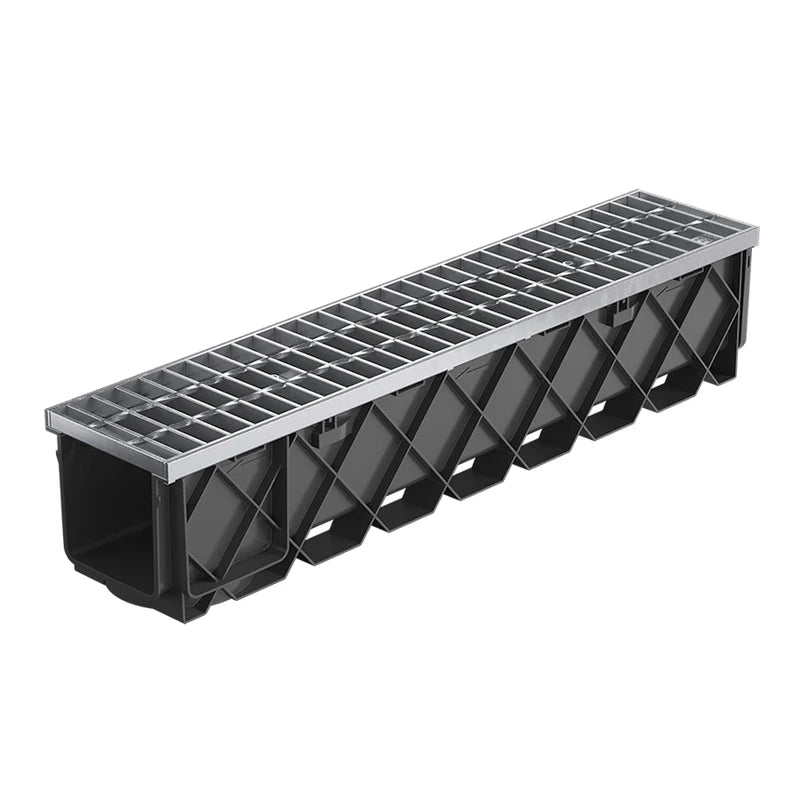

Reln Storm MastaChannel and Grate Galvanised Steel Class B 1m (L) x 273mm (W) x 263mm (D) STOCK
Reln Storm MastaChannel and Grate Galvanised Steel Class B 1m (L) x 273mm (W) x 263mm (D) STOCK

RELN STORM MASTA COMMERCIAL DRAINAGE CHANNELS AND FITTINGS

RELN Storm Masta commercial-sized drainage channel and end cap accessory for large domestic, light commercial and selected trafficable surfacewater drainage layouts.

✓ Commercial-Sized Storm Masta Range
✓ 1000mm x 273mm x 263mm Channel Size
✓ Deep 200mm Internal Profile
✓ Galvanised Steel Class B Grate Option
✓ End Cap Accessory Available
✓ Check Load Rating and Installation Requirements

RELN Storm Masta Brochure

More Information
Product Specifications
Reln Storm MastaChannel and Grate Galvanised Steel Class B 1m (L) x 273mm (W) x 263mm (D) STOCK
RELN STORM MASTA COMMERCIAL DRAINAGE CHANNELS AND FITTINGS
Reln Storm MastaChannel and Grate Galvanised Steel Class B 1m (L) x 273mm (W) x 263mm (D) STOCK
Reln Storm MastaChannel and Grate Galvanised Steel Class B 1m (L) x 273mm (W) x 263mm (D) STOCK RSMSCANDG1MGS
$419.77 /each
Storm Masta End Cap **LIMITED STOCK**
Storm Masta End Cap **LIMITED STOCK** RSMSAEC
$28.05 /each

RELN Storm Masta commercial drainage channels and fittings are used for large domestic, light commercial and selected trafficable surfacewater drainage applications where higher water flow needs to be collected through a deep channel profile. This range includes the Storm Masta 1m channel with galvanised steel Class B grate and the matching end cap accessory.

The Storm Masta channel measures 1000mm long x 273mm wide x 263mm deep and has a deep 200mm internal profile. Load suitability depends on the selected grate, correct installation, concrete support, pavement type and site loading conditions. Confirm channel layout, outlet connection, end cap requirements and installation details before ordering.

RELN Storm Masta Brochure

✓ Product Type & Size
RELN Storm Masta commercial drainage channel and fitting range.

✓ Series
RELN Storm Masta commercial-sized surfacewater drainage system.

✓ Channel Size
Storm Masta channel measures 1000mm long x 273mm wide x 263mm deep.

✓ Channel Profile
Deep 200mm internal profile for higher surfacewater flow.

✓ Grate Option
Available in this range with galvanised steel Class B grate.

✓ Accessory Option
Storm Masta end cap available for closing the end of a compatible channel run.

✓ Material
Strong, durable UV stabilised polypropylene channel body. Grate and accessory material varies by product.

✓ Pipe Connection
Bottom outlet available in the 1m channel where suitable for the drainage layout.

✓ Applications
Suitable for large domestic, light commercial and selected trafficable surfacewater drainage applications where the selected grate and installation method suit the site requirements.

✓ Installation Note
Confirm channel layout, outlet connection, grate class, end cap requirements, concrete support, pavement type and site loading conditions before ordering.
