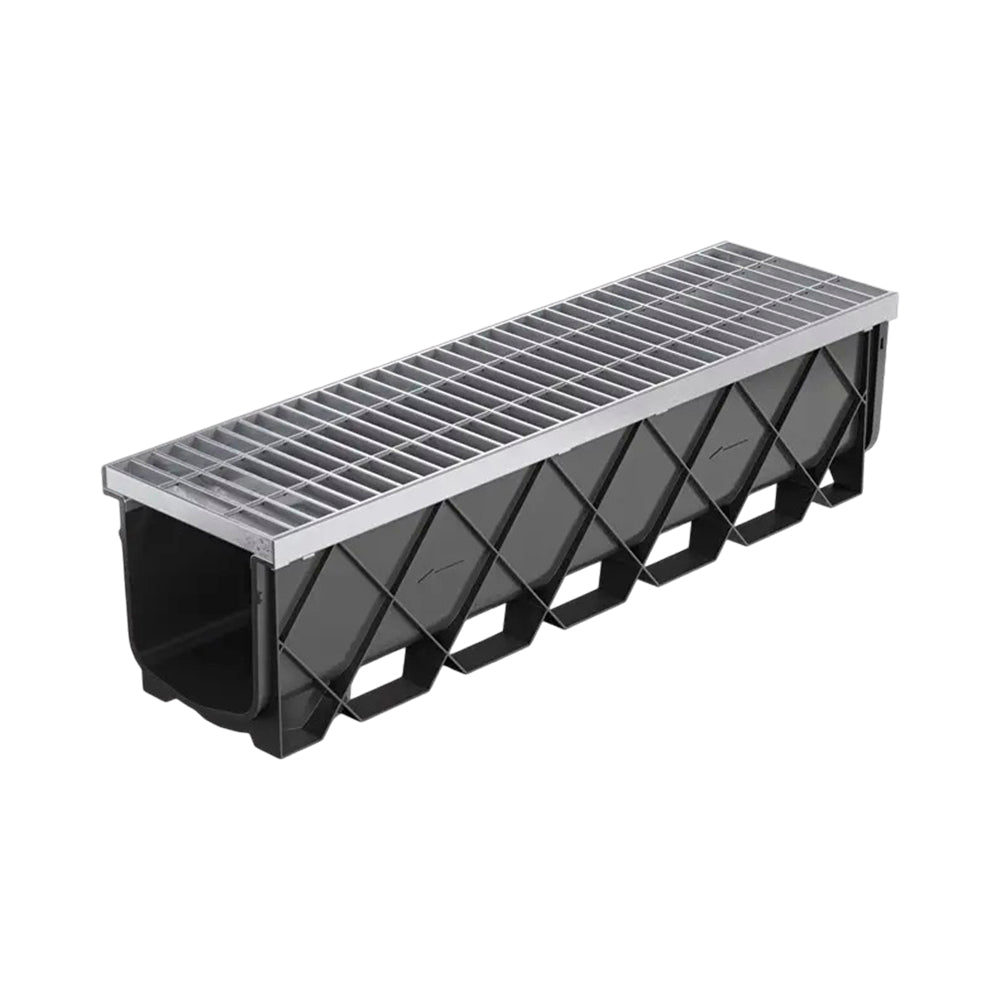

Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D)
Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D)
Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D)
Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D)
Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D)
Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D)

RELN STORM DRAIN PRO SERIES 200 CHANNELS AND ACCESSORIES

RELN Storm Drain Pro Series 200 channel and end cap accessories for large domestic, driveway, carpark and light commercial surfacewater drainage layouts.

✓ Series 200 Storm Drain Pro Range
✓ 1000mm x 269mm x 266mm Channel Size
✓ Galvanised Steel Class B Grate Option
✓ DN150mm Bottom Outlet Pipe Size
✓ End Cap Accessory Available
✓ Check Load Rating and Installation Requirements

RELN Storm Drain Pro Series Brochure

RELN Storm Drain Pro Series Complete Trade Range Flyer

RELN Storm Drain Pro Flyer

RELN Storm Drain Pro Installation Guide

More Information
Product Specifications
Product Videos
Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D)
RELN STORM DRAIN PRO SERIES 200 CHANNELS AND ACCESSORIES
Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D)
Reln Storm Drain PRO - Series 200 - Channel and Grate Galvanised Steel Class B (1000mm L x 269mm W x 266mm D) RSDPCG1MGS
$283.14 /each
Reln Storm Drain PRO - Series 200 - End Cap
Reln Storm Drain PRO - Series 200 - End Cap RSDPAEC
$28.98 /each

RELN Storm Drain Pro Series 200 is a large profile trade surfacewater drainage channel system for driveways, light commercial carparks, high rainfall areas, residential carparks, steep driveways and large volume surfacewater drainage applications. This range includes the Series 200 channel with galvanised steel Class B grate and the Series 200 end cap accessory.

The Series 200 channel measures 1000mm long x 269mm wide x 266mm deep and uses a DN150mm bottom outlet pipe size. Load suitability depends on the selected grate, correct installation, pavement type, reinforced concrete support and site loading conditions. Confirm channel layout, outlet position, end cap requirements and installation details before ordering.

RELN Storm Drain Pro Series Brochure

RELN Storm Drain Pro Series Complete Trade Range Flyer

RELN Storm Drain Pro Flyer

RELN Storm Drain Pro Installation Guide

✓ Product Type & Size
RELN Storm Drain Pro Series 200 channel and accessory range.

✓ Series
RELN Storm Drain Pro Series 200.

✓ Channel Size
Series 200 channel measures 1000mm long x 269mm wide x 266mm deep.

✓ Channel Profile
Large 200mm internal profile for higher surfacewater flow.

✓ Grate Option

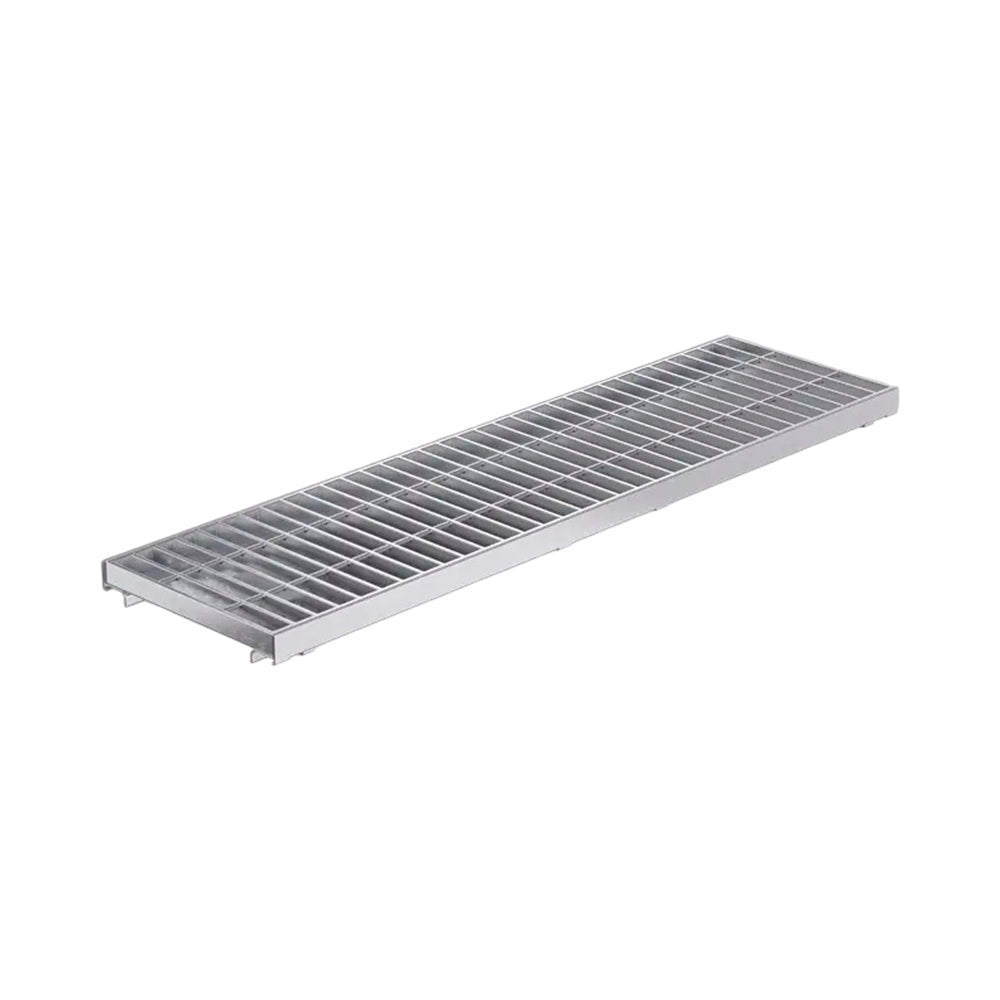

Available in this range with galvanised steel Class B grate.

✓ Outlet Size
DN150mm bottom outlet pipe size.

✓ Accessory Option
Series 200 end cap available for closing the end of a compatible channel run.

✓ Material

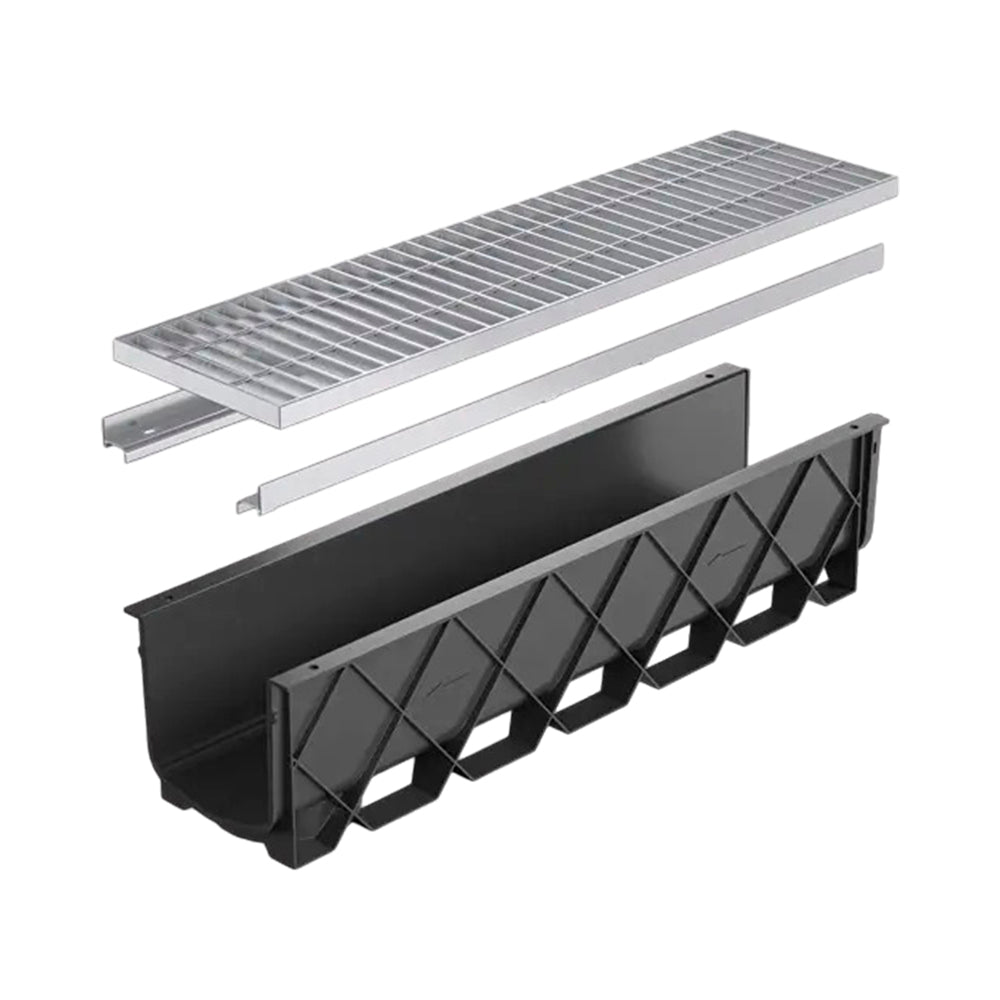

UV stabilised recycled plastic channel body with galvanised steel edge rails.

✓ Applications
Suitable for large domestic, driveway, high rainfall, residential carpark, steep driveway and light commercial surfacewater drainage applications where the selected grate and installation method are appropriate.

✓ Installation Note
Confirm channel layout, outlet position, grate class, end cap requirements, pavement type, reinforced concrete support and site loading conditions before ordering.
